WHIRLPOOL AWO/D 6707 W
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 6707 W |
| Kód 12NC: | 859250615000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | Q0914810000, 859250615001, Q0914810001, 859250615002, Q0914810002, 859250615007, Q0914810007 |
Potřebujete servis? Jsme tady pro Vás

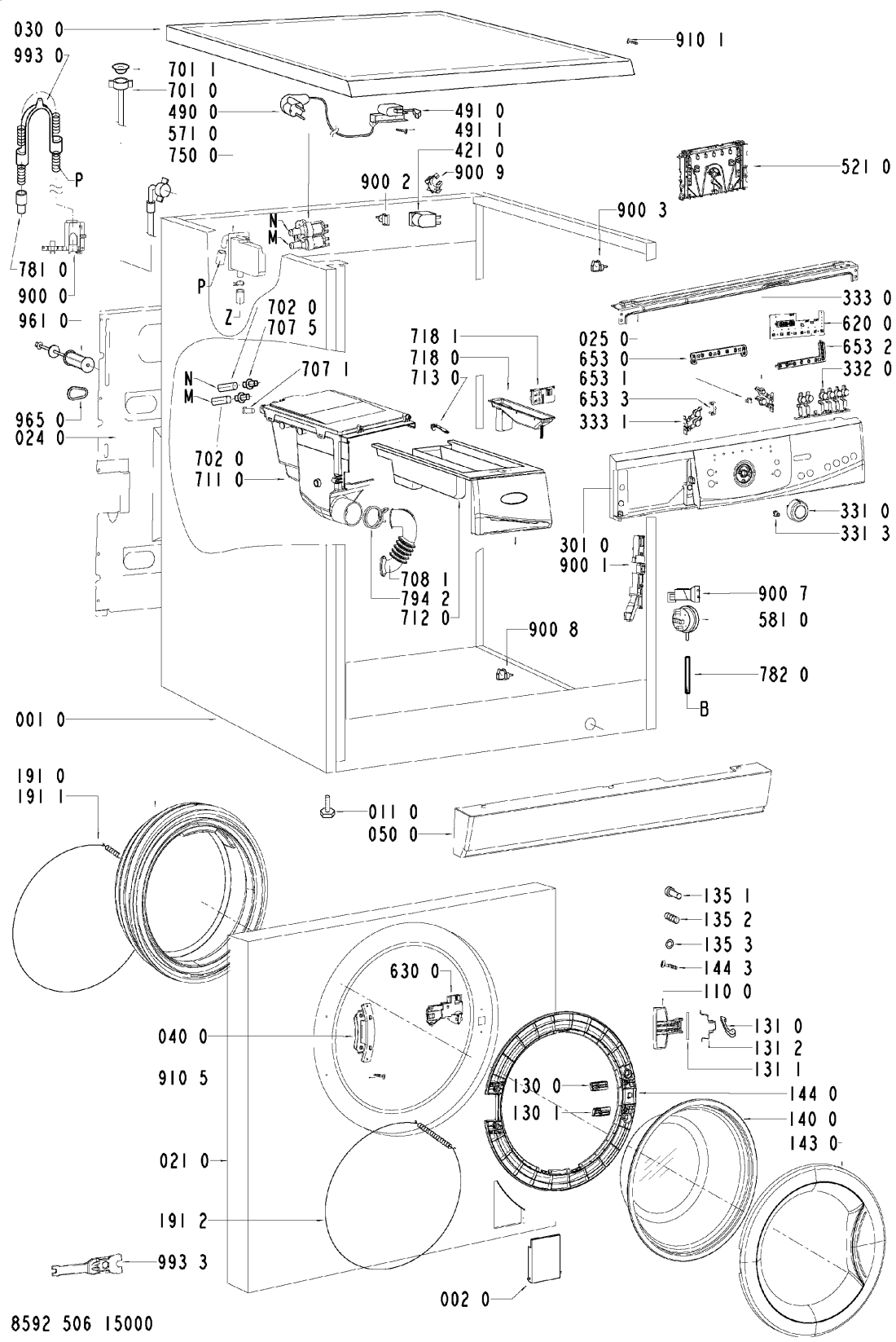

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR04200 |
C00328039
481244011538 |
skrin | 3 747 Kč
€ 147.90 |
||
| 002 0 WHR04200 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 011 0 WHR04200 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR04200 |
C00317173 | Front EBL | Na dotaz | Zadat poptávku | |
| 024 0 WHR04200 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 025 0 WHR04200 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR04200 |
C00328070
481244011661 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR04200 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR04200 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR04200 |
C00331509
481246688818 |
Counter weight upper 1600 | Na dotaz | Zadat poptávku | |
| 061 1 WHR04200 |
C00331510
481246688819 |
Counter weight bottom 1600 | Na dotaz | Zadat poptávku | |
| 061 3 WHR04200 |
C00320419
481231039135 |
Mounting kit weight top | Na dotaz | Zadat poptávku | |
| 061 4 WHR04200 |
C00331511
481246688821 |
Counter weight front 1600 | Na dotaz | Zadat poptávku | |
| 061 5 WHR04200 |
C00326732
481209498007 |
Mounting kit weight front, 1600 | Na dotaz | Zadat poptávku | |
| 081 0 WHR04200 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 084 0 WHR04200 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 2 WHR04200 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR04200 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR04200 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR04200 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR04200 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR04200 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR04200 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR04200 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR04200 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR04200 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR04200 |
C00331123
481245058983 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR04200 |
C00317155
481244011141 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| 144 0 WHR04200 |
C00317167
481244011575 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 144 3 WHR04200 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 191 0 WHR04200 |
C00311499
481246668841 |
Door bellow short 1600 EPDM | Na dotaz | Zadat poptávku | |
| 191 1 WHR04200 |
C00328913
481240118673 |
Strap 1600 | Na dotaz | Zadat poptávku | |
| 191 2 WHR04200 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR04200 |
C00329843
481241818608 |
Tub, half front 1600 | Na dotaz | Zadat poptávku | |
| 200 2 WHR04200 |
C00315926
481241818625 |
Tub, half 55L, 1400 rear | Na dotaz | Zadat poptávku | |
| 200 4 WHR04200 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR04200 |
C00316597
481241818609 |
Drum 1400 7kg | Na dotaz | Zadat poptávku | |
| 271 0 WHR04200 |
C00328555
481235818194 |
Belt POLY-5 1272 J 5 | Na dotaz | Zadat poptávku | |
| 272 0 WHR04200 |
C00313543
481252858041 |
remenice bubnu | 1 562 Kč
€ 61.70 |
||
| 272 3 WHR04200 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR04200 |
C00332635
481253058176 |
Gasket Tub 1600 | Na dotaz | Zadat poptávku | |
| 301 0 WHR04200 |
C00317884
481245217916 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR04200 |
C00310970
481241458306 |
Knoflík programátoru , volič programu AWO/D , AWE , AWZ | 149 Kč
€ 5.90 |
||
| 331 3 WHR04200 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 332 0 WHR04200 |
C00319911
481241029507 |
tlacitko | 730 Kč
€ 28.80 |
||
| 333 0 WHR04200 |
C00310977
481251318172 |
Tlačítko | 184 Kč
€ 7.30 |
||
| 333 1 WHR04200 |
C00312048
481241029401 |
tlacitko | 397 Kč
€ 15.70 |
||
| 400 0 WHR04200 |
C00311849
481236158429 |
motor BSH | 6 042 Kč
€ 238.50 |
||
| 400 1 WHR04200 |
C00332161
481250238381 |
Screw P 8x40 | Na dotaz | Zadat poptávku | |
| 409 0 WHR04200 |
C00311761
481236248434 |
Uhlíky motoru - pár 12,4x5x36 mm Whirlpool,Bosch - Siemens | 195 Kč
€ 7.70 |
||
| 421 0 WHR04200 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR04200 |
C00313238
481236018578 |
Čerpadlo vypouštěcí pračky Whirlpool, Bauknecht | 1 874 Kč
€ 74.00 |
||
| 451 0 WHR04200 |
C00311558
481225928922 |
Heating element 240V, 53l | Na dotaz | Zadat poptávku | |
| 480 0 WHR04200 |
C00312121
481232178351 |
Cable DOMINO-MOT 7 | Na dotaz | Zadat poptávku | |
| 490 0 WHR04200 |
C00311996
481232118264 |
Connect.cable UK | Na dotaz | Zadat poptávku | |
| 491 0 WHR04200 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 1 WHR04200 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR04200 |
C00316921
481221470144 |
programator | 3 346 Kč
€ 132.10 |
||
| 521 0 WHR04200 |
C00326982
481221470276 |
Control unit | Na dotaz | Zadat poptávku | |
| 571 0 WHR04200 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 581 0 WHR04200 |
C00311861
481227128585 |
Pressostat 50/25 INVENS. | Na dotaz | Zadat poptávku | |
| 620 0 WHR04200 |
C00314020
481223958075 |
Modul displeje pračky Whirlpool, Bauknecht | 3 973 Kč
€ 156.90 |
||
| 630 0 WHR04200 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 653 0 WHR04200 |
C00318312
481213418046 |
svetlovod | 471 Kč
€ 18.60 |
||
| 653 1 WHR04200 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.80 |
||
| 653 2 WHR04200 |
C00326841
481213448376 |
Light guide 6OPT-BIG WINDOW | Na dotaz | Zadat poptávku | |
| 653 3 WHR04200 |
C00319090
481213448362 |
svetlovod | 101 Kč
€ 4.00 |
||
| 691 0 WHR04200 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR04200 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR04200 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR04200 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 1 WHR04200 |
C00330775
481246279955 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 707 5 WHR04200 |
C00327352
481231019102 |
Tryska násypky pračky | 555 Kč
€ 21.90 |
||
| 708 1 WHR04200 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR04200 |
C00311070
481241868391 |
teleso nasypky | 2 237 Kč
€ 88.30 |
||
| 712 0 WHR04200 |
C00313225
481241868389 |
Zásuvka násypky | Na dotaz | Zadat poptávku | |
| 713 0 WHR04200 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR04200 |
C00317108
481252648241 |
Siphon | Na dotaz | Zadat poptávku | |
| 718 1 WHR04200 |
C00327868
481241868405 |
Separator detergent drawer | Na dotaz | Zadat poptávku | |
| 750 0 WHR04200 |
C00332561
481253049095 |
komora expanzni | 408 Kč
€ 16.10 |
||
| 753 1 WHR04200 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR04200 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR04200 |
C00318763
488000318763 |
Lock eco | Na dotaz | Zadat poptávku | |
| 754 2 WHR04200 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR04200 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 189 Kč
€ 7.50 |
||
| 781 0 WHR04200 |
C00314886
481253029355 |
hadice | Na dotaz | Zadat poptávku | |
| 782 0 WHR04200 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 4 WHR04200 |
C00314522
481253029392 |
Hose pump/tank | Na dotaz | Zadat poptávku | |
| 794 2 WHR04200 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR04200 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR04200 |
C00331035
481244138021 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR04200 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR04200 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR04200 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR04200 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR04200 |
C00315583 | Clamp hose | Na dotaz | Zadat poptávku | |
| 900 6 WHR04200 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR04200 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR04200 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 900 9 WHR04200 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 910 1 WHR04200 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR04200 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 910 6 WHR04200 |
C00332107
481250218678 |
Screw 10.9-M8X50-F | Na dotaz | Zadat poptávku | |
| 930 0 WHR04200 |
C00345871
481249238411 |
Spring,suspens. D38 | Na dotaz | Zadat poptávku | |
| 941 0 WHR04200 |
C00332296
481252028187 |
Bearing,ball 6207 2Z C3 | Na dotaz | Zadat poptávku | |
| 941 1 WHR04200 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 953 0 WHR04200 |
C00332636
481253058177 |
gufero 50x93x12,5/9 | 832 Kč
€ 32.80 |
||
| 961 0 WHR04200 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR04200 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 965 1 WHR04200 |
C00330742
481246278165 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 993 0 WHR04200 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR04200 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR04200 |
C00369087 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369088 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369089 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369226 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369227 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369228 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369229 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369230 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369231 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369232 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369233 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369234 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369235 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04200 |
C00369236 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
