WHIRLPOOL AWO/D 7453/S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWO/D 7453/S |
| Kód 12NC: | 859297829000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859297829006, 859297829007 |
Potřebujete servis? Jsme tady pro Vás

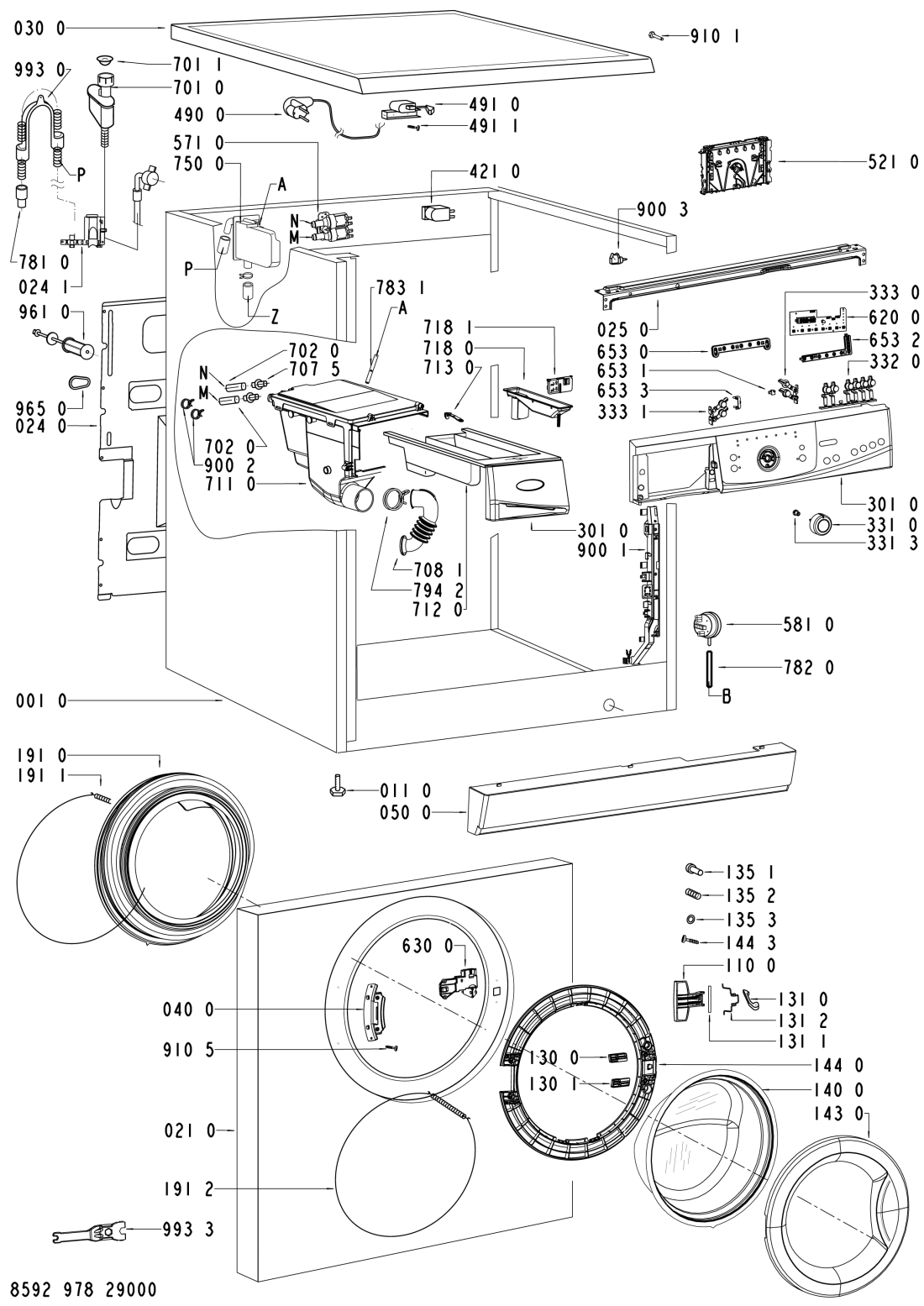

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR13504 |
C00328062
481244011647 |
Cabinet COD SILVER | Na dotaz | Zadat poptávku | |
| 0110 WHR13504 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 0210 WHR13504 |
C00328064
481244011649 |
Front COD silver | Na dotaz | Zadat poptávku | |
| 0240 WHR13504 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 0241 WHR13504 |
C00331035
481244138021 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 0250 WHR13504 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 0300 WHR13504 |
C00328063
481244011648 |
Table top SILVER 42/48 UBS possibl | Na dotaz | Zadat poptávku | |
| 0400 WHR13504 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 0500 WHR13504 |
C00328386
481244081183 |
plinth VBL silver | Na dotaz | Zadat poptávku | |
| 0610 WHR13504 |
C00313390
481246689017 |
Counter weight upper, Eureka 50-54l | Na dotaz | Zadat poptávku | |
| 0611 WHR13504 |
C00312633
481246689034 |
zavazi | 1 927 Kč
€ 76.10 |
||
| 0612 WHR13504 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 6.60 |
||
| 0810 WHR13504 |
C00313104
481246648088 |
Tlumič třecí pro předem plněné pračky Whirlpool | 105 Kč
€ 4.10 |
||
| 0840 WHR13504 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 0862 WHR13504 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 1100 WHR13504 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 1300 WHR13504 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 1301 WHR13504 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 1310 WHR13504 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 1311 WHR13504 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 1312 WHR13504 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 1351 WHR13504 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 1352 WHR13504 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 1353 WHR13504 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 1400 WHR13504 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 1430 WHR13504 |
C00314758
481244011772 |
sklo dveří | 1 424 Kč
€ 56.20 |
||
| 1440 WHR13504 |
C00313481
481244011139 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 1443 WHR13504 |
C00318393
481250218669 |
sroub pojistka dv. | 512 Kč
€ 20.20 |
||
| 1910 WHR13504 |
C00311125
481246068633 |
Těsnění dveří, manžeta do pračky Whirlpool, 481246068633 | 372 Kč
€ 14.70 |
||
| 1911 WHR13504 |
C00312650
481249218028 |
spona TVO - vnitřní | 163 Kč
€ 6.40 |
||
| 1912 WHR13504 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 2000 WHR13504 |
C00312326
480111100364 |
Wash unit | Na dotaz | Zadat poptávku | |
| 2230 WHR13504 |
C00313097
481241848987 |
drum lifter 54LT | Na dotaz | Zadat poptávku | |
| 2710 WHR13504 |
C00311514
481935818152 |
Řemen víceklínový 1248J5 | 631 Kč
€ 24.90 |
||
| 2720 WHR13504 |
C00314580
481252858044 |
Pulley Eureka/MR+HR | Na dotaz | Zadat poptávku | |
| 2723 WHR13504 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 3010 WHR13504 |
C00425582
480111100678 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 3310 WHR13504 |
C00318515
481241458326 |
Knoflík časovače | 671 Kč
€ 26.50 |
||
| 3313 WHR13504 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 3320 WHR13504 |
C00425583
480111100679 |
Push button 7 OPT.SILVER | Na dotaz | Zadat poptávku | |
| 3330 WHR13504 |
C00317090
481251318181 |
Push button START/RST SILVER | Na dotaz | Zadat poptávku | |
| 3331 WHR13504 |
C00318509
481251318187 |
Push button Options silver BW | Na dotaz | Zadat poptávku | |
| 4000 WHR13504 |
C00311155
480111100362 |
motor | 4 630 Kč
€ 182.80 |
||
| 4001 WHR13504 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 4090 WHR13504 |
C00311255
481236248442 |
Brush,carbon ACC sub 481281719419 | Na dotaz | Zadat poptávku | |
| 4210 WHR13504 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 4300 WHR13504 |
C00313045
481236018559 |
Pump | Na dotaz | Zadat poptávku | |
| 4510 WHR13504 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 4800 WHR13504 |
C00313337
481232178412 |
vodic eureka 50lt | 1 365 Kč
€ 53.90 |
||
| 4900 WHR13504 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 4910 WHR13504 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 4911 WHR13504 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 5210 WHR13504 |
C00315056
480111100214 |
Control unit DOMINO C2I, basic | Na dotaz | Zadat poptávku | |
| 5210 WHR13504 |
C00312682
480111100361 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 5710 WHR13504 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 5810 WHR13504 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 6200 WHR13504 |
C00314020
481223958075 |
Modul displeje pračky Whirlpool, Bauknecht | 3 973 Kč
€ 156.90 |
||
| 6300 WHR13504 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 6530 WHR13504 |
C00318312
481213418046 |
svetlovod | 471 Kč
€ 18.60 |
||
| 6531 WHR13504 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.80 |
||
| 6532 WHR13504 |
C00320964
480111100366 |
Guide,light BigWin | Na dotaz | Zadat poptávku | |
| 6533 WHR13504 |
C00319090
481213448362 |
svetlovod | 101 Kč
€ 4.00 |
||
| 6910 WHR13504 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 7010 WHR13504 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 7011 WHR13504 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 7020 WHR13504 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 7075 WHR13504 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 7081 WHR13504 |
C00313076
481253049392 |
Hadice násypka-nádrž | 447 Kč
€ 17.60 |
||
| 7110 WHR13504 |
C00327875
481241868437 |
Dispenser Box | Na dotaz | Zadat poptávku | |
| 7120 WHR13504 |
C00312664
481241868415 |
Drawer | Na dotaz | Zadat poptávku | |
| 7130 WHR13504 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 7180 WHR13504 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 7181 WHR13504 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 7500 WHR13504 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 7540 WHR13504 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 607 Kč
€ 24.00 |
||
| 7541 WHR13504 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 7600 WHR13504 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 189 Kč
€ 7.50 |
||
| 7810 WHR13504 |
C00314886
481253029355 |
hadice | Na dotaz | Zadat poptávku | |
| 7820 WHR13504 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 3.70 |
||
| 7831 WHR13504 |
C00332488
481253029473 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 7834 WHR13504 |
C00315777
480111100312 |
Hose draining outlet,int. | Na dotaz | Zadat poptávku | |
| 7942 WHR13504 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 9001 WHR13504 |
C00327322
481229088123 |
Bracket eureka | Na dotaz | Zadat poptávku | |
| 9002 WHR13504 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 9003 WHR13504 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9004 WHR13504 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 9005 WHR13504 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 9101 WHR13504 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 9105 WHR13504 |
C00316731
481290308196 |
sroub | 67 Kč
€ 2.60 |
||
| 9300 WHR13504 |
C00345873
481249238421 |
Pružina nádrže | Na dotaz | Zadat poptávku | |
| 9610 WHR13504 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 9650 WHR13504 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 9930 WHR13504 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 9933 WHR13504 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR13504 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
