| Komerční kód: | AWO/D 8431 |
| Kód 12NC: | 859252929100 |
| I.C. kód: | 859252929107 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859252929100 |
Potřebujete servis? Jsme tady pro Vás

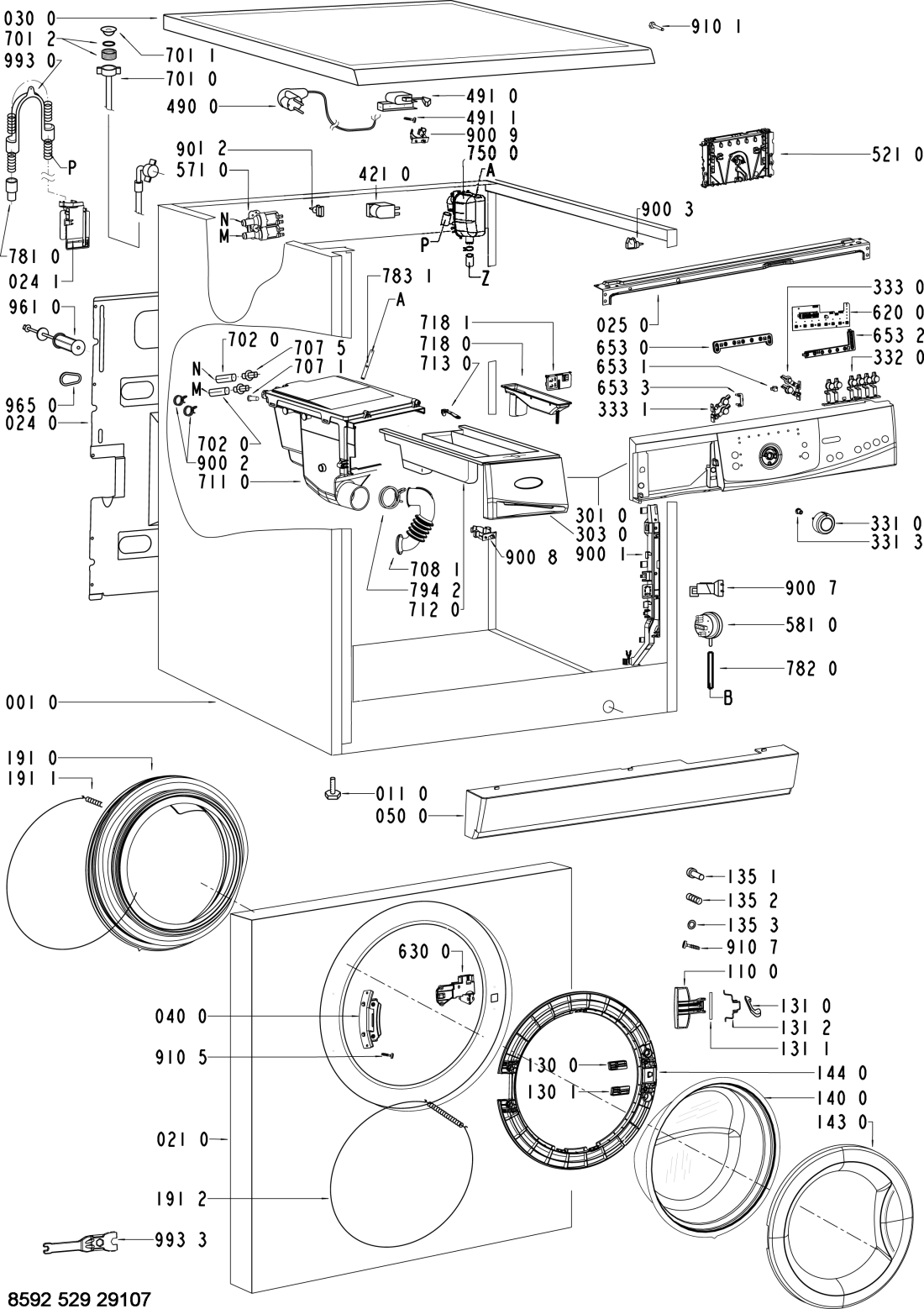

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR13192 |
C00321034
480111101727 |
skrin | 3 906 Kč
€ 154.20 |
||
| 002 0 WHR13192 |
C00316479
481244011131 |
kryt filtru | 213 Kč
€ 8.40 |
||
| 011 0 WHR13192 |
C00330679
481246248421 |
Adjust.foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR13192 |
C00459143
481244011639 |
PREDNY PANEL | Na dotaz | Zadat poptávku | |
| 024 0 WHR13192 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 024 1 WHR13192 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 025 0 WHR13192 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 030 0 WHR13192 |
C00328070
481244011661 |
deska horni | Na dotaz | Zadat poptávku | |
| 040 0 WHR13192 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR13192 |
C00313304
481244089097 |
sokl pracky EBL | 1 173 Kč
€ 46.30 |
||
| 061 0 WHR13192 |
C00321014
480111101567 |
Counter weight upper | Na dotaz | Zadat poptávku | |
| 061 1 WHR13192 |
C00331542
481246688981 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR13192 |
C00320419
481231039135 |
Mounting kit weight top | Na dotaz | Zadat poptávku | |
| 081 0 WHR13192 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 276 Kč
€ 10.90 |
||
| 084 0 WHR13192 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 110 0 WHR13192 |
C00314821
481249818361 |
Handle door | Na dotaz | Zadat poptávku | |
| 130 0 WHR13192 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR13192 |
C00318073
481241728108 |
podlozka | 619 Kč
€ 24.40 |
||
| 131 0 WHR13192 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR13192 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR13192 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR13192 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR13192 |
C00317024
481249148004 |
Pružina | 397 Kč
€ 15.70 |
||
| 135 3 WHR13192 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR13192 |
C00311241
481245059812 |
Sklo dveří | 1 741 Kč
€ 68.70 |
||
| 143 0 WHR13192 |
C00319330
481244011688 |
ram dveri | 1 569 Kč
€ 61.90 |
||
| 144 0 WHR13192 |
C00313481
481244011139 |
Frame door glas | Na dotaz | Zadat poptávku | |
| 191 0 WHR13192 |
C00311137
481246068617 |
Manžeta pračky Whilrlpool (TVO) Delta | 391 Kč
€ 15.40 |
||
| 191 1 WHR13192 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR13192 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR13192 |
C00313933
481241818626 |
Tub, half front 60L,8kg | Na dotaz | Zadat poptávku | |
| 200 2 WHR13192 |
C00314393
480111101645 |
Tub, half rear 1000/1400, 60L | Na dotaz | Zadat poptávku | |
| 220 0 WHR13192 |
C00311954
481241818682 |
Drum 1400,8kg -frej | Na dotaz | Zadat poptávku | |
| 271 0 WHR13192 |
C00313729
481235818212 |
Řemen vicekl. 1264J6 | 753 Kč
€ 29.70 |
||
| 272 0 WHR13192 |
C00315438
480111100924 |
remenice | 1 479 Kč
€ 58.40 |
||
| 292 0 WHR13192 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR13192 |
C00462967
481245311097 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR13192 |
C00318086
481245310477 |
Čelo násypky pračky Whirlpool | 1 396 Kč
€ 55.10 |
||
| 331 0 WHR13192 |
C00310970
481241458306 |
Knoflík programátoru , volič programu AWO/D , AWE , AWZ | 149 Kč
€ 5.90 |
||
| 331 3 WHR13192 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 332 0 WHR13192 |
C00319911
481241029507 |
tlacitko | 730 Kč
€ 28.80 |
||
| 333 0 WHR13192 |
C00310977
481251318172 |
Tlačítko | 184 Kč
€ 7.30 |
||
| 333 1 WHR13192 |
C00312048
481241029401 |
tlacitko | 397 Kč
€ 15.70 |
||
| 400 0 WHR13192 |
C00315064
481236158502 |
Motor ACC U126 G65 8kg 1400 | Na dotaz | Zadat poptávku | |
| 400 1 WHR13192 |
C00332114
481250218737 |
Screw 8x38 | Na dotaz | Zadat poptávku | |
| 409 0 WHR13192 |
C00311255
481236248442 |
Brush,carbon ACC sub 481281719419 | Na dotaz | Zadat poptávku | |
| 421 0 WHR13192 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR13192 |
C00313238
481236018578 |
Čerpadlo vypouštěcí pračky Whirlpool, Bauknecht | 1 874 Kč
€ 74.00 |
||
| 451 0 WHR13192 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 480 0 WHR13192 |
C00313012
480111100719 |
Kabeláž Motor 7-pole DOMINO | 1 070 Kč
€ 42.20 |
||
| 490 0 WHR13192 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR13192 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR13192 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR13192 |
C00314902
481221470682 |
programator | Na dotaz | Zadat poptávku | |
| 521 0 WHR13192 |
C00426213
480111101737 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR13192 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 581 0 WHR13192 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 620 0 WHR13192 |
C00312517
481223958061 |
jednotka ovladaci | 3 973 Kč
€ 156.90 |
||
| 630 0 WHR13192 |
C00311250
481228058048 |
Door lock Rold DA069516 | Na dotaz | Zadat poptávku | |
| 653 0 WHR13192 |
C00318312
481213418046 |
svetlovod | 471 Kč
€ 18.60 |
||
| 653 1 WHR13192 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.80 |
||
| 653 2 WHR13192 |
C00455023
481213448384 |
Light guide 6OPT-SMALL WINDOW-HIGH | Na dotaz | Zadat poptávku | |
| 653 3 WHR13192 |
C00326842
481213448378 |
Light guide ALARMS-LED-HR | Na dotaz | Zadat poptávku | |
| 691 0 WHR13192 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR13192 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 701 1 WHR13192 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 702 0 WHR13192 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 707 1 WHR13192 |
C00330775
481246279955 |
Threaded cap for dispenser | Na dotaz | Zadat poptávku | |
| 707 5 WHR13192 |
C00327352
481231019102 |
Tryska násypky pračky | 555 Kč
€ 21.90 |
||
| 708 1 WHR13192 |
C00313009
481253048143 |
hadice k násypce pračky Whirlpool uz nebude !!!! | Na dotaz | Zadat poptávku | |
| 711 0 WHR13192 |
C00311070
481241868391 |
teleso nasypky | 2 237 Kč
€ 88.30 |
||
| 712 0 WHR13192 |
C00320425
481241868436 |
Drawer | Na dotaz | Zadat poptávku | |
| 713 0 WHR13192 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 718 0 WHR13192 |
C00327923
481241889098 |
Siphon blue | Na dotaz | Zadat poptávku | |
| 718 1 WHR13192 |
C00332364
481252648272 |
Separator blue | Na dotaz | Zadat poptávku | |
| 750 0 WHR13192 |
C00312027
480111100202 |
Chamber Expand | Na dotaz | Zadat poptávku | |
| 753 1 WHR13192 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR13192 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR13192 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR13192 |
C00332452
481253029352 |
Příruba eco AWT,AWO/D | 539 Kč
€ 21.30 |
||
| 760 0 WHR13192 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR13192 |
C00311863
480111100342 |
Vypouštěcí hadice pračky Whirlpool, Bauknecht | 693 Kč
€ 27.40 |
||
| 782 0 WHR13192 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR13192 |
C00312415
480111100207 |
Hadička násypka/nádrž | 481 Kč
€ 19.00 |
||
| 783 4 WHR13192 |
C00321033
480111101626 |
Hose pump/tank | Na dotaz | Zadat poptávku | |
| 794 2 WHR13192 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 794 5 WHR13192 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 1 WHR13192 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR13192 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR13192 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR13192 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR13192 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR13192 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR13192 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR13192 |
C00320945
480111100143 |
Holder hose right | Na dotaz | Zadat poptávku | |
| 900 9 WHR13192 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 901 2 WHR13192 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 910 1 WHR13192 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 5 WHR13192 |
C00332781
481290308014 |
sroub M5x16 H | 89 Kč
€ 3.50 |
||
| 910 6 WHR13192 |
C00312157
481250218815 |
Šroub | 129 Kč
€ 5.10 |
||
| 910 7 WHR13192 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR13192 |
C00345871
481249238411 |
Spring,suspens. D38 | Na dotaz | Zadat poptávku | |
| 941 0 WHR13192 |
C00332295
481252028186 |
Ložisko 6208 SKF 2Z, 6208 2Z C3 | 986 Kč
€ 38.90 |
||
| 941 1 WHR13192 |
C00317100
481252028071 |
Ložisko 6305 2Z C3 GJN (SKF) | 425 Kč
€ 16.80 |
||
| 953 0 WHR13192 |
C00332636
481253058177 |
gufero 50x93x12,5/9 | 832 Kč
€ 32.80 |
||
| 965 0 WHR13192 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR13192 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR13192 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR13192 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
