| Komerční kód: | AWOE 1409 |
| Kód 12NC: | 859200180010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859200180014 |
Potřebujete servis? Jsme tady pro Vás

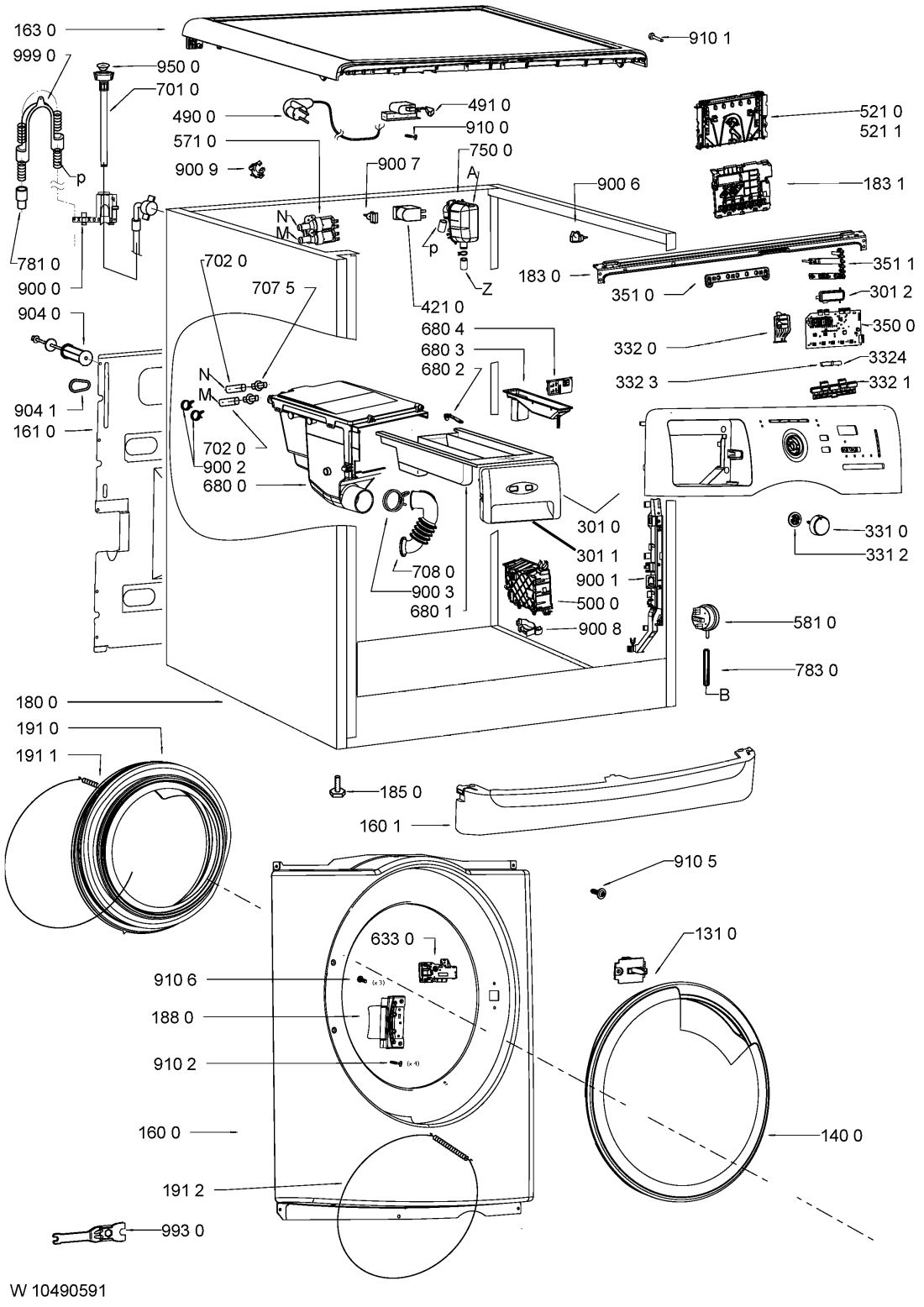

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1310 WHR13984 |
C00311867
480111100211 |
kolik uzamykaci | Na dotaz | Zadat poptávku | |
| 1400 WHR13984 |
C00317402
480111100208 |
dvere | Na dotaz | Zadat poptávku | |
| 1600 WHR13984 |
C00313270
480111100198 |
stena predni | 3 265 Kč
€ 128.90 |
||
| 1601 WHR13984 |
C00316812
480111100234 |
Plinth Eureka 490 | Na dotaz | Zadat poptávku | |
| 1610 WHR13984 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 1630 WHR13984 |
C00312507
480111100218 |
deska horni | Na dotaz | Zadat poptávku | |
| 1800 WHR13984 |
C00319115
481074652392 |
Cabinet | Na dotaz | Zadat poptávku | |
| 1810 WHR13984 |
C00311556
480111100195 |
tlumič pračky Whirlpool AWOE | 276 Kč
€ 10.90 |
||
| 1820 WHR13984 |
C00314406
480111100193 |
Závaží horní | 2 207 Kč
€ 87.10 |
||
| 1821 WHR13984 |
C00315057
480111101399 |
Závaží spodní | 1 615 Kč
€ 63.80 |
||
| 1822 WHR13984 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 6.60 |
||
| 1830 WHR13984 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 1831 WHR13984 |
C00311631
480111100233 |
Držák modulu tlačítek pračky Whirlpool | 234 Kč
€ 9.20 |
||
| 1850 WHR13984 |
C00313162
481246248054 |
Noha pračky přední | 637 Kč
€ 25.10 |
||
| 1880 WHR13984 |
C00314881
480111100209 |
Hinge Eureka 490 | Na dotaz | Zadat poptávku | |
| 1910 WHR13984 |
C00311135
480111100188 |
Těsnění dveří pračky (TVO) | 728 Kč
€ 28.70 |
||
| 1911 WHR13984 |
C00311853
480111100191 |
Spona těsnění dveří pračky (TVO) | 401 Kč
€ 15.80 |
||
| 1912 WHR13984 |
C00311661
480111100189 |
Ring Bellow-Panel, Eureka 490 | Na dotaz | Zadat poptávku | |
| 2000 WHR13984 |
C00311148
480111102416 |
Nádrž kompletní | Na dotaz | Zadat poptávku | |
| 2230 WHR13984 |
C00310994
480111104173 |
Drum lifter 64l (L 278,5mm) 3pcs. | Na dotaz | Zadat poptávku | |
| 2710 WHR13984 |
C00313032
480111102198 |
Řemen vícekl. 1249J6 | 755 Kč
€ 29.80 |
||
| 2720 WHR13984 |
C00311999
480111102563 |
Řemenice bubnu | 1 067 Kč
€ 42.10 |
||
| 3010 WHR13984 |
C00436349
481010404296 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 3011 WHR13984 |
C00314338
480111101382 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 3012 WHR13984 |
C00320954
480111100223 |
Window | Na dotaz | Zadat poptávku | |
| 3310 WHR13984 |
C00312299
480111100229 |
Knoflik | 605 Kč
€ 23.90 |
||
| 3312 WHR13984 |
C00312359
480111100231 |
pouzdro | 459 Kč
€ 18.10 |
||
| 3320 WHR13984 |
C00312098
480111100221 |
Tlačítko start /reset | 264 Kč
€ 10.40 |
||
| 3321 WHR13984 |
C00312311
480111100224 |
tlacitka | 399 Kč
€ 15.80 |
||
| 3323 WHR13984 |
C00315021
480111100227 |
Button Start delay | Na dotaz | Zadat poptávku | |
| 3324 WHR13984 |
C00312159
480111100228 |
Button Temperature | Na dotaz | Zadat poptávku | |
| 3500 WHR13984 |
C00311597
480111100215 |
Module UI E7 | Na dotaz | Zadat poptávku | |
| 3510 WHR13984 |
C00320955
480111100232 |
Light guide Program flow | Na dotaz | Zadat poptávku | |
| 3511 WHR13984 |
C00319580
480111100222 |
Light guide spin speed/options | Na dotaz | Zadat poptávku | |
| 4000 WHR13984 |
C00314148
480111102413 |
motor | 4 861 Kč
€ 191.90 |
||
| 4210 WHR13984 |
C00326775
481212118282 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 4300 WHR13984 |
C00449140
481074656321 |
Pump draining 60 Hz | Na dotaz | Zadat poptávku | |
| 4510 WHR13984 |
C00311143
481225928823 |
Heating element 240 V + NTC | Na dotaz | Zadat poptávku | |
| 4800 WHR13984 |
C00317334
480111104511 |
Cable MCU-Motor | Na dotaz | Zadat poptávku | |
| 4900 WHR13984 |
C00311996
481232118264 |
Connect.cable UK | Na dotaz | Zadat poptávku | |
| 4910 WHR13984 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 5000 WHR13984 |
C00314130
480111102412 |
modul | 8 178 Kč
€ 322.90 |
||
| 5210 WHR13984 |
C00436375
481010404844 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 5211 WHR13984 |
C00374760
480111104637 |
programátor DOMINO | 3 752 Kč
€ 148.10 |
||
| 5710 WHR13984 |
C00311060
481227128558 |
Napouštěcí ventil pračky - dvoucestný, rohový | 764 Kč
€ 30.20 |
||
| 5810 WHR13984 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 6330 WHR13984 |
C00311157
480111101392 |
Blokování dveří předem plněné pračky Whirlpool | 671 Kč
€ 26.50 |
||
| 6800 WHR13984 |
C00313079
480111100333 |
teleso nasypky | 2 215 Kč
€ 87.40 |
||
| 6801 WHR13984 |
C00311522
480111100203 |
nasypka | Na dotaz | Zadat poptávku | |
| 6802 WHR13984 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 6803 WHR13984 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 6804 WHR13984 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 6910 WHR13984 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 7010 WHR13984 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 7020 WHR13984 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 7075 WHR13984 |
C00325528
481071016201 |
Nozzle inlet warm | Na dotaz | Zadat poptávku | |
| 7080 WHR13984 |
C00313076
481253049392 |
Hadice násypka-nádrž | 447 Kč
€ 17.60 |
||
| 7500 WHR13984 |
C00312027
480111100202 |
Chamber Expand | Na dotaz | Zadat poptávku | |
| 7540 WHR13984 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 607 Kč
€ 24.00 |
||
| 7541 WHR13984 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 7551 WHR13984 |
C00312415
480111100207 |
Hadička násypka/nádrž | 481 Kč
€ 19.00 |
||
| 7630 WHR13984 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 189 Kč
€ 7.50 |
||
| 7810 WHR13984 |
C00311863
480111100342 |
Vypouštěcí hadice pračky Whirlpool, Bauknecht | 693 Kč
€ 27.40 |
||
| 7811 WHR13984 |
C00312724
480111100206 |
Hadice | 699 Kč
€ 27.60 |
||
| 7830 WHR13984 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 3.70 |
||
| 7850 WHR13984 |
C00319405
480111105006 |
Hadice | 232 Kč
€ 9.20 |
||
| 9000 WHR13984 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 9001 WHR13984 |
C00320950
480111100204 |
Bracket cable, Eureka 490 | Na dotaz | Zadat poptávku | |
| 9002 WHR13984 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 9003 WHR13984 |
C00321158
480111104423 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 9004 WHR13984 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 9005 WHR13984 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 9006 WHR13984 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9007 WHR13984 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9008 WHR13984 |
C00320945
480111100143 |
Holder hose right | Na dotaz | Zadat poptávku | |
| 9009 WHR13984 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 9040 WHR13984 |
C00320953
480111100217 |
Safety device 54, 64 l | Na dotaz | Zadat poptávku | |
| 9041 WHR13984 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 9049 WHR13984 |
C00316582
480111101846 |
Silent bloc | 335 Kč
€ 13.20 |
||
| 9100 WHR13984 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 9101 WHR13984 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 9102 WHR13984 |
C00320952
480111100213 |
Screw M5x12 hinge-front | Na dotaz | Zadat poptávku | |
| 9103 WHR13984 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 9104 WHR13984 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 9105 WHR13984 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 112 Kč
€ 4.40 |
||
| 9106 WHR13984 |
C00321048
480111102164 |
Screw M5x13 | Na dotaz | Zadat poptávku | |
| 9300 WHR13984 |
C00320949
480111100197 |
pružina nádrže pračky Whirlpool | 440 Kč
€ 17.40 |
||
| 9500 WHR13984 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 9930 WHR13984 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR13984 |
C00352898 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR13984 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
