WHIRLPOOL AWOE 91400 STEAM WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWOE 91400 STEAM WP |
| Kód 12NC: | 859245786000 |
| I.C. kód: | 859245786003 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859245786000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

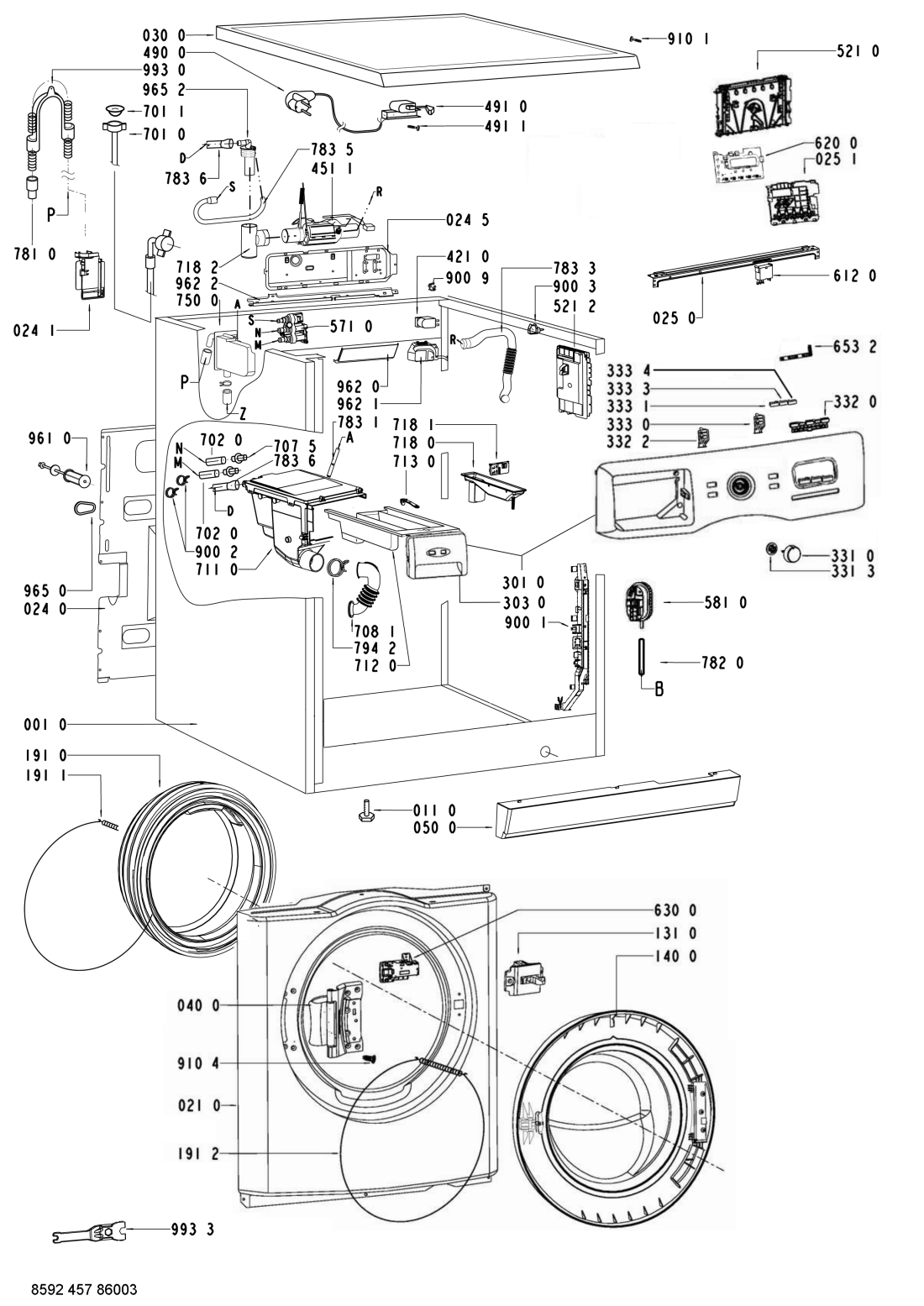

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR12710 |
C00320974
480111100657 |
skrin | 4 905 Kč
€ 193.60 |
||
| 0110 WHR12710 |
C00312325
480111101039 |
Adjust. foot Eureka 490 | Na dotaz | Zadat poptávku | |
| 0210 WHR12710 |
C00313270
480111100198 |
stena predni | 3 265 Kč
€ 128.90 |
||
| 0240 WHR12710 |
C00316521
481244011544 |
stena zadni | 2 053 Kč
€ 81.10 |
||
| 0241 WHR12710 |
C00320981
480111100785 |
Holder hose outlet | Na dotaz | Zadat poptávku | |
| 0245 WHR12710 |
C00328085
481244011745 |
Bracket MYST | Na dotaz | Zadat poptávku | |
| 0250 WHR12710 |
C00316513
481244011472 |
Support control board | Na dotaz | Zadat poptávku | |
| 0251 WHR12710 |
C00314275
480111102215 |
Support Display | Na dotaz | Zadat poptávku | |
| 0300 WHR12710 |
C00312507
480111100218 |
deska horni | Na dotaz | Zadat poptávku | |
| 0400 WHR12710 |
C00314881
480111100209 |
Hinge Eureka 490 | Na dotaz | Zadat poptávku | |
| 0500 WHR12710 |
C00316812
480111100234 |
Plinth Eureka 490 | Na dotaz | Zadat poptávku | |
| 0610 WHR12710 |
C00314406
480111100193 |
Závaží horní | 2 207 Kč
€ 87.10 |
||
| 0611 WHR12710 |
C00315057
480111101399 |
Závaží spodní | 1 615 Kč
€ 63.80 |
||
| 0612 WHR12710 |
C00312077
481231039249 |
sroub+podlozka | 167 Kč
€ 6.60 |
||
| 0810 WHR12710 |
C00313078
480111102361 |
Tlumič pračky Whirlpool FSCR | 209 Kč
€ 8.30 |
||
| 0840 WHR12710 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 1310 WHR12710 |
C00311268
480111101377 |
Hák dveří | Na dotaz | Zadat poptávku | |
| 1400 WHR12710 |
C00317757
480111101379 |
Door cpl. Eureka 490 HR black | Na dotaz | Zadat poptávku | |
| 1910 WHR12710 |
C00311135
480111100188 |
Těsnění dveří pračky (TVO) | 728 Kč
€ 28.70 |
||
| 1911 WHR12710 |
C00311853
480111100191 |
Spona těsnění dveří pračky (TVO) | 401 Kč
€ 15.80 |
||
| 1912 WHR12710 |
C00311661
480111100189 |
Ring Bellow-Panel, Eureka 490 | Na dotaz | Zadat poptávku | |
| 2000 WHR12710 |
C00313137
480111102276 |
Wash unit EUREKA 1400/64L, MYST | Na dotaz | Zadat poptávku | |
| 2230 WHR12710 |
C00311464
480111100186 |
Drum lifter sub 480111104173 | Na dotaz | Zadat poptávku | |
| 2710 WHR12710 |
C00313032
480111102198 |
Řemen vícekl. 1249J6 | 755 Kč
€ 29.80 |
||
| 2720 WHR12710 |
C00311999
480111102563 |
Řemenice bubnu | 1 067 Kč
€ 42.10 |
||
| 2723 WHR12710 |
C00313276
481250218817 |
sroub remenice | Na dotaz | Zadat poptávku | |
| 3010 WHR12710 |
C00427035
480111102843 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 3030 WHR12710 |
C00314338
480111101382 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 3310 WHR12710 |
C00312299
480111100229 |
Knoflik | 605 Kč
€ 23.90 |
||
| 3313 WHR12710 |
C00312359
480111100231 |
pouzdro | 459 Kč
€ 18.10 |
||
| 3320 WHR12710 |
C00312311
480111100224 |
tlacitka | 399 Kč
€ 15.80 |
||
| 3322 WHR12710 |
C00315070
480111102625 |
Button Opt. Steam | Na dotaz | Zadat poptávku | |
| 3330 WHR12710 |
C00312098
480111100221 |
Tlačítko start /reset | 264 Kč
€ 10.40 |
||
| 3331 WHR12710 |
C00316671
480111101436 |
Button Start delay | Na dotaz | Zadat poptávku | |
| 3333 WHR12710 |
C00317098
480111101437 |
tlacitko | 187 Kč
€ 7.40 |
||
| 3334 WHR12710 |
C00320878
480111101438 |
tlacitko | 211 Kč
€ 8.30 |
||
| 4000 WHR12710 |
C00311155
480111100362 |
motor | 4 630 Kč
€ 182.80 |
||
| 4001 WHR12710 |
C00332143
481250218816 |
Screw P8x50 | Na dotaz | Zadat poptávku | |
| 4090 WHR12710 |
C00311010
481281719419 |
Uhlíky motoru | 812 Kč
€ 32.10 |
||
| 4210 WHR12710 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 4300 WHR12710 |
C00311151
480111101394 |
Pump Eureka 490, EM Outlet | Na dotaz | Zadat poptávku | |
| 4510 WHR12710 |
C00456493
481225928918 |
Grzałka | Na dotaz | Zadat poptávku | |
| 4511 WHR12710 |
C00327203
481225998591 |
topeni | 4 872 Kč
€ 192.30 |
||
| 4800 WHR12710 |
C00313012
480111100719 |
Kabeláž Motor 7-pole DOMINO | 1 070 Kč
€ 42.20 |
||
| 4900 WHR12710 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 4910 WHR12710 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 4911 WHR12710 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 5210 WHR12710 |
C00312084
480111103802 |
Control unit WAVE,TCP K3M TF/HF,basic | Na dotaz | Zadat poptávku | |
| 5210 WHR12710 |
C00427945
480111104332 |
Control unit WAVE, programmed | Na dotaz | Zadat poptávku | |
| 5212 WHR12710 |
C00312477
480111101393 |
jednotka parni | 3 622 Kč
€ 143.00 |
||
| 5710 WHR12710 |
C00311493
481227128592 |
ventil triple | 1 510 Kč
€ 59.60 |
||
| 5810 WHR12710 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 8.60 |
||
| 6120 WHR12710 |
C00320136
481203618931 |
Relay MYST | Na dotaz | Zadat poptávku | |
| 6200 WHR12710 |
C00311652
480111101428 |
displej | 3 820 Kč
€ 150.80 |
||
| 6300 WHR12710 |
C00311157
480111101392 |
Blokování dveří předem plněné pračky Whirlpool | 671 Kč
€ 26.50 |
||
| 6532 WHR12710 |
C00318145
480111101435 |
Light guide | Na dotaz | Zadat poptávku | |
| 6910 WHR12710 |
C00311893
480111100607 |
senzor NTC | Na dotaz | Zadat poptávku | |
| 6911 WHR12710 |
C00312100
481246688708 |
tesneni NTC | 416 Kč
€ 16.40 |
||
| 7010 WHR12710 |
C00314963
481953028848 |
hadicenapousteci | 1 331 Kč
€ 52.50 |
||
| 7011 WHR12710 |
C00316490
481946669704 |
tesneni + sitko | 328 Kč
€ 12.90 |
||
| 7020 WHR12710 |
C00315519
481253029405 |
hadice od ventilu | 224 Kč
€ 8.80 |
||
| 7075 WHR12710 |
C00332326
481252648035 |
Nozzle warm | Na dotaz | Zadat poptávku | |
| 7081 WHR12710 |
C00313076
481253049392 |
Hadice násypka-nádrž | 447 Kč
€ 17.60 |
||
| 7110 WHR12710 |
C00312380
480111104144 |
Dispenser | Na dotaz | Zadat poptávku | |
| 7120 WHR12710 |
C00311522
480111100203 |
nasypka | Na dotaz | Zadat poptávku | |
| 7130 WHR12710 |
C00312158
481241868382 |
Pojistka násypky | 456 Kč
€ 18.00 |
||
| 7180 WHR12710 |
C00315768
481241889085 |
Vložka násypky | 502 Kč
€ 19.80 |
||
| 7181 WHR12710 |
C00315499
481252648252 |
Vložka násypky | 187 Kč
€ 7.40 |
||
| 7182 WHR12710 |
C00332670
481253248066 |
Tank STEAMER, MYST | Na dotaz | Zadat poptávku | |
| 7500 WHR12710 |
C00332502
481253048139 |
Expanzní nádoba pračky Whirlpool, Bauknecht | 287 Kč
€ 11.30 |
||
| 7540 WHR12710 |
C00313144
481253029495 |
Hadice čerpadlo - nádrž pračky Whirlpool | 607 Kč
€ 24.00 |
||
| 7541 WHR12710 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 7600 WHR12710 |
C00312342
481248058385 |
Filtr čerpadla Whirlpool AWO/D | 189 Kč
€ 7.50 |
||
| 7810 WHR12710 |
C00311863
480111100342 |
Vypouštěcí hadice pračky Whirlpool, Bauknecht | 693 Kč
€ 27.40 |
||
| 7820 WHR12710 |
C00312246
481253029497 |
Hadice k presostatu pračky Whirlpool | 93 Kč
€ 3.70 |
||
| 7831 WHR12710 |
C00332488
481253029473 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 7833 WHR12710 |
C00320967
480111100605 |
Hose Steamer-Tub | Na dotaz | Zadat poptávku | |
| 7834 WHR12710 |
C00315777
480111100312 |
Hose draining outlet,int. | Na dotaz | Zadat poptávku | |
| 7835 WHR12710 |
C00332492
481253029489 |
Hose exhaust | Na dotaz | Zadat poptávku | |
| 7836 WHR12710 |
C00332493
481253029491 |
Hose Siphon-Disp.MYST | Na dotaz | Zadat poptávku | |
| 7860 WHR12710 |
C00320204
480111101395 |
hadice | 213 Kč
€ 8.40 |
||
| 7861 WHR12710 |
C00317781
481246278179 |
threaded cap | Na dotaz | Zadat poptávku | |
| 7942 WHR12710 |
C00318107
481240118549 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 9001 WHR12710 |
C00320950
480111100204 |
Bracket cable, Eureka 490 | Na dotaz | Zadat poptávku | |
| 9002 WHR12710 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 9003 WHR12710 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9004 WHR12710 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 9005 WHR12710 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 9009 WHR12710 |
C00327126
481225518286 |
Holder Hose outlet left | Na dotaz | Zadat poptávku | |
| 9101 WHR12710 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 9104 WHR12710 |
C00320952
480111100213 |
Screw M5x12 hinge-front | Na dotaz | Zadat poptávku | |
| 9300 WHR12710 |
C00320949
480111100197 |
pružina nádrže pračky Whirlpool | 440 Kč
€ 17.40 |
||
| 9610 WHR12710 |
C00320953
480111100217 |
Safety device 54, 64 l | Na dotaz | Zadat poptávku | |
| 9620 WHR12710 |
C00330966
481246668929 |
Cover shield Steamer, MYST | Na dotaz | Zadat poptávku | |
| 9621 WHR12710 |
C00330967
481246668931 |
Cover RFI,MYST | Na dotaz | Zadat poptávku | |
| 9622 WHR12710 |
C00330969
481246668934 |
Bracket | Na dotaz | Zadat poptávku | |
| 9650 WHR12710 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 9652 WHR12710 |
C00345866
481246818398 |
Cap Syphon-MYST | Na dotaz | Zadat poptávku | |
| 9930 WHR12710 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 9933 WHR12710 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
| 999 WHR12710 |
C00353173 | Testprogram WHP | Na dotaz | Zadat poptávku | |
