Komerční kód: | AWOS70800 |
Kód 12NC: | 851620180000 |
Značka: | WHIRLPOOL |
Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

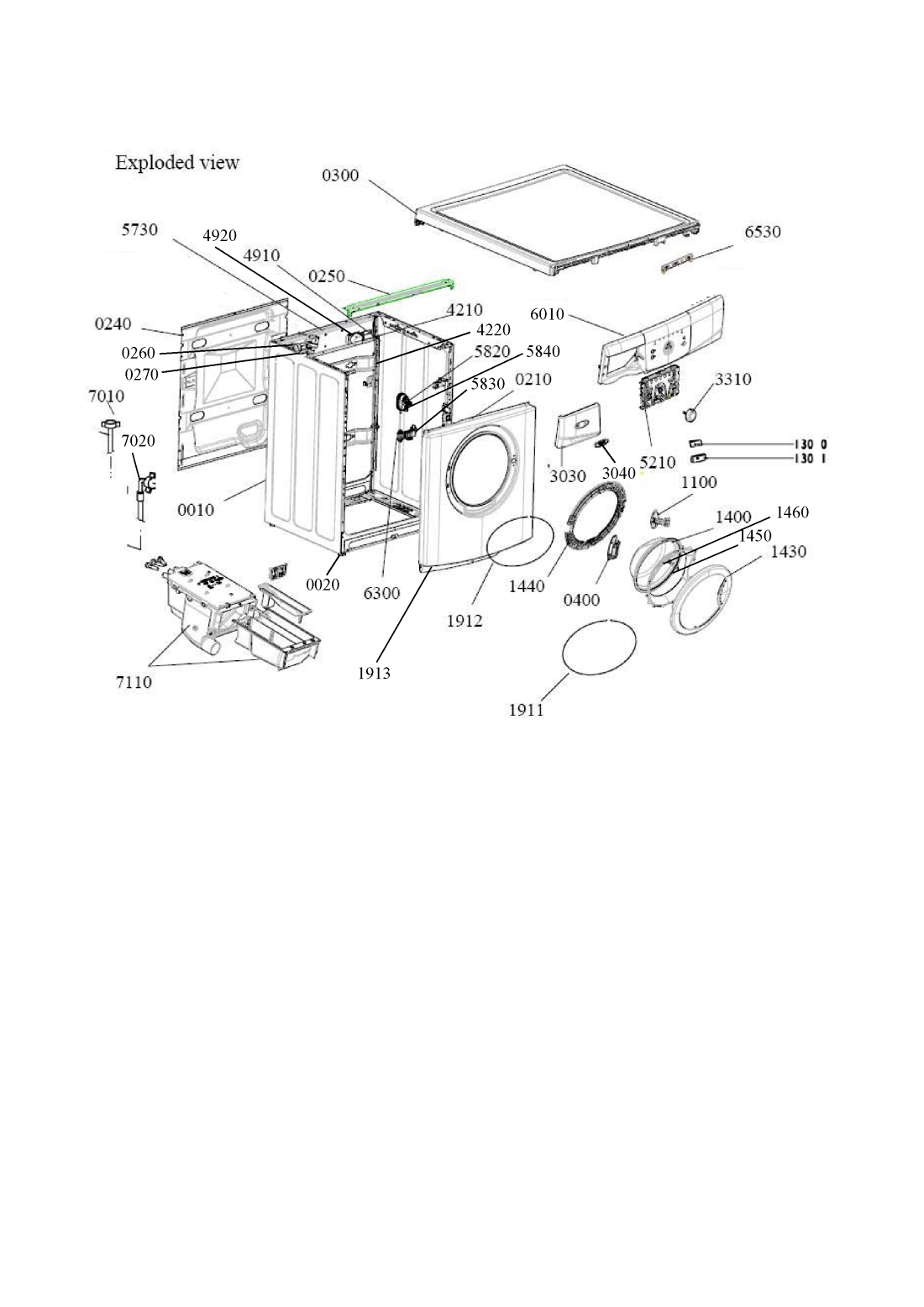

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
0010 WHR20358 |
C00414092
482000014415 |
Cabinet | Na dotaz | Zadat poptávku | |
0020 WHR20358 |
C00388444
480111103717 |
Foot M8-L34 | Na dotaz | Zadat poptávku | |
0210 WHR20358 |
C00388445
480111103718 |
Front | Na dotaz | Zadat poptávku | |
0240 WHR20358 |
C00414093
482000014416 |
Rear panel | Na dotaz | Zadat poptávku | |
0250 WHR20358 |
C00388447
480111103721 |
Support control board | Na dotaz | Zadat poptávku | |
0260 WHR20358 |
C00414094
482000014417 |
Hose valve to disp. left | Na dotaz | Zadat poptávku | |
0270 WHR20358 |
C00414095
482000014418 |
Hose valve to disp. right | Na dotaz | Zadat poptávku | |
0300 WHR20358 |
C00414096
482000014419 |
Table top | Na dotaz | Zadat poptávku | |
0400 WHR20358 |
C00388449
480111103723 |
Hinge | Na dotaz | Zadat poptávku | |
0610 WHR20358 |
C00414097
482000014420 |
Counter weight upper | Na dotaz | Zadat poptávku | |
0611 WHR20358 |
C00414098
482000014421 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
0810 WHR20358 |
C00414099
482000014422 |
Shock absorber | Na dotaz | Zadat poptávku | |
0862 WHR20358 |
C00414100
482000014423 |
Stopper fix | Na dotaz | Zadat poptávku | |
1100 WHR20358 |
C00388455
480111103732 |
Handle door | Na dotaz | Zadat poptávku | |
1300 WHR20358 |
C00388456
480111103733 |
Plate Door lock upper | Na dotaz | Zadat poptávku | |
1301 WHR20358 |
C00388457
480111103734 |
Plate Door lock lower | Na dotaz | Zadat poptávku | |
1400 WHR20358 |
C00388464
480111103742 |
Door glass | Na dotaz | Zadat poptávku | |
1430 WHR20358 |
C00414101
482000014424 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
1440 WHR20358 |
C00388466
480111103744 |
Frame door glas | Na dotaz | Zadat poptávku | |
1450 WHR20358 |
C00388459
480111103736 |
Pin Door Lock | Na dotaz | Zadat poptávku | |
1460 WHR20358 |
C00388458
480111103735 |
Lock hook door | Na dotaz | Zadat poptávku | |
1910 WHR20358 |
C00414102
482000014425 |
Door bellow | Na dotaz | Zadat poptávku | |
1911 WHR20358 |
C00388470
480111103748 |
Ring Bellow-Front | Na dotaz | Zadat poptávku | |
1912 WHR20358 |
C00414103
482000014426 |
Strap bellow/tub | Na dotaz | Zadat poptávku | |
1913 WHR20358 |
C00414104
482000014427 |
Plinth | Na dotaz | Zadat poptávku | |
2000 WHR20358 |
C00414105
482000014428 |
Tub half front | Na dotaz | Zadat poptávku | |
2010 WHR20358 |
C00414106
482000014429 |
Tub half rear | Na dotaz | Zadat poptávku | |
2200 WHR20358 |
C00414107
482000014430 |
Drum | Na dotaz | Zadat poptávku | |
2710 WHR20358 |
C00414108
482000014431 |
Belt | Na dotaz | Zadat poptávku | |
2720 WHR20358 |
C00414109
482000014432 |
Pulley | Na dotaz | Zadat poptávku | |
2920 WHR20358 |
C00414110
482000014433 |
Seal Tub | Na dotaz | Zadat poptávku | |
3030 WHR20358 |
C00388478
480111103757 |
Handle drawer | Na dotaz | Zadat poptávku | |
3040 WHR20358 |
C00414111
482000014434 |
Nameplate | Na dotaz | Zadat poptávku | |
3310 WHR20358 |
C00427621
480111103758 |
Knob timer | Na dotaz | Zadat poptávku | |
4000 WHR20358 |
C00414113
482000014436 |
Motor 1000 rpm | Na dotaz | Zadat poptávku | |
4010 WHR20358 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
4210 WHR20358 |
C00388481
480111103762 |
Interf.filter 1000rpm | Na dotaz | Zadat poptávku | |
4220 WHR20358 |
C00414114
482000014437 |
Lever security | Na dotaz | Zadat poptávku | |
4300 WHR20358 |
C00414160
482000014502 |
Pump draining | Na dotaz | Zadat poptávku | |
4510 WHR20358 |
C00414161
482000014503 |
Heating element | Na dotaz | Zadat poptávku | |
4910 WHR20358 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
4920 WHR20358 |
C00414162
482000014504 |
Cable mains with plug | Na dotaz | Zadat poptávku | |
5210 WHR20358 |
C00414163
482000014505 |
Control unit WAVE, AWOS70800 | Na dotaz | Zadat poptávku | |
5730 WHR20358 |
C00414119
482000014442 |
Valve double | Na dotaz | Zadat poptávku | |
5820 WHR20358 |
C00414120
482000014443 |
Pressostat | Na dotaz | Zadat poptávku | |
5830 WHR20358 |
C00414121
482000014444 |
Door lock | Na dotaz | Zadat poptávku | |
5840 WHR20358 |
C00388491
480111103779 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
6010 WHR20358 |
C00414164
482000014506 |
Control panel AWOS70800 | Na dotaz | Zadat poptávku | |
6300 WHR20358 |
C00388460
480111103737 |
Spring Door Lock | Na dotaz | Zadat poptávku | |
6530 WHR20358 |
C00414124
482000014447 |
Light guide | Na dotaz | Zadat poptávku | |
7010 WHR20358 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
7020 WHR20358 |
C00414125
482000014448 |
Hose | Na dotaz | Zadat poptávku | |
7110 WHR20358 |
C00414126
482000014449 |
Dispenser | Na dotaz | Zadat poptávku | |
7531 WHR20358 |
C00414127
482000014450 |
Chamber air | Na dotaz | Zadat poptávku | |
7540 WHR20358 |
C00414128
482000014451 |
Drainhose Tub/Pump | Na dotaz | Zadat poptávku | |
7550 WHR20358 |
C00388490
480111103777 |
Lock eco | Na dotaz | Zadat poptávku | |
7560 WHR20358 |
C00414129
482000014452 |
Flange eco | Na dotaz | Zadat poptávku | |
7870 WHR20358 |
C00414130
482000014453 |
Hose Dispenser/Tub | Na dotaz | Zadat poptávku | |
9300 WHR20358 |
C00414131
482000014454 |
Spring suspens. | Na dotaz | Zadat poptávku | |
999 WHR20358 |
C00352384 | Testprogram WHP | Na dotaz | Zadat poptávku |
