IGNIS AWP 650 WASHER DRYERS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWP 650 WASHER DRYERS IG |
| Kód 12NC: | 858065038000 |
| Značka: | IGNIS |
| Typ produktu: | Pračky |
| Další podobné modely: | 858065010000 |
Potřebujete servis? Jsme tady pro Vás

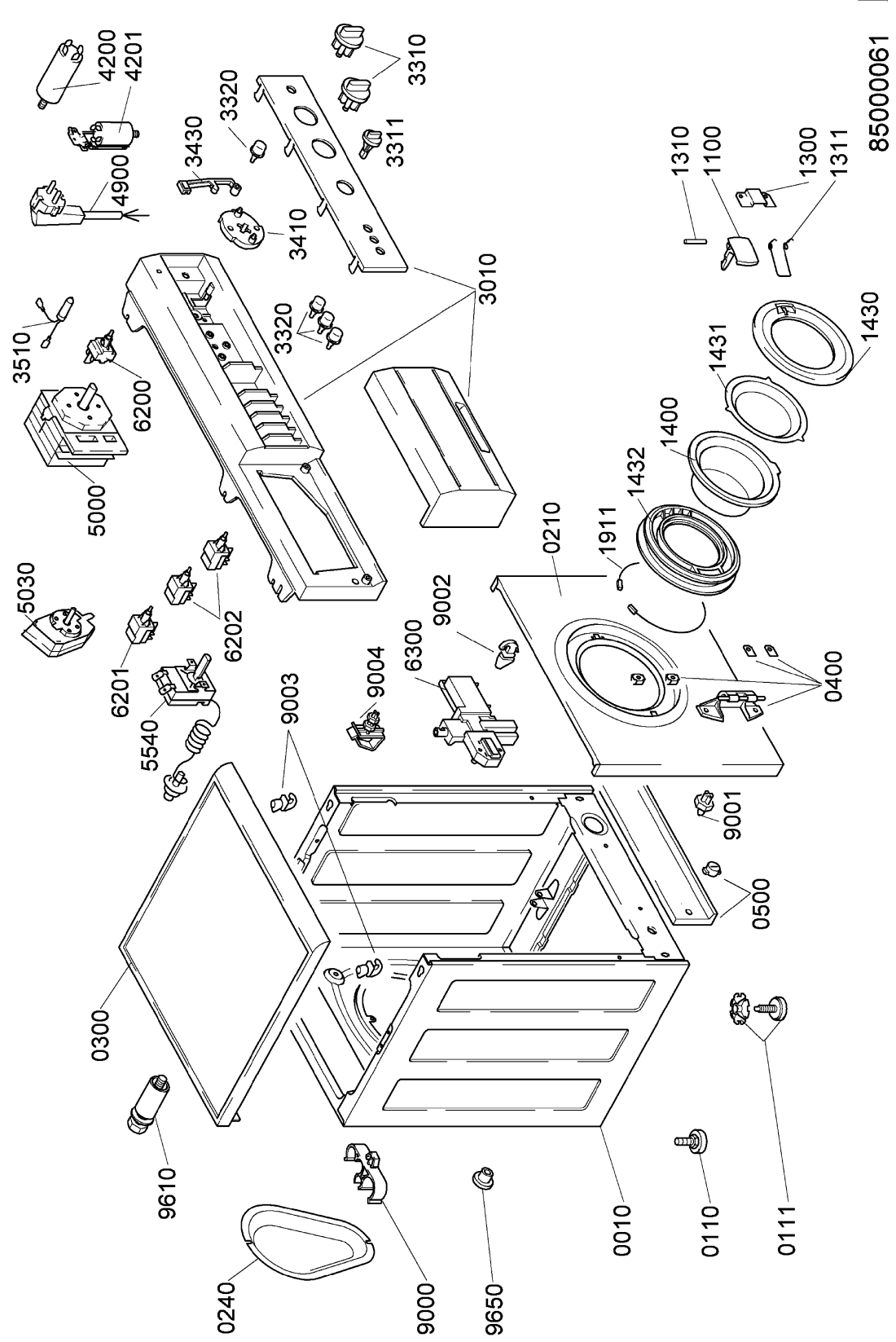

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR70840 |
C00604365
481244019715 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 001 1 WHR70840 |
C00604367
481244019717 |
Traverse. | Na dotaz | Zadat poptávku | |
| 011 0 WHR70840 |
C00604503
481250018084 |
Foot. | Na dotaz | Zadat poptávku | |
| 011 1 WHR70840 |
C00604504
481250018085 |
Foot. | Na dotaz | Zadat poptávku | |
| 021 0 WHR70840 |
C00604581
481902280271 |
Front. | Na dotaz | Zadat poptávku | |
| 024 0 WHR70840 |
C00604363
481244019713 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 030 0 WHR70840 |
C00049624
481244019752 |
HEATING ELEM. 3X735W 220V PEARL5 / 150V' | Na dotaz | Zadat poptávku | |
| 040 0 WHR70840 |
C00604328
481241718906 |
závěs | Na dotaz | Zadat poptávku | |
| 050 0 WHR70840 |
C00490023
481245938035 |
Plinth | Na dotaz | Zadat poptávku | |
| 061 0 WHR70840 |
C00604484
481246688525 |
Counter weight. | Na dotaz | Zadat poptávku | |
| 061 1 WHR70840 |
C00604485
481246688526 |
Counter weight. | Na dotaz | Zadat poptávku | |
| 081 0 WHR70840 |
C00604474
481246648067 |
Shock absorber | 1 508 Kč
€ 59.50 |
||
| 084 0 WHR70840 |
C00604475
481246658003 |
Silent bloc. | Na dotaz | Zadat poptávku | |
| 110 0 WHR70840 |
C00604498
481249818178 |
Rukojet dveří | Na dotaz | Zadat poptávku | |
| 130 0 WHR70840 |
C00604331
481241728065 |
Fastener | Na dotaz | Zadat poptávku | |
| 131 0 WHR70840 |
C00604329
481241728063 |
Pin. | Na dotaz | Zadat poptávku | |
| 131 1 WHR70840 |
C00604330
481241728064 |
Spring. | Na dotaz | Zadat poptávku | |
| 140 0 WHR70840 |
C00604605
481945060002 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR70840 |
C00604456
481245928048 |
ram dveri vnejsi | 1 092 Kč
€ 43.10 |
||
| 143 1 WHR70840 |
C00604366
481244019716 |
Door outer | Na dotaz | Zadat poptávku | |
| 143 2 WHR70840 |
C00604457
481245928049 |
priruba dveri | 981 Kč
€ 38.70 |
||
| 191 0 WHR70840 |
C00604464
481246068542 |
Těsnění dveří pračky (TVO) | 2 924 Kč
€ 115.40 |
||
| 191 1 WHR70840 |
C00604569
481253058112 |
Ring,pressure. | Na dotaz | Zadat poptávku | |
| 191 2 WHR70840 |
C00604572
481253058115 |
Ring,pressure. | Na dotaz | Zadat poptávku | |
| 200 0 WHR70840 |
C00604336
481241818265 |
Tub. | Na dotaz | Zadat poptávku | |
| 200 1 WHR70840 |
C00490969
481225518221 |
Holder | Na dotaz | Zadat poptávku | |
| 201 0 WHR70840 |
C00604339
481241818268 |
Tub cover. | Na dotaz | Zadat poptávku | |
| 210 0 WHR70840 |
C00604507
481250218442 |
Screw | Na dotaz | Zadat poptávku | |
| 210 1 WHR70840 |
C00604334
481241818264 |
Crosspiece. | Na dotaz | Zadat poptávku | |
| 220 0 WHR70840 |
C00604338
481241818267 |
Drum. | Na dotaz | Zadat poptávku | |
| 228 0 WHR70840 |
C00604337
481241818266 |
Crosspiece drum. | Na dotaz | Zadat poptávku | |
| 271 0 WHR70840 |
C00375542
481235818165 |
Řemen vicekl. 1180J5 | 803 Kč
€ 31.70 |
||
| 272 0 WHR70840 |
C00604506
481250218441 |
Screw. | Na dotaz | Zadat poptávku | |
| 272 1 WHR70840 |
C00604517
481252858028 |
Pulley. | Na dotaz | Zadat poptávku | |
| 272 2 WHR70840 |
C00604518
481252858029 |
Ring,circlip. | Na dotaz | Zadat poptávku | |
| 290 0 WHR70840 |
C00604571
481253058114 |
Gasket tub. | Na dotaz | Zadat poptávku | |
| 301 0 WHR70840 |
C00604392
481245210287 |
Control panel cpl.. | Na dotaz | Zadat poptávku | |
| 331 0 WHR70840 |
C00604324
481241348313 |
GOMBIK PROGRAMATORA | Na dotaz | Zadat poptávku | |
| 331 1 WHR70840 |
C00604323
481241348312 |
Knob temp. | Na dotaz | Zadat poptávku | |
| 332 0 WHR70840 |
C00604322
481241348311 |
Button. | Na dotaz | Zadat poptávku | |
| 341 0 WHR70840 |
C00604278
481228218701 |
Cam. | Na dotaz | Zadat poptávku | |
| 343 0 WHR70840 |
C00604271
481227888015 |
Lever. | Na dotaz | Zadat poptávku | |
| 351 0 WHR70840 |
C00604242
481213448249 |
Lamp. | Na dotaz | Zadat poptávku | |
| 400 0 WHR70840 |
C00604307
481236158161 |
motor | 6 299 Kč
€ 248.70 |
||
| 400 1 WHR70840 |
C00604508
481250218443 |
Screw. | Na dotaz | Zadat poptávku | |
| 400 2 WHR70840 |
C00604258
481225518223 |
Holder. | Na dotaz | Zadat poptávku | |
| 400 4 WHR70840 |
C00604259
481225518224 |
Holder. | Na dotaz | Zadat poptávku | |
| 409 0 WHR70840 |
C00604306
481236158159 |
Brush,carbon. | Na dotaz | Zadat poptávku | |
| 420 0 WHR70840 |
C00604239
481212118205 |
Interf.filter. | Na dotaz | Zadat poptávku | |
| 420 1 WHR70840 |
C00604240
481212118206 |
Capacitor. | Na dotaz | Zadat poptávku | |
| 430 0 WHR70840 |
C00604301
481236018477 |
Čerpadlo vypouštěcí | 2 176 Kč
€ 85.90 |
||
| 430 1 WHR70840 |
C00604344
481241868193 |
Gasket copreci. | Na dotaz | Zadat poptávku | |
| 430 1 WHR70840 |
C00604345
481241868194 |
Gasket askoll. | Na dotaz | Zadat poptávku | |
| 430 2 WHR70840 |
C00604302
481236018478 |
Housing copreci. | Na dotaz | Zadat poptávku | |
| 430 2 WHR70840 |
C00604303
481236018479 |
Housing ascoll. | Na dotaz | Zadat poptávku | |
| 440 0 WHR70840 |
C00620300
481236118294 |
Blower | Na dotaz | Zadat poptávku | |
| 451 0 WHR70840 |
C00604264
481225928739 |
topeni 1900 W | 2 499 Kč
€ 98.70 |
||
| 451 1 WHR70840 |
C00604265
481225928741 |
Heating element. | Na dotaz | Zadat poptávku | |
| 451 3 WHR70840 |
C00604287
481229088069 |
Support heating. | Na dotaz | Zadat poptávku | |
| 451 4 WHR70840 |
C00604574
481253058117 |
Gasket. | Na dotaz | Zadat poptávku | |
| 490 0 WHR70840 |
C00604296
481232118091 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 500 0 WHR70840 |
C00604277
481228218699 |
programator | 3 503 Kč
€ 138.30 |
||
| 503 0 WHR70840 |
C00604275
481228218697 |
Time switch. | Na dotaz | Zadat poptávku | |
| 521 0 WHR70840 |
C00604253
481221818004 |
regulator motoru | 3 424 Kč
€ 135.20 |
||
| 551 0 WHR70840 |
C00604283
481228248242 |
termostat 155 C | Na dotaz | Zadat poptávku | |
| 551 1 WHR70840 |
C00604284
481228248243 |
termostat 75 C | Na dotaz | Zadat poptávku | |
| 551 2 WHR70840 |
C00497369
481228248244 |
termostat 120 C | Na dotaz | Zadat poptávku | |
| 551 3 WHR70840 |
C00604575
481253058118 |
Gasket Thermostat. | Na dotaz | Zadat poptávku | |
| 554 0 WHR70840 |
C00604276
481228218698 |
termostat kapilarni | Na dotaz | Zadat poptávku | |
| 572 0 WHR70840 |
C00604273
481228128402 |
Valve magnet. | Na dotaz | Zadat poptávku | |
| 582 0 WHR70840 |
C00170699
481227128439 |
presostat pračky | 1 405 Kč
€ 55.50 |
||
| 620 0 WHR70840 |
C00604268
481227618313 |
spinac sitovy | 917 Kč
€ 36.20 |
||
| 620 1 WHR70840 |
C00604267
481227618312 |
spinac sitovy | 357 Kč
€ 14.10 |
||
| 620 2 WHR70840 |
C00604269
481227618314 |
spinac sitovy | 489 Kč
€ 19.30 |
||
| 630 0 WHR70840 |
C00604272
481228058032 |
Blokování dveří | 1 060 Kč
€ 41.80 |
||
| 701 0 WHR70840 |
C00604522
481253028982 |
Hose inlet. | Na dotaz | Zadat poptávku | |
| 701 1 WHR70840 |
C00604476
481246668611 |
Sieve. | Na dotaz | Zadat poptávku | |
| 701 2 WHR70840 |
C00604477
481246668612 |
Sealing. | Na dotaz | Zadat poptávku | |
| 702 0 WHR70840 |
C00493715
481253028983 |
HADICA | Na dotaz | Zadat poptávku | |
| 708 0 WHR70840 |
C00604582
481902280272 |
Hose. | Na dotaz | Zadat poptávku | |
| 708 1 WHR70840 |
C00604260
481225518225 |
Holder. | Na dotaz | Zadat poptávku | |
| 711 0 WHR70840 |
C00604351
481241888047 |
Dispenser. | Na dotaz | Zadat poptávku | |
| 712 0 WHR70840 |
C00604350
481241879687 |
Drawer. | Na dotaz | Zadat poptávku | |
| 717 1 WHR70840 |
C00604298
481232138017 |
Lever. | Na dotaz | Zadat poptávku | |
| 717 2 WHR70840 |
C00604299
481232138018 |
Lever. | Na dotaz | Zadat poptávku | |
| 717 3 WHR70840 |
C00604297
481232128396 |
Bowden cable. | Na dotaz | Zadat poptávku | |
| 718 0 WHR70840 |
C00604514
481252648062 |
Siphon | Na dotaz | Zadat poptávku | |
| 718 1 WHR70840 |
C00604352
481241888048 |
Separator. | Na dotaz | Zadat poptávku | |
| 741 0 WHR70840 |
C00604576
481260018005 |
Container. | Na dotaz | Zadat poptávku | |
| 741 1 WHR70840 |
C00604529
481253028991 |
Connection. | Na dotaz | Zadat poptávku | |
| 741 2 WHR70840 |
C00604577
481260018006 |
Guide. | Na dotaz | Zadat poptávku | |
| 741 3 WHR70840 |
C00604578
481260018007 |
Connect,gaspipe. | Na dotaz | Zadat poptávku | |
| 741 4 WHR70840 |
C00604579
481260018008 |
Air guide. | Na dotaz | Zadat poptávku | |
| 741 5 WHR70840 |
C00604530
481253028992 |
Insulation. | Na dotaz | Zadat poptávku | |
| 741 6 WHR70840 |
C00604580
481260018009 |
Lid. | Na dotaz | Zadat poptávku | |
| 741 7 WHR70840 |
C00604531
481253028993 |
Screening. | Na dotaz | Zadat poptávku | |
| 741 8 WHR70840 |
C00604288
481229088071 |
Holder. | Na dotaz | Zadat poptávku | |
| 741 9 WHR70840 |
C00604289
481229088072 |
Fixation. | Na dotaz | Zadat poptávku | |
| 750 0 WHR70840 |
C00604346
481241868195 |
Chamber,air. | Na dotaz | Zadat poptávku | |
| 753 0 WHR70840 |
C00604343
481241868192 |
Chamber,air. | Na dotaz | Zadat poptávku | |
| 754 0 WHR70840 |
C00604524
481253028985 |
Drainhose. | Na dotaz | Zadat poptávku | |
| 754 1 WHR70840 |
C00604523
481253028984 |
Lock eco. | Na dotaz | Zadat poptávku | |
| 760 0 WHR70840 |
C00151409
481248058092 |
CONTROL KNOB - BLACK | Na dotaz | Zadat poptávku | |
| 760 0 WHR70840 |
C00604494
481248058091 |
filtr cerpadla | 919 Kč
€ 36.30 |
||
| 782 2 WHR70840 |
C00604525
481253028986 |
Hose pressostat. | Na dotaz | Zadat poptávku | |
| 783 0 WHR70840 |
C00604526
481253028987 |
Hose draining. | Na dotaz | Zadat poptávku | |
| 783 1 WHR70840 |
C00604528
481253028989 |
Hose. | Na dotaz | Zadat poptávku | |
| 783 2 WHR70840 |
C00604527
481253028988 |
Hose. | Na dotaz | Zadat poptávku | |
| 783 3 WHR70840 |
C00150871
481229088068 |
SPLASHBACK GLASS - BROWN | Na dotaz | Zadat poptávku | |
| 783 4 WHR70840 |
C00604263
481225518231 |
Clip. | Na dotaz | Zadat poptávku | |
| 900 0 WHR70840 |
C00604309
481240118474 |
Holder. | Na dotaz | Zadat poptávku | |
| 900 1 WHR70840 |
C00604255
481225518217 |
Holder. | Na dotaz | Zadat poptávku | |
| 900 2 WHR70840 |
C00604256
481225518218 |
Holder. | Na dotaz | Zadat poptávku | |
| 900 3 WHR70840 |
C00604257
481225518219 |
Holder. | Na dotaz | Zadat poptávku | |
| 900 4 WHR70840 |
C00146420
481225518222 |
BLOCK MODULE CONNECT | Na dotaz | Zadat poptávku | |
| 900 5 WHR70840 |
C00604261
481225518226 |
Clip. | Na dotaz | Zadat poptávku | |
| 900 6 WHR70840 |
C00604286
481229088067 |
Clamp hose. | Na dotaz | Zadat poptávku | |
| 900 7 WHR70840 |
C00604262
481225518227 |
Holder. | Na dotaz | Zadat poptávku | |
| 910 0 WHR70840 |
C00604509
481250218444 |
Screw kit. | Na dotaz | Zadat poptávku | |
| 930 0 WHR70840 |
C00604495
481249238371 |
Spring,suspens.. | Na dotaz | Zadat poptávku | |
| 932 0 WHR70840 |
C00604496
481249238372 |
Spring. | Na dotaz | Zadat poptávku | |
| 950 0 WHR70840 |
C00604570
481253058113 |
Gasket. | Na dotaz | Zadat poptávku | |
| 950 2 WHR70840 |
C00604573
481253058116 |
Gasket. | Na dotaz | Zadat poptávku | |
| 950 3 WHR70840 |
C00486320
481253058119 |
Gasket | Na dotaz | Zadat poptávku | |
| 961 0 WHR70840 |
C00604266
481226818017 |
Lever,security. | Na dotaz | Zadat poptávku | |
| 965 0 WHR70840 |
C00604364
481244019714 |
Cover. | Na dotaz | Zadat poptávku | |
| 993 0 WHR70840 |
C00604532
481253028994 |
Bow. | Na dotaz | Zadat poptávku | |
