| Komerční kód: | AWV 708/3 WASHING MACHINES IG |
| Kód 12NC: | 858470840300 |
| Značka: | IGNIS |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás

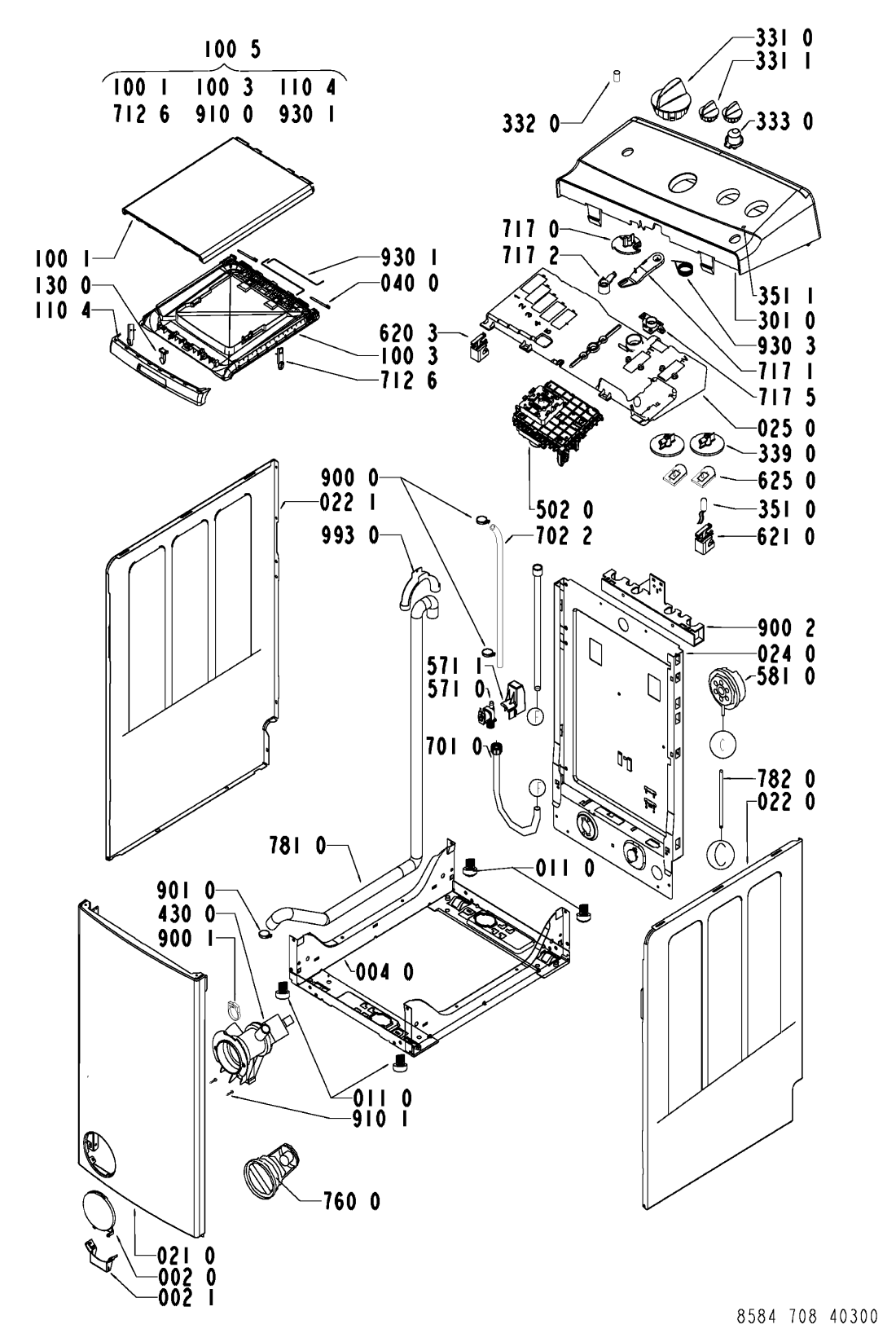

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR76678 |
C00385732
481245938056 |
Flap flat LA/IG/RA GW | Na dotaz | Zadat poptávku | |
| 002 1 WHR76678 |
C00330219
481245938058 |
ZAVES PLAST | 175 Kč
€ 6.90 |
||
| 004 0 WHR76678 |
C00328116
481244019625 |
ram zakladni skrine | 1 241 Kč
€ 48.90 |
||
| 010 0 WHR76678 |
C00330231
481245948175 |
Door frame inner GW | Na dotaz | Zadat poptávku | |
| 010 1 WHR76678 |
C00553552
481244010835 |
nahradene 481244010836 | Na dotaz | Zadat poptávku | |
| 011 0 WHR76678 |
C00311705
481250018099 |
noha pracky M8*34/A | Na dotaz | Zadat poptávku | |
| 021 0 WHR76678 |
C00385731
481244010837 |
Front panel LA/IG/RA GW | Na dotaz | Zadat poptávku | |
| 022 0 WHR76678 |
C00327969
481244010839 |
stena bocni pravaGW | 2 983 Kč
€ 117.60 |
||
| 022 1 WHR76678 |
C00327970
481244010841 |
stena bocni leva GW | 3 441 Kč
€ 135.70 |
||
| 024 0 WHR76678 |
C00336920
481244019631 |
stena zadni | 909 Kč
€ 35.90 |
||
| 025 0 WHR76678 |
C00482928
481244019633 |
nosic elektrodilu | 772 Kč
€ 30.40 |
||
| 040 0 WHR76678 |
C00329711
481241719155 |
Čep pantu dveří vrchem plněných praček Whirlpool, Indesit AWT 2284, AWT 2050, BTW L50300 | 83 Kč
€ 3.30 |
||
| 061 0 WHR76678 |
C00343092
481246688489 |
zavazi horni zadni | 933 Kč
€ 36.80 |
||
| 061 1 WHR76678 |
C00343083
481246688491 |
zavazi | 800 Kč
€ 31.60 |
||
| 061 2 WHR76678 |
C00330990
481246688492 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 081 4 WHR76678 |
C00309362
481252918043 |
Tlumič nárazů pračky Whirlpool | 149 Kč
€ 5.90 |
||
| 086 4 WHR76678 |
C00312814
481252918045 |
kolik tlum.pruzny | 729 Kč
€ 28.80 |
||
| 086 5 WHR76678 |
C00311472
481252918052 |
Damper f. Shock absorber | Na dotaz | Zadat poptávku | |
| 100 1 WHR76678 |
C00327971
481244010842 |
Kryt dveří pračky AWT | Na dotaz | Zadat poptávku | |
| 100 3 WHR76678 |
C00316443
481244010843 |
Lid inner GW | Na dotaz | Zadat poptávku | |
| 100 5 WHR76678 |
C00377701
481244010892 |
dvere pracky komp GW | 2 821 Kč
€ 111.30 |
||
| 110 4 WHR76678 |
C00385730
481249818252 |
Handle cpl. LA GW | Na dotaz | Zadat poptávku | |
| 130 0 WHR76678 |
C00314425
481241719193 |
Hák uzávěru dveří GW | 359 Kč
€ 14.20 |
||
| 191 0 WHR76678 |
C00312647
481246668596 |
TVO alliance | 1 648 Kč
€ 65.00 |
||
| 191 1 WHR76678 |
C00384619
481249298014 |
Strap f. bellow; f. bellow | Na dotaz | Zadat poptávku | |
| 200 0 WHR76678 |
C00337452
481241818242 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR76678 |
C00316140
481244019644 |
Bočnice nádrže s ložiskem | 3 222 Kč
€ 127.10 |
||
| 220 0 WHR76678 |
C00384614
481241818464 |
Drum ALL/LR/PP 0,4-0,5/H; 19,5 | Na dotaz | Zadat poptávku | |
| 223 0 WHR76678 |
C00315124
481941849713 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR76678 |
C00375541
481235818167 |
Řemen pračky Whirlpool 1204 H8 | 155 Kč
€ 6.10 |
||
| 272 0 WHR76678 |
C00312977
481252888083 |
Řemenice bubnu Whirlpool 298mm | 743 Kč
€ 29.30 |
||
| 290 0 WHR76678 |
C00312292
481253268078 |
Těsnění bočnice | 586 Kč
€ 23.10 |
||
| 301 0 WHR76678 |
C00605599
481245214038 |
Control panel AWV 708/3. | Na dotaz | Zadat poptávku | |
| 331 0 WHR76678 |
C00488760
481241258983 |
Knob Timer GW | Na dotaz | Zadat poptávku | |
| 331 1 WHR76678 |
C00544959
481241258984 |
Knob Options GW | Na dotaz | Zadat poptávku | |
| 332 0 WHR76678 |
C00493366
481241029009 |
Button | Na dotaz | Zadat poptávku | |
| 333 0 WHR76678 |
C00493371
481241029021 |
tlacitko ON/OFF | 610 Kč
€ 24.10 |
||
| 339 0 WHR76678 |
C00493517
481241358947 |
unasec termostatu | 193 Kč
€ 7.60 |
||
| 351 0 WHR76678 |
C00341466
481212498001 |
Pilot lampmains | Na dotaz | Zadat poptávku | |
| 351 1 WHR76678 |
C00591601
481212418001 |
Krytka signalky awt2 | 238 Kč
€ 9.40 |
||
| 400 0 WHR76678 |
C00377592
481236158344 |
motor komutatorovy | 5 521 Kč
€ 217.70 |
||
| 421 0 WHR76678 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 421 2 WHR76678 |
C00329010
481240438679 |
Držák | 169 Kč
€ 6.70 |
||
| 430 0 WHR76678 |
C00314917
481236018529 |
Pump,draining 7818.69685 ALLIANCE faston | Na dotaz | Zadat poptávku | |
| 451 0 WHR76678 |
C00557942
481225928819 |
NAHRADENE 481225928919 | Na dotaz | Zadat poptávku | |
| 490 0 WHR76678 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR76678 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 502 0 WHR76678 |
C00605306
481228219628 |
Timer ALPHA AA2-713/38RA. | Na dotaz | Zadat poptávku | |
| 571 0 WHR76678 |
C00337280
481228128393 |
Napouštěcí ventil pračky - jednocestný, boční vývod | Na dotaz | Zadat poptávku | |
| 571 1 WHR76678 |
C00342508
481228118049 |
kryt ventilu | 287 Kč
€ 11.30 |
||
| 581 0 WHR76678 |
C00318020
481227128526 |
presostat | 1 515 Kč
€ 59.80 |
||
| 620 3 WHR76678 |
C00332969
481941028998 |
spinac | 1 031 Kč
€ 40.70 |
||
| 621 0 WHR76678 |
C00335728
481227618276 |
Switch ON/OFF | Na dotaz | Zadat poptávku | |
| 625 0 WHR76678 |
C00327276
481227348002 |
prepinac otocny | 913 Kč
€ 36.00 |
||
| 630 0 WHR76678 |
C00338990
481227138373 |
Door lock hybrid | Na dotaz | Zadat poptávku | |
| 691 0 WHR76678 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 28.80 |
||
| 701 0 WHR76678 |
C00557593
481953029034 |
Pr#vodov# hadica so sitkom | Na dotaz | Zadat poptávku | |
| 702 2 WHR76678 |
C00339235
481253028871 |
hadice od ventilu | 244 Kč
€ 9.60 |
||
| 707 0 WHR76678 |
C00318593
481252648122 |
Box + tryska awt2050 | 429 Kč
€ 16.90 |
||
| 707 1 WHR76678 |
C00332331
481252648049 |
Spona boxu trysky | 168 Kč
€ 6.60 |
||
| 712 4 WHR76678 |
C00313977
481241868302 |
zaslepka prepadu | 762 Kč
€ 30.10 |
||
| 712 5 WHR76678 |
C00317071
481241868303 |
Záslepka přepadu uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 712 6 WHR76678 |
C00315600
481241868164 |
Příchytka násypka | 453 Kč
€ 17.90 |
||
| 712 9 WHR76678 |
C00553541
481241868289 |
nahradene 481241868306 | Na dotaz | Zadat poptávku | |
| 717 0 WHR76678 |
C00380575
481232138028 |
vacka | 244 Kč
€ 9.60 |
||
| 717 1 WHR76678 |
C00488629
481232138031 |
paka distribuce | 151 Kč
€ 6.00 |
||
| 717 2 WHR76678 |
C00338411
481232318021 |
paka trysky distr.vo | 506 Kč
€ 20.00 |
||
| 717 5 WHR76678 |
C00482699
481232318025 |
nosic paky distr. | 206 Kč
€ 8.10 |
||
| 753 0 WHR76678 |
C00320198
481241868187 |
vzdusnik | 295 Kč
€ 11.60 |
||
| 754 0 WHR76678 |
C00309507
481253028938 |
Hadice čerpadlo - nádrž pračky Whirlpool, Indesit, Bauknecht, Ignis | 555 Kč
€ 21.90 |
||
| 754 1 WHR76678 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 760 0 WHR76678 |
C00320131
481248058089 |
Filtr čerpadla AWT | 671 Kč
€ 26.50 |
||
| 781 0 WHR76678 |
C00557375
481253028953 |
hadicevytokova | Na dotaz | Zadat poptávku | |
| 782 0 WHR76678 |
C00332415
481253028941 |
hadice k presostatu | 140 Kč
€ 5.50 |
||
| 787 0 WHR76678 |
C00377873
481253028942 |
hadice odparovaci | 826 Kč
€ 32.60 |
||
| 787 1 WHR76678 |
C00493709
481253028943 |
krytka | 140 Kč
€ 5.50 |
||
| 794 0 WHR76678 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR76678 |
C00332920
481940118686 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 1 WHR76678 |
C00328873
481240118431 |
Spona hadice cerpadl | 349 Kč
€ 13.80 |
||
| 900 2 WHR76678 |
C00335859
481240118461 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 900 3 WHR76678 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.80 |
||
| 901 0 WHR76678 |
C00328877
481240118462 |
Spona vytokovej hadi | 145 Kč
€ 5.70 |
||
| 910 0 WHR76678 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 1 WHR76678 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 112 Kč
€ 4.40 |
||
| 910 3 WHR76678 |
C00312644
481250218404 |
Šroub řemenice 6mm | 151 Kč
€ 6.00 |
||
| 910 4 WHR76678 |
C00318381
481250218423 |
Šroub PT 7x15 | 126 Kč
€ 5.00 |
||
| 910 5 WHR76678 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 910 6 WHR76678 |
C00345896
481250218399 |
Nut Push in M 8Push in M 8 | Na dotaz | Zadat poptávku | |
| 921 0 WHR76678 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR76678 |
C00318211
481249248171 |
Pružiny dveří - torzní (sada) | 240 Kč
€ 9.50 |
||
| 930 2 WHR76678 |
C00316647
481249248162 |
Pružina agregátu | 952 Kč
€ 37.50 |
||
| 930 3 WHR76678 |
C00336091
481232318019 |
pruzina dist.vody | 400 Kč
€ 15.80 |
||
| 941 0 WHR76678 |
C00318643
481231018578 |
Bearing Kit | Na dotaz | Zadat poptávku | |
| 953 0 WHR76678 |
C00319719
481232568001 |
Těsnění bubnu VA 22 | 21 Kč
€ 0.80 |
||
| 962 0 WHR76678 |
C00328423
481244098142 |
Kryt motoru | 211 Kč
€ 8.30 |
||
| 962 1 WHR76678 |
C00342492
481244098143 |
Cover for Motor | Na dotaz | Zadat poptávku | |
| 990 0 WHR76678 |
C00340894
481231018504 |
sroub -set do zavazi | 399 Kč
€ 15.70 |
||
| 990 2 WHR76678 |
C00327328
481231018506 |
Šrouby do závaží-sada | 389 Kč
€ 15.30 |
||
| 993 0 WHR76678 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.70 |
||
| 993 1 WHR76678 |
C00327583
481229018031 |
Clamp heatingelement+screw | Na dotaz | Zadat poptávku | |
