WHIRLPOOL AWZ 121/4 TUMBLE DRYER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 121/4 TUMBLE DRYER WP |
| Kód 12NC: | 857512151010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857512151013, 857512151014, 857512151015, 857512151000, 857512151001 |
Potřebujete servis? Jsme tady pro Vás

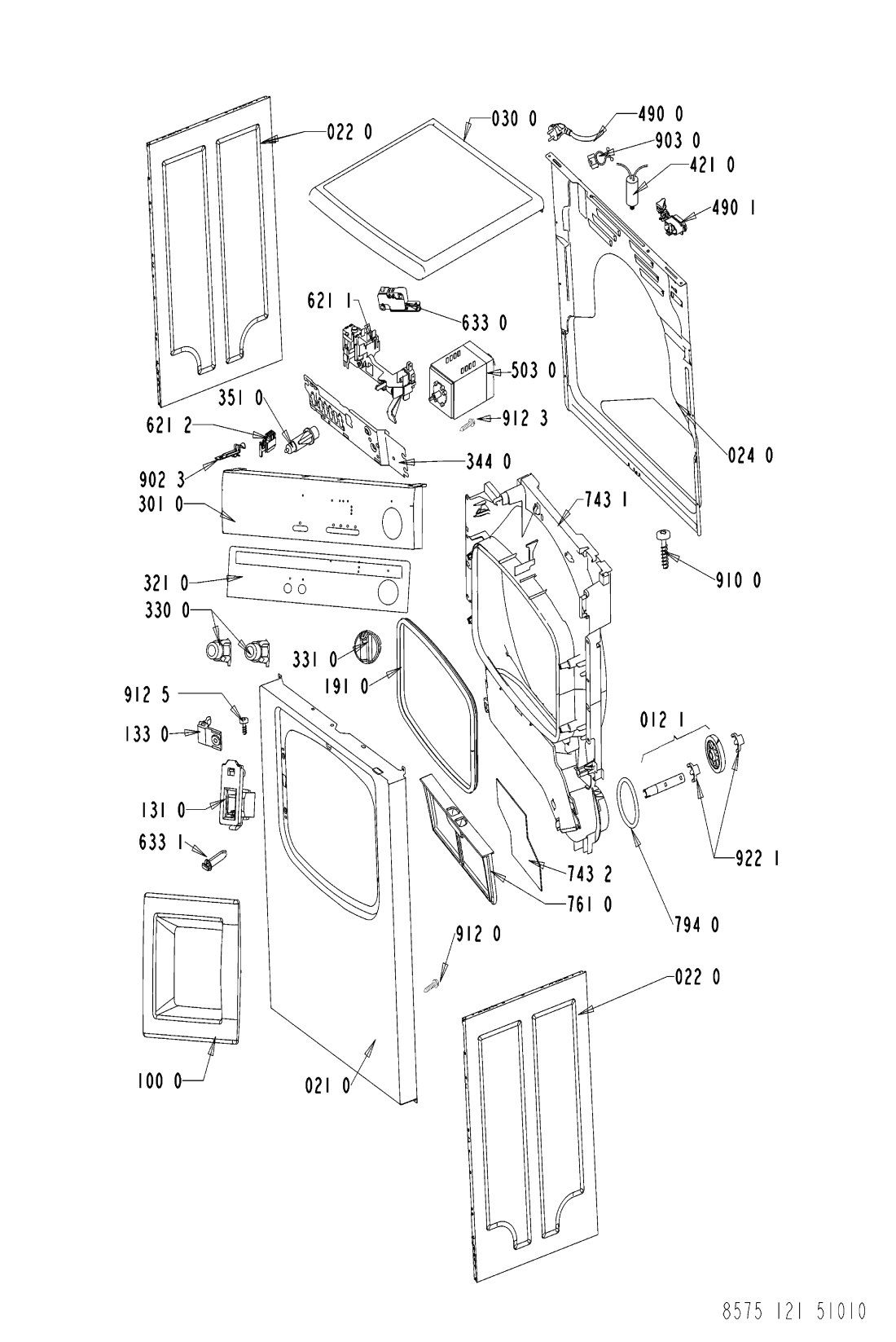

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR75488 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.20 |
||
| 004 1 WHR75488 |
C00337127
481246638078 |
Protec,el.parts /bottom AV | Na dotaz | Zadat poptávku | |
| 011 0 WHR75488 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR75488 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR75488 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR75488 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR75488 |
C00340667
481244019387 |
PANEL | 2 499 Kč
€ 98.70 |
||
| 022 0 WHR75488 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR75488 |
C00341542
481244010713 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 030 0 WHR75488 |
C00527981
481244019388 |
HORNA DOSKA N | Na dotaz | Zadat poptávku | |
| 100 0 WHR75488 |
C00553563
481244019504 |
GLASS DOOR RANGE 0.. | Na dotaz | Zadat poptávku | |
| 131 0 WHR75488 |
C00317473
481227138362 |
Door lock | Na dotaz | Zadat poptávku | |
| 133 0 WHR75488 |
C00341450
481241728054 |
Pin door | Na dotaz | Zadat poptávku | |
| 191 0 WHR75488 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 220 0 WHR75488 |
C00341183
481241818199 |
Drum coatedcoated | Na dotaz | Zadat poptávku | |
| 223 0 WHR75488 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR75488 |
C00313102
481235818186 |
Řemen sušičky 1965H | 228 Kč
€ 9.00 |
||
| 273 0 WHR75488 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR75488 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR75488 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.70 |
||
| 291 2 WHR75488 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR75488 |
C00597992
481245219688 |
Control panel. | Na dotaz | Zadat poptávku | |
| 321 0 WHR75488 |
C00597948
481245211511 |
Insert panel AWZ 121/4. | Na dotaz | Zadat poptávku | |
| 331 0 WHR75488 |
C00341870
481241348285 |
knoflik programatoru | 489 Kč
€ 19.30 |
||
| 333 0 WHR75488 |
C00344056
481227618249 |
kryt spinace | 145 Kč
€ 5.70 |
||
| 344 0 WHR75488 |
C00339688
481246448116 |
Holder | Na dotaz | Zadat poptávku | |
| 351 0 WHR75488 |
C00341482
481213448227 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 401 0 WHR75488 |
C00313823
481236118361 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR75488 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR75488 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR75488 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 443 0 WHR75488 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR75488 |
C00311187
481225928675 |
topení sušičky | 2 384 Kč
€ 94.10 |
||
| 490 0 WHR75488 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 1 WHR75488 |
C00335990
481232128421 |
Strain relief | Na dotaz | Zadat poptávku | |
| 503 0 WHR75488 |
C00315666
481228218457 |
Timer EC4605.01 TRA EC4605.01 | Na dotaz | Zadat poptávku | |
| 551 6 WHR75488 |
C00312421
481227128369 |
termostat susicky ST | Na dotaz | Zadat poptávku | |
| 621 1 WHR75488 |
C00311721
481227618309 |
Switch Start/Reset | Na dotaz | Zadat poptávku | |
| 621 2 WHR75488 |
C00320043
481227618278 |
spinac | 1 044 Kč
€ 41.20 |
||
| 633 0 WHR75488 |
C00315649
481227618248 |
spinac tlacitkovy | 1 101 Kč
€ 43.50 |
||
| 633 1 WHR75488 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 743 0 WHR75488 |
C00339958
481253048147 |
TEPLOVZDUSNY KA | 2 281 Kč
€ 90.10 |
||
| 743 1 WHR75488 |
C00344604
481253048145 |
navadec vzduchu | 1 424 Kč
€ 56.20 |
||
| 743 2 WHR75488 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 761 0 WHR75488 |
C00340972
481248058077 |
filtr susicky | 917 Kč
€ 36.20 |
||
| 787 0 WHR75488 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
| 794 0 WHR75488 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 902 1 WHR75488 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 902 3 WHR75488 |
C00343375
481253228923 |
Clamp f. control panel | Na dotaz | Zadat poptávku | |
| 903 0 WHR75488 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR75488 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 903 2 WHR75488 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR75488 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR75488 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 912 1 WHR75488 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 912 3 WHR75488 |
C00336600
481250218369 |
Screw A2F M4x6 | Na dotaz | Zadat poptávku | |
| 912 5 WHR75488 |
C00336589
481222008014 |
Screw door lock pin | Na dotaz | Zadat poptávku | |
| 922 0 WHR75488 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR75488 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 962 0 WHR75488 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR75488 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.10 |
||
