WHIRLPOOL AWZ 221 TUMBLE DRYER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 221 TUMBLE DRYER WP |
| Kód 12NC: | 857522101020 |
| I.C. kód: | 857522101021 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857522101020, 857522103000, 857522103001, 857522101010, 857522101011, 857522101013, 857522101014, 857522117000, 857522101023, 857522101024, 857522117001 |
Potřebujete servis? Jsme tady pro Vás

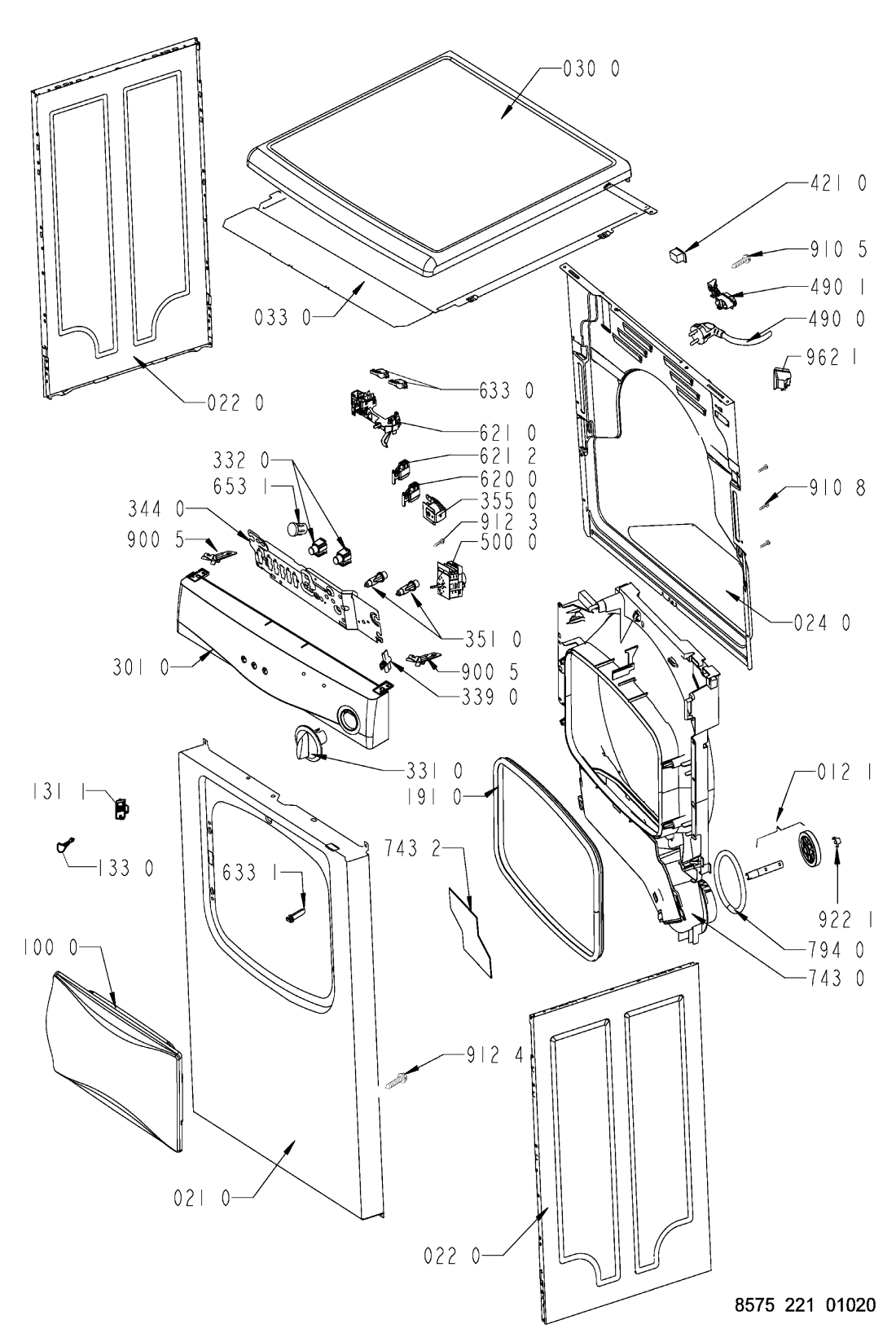

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR64992 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.20 |
||
| 004 1 WHR64992 |
C00337127
481246638078 |
Protec,el.parts /bottom AV | Na dotaz | Zadat poptávku | |
| 011 0 WHR64992 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR64992 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR64992 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR64992 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR64992 |
C00340667
481244019387 |
PANEL | 2 499 Kč
€ 98.70 |
||
| 022 0 WHR64992 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR64992 |
C00341542
481244010713 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 030 0 WHR64992 |
C00316164
481244019779 |
Table top R0 VBL R0 VBL | Na dotaz | Zadat poptávku | |
| 033 0 WHR64992 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 100 0 WHR64992 |
C00338973
481241618182 |
dvere susicky | Na dotaz | Zadat poptávku | |
| 133 0 WHR64992 |
C00319948
481241728049 |
Pin Door | Na dotaz | Zadat poptávku | |
| 191 0 WHR64992 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 220 0 WHR64992 |
C00341183
481241818199 |
Drum coatedcoated | Na dotaz | Zadat poptávku | |
| 223 0 WHR64992 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR64992 |
C00313102
481235818186 |
Řemen sušičky 1965H | 228 Kč
€ 9.00 |
||
| 273 0 WHR64992 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR64992 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR64992 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.70 |
||
| 291 1 WHR64992 |
C00340447
481246668541 |
Gasket Fluff Filter | Na dotaz | Zadat poptávku | |
| 291 2 WHR64992 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR64992 |
C00597891
481245210468 |
Control panel AWZ 221/1. | Na dotaz | Zadat poptávku | |
| 331 0 WHR64992 |
C00341861
481241458103 |
Knob WH AV TSWH AV TS | Na dotaz | Zadat poptávku | |
| 339 0 WHR64992 |
C00317982
481223318006 |
unasec knofliku | 593 Kč
€ 23.40 |
||
| 344 0 WHR64992 |
C00339688
481246448116 |
Holder | Na dotaz | Zadat poptávku | |
| 351 0 WHR64992 |
C00341482
481213448227 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 355 0 WHR64992 |
C00498868
481928018015 |
BZUCIAK N | Na dotaz | Zadat poptávku | |
| 401 0 WHR64992 |
C00313823
481236118361 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR64992 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR64992 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR64992 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 443 0 WHR64992 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR64992 |
C00339928
481225928674 |
Heating element 2300W - 1T18275001 | Na dotaz | Zadat poptávku | |
| 490 0 WHR64992 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 0 WHR64992 |
C00544927
481232118139 |
SADA KABELAZ | 1 451 Kč
€ 57.30 |
||
| 492 1 WHR64992 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 500 0 WHR64992 |
C00315666
481228218457 |
Timer EC4605.01 TRA EC4605.01 | Na dotaz | Zadat poptávku | |
| 551 3 WHR64992 |
C00312421
481227128369 |
termostat susicky ST | Na dotaz | Zadat poptávku | |
| 620 0 WHR64992 |
C00491082
481227618277 |
Switch Buzzer Rold SC002012510 | Na dotaz | Zadat poptávku | |
| 621 0 WHR64992 |
C00311721
481227618309 |
Switch Start/Reset | Na dotaz | Zadat poptávku | |
| 621 2 WHR64992 |
C00320043
481227618278 |
spinac | 1 044 Kč
€ 41.20 |
||
| 633 0 WHR64992 |
C00315649
481227618248 |
spinac tlacitkovy | 1 101 Kč
€ 43.50 |
||
| 633 1 WHR64992 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 653 1 WHR64992 |
C00340146
481204728001 |
Guide,light WH VBL | Na dotaz | Zadat poptávku | |
| 743 0 WHR64992 |
C00344604
481253048145 |
navadec vzduchu | 1 424 Kč
€ 56.20 |
||
| 743 1 WHR64992 |
C00339958
481253048147 |
TEPLOVZDUSNY KA | 2 281 Kč
€ 90.10 |
||
| 743 2 WHR64992 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 761 0 WHR64992 |
C00340972
481248058077 |
filtr susicky | 917 Kč
€ 36.20 |
||
| 794 0 WHR64992 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR64992 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 900 5 WHR64992 |
C00343375
481253228923 |
Clamp f. control panel | Na dotaz | Zadat poptávku | |
| 902 1 WHR64992 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 903 0 WHR64992 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 910 8 WHR64992 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 3 WHR64992 |
C00336600
481250218369 |
Screw A2F M4x6 | Na dotaz | Zadat poptávku | |
| 912 4 WHR64992 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 922 0 WHR64992 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 922 1 WHR64992 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 962 0 WHR64992 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 962 1 WHR64992 |
C00484632
481223858002 |
OCHRANA ELEKTRI | 178 Kč
€ 7.00 |
||
| 993 0 WHR64992 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.10 |
||
| 993 2 WHR64992 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
