| Komerční kód: | AWZ 241 TUMBLE DRYER WP |
| Kód 12NC: | 857524101000 |
| I.C. kód: | 857524101003 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857524101001, 857524101000, 857524115000, 857524112001, 857524115001, 857524115003, 857524101004, 857524112000, 857524112003, 857524129001, 857524129003, 857524112004, 857524115004, 857524129000, 857524129004 |
Potřebujete servis? Jsme tady pro Vás

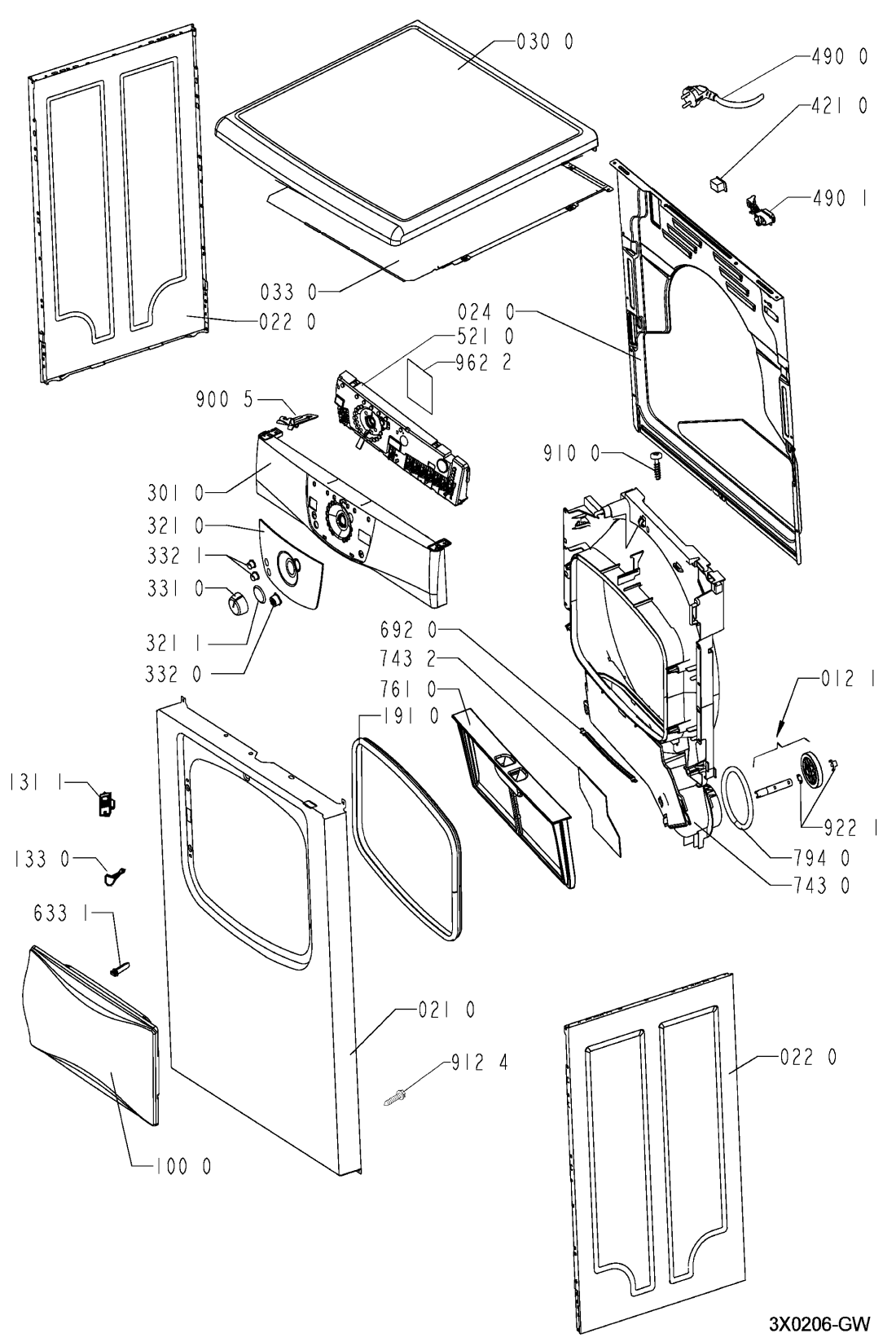

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR43768 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.20 |
||
| 004 1 WHR43768 |
C00337127
481246638078 |
Protec,el.parts /bottom AV | Na dotaz | Zadat poptávku | |
| 011 0 WHR43768 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR43768 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR43768 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.60 |
||
| 012 2 WHR43768 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR43768 |
C00340643
481244010832 |
Front,panel | Na dotaz | Zadat poptávku | |
| 022 0 WHR43768 |
C00327967
481244010821 |
stena bocni prava | 3 916 Kč
€ 154.60 |
||
| 024 0 WHR43768 |
C00341542
481244010713 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 030 0 WHR43768 |
C00553554
481244010869 |
Table top | Na dotaz | Zadat poptávku | |
| 033 0 WHR43768 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 100 0 WHR43768 |
C00341292
481241618929 |
DoorR0 WH VBL GW | Na dotaz | Zadat poptávku | |
| 131 1 WHR43768 |
C00313210
481227138462 |
Zámek sušičky | 185 Kč
€ 7.30 |
||
| 133 0 WHR43768 |
C00311468
481241728094 |
kolik dveri | 395 Kč
€ 15.60 |
||
| 191 0 WHR43768 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 220 0 WHR43768 |
C00341183
481241818199 |
Drum coatedcoated | Na dotaz | Zadat poptávku | |
| 223 0 WHR43768 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.30 |
||
| 271 0 WHR43768 |
C00314936
481235818162 |
Belt 1965-H7 EH81 | Na dotaz | Zadat poptávku | |
| 273 0 WHR43768 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR43768 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR43768 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.70 |
||
| 291 2 WHR43768 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR43768 |
C00597936
481245210892 |
Control panel AWZ 241. | Na dotaz | Zadat poptávku | |
| 321 0 WHR43768 |
C00489399
481245210891 |
Insert panel | Na dotaz | Zadat poptávku | |
| 321 1 WHR43768 |
C00341001
481244688127 |
Fastener f. Inlayf. Inlay | Na dotaz | Zadat poptávku | |
| 331 0 WHR43768 |
C00341875
481241458201 |
Knoflík programátoru VBL | 623 Kč
€ 24.60 |
||
| 332 0 WHR43768 |
C00527034
481227618443 |
tlacitko start susic | 156 Kč
€ 6.20 |
||
| 332 1 WHR43768 |
C00527033
481227618442 |
Button | Na dotaz | Zadat poptávku | |
| 401 0 WHR43768 |
C00313823
481236118361 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR43768 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR43768 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR43768 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 443 0 WHR43768 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR43768 |
C00339928
481225928674 |
Heating element 2300W - 1T18275001 | Na dotaz | Zadat poptávku | |
| 490 0 WHR43768 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 1 WHR43768 |
C00335990
481232128421 |
Strain relief | Na dotaz | Zadat poptávku | |
| 492 1 WHR43768 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 521 0 WHR43768 |
C00597729
481221478615 |
Control board Type 3224. | Na dotaz | Zadat poptávku | |
| 551 3 WHR43768 |
C00312421
481227128369 |
termostat susicky ST | Na dotaz | Zadat poptávku | |
| 633 1 WHR43768 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.30 |
||
| 692 0 WHR43768 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.80 |
||
| 743 0 WHR43768 |
C00316709
481253048631 |
navadec vzduchu | 2 979 Kč
€ 117.60 |
||
| 743 1 WHR43768 |
C00339958
481253048147 |
TEPLOVZDUSNY KA | 2 281 Kč
€ 90.10 |
||
| 743 2 WHR43768 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 761 0 WHR43768 |
C00317019
481248058323 |
Filtr sušičky - dveřní | 924 Kč
€ 36.50 |
||
| 794 0 WHR43768 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR43768 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 900 5 WHR43768 |
C00343375
481253228923 |
Clamp f. control panel | Na dotaz | Zadat poptávku | |
| 902 1 WHR43768 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 903 0 WHR43768 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 910 0 WHR43768 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 1 WHR43768 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 912 4 WHR43768 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 922 0 WHR43768 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR43768 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 962 0 WHR43768 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 962 2 WHR43768 |
C00319715
481246638056 |
Foil Aluminium Display board | Na dotaz | Zadat poptávku | |
| 993 0 WHR43768 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.10 |
||
| 993 1 WHR43768 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
