WHIRLPOOL AWZ 3520 WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 3520 WP |
| Kód 12NC: | 857535215090 |
| I.C. kód: | 857535215092 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857535215091 |
Potřebujete servis? Jsme tady pro Vás

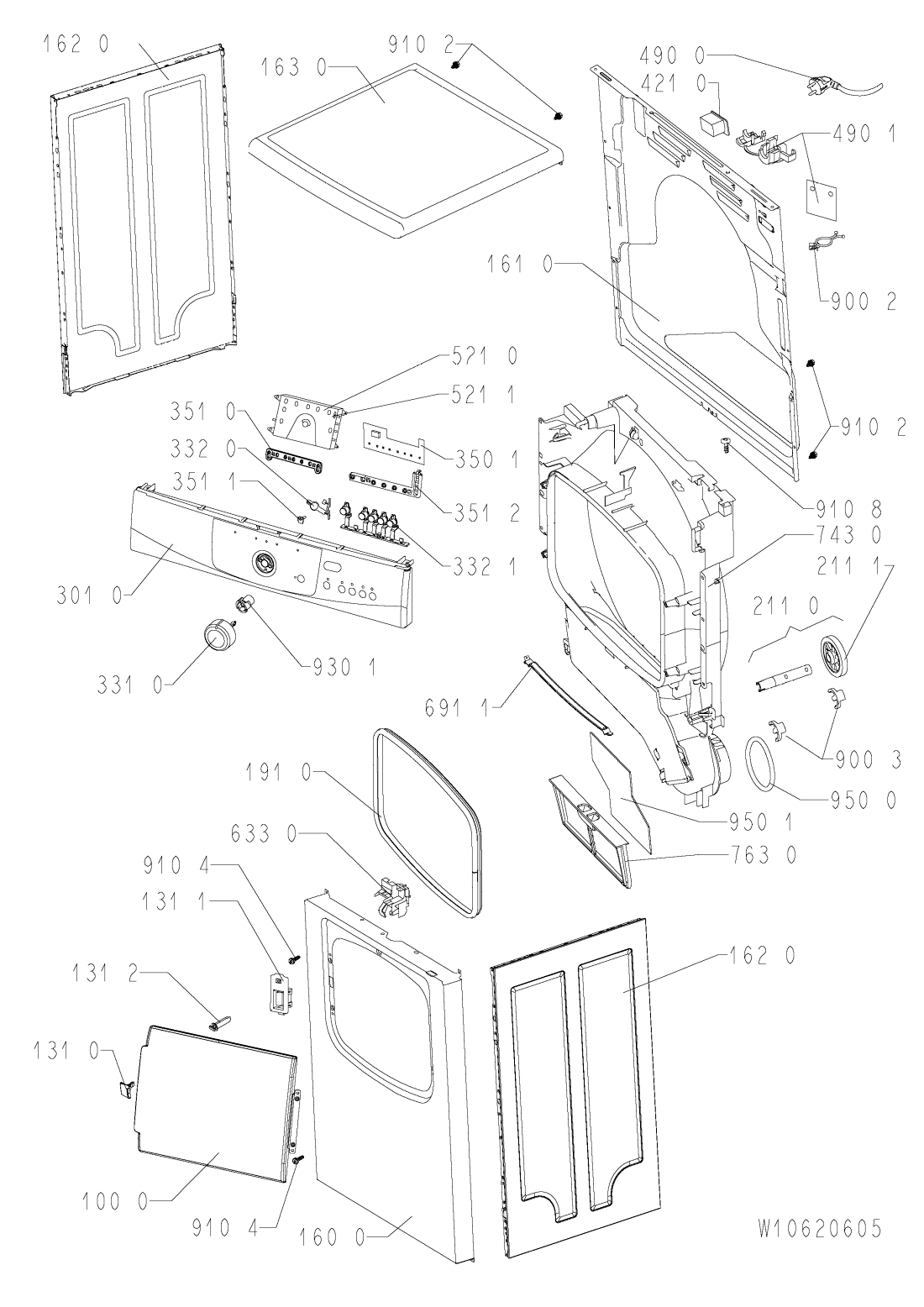

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1000 WHR29783 |
C00312643
481244011676 |
Dveře sušičky Whirlpool | 2 898 Kč
€ 114.30 |
||
| 1310 WHR29783 |
C00341449
481073027591 |
Pin Door lock | Na dotaz | Zadat poptávku | |
| 1311 WHR29783 |
C00313210
481227138462 |
Zámek sušičky | 185 Kč
€ 7.30 |
||
| 1312 WHR29783 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.30 |
||
| 1600 WHR29783 |
C00327972
481244010867 |
Front panel RO GW | Na dotaz | Zadat poptávku | |
| 1610 WHR29783 |
C00328043
481244011574 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 1620 WHR29783 |
C00327967
481244010821 |
stena bocni prava | 3 916 Kč
€ 154.40 |
||
| 1630 WHR29783 |
C00328074
481244011704 |
Table top AV RO TINY | Na dotaz | Zadat poptávku | |
| 1840 WHR29783 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.10 |
||
| 1850 WHR29783 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 1910 WHR29783 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 2110 WHR29783 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.50 |
||
| 2111 WHR29783 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.10 |
||
| 2112 WHR29783 |
C00312253
481252028188 |
osa kolecka | 472 Kč
€ 18.60 |
||
| 2200 WHR29783 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.10 |
||
| 2230 WHR29783 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.30 |
||
| 2710 WHR29783 |
C00313102
481235818186 |
Řemen sušičky 1965H | 228 Kč
€ 9.00 |
||
| 2730 WHR29783 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.40 |
||
| 2900 WHR29783 |
C00311349
481246668837 |
Těsnění bubnu zadní | 1 868 Kč
€ 73.70 |
||
| 2901 WHR29783 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.60 |
||
| 3010 WHR29783 |
C00343255
480112100427 |
Control panel AWZ 3520 | Na dotaz | Zadat poptávku | |
| 3310 WHR29783 |
C00310970
481241458306 |
Knoflík programátoru , volič programu AWO/D , AWE , AWZ | 149 Kč
€ 5.90 |
||
| 3320 WHR29783 |
C00318501
481251318175 |
Tlačítko start | 417 Kč
€ 16.40 |
||
| 3321 WHR29783 |
C00337018
481241029539 |
Push button 5 options | Na dotaz | Zadat poptávku | |
| 3501 WHR29783 |
C00312517
481223958061 |
jednotka ovladaci | 3 973 Kč
€ 156.70 |
||
| 3510 WHR29783 |
C00338346
481073027501 |
Light guide Prog. | Na dotaz | Zadat poptávku | |
| 3511 WHR29783 |
C00314404
481213418047 |
kolik | 323 Kč
€ 12.70 |
||
| 3512 WHR29783 |
C00448912
481073027531 |
Light guide options | Na dotaz | Zadat poptávku | |
| 4000 WHR29783 |
C00313194
481236118533 |
Motor sušičky | 5 878 Kč
€ 231.80 |
||
| 4200 WHR29783 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 4210 WHR29783 |
C00311367
481212118276 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 4560 WHR29783 |
C00311741
480112100453 |
Heating element 1000W x 2 10A UK | Na dotaz | Zadat poptávku | |
| 4900 WHR29783 |
C00328488
481232118063 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 4901 WHR29783 |
C00328506
481232128433 |
Strain relief + protect. | Na dotaz | Zadat poptávku | |
| 5210 WHR29783 |
C00443651
481010619277 |
Control unit TINY ECO, progr. | Na dotaz | Zadat poptávku | |
| 5211 WHR29783 |
C00315746
481010608586 |
Control unit Tiny Core Eco basic | Na dotaz | Zadat poptávku | |
| 6330 WHR29783 |
C00313326
481227618523 |
Switch door | Na dotaz | Zadat poptávku | |
| 6910 WHR29783 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.00 |
||
| 6911 WHR29783 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.70 |
||
| 6912 WHR29783 |
C00314272
480112100128 |
Sensor temper. Kit NTC + Seal | Na dotaz | Zadat poptávku | |
| 7430 WHR29783 |
C00316709
481253048631 |
navadec vzduchu | 2 979 Kč
€ 117.50 |
||
| 7431 WHR29783 |
C00313112
481236118537 |
vrtule ventilatoru+spona | 1 214 Kč
€ 47.90 |
||
| 7432 WHR29783 |
C00343139
481253048151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 7630 WHR29783 |
C00317019
481248058323 |
Filtr sušičky - dveřní | 924 Kč
€ 36.40 |
||
| 9000 WHR29783 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 9001 WHR29783 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 9002 WHR29783 |
C00327317
481229088099 |
Clip for Heater | Na dotaz | Zadat poptávku | |
| 9003 WHR29783 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.80 |
||
| 9004 WHR29783 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 9005 WHR29783 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 9006 WHR29783 |
C00311527
481229088096 |
pojistka | 199 Kč
€ 7.80 |
||
| 9102 WHR29783 |
C00321301
480112101491 |
Šroub | 98 Kč
€ 3.90 |
||
| 9104 WHR29783 |
C00313774
481250218695 |
sroub | 3 038 Kč
€ 119.80 |
||
| 9108 WHR29783 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 9300 WHR29783 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 9301 WHR29783 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 9500 WHR29783 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 9501 WHR29783 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 9502 WHR29783 |
C00315185
481228298014 |
tesneni | 421 Kč
€ 16.60 |
||
| 9932 WHR29783 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
| 999 WHR29783 |
C00353208 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 9992 WHR29783 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
