| Komerční kód: | AWZ 3789 WP |
| Kód 12NC: | 857537818090 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857537829090, 857537829091, 857537829092 |
Potřebujete servis? Jsme tady pro Vás

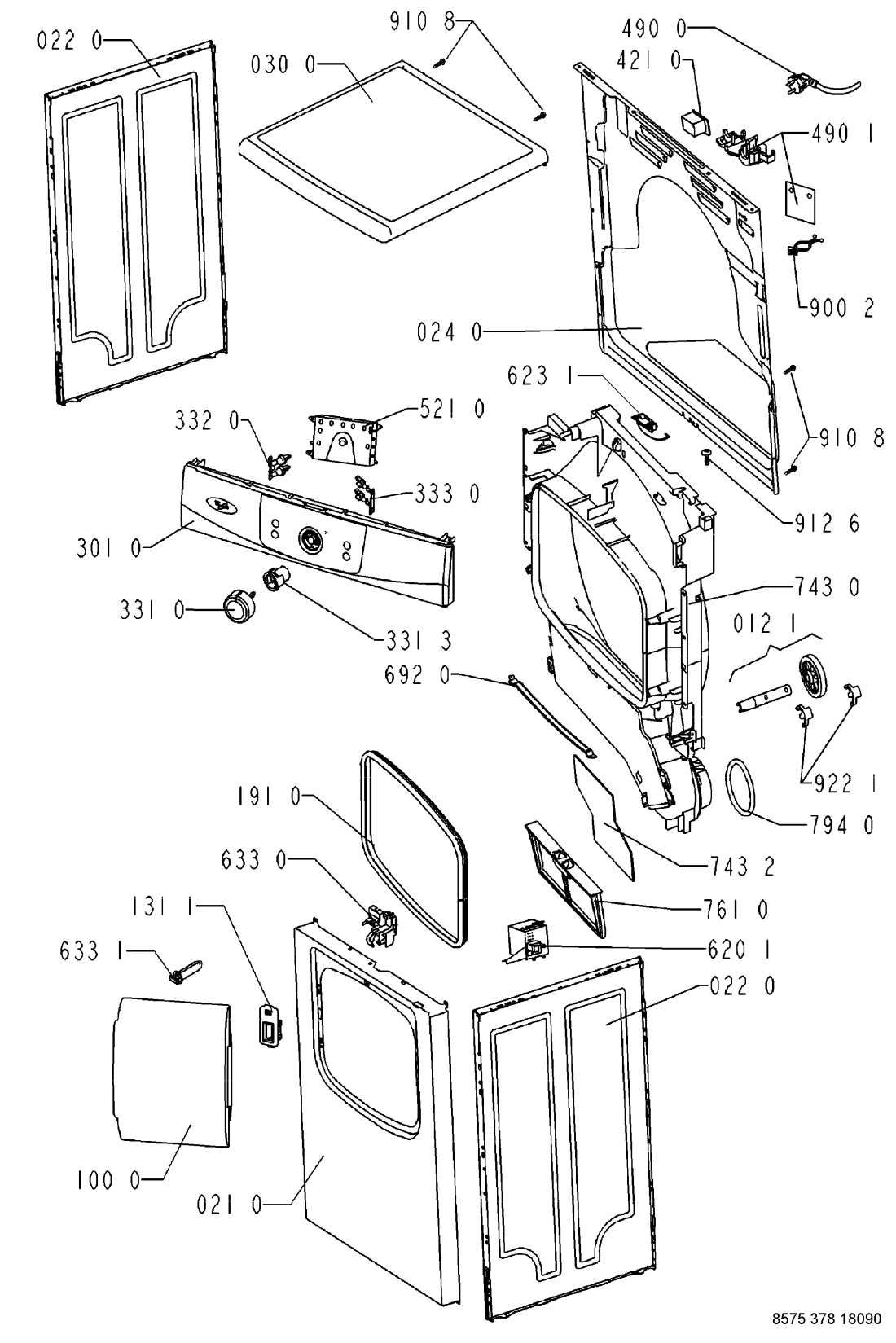

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0040 WHR29851 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.10 |
||
| 0041 WHR29851 |
C00330884
481246638101 |
tlačítko | 138 Kč
€ 5.40 |
||
| 0110 WHR29851 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 0120 WHR29851 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.10 |
||
| 0121 WHR29851 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.50 |
||
| 0122 WHR29851 |
C00312253
481252028188 |
osa kolecka | 472 Kč
€ 18.60 |
||
| 0210 WHR29851 |
C00327972
481244010867 |
Front panel RO GW | Na dotaz | Zadat poptávku | |
| 0220 WHR29851 |
C00327967
481244010821 |
stena bocni prava | 3 916 Kč
€ 154.40 |
||
| 0240 WHR29851 |
C00328043
481244011574 |
Panel rear AV | Na dotaz | Zadat poptávku | |
| 0300 WHR29851 |
C00328074
481244011704 |
Table top AV RO TINY | Na dotaz | Zadat poptávku | |
| 1000 WHR29851 |
C00312643
481244011676 |
Dveře sušičky Whirlpool | 2 898 Kč
€ 114.30 |
||
| 1311 WHR29851 |
C00313210
481227138462 |
Zámek sušičky | 185 Kč
€ 7.30 |
||
| 1910 WHR29851 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 2200 WHR29851 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.10 |
||
| 2230 WHR29851 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.30 |
||
| 2710 WHR29851 |
C00313102
481235818186 |
Řemen sušičky 1965H | 228 Kč
€ 9.00 |
||
| 2730 WHR29851 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.40 |
||
| 2750 WHR29851 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 2910 WHR29851 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.60 |
||
| 2912 WHR29851 |
C00311349
481246668837 |
Těsnění bubnu zadní | 1 868 Kč
€ 73.70 |
||
| 3010 WHR29851 |
C00428852
480112100635 |
Control panel AWZ 3789 | Na dotaz | Zadat poptávku | |
| 3310 WHR29851 |
C00314604
481241458334 |
knoflik | 540 Kč
€ 21.30 |
||
| 3313 WHR29851 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.00 |
||
| 3320 WHR29851 |
C00312048
481241029401 |
tlacitko | 397 Kč
€ 15.70 |
||
| 3330 WHR29851 |
C00310977
481251318172 |
Tlačítko | 184 Kč
€ 7.30 |
||
| 4010 WHR29851 |
C00313194
481236118533 |
Motor sušičky | 5 878 Kč
€ 231.80 |
||
| 4011 WHR29851 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 4200 WHR29851 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 4210 WHR29851 |
C00317585
481212118284 |
Filtr | 1 543 Kč
€ 60.90 |
||
| 4430 WHR29851 |
C00313112
481236118537 |
vrtule ventilatoru+spona | 1 214 Kč
€ 47.90 |
||
| 4432 WHR29851 |
C00311527
481229088096 |
pojistka | 199 Kč
€ 7.80 |
||
| 4560 WHR29851 |
C00339926
480112100454 |
topeni susicky 1000W x 2 10A | 3 455 Kč
€ 136.30 |
||
| 4900 WHR29851 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 4900 WHR29851 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 4901 WHR29851 |
C00328506
481232128433 |
Strain relief + protect. | Na dotaz | Zadat poptávku | |
| 5210 WHR29851 |
C00428851
480112100634 |
Control unit TINY DOMINO SR,programmed | Na dotaz | Zadat poptávku | |
| 6201 WHR29851 |
C00313090
481223958063 |
modul vlhkosti | 4 357 Kč
€ 171.80 |
||
| 6231 WHR29851 |
C00317771
480112100637 |
Contact reed + holder 3 Pin | Na dotaz | Zadat poptávku | |
| 6232 WHR29851 |
C00338314
480112100487 |
Magnet + holder | Na dotaz | Zadat poptávku | |
| 6330 WHR29851 |
C00313326
481227618523 |
Switch door | Na dotaz | Zadat poptávku | |
| 6331 WHR29851 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.30 |
||
| 6911 WHR29851 |
C00315185
481228298014 |
tesneni | 421 Kč
€ 16.60 |
||
| 6912 WHR29851 |
C00314272
480112100128 |
Sensor temper. Kit NTC + Seal | Na dotaz | Zadat poptávku | |
| 6920 WHR29851 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.70 |
||
| 7430 WHR29851 |
C00316709
481253048631 |
navadec vzduchu | 2 979 Kč
€ 117.50 |
||
| 7431 WHR29851 |
C00343139
481253048151 |
Conveyor | Na dotaz | Zadat poptávku | |
| 7432 WHR29851 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 7610 WHR29851 |
C00317019
481248058323 |
Filtr sušičky - dveřní | 924 Kč
€ 36.40 |
||
| 7940 WHR29851 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 9002 WHR29851 |
C00327317
481229088099 |
Clip for Heater | Na dotaz | Zadat poptávku | |
| 9021 WHR29851 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 9030 WHR29851 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 9108 WHR29851 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 9126 WHR29851 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 9220 WHR29851 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 9221 WHR29851 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.80 |
||
| 9620 WHR29851 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 9930 WHR29851 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.00 |
||
| 9931 WHR29851 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
| 999 WHR29851 |
C00353208 | Testprogram WHP | Na dotaz | Zadat poptávku | |
