WHIRLPOOL AWZ 412 WASHER DRYERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 412 WASHER DRYERS WP |
| Kód 12NC: | 857541229000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 857541272000, 857541272001 |
Potřebujete servis? Jsme tady pro Vás

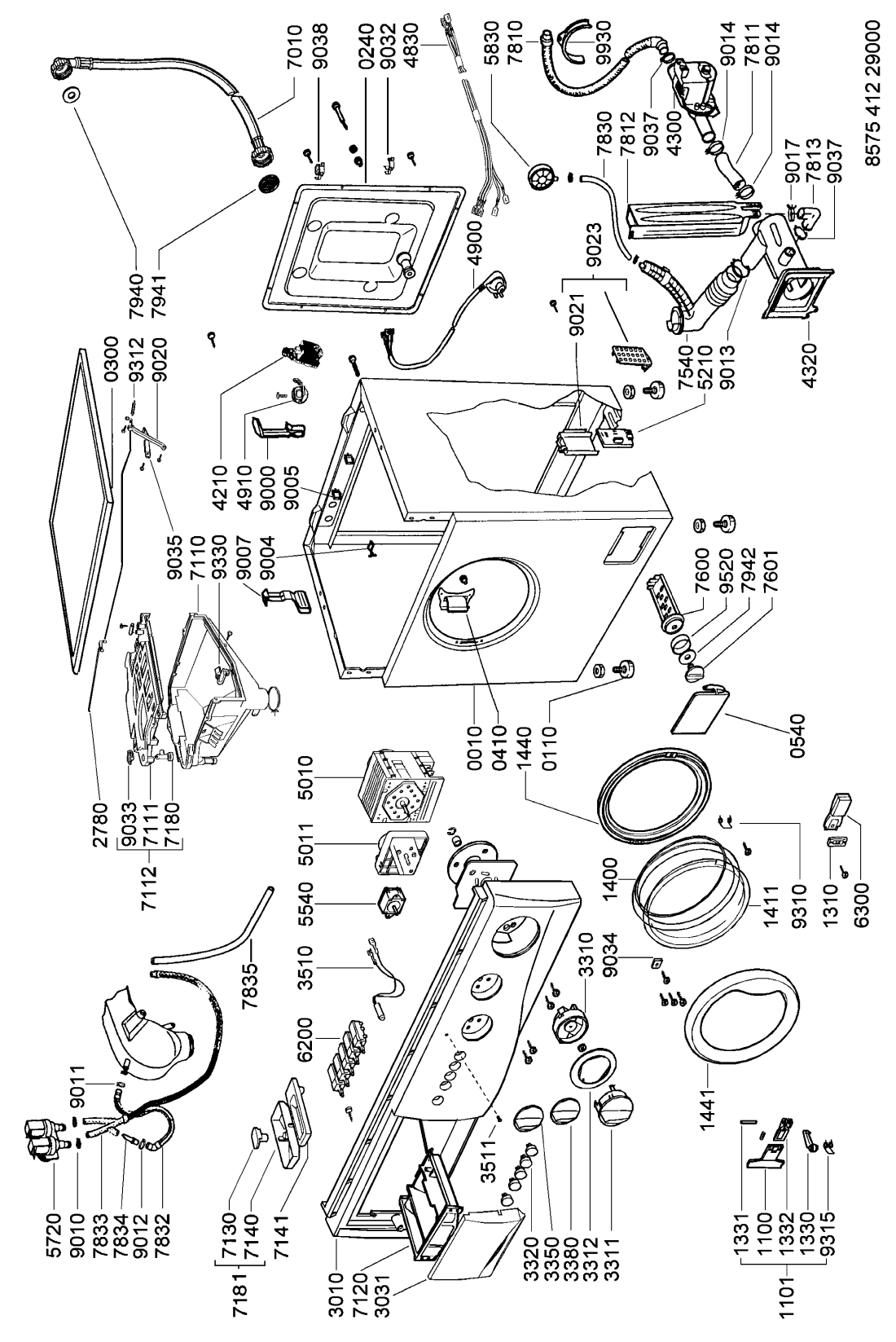

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR70325 |
C00482920
481244010613 |
skrin pracky | 3 247 Kč
€ 128.20 |
||
| 003 0 WHR70325 |
C00332936
481940443391 |
Bearer hook crosspiece | Na dotaz | Zadat poptávku | |
| 011 0 WHR70325 |
C00333071
481946247014 |
noha nastavitelna | 587 Kč
€ 23.20 |
||
| 024 0 WHR70325 |
C00333376
481990303649 |
stena zadni | 1 107 Kč
€ 43.70 |
||
| 030 0 WHR70325 |
C00335660
481244010614 |
deska horni | Na dotaz | Zadat poptávku | |
| 041 0 WHR70325 |
C00339876
481941719534 |
Hinge | Na dotaz | Zadat poptávku | |
| 054 0 WHR70325 |
C00342497
481246228312 |
kryt filtru | 946 Kč
€ 37.30 |
||
| 061 0 WHR70325 |
C00333125
481946688802 |
Counter weight | Na dotaz | Zadat poptávku | |
| 061 1 WHR70325 |
C00333136
481946689461 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 065 0 WHR70325 |
C00328547
481232518002 |
Insulation | Na dotaz | Zadat poptávku | |
| 081 0 WHR70325 |
C00333143
481946698923 |
tlumic treci | 871 Kč
€ 34.40 |
||
| 086 0 WHR70325 |
C00333216
481950218416 |
Screw | Na dotaz | Zadat poptávku | |
| 086 1 WHR70325 |
C00333214
481950218407 |
Fastener counter weight | Na dotaz | Zadat poptávku | |
| 086 2 WHR70325 |
C00327381
481231028239 |
Fastener kit motor | Na dotaz | Zadat poptávku | |
| 086 3 WHR70325 |
C00333129
481946689132 |
Fastener counter weight | Na dotaz | Zadat poptávku | |
| 086 5 WHR70325 |
C00333242
481950518322 |
Nut | Na dotaz | Zadat poptávku | |
| 110 0 WHR70325 |
C00340141
481949878431 |
Rukojeť dveří pračky v10120 | Na dotaz | Zadat poptávku | |
| 110 1 WHR70325 |
C00312699
481949878432 |
rukojet dveri kompl. | Na dotaz | Zadat poptávku | |
| 131 0 WHR70325 |
C00338327
481990310159 |
Lock Plate | Na dotaz | Zadat poptávku | |
| 133 0 WHR70325 |
C00333391
481990310175 |
hak uzaveru dveri | 507 Kč
€ 20.00 |
||
| 133 1 WHR70325 |
C00333390
481990310174 |
Pin handle | Na dotaz | Zadat poptávku | |
| 133 2 WHR70325 |
C00319560
481990310176 |
paka rukojeti | Na dotaz | Zadat poptávku | |
| 140 0 WHR70325 |
C00333041
481945058178 |
sklo dveri | 1 794 Kč
€ 70.80 |
||
| 141 1 WHR70325 |
C00333142
481946698878 |
sklo dveri ochrane | 1 821 Kč
€ 71.90 |
||
| 143 0 WHR70325 |
C00333371
481990302494 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 144 0 WHR70325 |
C00318322
481990310179 |
Příruba dveří | 1 164 Kč
€ 46.00 |
||
| 144 1 WHR70325 |
C00314636
481241618441 |
Rám dveří vnější | 1 577 Kč
€ 62.30 |
||
| 144 2 WHR70325 |
C00316504
481953288054 |
spona TVO - vnitřní | 709 Kč
€ 28.00 |
||
| 190 0 WHR70325 |
C00311564
481946818285 |
TVO 336 | 1 480 Kč
€ 58.40 |
||
| 200 0 WHR70325 |
C00497806
481241818236 |
NADOBA | Na dotaz | Zadat poptávku | |
| 201 0 WHR70325 |
C00497397
481231018789 |
dno nadrze | 5 249 Kč
€ 207.20 |
||
| 201 1 WHR70325 |
C00333374
481990302529 |
Ring tub | Na dotaz | Zadat poptávku | |
| 201 3 WHR70325 |
C00333311
481953228248 |
Ring tub cpl. | Na dotaz | Zadat poptávku | |
| 210 3 WHR70325 |
C00342239
481940449869 |
Crosspiece,drum | Na dotaz | Zadat poptávku | |
| 220 0 WHR70325 |
C00497807
481241818237 |
BUBON | Na dotaz | Zadat poptávku | |
| 220 1 WHR70325 |
C00341185
481241818238 |
Drum a. Crosspiece | Na dotaz | Zadat poptávku | |
| 271 0 WHR70325 |
C00312963
481235818184 |
Řemen víceklínový 1230J5 | 793 Kč
€ 31.30 |
||
| 272 0 WHR70325 |
C00337075
481252888098 |
remenice bubnu | 989 Kč
€ 39.00 |
||
| 278 0 WHR70325 |
C00336802
481253598097 |
ROD,PULL | 492 Kč
€ 19.40 |
||
| 291 0 WHR70325 |
C00315292
481946818022 |
tesneni bocnice | 662 Kč
€ 26.10 |
||
| 301 0 WHR70325 |
C00598759
481246469014 |
Control panel. | Na dotaz | Zadat poptávku | |
| 303 1 WHR70325 |
C00585891
481249878221 |
Handle drawer. | Na dotaz | Zadat poptávku | |
| 331 0 WHR70325 |
C00338517
481241258947 |
Knoflík | 607 Kč
€ 24.00 |
||
| 331 1 WHR70325 |
C00341909
481241378645 |
knoflik programatoru | 607 Kč
€ 24.00 |
||
| 331 2 WHR70325 |
C00338508
481241378698 |
Knob disc Timer | Na dotaz | Zadat poptávku | |
| 332 0 WHR70325 |
C00343967
481241028854 |
Krytka spínače | Na dotaz | Zadat poptávku | |
| 335 0 WHR70325 |
C00338442
481241258919 |
knoflik termostatu | 805 Kč
€ 31.80 |
||
| 338 0 WHR70325 |
C00341888
481241258948 |
Knoflík časovače | 1 521 Kč
€ 60.00 |
||
| 351 0 WHR70325 |
C00320908
481913448503 |
SIGNALKA | 472 Kč
€ 18.60 |
||
| 351 1 WHR70325 |
C00341815
481238118276 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 401 0 WHR70325 |
C00315351
481236178022 |
motor | 2 994 Kč
€ 118.20 |
||
| 401 1 WHR70325 |
C00316590
481236178019 |
motor ventilatoru | Na dotaz | Zadat poptávku | |
| 421 0 WHR70325 |
C00317581
481212118212 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR70325 |
C00311614
481936018217 |
Vypouštěcí čerpadlo předem plněné pračky Whirlpool, Ignis | 915 Kč
€ 36.10 |
||
| 432 0 WHR70325 |
C00320143
481248058146 |
Filter body | Na dotaz | Zadat poptávku | |
| 443 0 WHR70325 |
C00313290
481251548011 |
vrtule ventilatoru | 1 423 Kč
€ 56.20 |
||
| 451 0 WHR70325 |
C00339953
481925928799 |
topeni s pojistkou | 1 441 Kč
€ 56.90 |
||
| 451 1 WHR70325 |
C00339959
481241838086 |
topeni susicky komp. | 5 291 Kč
€ 208.90 |
||
| 451 3 WHR70325 |
C00339910
481225928712 |
topeni susicky | 1 459 Kč
€ 57.60 |
||
| 483 0 WHR70325 |
C00493203
481232178149 |
Cable harness | Na dotaz | Zadat poptávku | |
| 490 0 WHR70325 |
C00342882
481232118122 |
Cable mains until 02.04.2006 | Na dotaz | Zadat poptávku | |
| 491 0 WHR70325 |
C00332924
481940118738 |
Clamp | Na dotaz | Zadat poptávku | |
| 501 0 WHR70325 |
C00311908
481228218663 |
programator 1837/1 A | 1 595 Kč
€ 63.00 |
||
| 501 1 WHR70325 |
C00315266
481928218792 |
programator suseni | 1 649 Kč
€ 65.10 |
||
| 521 0 WHR70325 |
C00312305
481221458091 |
modul H8.1 | 6 304 Kč
€ 248.90 |
||
| 551 0 WHR70325 |
C00320292
481928228627 |
pojistka tepelna | 734 Kč
€ 29.00 |
||
| 551 1 WHR70325 |
C00311585
481228228214 |
termostat 100 C | 918 Kč
€ 36.20 |
||
| 551 2 WHR70325 |
C00315165
481228228215 |
Termostat pračky se sušičkou Whirlpool 47 °C | 2 009 Kč
€ 79.30 |
||
| 551 9 WHR70325 |
C00327228
481227128445 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 0 WHR70325 |
C00337597
481990308226 |
potenciometr | 1 214 Kč
€ 47.90 |
||
| 572 0 WHR70325 |
C00313405
481227128443 |
ventil 2-cest. | 1 252 Kč
€ 49.40 |
||
| 583 0 WHR70325 |
C00312652
481227128421 |
presostat AWG 336/2 | 1 461 Kč
€ 57.70 |
||
| 620 0 WHR70325 |
C00332968
481941028985 |
spinac tlacitkovy | 1 141 Kč
€ 45.00 |
||
| 630 0 WHR70325 |
C00320794
481228058028 |
Door lock | Na dotaz | Zadat poptávku | |
| 701 0 WHR70325 |
C00314542
481953028932 |
Přívodní hadice 1,5m (koncovky rovná/zahnutá): vysoce kvalitní řada | Na dotaz | Zadat poptávku | |
| 708 4 WHR70325 |
C00341271
481953028545 |
hadice k nasypce | Na dotaz | Zadat poptávku | |
| 711 0 WHR70325 |
C00342173
481941878886 |
teleso nasypky | 2 427 Kč
€ 95.80 |
||
| 711 1 WHR70325 |
C00499384
481946279036 |
viko nasypky | Na dotaz | Zadat poptávku | |
| 711 2 WHR70325 |
C00319351
481246228316 |
viko nasypky | 932 Kč
€ 36.80 |
||
| 712 0 WHR70325 |
C00315595
481941878067 |
Zásuvka násypky AWG | Na dotaz | Zadat poptávku | |
| 713 0 WHR70325 |
C00333008
481941878989 |
Accessory deterg. fluid | Na dotaz | Zadat poptávku | |
| 714 0 WHR70325 |
C00333007
481941878988 |
Container liquid detergent | Na dotaz | Zadat poptávku | |
| 714 1 WHR70325 |
C00333003
481941878166 |
mrizka kryci | 701 Kč
€ 27.70 |
||
| 718 0 WHR70325 |
C00332889
481936069849 |
TRYSKA AWG336/1 | Na dotaz | Zadat poptávku | |
| 718 1 WHR70325 |
C00332862
481931038651 |
vlozka nasypky | 957 Kč
€ 37.80 |
||
| 742 0 WHR70325 |
C00313805
481236078054 |
kryt | 690 Kč
€ 27.20 |
||
| 743 0 WHR70325 |
C00318222
481952918071 |
Bellows | Na dotaz | Zadat poptávku | |
| 743 1 WHR70325 |
C00327410
481231038436 |
kanal vzduchovy | 2 796 Kč
€ 110.40 |
||
| 743 2 WHR70325 |
C00332329
481252648046 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 3 WHR70325 |
C00332328
481252648045 |
Air guide upper | Na dotaz | Zadat poptávku | |
| 754 0 WHR70325 |
C00333286
481953028862 |
Hadice nádrž - čerpadlo pračky Whirlpool, Ignis | 1 420 Kč
€ 56.10 |
||
| 760 0 WHR70325 |
C00317567
481948058082 |
filtr cerpadla | 1 044 Kč
€ 41.20 |
||
| 760 1 WHR70325 |
C00318920
481946278861 |
sroub filtru | 742 Kč
€ 29.30 |
||
| 781 0 WHR70325 |
C00315104
481253029045 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 781 1 WHR70325 |
C00333373
481990302515 |
hadice filtr-cerpadl | Na dotaz | Zadat poptávku | |
| 781 2 WHR70325 |
C00332782
481290308205 |
Container Non-Overflow | Na dotaz | Zadat poptávku | |
| 781 3 WHR70325 |
C00320420
481290308206 |
TRUBKA ZASOBNIK | 919 Kč
€ 36.30 |
||
| 783 0 WHR70325 |
C00333289
481953028908 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR70325 |
C00333267
481952648213 |
kanal vzduchu | 1 651 Kč
€ 65.20 |
||
| 783 2 WHR70325 |
C00315240
481253028926 |
Hadice ventilu | 953 Kč
€ 37.60 |
||
| 783 3 WHR70325 |
C00339410
481253028927 |
hadice od ventilu | 726 Kč
€ 28.70 |
||
| 783 4 WHR70325 |
C00318775
481253028928 |
tryska rozvadeci | 818 Kč
€ 32.30 |
||
| 783 5 WHR70325 |
C00314044
481990310156 |
Hadice k násypce | Na dotaz | Zadat poptávku | |
| 792 0 WHR70325 |
C00319769
481246668593 |
Seal for blower | Na dotaz | Zadat poptávku | |
| 794 0 WHR70325 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 1 WHR70325 |
C00332861
481931038057 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 2 WHR70325 |
C00316082
481953268309 |
Podložka filtru | 1 027 Kč
€ 40.50 |
||
| 900 0 WHR70325 |
C00498976
481940113348 |
Hook | Na dotaz | Zadat poptávku | |
| 900 1 WHR70325 |
C00317362
481946698528 |
Clamping piece | Na dotaz | Zadat poptávku | |
| 900 2 WHR70325 |
C00344175
481946418162 |
Bracket heating element | Na dotaz | Zadat poptávku | |
| 900 4 WHR70325 |
C00332908
481940113349 |
Hook | Na dotaz | Zadat poptávku | |
| 900 5 WHR70325 |
C00499459
481946689459 |
Holder | Na dotaz | Zadat poptávku | |
| 900 7 WHR70325 |
C00333344
481953538151 |
Hook | Na dotaz | Zadat poptávku | |
| 901 0 WHR70325 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR70325 |
C00328876
481240118458 |
Strap | Na dotaz | Zadat poptávku | |
| 901 2 WHR70325 |
C00343366
481240118576 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR70325 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | 87 Kč
€ 3.40 |
||
| 901 4 WHR70325 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 901 5 WHR70325 |
C00335977
481949268475 |
tesneni kanal vzduch | 89 Kč
€ 3.50 |
||
| 901 6 WHR70325 |
C00332926
481940118817 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 7 WHR70325 |
C00328888
481240118582 |
Clamp | Na dotaz | Zadat poptávku | |
| 902 0 WHR70325 |
C00333367
481990302468 |
Lever | Na dotaz | Zadat poptávku | |
| 902 1 WHR70325 |
C00327900
481241879639 |
drzak regulatoru | 651 Kč
€ 25.70 |
||
| 902 2 WHR70325 |
C00319185
481240448664 |
Holder | Na dotaz | Zadat poptávku | |
| 902 3 WHR70325 |
C00327898
481241878991 |
Holder Modul | Na dotaz | Zadat poptávku | |
| 903 2 WHR70325 |
C00332910
481940118348 |
drzak vytokove hadic | 394 Kč
€ 15.60 |
||
| 903 3 WHR70325 |
C00333366
481990302466 |
Páka trysky | 2 051 Kč
€ 81.00 |
||
| 903 4 WHR70325 |
C00333387
481990310167 |
Door glass insert | Na dotaz | Zadat poptávku | |
| 903 5 WHR70325 |
C00333368
481990302469 |
Rocker | Na dotaz | Zadat poptávku | |
| 903 6 WHR70325 |
C00333173
481949268488 |
Clip | Na dotaz | Zadat poptávku | |
| 903 7 WHR70325 |
C00332913
481940118429 |
SPONA VYT. HADICE | 1 151 Kč
€ 45.40 |
||
| 903 8 WHR70325 |
C00332934
481940118883 |
Staple | Na dotaz | Zadat poptávku | |
| 910 1 WHR70325 |
C00336702
481950218347 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR70325 |
C00333213
481950218406 |
Screw | Na dotaz | Zadat poptávku | |
| 910 3 WHR70325 |
C00333226
481950233254 |
Screw | Na dotaz | Zadat poptávku | |
| 910 6 WHR70325 |
C00332064
481250218415 |
Screw | Na dotaz | Zadat poptávku | |
| 910 7 WHR70325 |
C00332065
481250218417 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR70325 |
C00333207
481950218345 |
SCREW | Na dotaz | Zadat poptávku | |
| 912 2 WHR70325 |
C00333015
481944019616 |
Screw | Na dotaz | Zadat poptávku | |
| 914 0 WHR70325 |
C00333237
481950513084 |
Nut | Na dotaz | Zadat poptávku | |
| 921 0 WHR70325 |
C00333309
481953213433 |
PODLOZKA REMENI | 156 Kč
€ 6.20 |
||
| 921 1 WHR70325 |
C00333314
481953238083 |
Washer | Na dotaz | Zadat poptávku | |
| 923 0 WHR70325 |
C00333320
481953268707 |
WASHER | Na dotaz | Zadat poptávku | |
| 931 0 WHR70325 |
C00333392
481990310178 |
Spring | Na dotaz | Zadat poptávku | |
| 931 2 WHR70325 |
C00333369
481990302471 |
Spring | Na dotaz | Zadat poptávku | |
| 931 3 WHR70325 |
C00333385
481990310126 |
Spring,suspens. | Na dotaz | Zadat poptávku | |
| 931 5 WHR70325 |
C00333388
481990310172 |
PRUZINA UZAVERU | 383 Kč
€ 15.10 |
||
| 932 0 WHR70325 |
C00345876
481249268142 |
PRUZINA TERMOST | 145 Kč
€ 5.70 |
||
| 932 1 WHR70325 |
C00332330
481252648047 |
SPOJKA AWG336/1 | 341 Kč
€ 13.50 |
||
| 933 0 WHR70325 |
C00333377
481990303659 |
hak nasypky | 951 Kč
€ 37.50 |
||
| 941 1 WHR70325 |
C00332645
481253068027 |
Gufero sušičky Whirlpool, Ignis | 965 Kč
€ 38.10 |
||
| 941 2 WHR70325 |
C00332300
481252088108 |
BEARING, KIT | Na dotaz | Zadat poptávku | |
| 951 1 WHR70325 |
C00316833
481953057019 |
tesneni ventilatoru | 608 Kč
€ 24.00 |
||
| 952 0 WHR70325 |
C00315611
481946669816 |
tesneni filtru | 798 Kč
€ 31.50 |
||
| 952 1 WHR70325 |
C00333365
481990302447 |
tesneni termostatu | 1 125 Kč
€ 44.40 |
||
| 993 0 WHR70325 |
C00332909
481940118345 |
koleno vyt. hadice | 76 Kč
€ 3.00 |
||
