WHIRLPOOL AWZ 477/D
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 477/D |
| Kód 12NC: | 857547710000 |
| I.C. kód: | 857547710001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 857547710000 |
Potřebujete servis? Jsme tady pro Vás

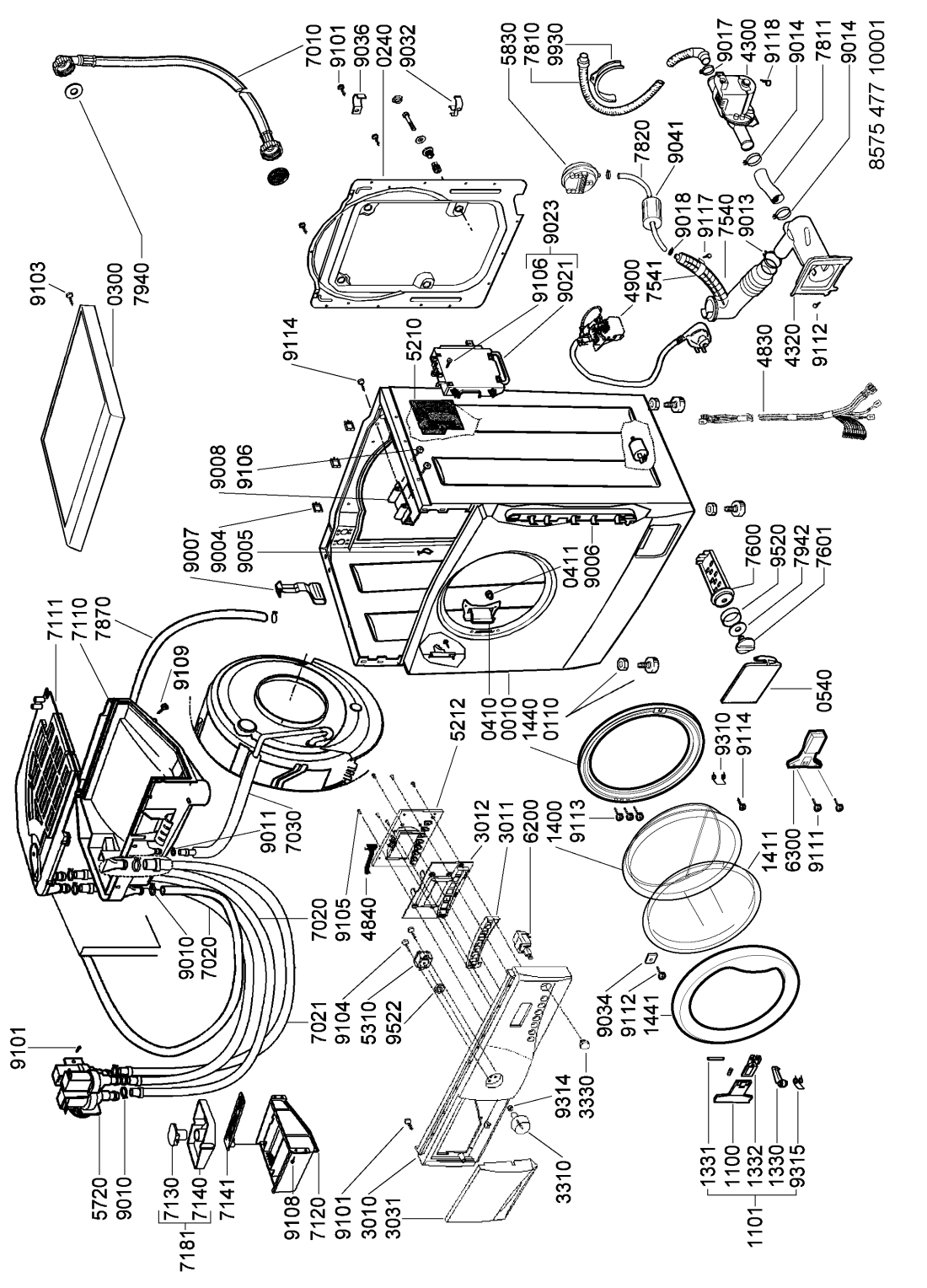

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR49027 |
C00598512
481244011277 |
Cabinet until 02.04.2006 | Na dotaz | Zadat poptávku | |
| 001 0 WHR49027 |
C00459149
481244011657 |
Cabinet from 03.04.2006 | Na dotaz | Zadat poptávku | |
| 011 0 WHR49027 |
C00330685
481246248448 |
foot | Na dotaz | Zadat poptávku | |
| 024 0 WHR49027 |
C00341573
481244010581 |
Panel rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR49027 |
C00491744
481244011278 |
Table top | Na dotaz | Zadat poptávku | |
| 041 0 WHR49027 |
C00329731
481241719305 |
Závěs dveří | 1 591 Kč
€ 62.80 |
||
| 041 1 WHR49027 |
C00336813
481990310139 |
nyt plastovy | 950 Kč
€ 37.50 |
||
| 054 0 WHR49027 |
C00342497
481246228312 |
kryt filtru | 946 Kč
€ 37.30 |
||
| 061 1 WHR49027 |
C00486178
481246688823 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 065 0 WHR49027 |
C00328547
481232518002 |
Insulation | Na dotaz | Zadat poptávku | |
| 081 0 WHR49027 |
C00486078
481246368028 |
Shock absorber assembly | Na dotaz | Zadat poptávku | |
| 086 2 WHR49027 |
C00621345
481231028268 |
Fastener kit motor | Na dotaz | Zadat poptávku | |
| 086 3 WHR49027 |
C00491401
481231028262 |
Fastener kit dryer motor | Na dotaz | Zadat poptávku | |
| 110 0 WHR49027 |
C00340141
481949878431 |
Rukojeť dveří pračky v10120 | Na dotaz | Zadat poptávku | |
| 110 1 WHR49027 |
C00312699
481949878432 |
rukojet dveri kompl. | Na dotaz | Zadat poptávku | |
| 133 0 WHR49027 |
C00315432
481246268968 |
Door latch | Na dotaz | Zadat poptávku | |
| 133 1 WHR49027 |
C00333390
481990310174 |
Pin handle | Na dotaz | Zadat poptávku | |
| 133 2 WHR49027 |
C00319560
481990310176 |
paka rukojeti | Na dotaz | Zadat poptávku | |
| 140 0 WHR49027 |
C00488236
481945058319 |
Door glass | Na dotaz | Zadat poptávku | |
| 141 1 WHR49027 |
C00333142
481946698878 |
sklo dveri ochrane | 1 821 Kč
€ 71.90 |
||
| 143 0 WHR49027 |
C00333371
481990302494 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 144 0 WHR49027 |
C00318322
481990310179 |
Příruba dveří | 1 164 Kč
€ 46.00 |
||
| 144 1 WHR49027 |
C00314636
481241618441 |
Rám dveří vnější | 1 577 Kč
€ 62.30 |
||
| 144 2 WHR49027 |
C00316504
481953288054 |
spona TVO - vnitřní | 709 Kč
€ 28.00 |
||
| 190 0 WHR49027 |
C00598773
481246688822 |
Door bellow | Na dotaz | Zadat poptávku | |
| 200 0 WHR49027 |
C00598492
481241818537 |
Tub | Na dotaz | Zadat poptávku | |
| 201 0 WHR49027 |
C00456920
481231019068 |
Bottom Kit bottom + bearing | Na dotaz | Zadat poptávku | |
| 220 0 WHR49027 |
C00458612
481241818564 |
Drum with crosspiece | Na dotaz | Zadat poptávku | |
| 223 0 WHR49027 |
C00380583
481241889054 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR49027 |
C00380578
481235818195 |
Belt | Na dotaz | Zadat poptávku | |
| 271 1 WHR49027 |
C00500767
481235818196 |
Belt dryer fan motor | Na dotaz | Zadat poptávku | |
| 272 0 WHR49027 |
C00464835
481252888128 |
Pulley | Na dotaz | Zadat poptávku | |
| 272 1 WHR49027 |
C00492084
481252888121 |
Pulley fan motor | Na dotaz | Zadat poptávku | |
| 272 2 WHR49027 |
C00492085
481252888122 |
Pulley dryer fan | Na dotaz | Zadat poptávku | |
| 291 0 WHR49027 |
C00486354
481290308213 |
tesneni bocnice | 904 Kč
€ 35.70 |
||
| 301 0 WHR49027 |
C00464291
481246469195 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR49027 |
C00491953
481246469103 |
panel ovladaci | 910 Kč
€ 35.90 |
||
| 301 2 WHR49027 |
C00482861
481240448956 |
PODPERA | Na dotaz | Zadat poptávku | |
| 303 1 WHR49027 |
C00487918
481249878648 |
Handle drawer | Na dotaz | Zadat poptávku | |
| 331 0 WHR49027 |
C00377632
481241318307 |
knoflik programatoru | 924 Kč
€ 36.50 |
||
| 333 0 WHR49027 |
C00493464
481241078171 |
Tlačítko ON/OFF | 748 Kč
€ 29.50 |
||
| 401 0 WHR49027 |
C00488693
481236178031 |
Motor | Na dotaz | Zadat poptávku | |
| 401 1 WHR49027 |
C00488694
481236178032 |
Motor fan | Na dotaz | Zadat poptávku | |
| 420 0 WHR49027 |
C00454964
481212118275 |
Capacitor | Na dotaz | Zadat poptávku | |
| 430 0 WHR49027 |
C00377572
481236018499 |
Čerpadlo vypouštěcí | 2 156 Kč
€ 85.10 |
||
| 432 0 WHR49027 |
C00486224
481248058134 |
Filter body | Na dotaz | Zadat poptávku | |
| 443 0 WHR49027 |
C00490227
481251548062 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 451 0 WHR49027 |
C00316175
481225928822 |
Heating element | Na dotaz | Zadat poptávku | |
| 483 0 WHR49027 |
C00493167
481232118255 |
Cable harness | Na dotaz | Zadat poptávku | |
| 484 0 WHR49027 |
C00493185
481232138035 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR49027 |
C00457211
481232118338 |
kabel | 1 741 Kč
€ 68.70 |
||
| 521 0 WHR49027 |
C00377417
481221458218 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 521 2 WHR49027 |
C00488465
481221838277 |
displej LCD +tlacit | 4 447 Kč
€ 175.60 |
||
| 531 0 WHR49027 |
C00311270
481227328282 |
Selector,switch program | Na dotaz | Zadat poptávku | |
| 551 0 WHR49027 |
C00491331
481228228304 |
Thermostat 170 #C | Na dotaz | Zadat poptávku | |
| 551 2 WHR49027 |
C00456845
481228228327 |
Thermostat 142 *C | Na dotaz | Zadat poptávku | |
| 551 3 WHR49027 |
C00320422
481290308212 |
senzor NTC | 1 262 Kč
€ 49.80 |
||
| 551 9 WHR49027 |
C00491325
481228228256 |
termostat | 811 Kč
€ 32.00 |
||
| 572 0 WHR49027 |
C00492929
481227128545 |
Valve magnet cold water | Na dotaz | Zadat poptávku | |
| 583 0 WHR49027 |
C00491024
481227128546 |
Pressostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR49027 |
C00491134
481227638081 |
spinac sitovy | 930 Kč
€ 36.70 |
||
| 630 0 WHR49027 |
C00313146
481228058043 |
Blokování dveří pračky Whirlpool AWG 870 | 179 Kč
€ 7.10 |
||
| 701 0 WHR49027 |
C00314542
481953028932 |
Přívodní hadice 1,5m (koncovky rovná/zahnutá): vysoce kvalitní řada | Na dotaz | Zadat poptávku | |
| 702 0 WHR49027 |
C00493733
481253029165 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 702 1 WHR49027 |
C00339479
481253029357 |
Hose | Na dotaz | Zadat poptávku | |
| 703 0 WHR49027 |
C00493746
481253029356 |
Hose | Na dotaz | Zadat poptávku | |
| 708 4 WHR49027 |
C00493719
481253029041 |
Hadice k násypce | 2 004 Kč
€ 79.10 |
||
| 711 0 WHR49027 |
C00598497
481241870009 |
Dispenser | Na dotaz | Zadat poptávku | |
| 711 1 WHR49027 |
C00486017
481246228702 |
Cover dispenser | Na dotaz | Zadat poptávku | |
| 712 0 WHR49027 |
C00377696
481241879726 |
zasuvka nasypky | 1 074 Kč
€ 42.40 |
||
| 713 0 WHR49027 |
C00482906
481241870012 |
Accessory liquid detergent | Na dotaz | Zadat poptávku | |
| 714 0 WHR49027 |
C00621413
481241870011 |
Container liquid detergent | Na dotaz | Zadat poptávku | |
| 714 1 WHR49027 |
C00585323
481241879727 |
vlozka nasypky | 471 Kč
€ 18.60 |
||
| 718 1 WHR49027 |
C00482907
481241870013 |
Accessories liquid detergent | Na dotaz | Zadat poptávku | |
| 741 0 WHR49027 |
C00500776
481236078134 |
Cover air duct | Na dotaz | Zadat poptávku | |
| 743 0 WHR49027 |
C00598354
481225928882 |
Heating chamber complete | Na dotaz | Zadat poptávku | |
| 743 1 WHR49027 |
C00484143
481253288071 |
Conveyor | Na dotaz | Zadat poptávku | |
| 754 0 WHR49027 |
C00493748
481253029359 |
Drainhose | Na dotaz | Zadat poptávku | |
| 754 1 WHR49027 |
C00491557
481240478429 |
Holder | Na dotaz | Zadat poptávku | |
| 760 0 WHR49027 |
C00317567
481948058082 |
filtr cerpadla | 1 044 Kč
€ 41.20 |
||
| 760 1 WHR49027 |
C00318920
481946278861 |
sroub filtru | 742 Kč
€ 29.30 |
||
| 781 0 WHR49027 |
C00332455
481253029372 |
Hose draining | Na dotaz | Zadat poptávku | |
| 781 1 WHR49027 |
C00494702
481953027029 |
FITTING | Na dotaz | Zadat poptávku | |
| 782 0 WHR49027 |
C00500930
481253029168 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR49027 |
C00493747
481253029358 |
Steam hose | Na dotaz | Zadat poptávku | |
| 792 0 WHR49027 |
C00484650
481226318009 |
Seal for blower | Na dotaz | Zadat poptávku | |
| 792 1 WHR49027 |
C00331498
481246688763 |
Seal conveyor | Na dotaz | Zadat poptávku | |
| 792 2 WHR49027 |
C00486179
481246688824 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 0 WHR49027 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 2 WHR49027 |
C00316082
481953268309 |
Podložka filtru | 1 027 Kč
€ 40.50 |
||
| 900 3 WHR49027 |
C00482842
481240418479 |
Support heating element | Na dotaz | Zadat poptávku | |
| 900 4 WHR49027 |
C00333345
481953538158 |
Hook | Na dotaz | Zadat poptávku | |
| 900 5 WHR49027 |
C00332908
481940113349 |
Hook | Na dotaz | Zadat poptávku | |
| 900 6 WHR49027 |
C00329182
481240478506 |
kabelaz | 660 Kč
€ 26.10 |
||
| 900 7 WHR49027 |
C00333344
481953538151 |
Hook | Na dotaz | Zadat poptávku | |
| 900 8 WHR49027 |
C00482841
481240418478 |
Bracket | Na dotaz | Zadat poptávku | |
| 901 0 WHR49027 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR49027 |
C00343366
481240118576 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 3 WHR49027 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | 87 Kč
€ 3.40 |
||
| 901 4 WHR49027 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 901 7 WHR49027 |
C00332913
481940118429 |
SPONA VYT. HADICE | 1 151 Kč
€ 45.40 |
||
| 901 8 WHR49027 |
C00333370
481990302487 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 902 1 WHR49027 |
C00329051
481240448907 |
drzak modulu | 1 212 Kč
€ 47.80 |
||
| 902 3 WHR49027 |
C00491693
481241870008 |
DRZIAK | Na dotaz | Zadat poptávku | |
| 903 2 WHR49027 |
C00332910
481940118348 |
drzak vytokove hadic | 394 Kč
€ 15.60 |
||
| 903 4 WHR49027 |
C00333387
481990310167 |
Door glass insert | Na dotaz | Zadat poptávku | |
| 903 6 WHR49027 |
C00332934
481940118883 |
Staple | Na dotaz | Zadat poptávku | |
| 904 0 WHR49027 |
C00500859
481244688131 |
Bushing | Na dotaz | Zadat poptávku | |
| 904 1 WHR49027 |
C00333118
481946663326 |
RING,RUBBER | Na dotaz | Zadat poptávku | |
| 904 2 WHR49027 |
C00492113
481253288069 |
Bushing dryer motor | Na dotaz | Zadat poptávku | |
| 904 3 WHR49027 |
C00500940
481253218072 |
Spacer fan motor | Na dotaz | Zadat poptávku | |
| 904 4 WHR49027 |
C00491958
481246668845 |
Ring,rubber fan motor | Na dotaz | Zadat poptávku | |
| 910 1 WHR49027 |
C00332098
481250218649 |
Screw Torx D=4,2 H=9,5 | Na dotaz | Zadat poptávku | |
| 910 2 WHR49027 |
C00333225
481950233252 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 3 WHR49027 |
C00332099
481250218651 |
Screw Torx D=4,2 H=13 | Na dotaz | Zadat poptávku | |
| 910 4 WHR49027 |
C00332795
481293008011 |
sroub | 192 Kč
€ 7.60 |
||
| 910 5 WHR49027 |
C00332100
481250218652 |
Screw | Na dotaz | Zadat poptávku | |
| 910 6 WHR49027 |
C00333226
481950233254 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR49027 |
C00333210
481950218386 |
SCREW | Na dotaz | Zadat poptávku | |
| 910 9 WHR49027 |
C00332156
481250238362 |
Screw | Na dotaz | Zadat poptávku | |
| 911 1 WHR49027 |
C00333389
481990310173 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 2 WHR49027 |
C00333224
481950218534 |
Šroub | 56 Kč
€ 2.20 |
||
| 911 3 WHR49027 |
C00498567
481250218673 |
Screw | Na dotaz | Zadat poptávku | |
| 911 4 WHR49027 |
C00425658
480111100791 |
Screw | Na dotaz | Zadat poptávku | |
| 911 5 WHR49027 |
C00492024
481250218501 |
Screw | Na dotaz | Zadat poptávku | |
| 911 6 WHR49027 |
C00332106
481250218677 |
Screw | Na dotaz | Zadat poptávku | |
| 911 7 WHR49027 |
C00492224
481927618348 |
Screw | Na dotaz | Zadat poptávku | |
| 911 8 WHR49027 |
C00333215
481950218409 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 9 WHR49027 |
C00333015
481944019616 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR49027 |
C00492025
481250218502 |
sroub remenice | 927 Kč
€ 36.60 |
||
| 912 1 WHR49027 |
C00492050
481250218683 |
Screw fixing dryer motor | Na dotaz | Zadat poptávku | |
| 912 2 WHR49027 |
C00492051
481250218684 |
Screw fixing air duct cover | Na dotaz | Zadat poptávku | |
| 912 3 WHR49027 |
C00345196
481250218685 |
Screw | Na dotaz | Zadat poptávku | |
| 912 4 WHR49027 |
C00332109
481250218686 |
šroub | 67 Kč
€ 2.60 |
||
| 912 5 WHR49027 |
C00332063
481250218414 |
Screw | Na dotaz | Zadat poptávku | |
| 913 0 WHR49027 |
C00500918
481250518415 |
Nut | Na dotaz | Zadat poptávku | |
| 913 1 WHR49027 |
C00338041
481931038497 |
SPOJOVACÍ MAT. SPOD. | 917 Kč
€ 36.20 |
||
| 921 0 WHR49027 |
C00493815
481253218062 |
podlozka | 343 Kč
€ 13.50 |
||
| 921 1 WHR49027 |
C00492117
481253298023 |
Ring | Na dotaz | Zadat poptávku | |
| 921 2 WHR49027 |
C00492116
481253298022 |
Ring,locking dryer fan | Na dotaz | Zadat poptávku | |
| 921 3 WHR49027 |
C00484373
481940478707 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 921 4 WHR49027 |
C00493820
481253298021 |
Washer | Na dotaz | Zadat poptávku | |
| 921 5 WHR49027 |
C00493623
481250218687 |
Washer | Na dotaz | Zadat poptávku | |
| 921 6 WHR49027 |
C00598934
481953268706 |
Washer Counterweight | Na dotaz | Zadat poptávku | |
| 931 0 WHR49027 |
C00333392
481990310178 |
Spring | Na dotaz | Zadat poptávku | |
| 931 4 WHR49027 |
C00333165
481949238135 |
pruzina | 977 Kč
€ 38.60 |
||
| 931 5 WHR49027 |
C00333388
481990310172 |
PRUZINA UZAVERU | 383 Kč
€ 15.10 |
||
| 932 0 WHR49027 |
C00621463
481249268202 |
Spring thermostat | Na dotaz | Zadat poptávku | |
| 941 1 WHR49027 |
C00464878
481253068033 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 941 2 WHR49027 |
C00464805
481252088121 |
Bearing, kit | Na dotaz | Zadat poptávku | |
| 952 0 WHR49027 |
C00315611
481946669816 |
tesneni filtru | 798 Kč
€ 31.50 |
||
| 952 2 WHR49027 |
C00331508
481246688793 |
tesneni | 669 Kč
€ 26.40 |
||
| 952 3 WHR49027 |
C00486166
481246688606 |
Gasket thermoresistance | Na dotaz | Zadat poptávku | |
| 993 0 WHR49027 |
C00332909
481940118345 |
koleno vyt. hadice | 76 Kč
€ 3.00 |
||
