| Komerční kód: | AWZ 559 - F TUMBLE DRYER WP |
| Kód 12NC: | 857555929000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857555929001 |
Potřebujete servis? Jsme tady pro Vás

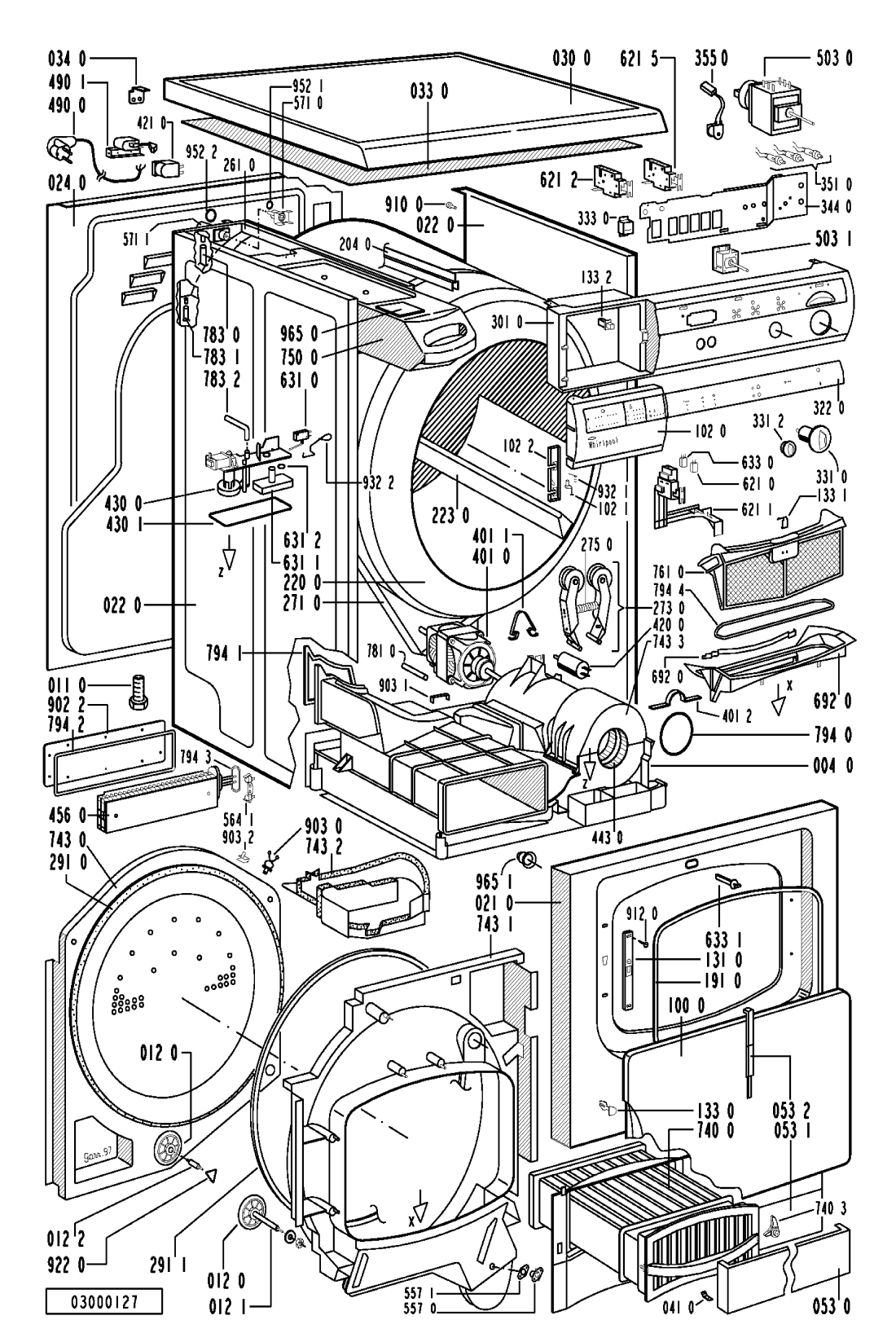

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR84159 |
C00555301
481244019449 |
BOTTOM.. | Na dotaz | Zadat poptávku | |
| 011 0 WHR84159 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR84159 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.20 |
||
| 012 1 WHR84159 |
C00492067
481252028069 |
OSKA | 498 Kč
€ 19.70 |
||
| 012 2 WHR84159 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR84159 |
C00340678
481244018924 |
Front | Na dotaz | Zadat poptávku | |
| 022 0 WHR84159 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR84159 |
C00497931
481244019441 |
STENA ZADNA DO33/98 AWZ121 N | Na dotaz | Zadat poptávku | |
| 030 0 WHR84159 |
C00497932
481244019447 |
DOSKA HORNA AWZ565 N | Na dotaz | Zadat poptávku | |
| 033 0 WHR84159 |
C00337800
481244018568 |
Plate | Na dotaz | Zadat poptávku | |
| 034 0 WHR84159 |
C00340984
481241778015 |
Fastener Tabletop | Na dotaz | Zadat poptávku | |
| 041 0 WHR84159 |
C00339877
481241718341 |
Hinge | Na dotaz | Zadat poptávku | |
| 053 0 WHR84159 |
C00337674
481244019336 |
sokl susicky kovovy | 26 103 Kč
€ 1,030.50 |
||
| 053 1 WHR84159 |
C00337721
481244019443 |
sokl susicky plast | 1 377 Kč
€ 54.40 |
||
| 053 2 WHR84159 |
C00338395
481241728042 |
Lever,fastener plinth | Na dotaz | Zadat poptávku | |
| 100 0 WHR84159 |
C00342131
481241738013 |
dvere susicky | Na dotaz | Zadat poptávku | |
| 102 0 WHR84159 |
C00339304
481245219445 |
Čelo zásobníku na vodu | 887 Kč
€ 35.00 |
||
| 102 1 WHR84159 |
C00336463
481227618264 |
osa dvirek | 404 Kč
€ 15.90 |
||
| 102 2 WHR84159 |
C00498147
481245219403 |
kryt cela | 453 Kč
€ 17.90 |
||
| 131 0 WHR84159 |
C00313071
481227138354 |
Zámek sušičky | 467 Kč
€ 18.40 |
||
| 133 0 WHR84159 |
C00319932
481241728039 |
hak uzaveru | 496 Kč
€ 19.60 |
||
| 133 1 WHR84159 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 133 2 WHR84159 |
C00337037
481241728055 |
TLACITKO PLAST | 390 Kč
€ 15.40 |
||
| 191 0 WHR84159 |
C00498454
481246668461 |
tesneni dveri | 637 Kč
€ 25.10 |
||
| 204 0 WHR84159 |
C00555527
481246638009 |
Protector.. | Na dotaz | Zadat poptávku | |
| 220 0 WHR84159 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.20 |
||
| 223 0 WHR84159 |
C00341180
481241888017 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 261 0 WHR84159 |
C00592067
481241878935 |
Case. | Na dotaz | Zadat poptávku | |
| 271 0 WHR84159 |
C00555029
481235818052 |
NAHRADENE 481235818156 N | Na dotaz | Zadat poptávku | |
| 273 0 WHR84159 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.50 |
||
| 275 0 WHR84159 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR84159 |
C00555545
481246668544 |
TESNENIE BUBNA PREDNE N | Na dotaz | Zadat poptávku | |
| 291 1 WHR84159 |
C00555542
481246668519 |
TESNENIE N | Na dotaz | Zadat poptávku | |
| 301 0 WHR84159 |
C00598708
481245219516 |
Control panel. | Na dotaz | Zadat poptávku | |
| 322 0 WHR84159 |
C00598714
481245219609 |
Insert panel AWZ 559 | Na dotaz | Zadat poptávku | |
| 331 0 WHR84159 |
C00555182
481241348253 |
Knob.. | Na dotaz | Zadat poptávku | |
| 331 2 WHR84159 |
C00598481
481241318211 |
Knob. | Na dotaz | Zadat poptávku | |
| 333 0 WHR84159 |
C00344056
481227618249 |
kryt spinace | 145 Kč
€ 5.70 |
||
| 344 0 WHR84159 |
C00339656
481246448108 |
HOLDER | Na dotaz | Zadat poptávku | |
| 351 0 WHR84159 |
C00341476
481213448202 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 355 0 WHR84159 |
C00498868
481928018015 |
BZUCIAK N | Na dotaz | Zadat poptávku | |
| 401 0 WHR84159 |
C00497525
481236118188 |
MOTOR AWZ565 N | Na dotaz | Zadat poptávku | |
| 401 1 WHR84159 |
C00343345
481240118226 |
CLAMP MOTOR | Na dotaz | Zadat poptávku | |
| 401 2 WHR84159 |
C00343344
481240118229 |
SPOJKA | 317 Kč
€ 12.50 |
||
| 420 0 WHR84159 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR84159 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR84159 |
C00555033
481236018373 |
NAHRADENE 481236018377 N | Na dotaz | Zadat poptávku | |
| 430 1 WHR84159 |
C00340581
481246628104 |
tesneni | 189 Kč
€ 7.50 |
||
| 443 0 WHR84159 |
C00497526
481236118189 |
VRTULKA VENTIL?TORA AWZ470 **plastN | Na dotaz | Zadat poptávku | |
| 456 0 WHR84159 |
C00311310
481225928679 |
Heating element 2050 W | Na dotaz | Zadat poptávku | |
| 490 0 WHR84159 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 0 WHR84159 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR84159 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 503 0 WHR84159 |
C00335429
481228218466 |
Timer EATON | Na dotaz | Zadat poptávku | |
| 503 1 WHR84159 |
C00597738
481228218467 |
Timer Start delay. | Na dotaz | Zadat poptávku | |
| 557 0 WHR84159 |
C00335526
481227128209 |
Termostat sušičky Whirlpool, Bauknecht 145 °C | 691 Kč
€ 27.30 |
||
| 557 1 WHR84159 |
C00340582
481253058069 |
Gasket | Na dotaz | Zadat poptávku | |
| 564 1 WHR84159 |
C00313080
481225928681 |
Sestava termostatů sušičky prádla Whirlpool, Bauknecht | 793 Kč
€ 31.30 |
||
| 571 0 WHR84159 |
C00373808
481236058105 |
Valve | Na dotaz | Zadat poptávku | |
| 571 1 WHR84159 |
C00373807
481236058106 |
Valve Cabinet | Na dotaz | Zadat poptávku | |
| 621 0 WHR84159 |
C00315649
481227618248 |
spinac tlacitkovy | 1 101 Kč
€ 43.50 |
||
| 621 1 WHR84159 |
C00554963
481227818002 |
NAHRADENE 481227818003 N | Na dotaz | Zadat poptávku | |
| 621 2 WHR84159 |
C00336966
481227618226 |
Pushbuttonswit. "Gentle" | Na dotaz | Zadat poptávku | |
| 621 5 WHR84159 |
C00554935
481227618227 |
Pushbuttonswit. "Buzze.. | Na dotaz | Zadat poptávku | |
| 631 0 WHR84159 |
C00338100
481227138076 |
Microswitch | Na dotaz | Zadat poptávku | |
| 631 1 WHR84159 |
C00555032
481236018372 |
Floater.. | Na dotaz | Zadat poptávku | |
| 631 2 WHR84159 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 0 WHR84159 |
C00335709
481227138361 |
Switch, door | Na dotaz | Zadat poptávku | |
| 633 1 WHR84159 |
C00554934
481227618223 |
NAHRADENE 481227618271 N | Na dotaz | Zadat poptávku | |
| 692 0 WHR84159 |
C00340755
481248058079 |
filtr sušičky | 1 092 Kč
€ 43.10 |
||
| 740 0 WHR84159 |
C00318473
481251148188 |
Heat exchanger | Na dotaz | Zadat poptávku | |
| 740 3 WHR84159 |
C00339997
481252518002 |
Handle looking | Na dotaz | Zadat poptávku | |
| 743 0 WHR84159 |
C00343140
481253048155 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR84159 |
C00592417
481253048157 |
Air guide f.drumlight. | Na dotaz | Zadat poptávku | |
| 743 2 WHR84159 |
C00498634
481253048126 |
Cover bar | Na dotaz | Zadat poptávku | |
| 743 3 WHR84159 |
C00341064
481246448092 |
Fan box | Na dotaz | Zadat poptávku | |
| 750 0 WHR84159 |
C00482908
481241878936 |
zasobnik kond.vody | 2 770 Kč
€ 109.40 |
||
| 761 0 WHR84159 |
C00320129
481248058081 |
Filter Bag | Na dotaz | Zadat poptávku | |
| 781 0 WHR84159 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 12.20 |
||
| 783 0 WHR84159 |
C00481575
481253028803 |
Hose 0,98 m | Na dotaz | Zadat poptávku | |
| 783 1 WHR84159 |
C00620459
481253028745 |
Hose 1,37 m. | Na dotaz | Zadat poptávku | |
| 783 2 WHR84159 |
C00620460
481253028802 |
HADICA GUM. N | Na dotaz | Zadat poptávku | |
| 794 0 WHR84159 |
C00337980
481246628105 |
O-RING | Na dotaz | Zadat poptávku | |
| 794 1 WHR84159 |
C00373766
481246628103 |
Gasket heater channel | Na dotaz | Zadat poptávku | |
| 794 2 WHR84159 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR84159 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR84159 |
C00340495
481246668547 |
tesneni | 784 Kč
€ 31.00 |
||
| 902 2 WHR84159 |
C00526938
481225638003 |
Holder Heater Heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR84159 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR84159 |
C00497549
481240118228 |
Fastener. | Na dotaz | Zadat poptávku | |
| 903 2 WHR84159 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR84159 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR84159 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 922 0 WHR84159 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 932 1 WHR84159 |
C00498523
481249258026 |
Spring. flap | Na dotaz | Zadat poptávku | |
| 932 2 WHR84159 |
C00554991
481229088056 |
SPRING CLIP PUMP.. | Na dotaz | Zadat poptávku | |
| 952 1 WHR84159 |
C00592420
481253058103 |
O-Ring valve tank 18x2,5. | Na dotaz | Zadat poptávku | |
| 952 2 WHR84159 |
C00498647
481253058102 |
O-Ring Valve housing 30x2,5 | Na dotaz | Zadat poptávku | |
| 965 0 WHR84159 |
C00485095
481244019442 |
viko zasobniku | 504 Kč
€ 19.90 |
||
| 965 1 WHR84159 |
C00342821
481246279651 |
Cap Frosty | Na dotaz | Zadat poptávku | |
