WHIRLPOOL AWZ 710 E
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 710 E |
| Kód 12NC: | 857593478000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky se sušičkou |
| Další podobné modely: | 857593563000, 857593863000 |
Potřebujete servis? Jsme tady pro Vás

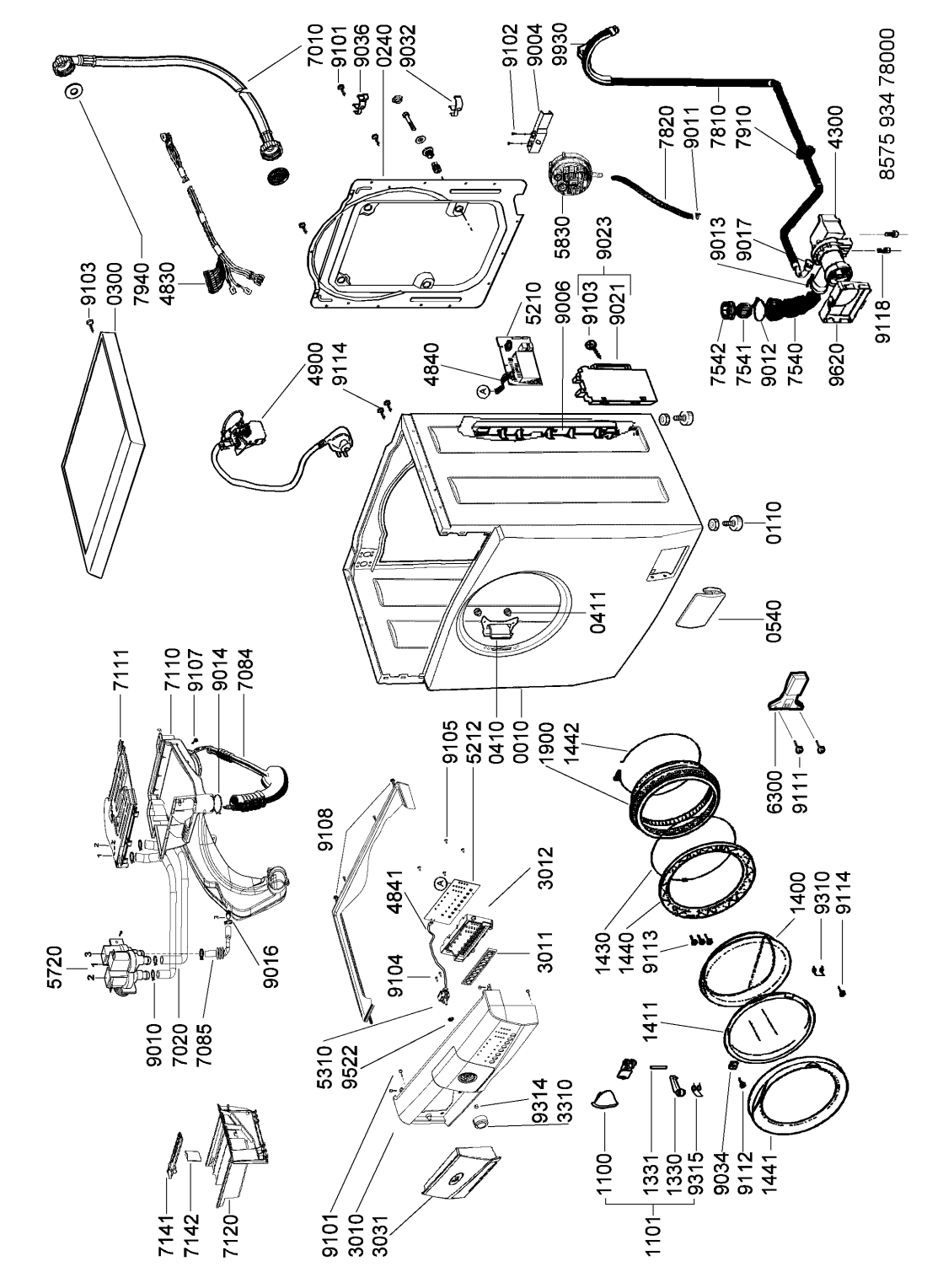

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR65205 |
C00343949
481244011766 |
Cabinet | Na dotaz | Zadat poptávku | |
| 003 0 WHR65205 |
C00332936
481940443391 |
Bearer hook crosspiece | Na dotaz | Zadat poptávku | |
| 011 0 WHR65205 |
C00330685
481246248448 |
foot | Na dotaz | Zadat poptávku | |
| 024 0 WHR65205 |
C00341573
481244010581 |
Panel rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR65205 |
C00317181
481244011767 |
deska horni | Na dotaz | Zadat poptávku | |
| 041 0 WHR65205 |
C00316906
481241719513 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 1 WHR65205 |
C00336813
481990310139 |
nyt plastovy | 950 Kč
€ 37.50 |
||
| 054 0 WHR65205 |
C00319619
481246279961 |
Cover | Na dotaz | Zadat poptávku | |
| 061 0 WHR65205 |
C00331556
481246689025 |
Counter weight upper right | Na dotaz | Zadat poptávku | |
| 061 1 WHR65205 |
C00343089
481246689026 |
Counter weight bottom | Na dotaz | Zadat poptávku | |
| 065 0 WHR65205 |
C00328547
481232518002 |
Insulation | Na dotaz | Zadat poptávku | |
| 081 0 WHR65205 |
C00330796
481246368035 |
Tlumič třecí - sada | Na dotaz | Zadat poptávku | |
| 084 0 WHR65205 |
C00331574
481246699091 |
Shock absorber | 768 Kč
€ 30.30 |
||
| 110 0 WHR65205 |
C00339036
481246269024 |
Rukojeť dveří pračky | Na dotaz | Zadat poptávku | |
| 110 1 WHR65205 |
C00311868
481246269025 |
rukojet dveri uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 133 0 WHR65205 |
C00315432
481246268968 |
Door latch | Na dotaz | Zadat poptávku | |
| 133 1 WHR65205 |
C00315905
481246238341 |
Osa madla dveří předem plněné pračky Whirlpool | 154 Kč
€ 6.10 |
||
| 140 0 WHR65205 |
C00339066
481245059946 |
Door glass | Na dotaz | Zadat poptávku | |
| 141 1 WHR65205 |
C00320053
481246699089 |
Protector disk door | Na dotaz | Zadat poptávku | |
| 143 0 WHR65205 |
C00313802
481253298025 |
spona TVO | 701 Kč
€ 27.70 |
||
| 144 0 WHR65205 |
C00315640
481245928082 |
priruba dveri | 1 664 Kč
€ 65.70 |
||
| 144 1 WHR65205 |
C00313560
481245928081 |
ram dveri vnejsi | 1 488 Kč
€ 58.70 |
||
| 144 2 WHR65205 |
C00311492
481253298024 |
spona TVO | 667 Kč
€ 26.30 |
||
| 190 0 WHR65205 |
C00311508
481246818404 |
TVO | Na dotaz | Zadat poptávku | |
| 200 0 WHR65205 |
C00314384
481241808012 |
nadrz kompletni | 12 024 Kč
€ 474.70 |
||
| 223 0 WHR65205 |
C00311320
481241888993 |
Žebro bubnu | 911 Kč
€ 36.00 |
||
| 271 0 WHR65205 |
C00313280
481235818205 |
Belt | Na dotaz | Zadat poptávku | |
| 272 0 WHR65205 |
C00317124
481252888138 |
Remenice | 1 741 Kč
€ 68.70 |
||
| 301 0 WHR65205 |
C00464437
481246469442 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR65205 |
C00337038
481241078244 |
Push button | Na dotaz | Zadat poptávku | |
| 301 2 WHR65205 |
C00320304
481240449891 |
Support box buttons | Na dotaz | Zadat poptávku | |
| 303 1 WHR65205 |
C00318315
481249848048 |
celo nasypky | Na dotaz | Zadat poptávku | |
| 331 0 WHR65205 |
C00316710
481241078237 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 401 0 WHR65205 |
C00312266
481236138142 |
Motor | Na dotaz | Zadat poptávku | |
| 401 1 WHR65205 |
C00457526
481236178042 |
Motor fan | Na dotaz | Zadat poptávku | |
| 430 0 WHR65205 |
C00457385
481236018603 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 443 0 WHR65205 |
C00313290
481251548011 |
vrtule ventilatoru | 1 423 Kč
€ 56.20 |
||
| 451 0 WHR65205 |
C00311687
481225928968 |
topeni | 3 037 Kč
€ 119.90 |
||
| 451 2 WHR65205 |
C00320422
481290308212 |
senzor NTC | 1 262 Kč
€ 49.80 |
||
| 451 3 WHR65205 |
C00311768
481225928969 |
topeni susicky | 2 907 Kč
€ 114.80 |
||
| 483 0 WHR65205 |
C00313379
481232178414 |
kabelaz | 11 482 Kč
€ 453.30 |
||
| 484 0 WHR65205 |
C00317968
481232128506 |
Cable flat elektronic | Na dotaz | Zadat poptávku | |
| 484 1 WHR65205 |
C00343860
481232128511 |
Cable flat, Potentiometer | Na dotaz | Zadat poptávku | |
| 490 0 WHR65205 |
C00317664
481232118328 |
Cable mains with interf.filter | Na dotaz | Zadat poptávku | |
| 521 0 WHR65205 |
C00455138
481221458584 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 521 2 WHR65205 |
C00455768
481221470961 |
Module buttons | Na dotaz | Zadat poptávku | |
| 531 0 WHR65205 |
C00311270
481227328282 |
Selector,switch program | Na dotaz | Zadat poptávku | |
| 551 0 WHR65205 |
C00311988
481228208693 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 551 1 WHR65205 |
C00312229
481228208694 |
termostat | 676 Kč
€ 26.70 |
||
| 572 0 WHR65205 |
C00311801
481227118088 |
ventil | 1 435 Kč
€ 56.70 |
||
| 583 0 WHR65205 |
C00314372
481227128594 |
pressostat | 1 490 Kč
€ 58.80 |
||
| 630 0 WHR65205 |
C00313146
481228058043 |
Blokování dveří pračky Whirlpool AWG 870 | 179 Kč
€ 7.10 |
||
| 701 0 WHR65205 |
C00314542
481953028932 |
Přívodní hadice 1,5m (koncovky rovná/zahnutá): vysoce kvalitní řada | Na dotaz | Zadat poptávku | |
| 702 0 WHR65205 |
C00332496
481253029504 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 708 4 WHR65205 |
C00315106
481253029501 |
Hadice vnitřní pračky Whirlpool, Indesit | 2 052 Kč
€ 81.00 |
||
| 708 5 WHR65205 |
C00320407
481253029505 |
Hose | Na dotaz | Zadat poptávku | |
| 711 0 WHR65205 |
C00313322
481241868438 |
dno nasypky | Na dotaz | Zadat poptávku | |
| 711 1 WHR65205 |
C00313271
481246229397 |
viko nasypky | 1 790 Kč
€ 70.70 |
||
| 712 0 WHR65205 |
C00315622
481241870056 |
zasuvka nasypky | 1 223 Kč
€ 48.30 |
||
| 714 1 WHR65205 |
C00316105
481241870058 |
vlozka nasypky | 796 Kč
€ 31.40 |
||
| 714 2 WHR65205 |
C00320703
481241870057 |
zarazka | 472 Kč
€ 18.60 |
||
| 742 0 WHR65205 |
C00313805
481236078054 |
kryt | 690 Kč
€ 27.20 |
||
| 743 0 WHR65205 |
C00314258
481252518045 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR65205 |
C00317110
481252648275 |
kanal vzduchu | 1 961 Kč
€ 77.40 |
||
| 743 2 WHR65205 |
C00318579
481252518043 |
Air guide bottom | Na dotaz | Zadat poptávku | |
| 743 3 WHR65205 |
C00318631
481252648277 |
Air guide upper | Na dotaz | Zadat poptávku | |
| 754 0 WHR65205 |
C00332388
481252918065 |
Hadice k čerpadlu | Na dotaz | Zadat poptávku | |
| 754 1 WHR65205 |
C00332495
481253029502 |
spojka | 452 Kč
€ 17.80 |
||
| 754 2 WHR65205 |
C00331555
481246689021 |
těsnění | 399 Kč
€ 15.80 |
||
| 781 0 WHR65205 |
C00333291
481953028942 |
Hose draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR65205 |
C00333283
481953028682 |
hadice | Na dotaz | Zadat poptávku | |
| 783 1 WHR65205 |
C00318581
481252518044 |
Conveyor rubber | Na dotaz | Zadat poptávku | |
| 791 0 WHR65205 |
C00331553
481246689011 |
Gasket drain hose protection | Na dotaz | Zadat poptávku | |
| 792 0 WHR65205 |
C00319769
481246668593 |
Seal for blower | Na dotaz | Zadat poptávku | |
| 794 0 WHR65205 |
C00333379
481990304978 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 1 WHR65205 |
C00317362
481946698528 |
Clamping piece | Na dotaz | Zadat poptávku | |
| 900 4 WHR65205 |
C00329149
481240449889 |
Bracket pressure switch | Na dotaz | Zadat poptávku | |
| 900 6 WHR65205 |
C00329182
481240478506 |
kabelaz | 660 Kč
€ 26.10 |
||
| 900 8 WHR65205 |
C00332735
481253598114 |
kolik tlumice | 1 872 Kč
€ 73.90 |
||
| 901 0 WHR65205 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR65205 |
C00333370
481990302487 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 901 2 WHR65205 |
C00328943
481240118893 |
spona hadice | 180 Kč
€ 7.10 |
||
| 901 3 WHR65205 |
C00332911
481940118351 |
SPONA HADICE NÁDRŽ-F | 87 Kč
€ 3.40 |
||
| 901 4 WHR65205 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 901 5 WHR65205 |
C00331498
481246688763 |
Seal conveyor | Na dotaz | Zadat poptávku | |
| 901 6 WHR65205 |
C00328876
481240118458 |
Strap | Na dotaz | Zadat poptávku | |
| 901 7 WHR65205 |
C00328958
481240148604 |
Clamp drain pipe hose | Na dotaz | Zadat poptávku | |
| 902 1 WHR65205 |
C00329051
481240448907 |
drzak modulu | 1 212 Kč
€ 47.80 |
||
| 902 2 WHR65205 |
C00319185
481240448664 |
Holder | Na dotaz | Zadat poptávku | |
| 902 3 WHR65205 |
C00314973
481221479195 |
drzak regulatoru | 1 206 Kč
€ 47.60 |
||
| 903 2 WHR65205 |
C00332910
481940118348 |
drzak vytokove hadic | 394 Kč
€ 15.60 |
||
| 903 4 WHR65205 |
C00333387
481990310167 |
Door glass insert | Na dotaz | Zadat poptávku | |
| 903 6 WHR65205 |
C00332934
481940118883 |
Staple | Na dotaz | Zadat poptávku | |
| 904 0 WHR65205 |
C00332365
481252648276 |
Bushing heater element | Na dotaz | Zadat poptávku | |
| 910 1 WHR65205 |
C00332098
481250218649 |
Screw Torx D=4,2 H=9,5 | Na dotaz | Zadat poptávku | |
| 910 2 WHR65205 |
C00333226
481950233254 |
Screw | Na dotaz | Zadat poptávku | |
| 910 3 WHR65205 |
C00332099
481250218651 |
Screw Torx D=4,2 H=13 | Na dotaz | Zadat poptávku | |
| 910 4 WHR65205 |
C00336751
481250218822 |
šroub | 903 Kč
€ 35.60 |
||
| 910 5 WHR65205 |
C00332100
481250218652 |
Screw | Na dotaz | Zadat poptávku | |
| 910 6 WHR65205 |
C00332144
481250218823 |
šroub | 404 Kč
€ 15.90 |
||
| 910 7 WHR65205 |
C00332156
481250238362 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR65205 |
C00336752
481250218824 |
Screw | Na dotaz | Zadat poptávku | |
| 910 9 WHR65205 |
C00332307
481252318024 |
spojka | 317 Kč
€ 12.50 |
||
| 911 1 WHR65205 |
C00333389
481990310173 |
SCREW | Na dotaz | Zadat poptávku | |
| 911 2 WHR65205 |
C00333224
481950218534 |
Šroub | 56 Kč
€ 2.20 |
||
| 911 3 WHR65205 |
C00498566
481250218672 |
Screw | Na dotaz | Zadat poptávku | |
| 911 4 WHR65205 |
C00316725
481256018075 |
Screw | Na dotaz | Zadat poptávku | |
| 911 5 WHR65205 |
C00318411
481250218802 |
Screw counterweight | Na dotaz | Zadat poptávku | |
| 911 7 WHR65205 |
C00332063
481250218414 |
Screw | Na dotaz | Zadat poptávku | |
| 911 8 WHR65205 |
C00498562
481250218479 |
šroub | 547 Kč
€ 21.60 |
||
| 911 9 WHR65205 |
C00332145
481250218825 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR65205 |
C00318413
481250218803 |
Screw pulley | Na dotaz | Zadat poptávku | |
| 912 1 WHR65205 |
C00332309
481252318039 |
podložka | 528 Kč
€ 20.80 |
||
| 912 2 WHR65205 |
C00333015
481944019616 |
Screw | Na dotaz | Zadat poptávku | |
| 912 3 WHR65205 |
C00332146
481250218826 |
Screw | Na dotaz | Zadat poptávku | |
| 912 4 WHR65205 |
C00332109
481250218686 |
šroub | 67 Kč
€ 2.60 |
||
| 914 2 WHR65205 |
C00332192
481250568028 |
Nut blower fan motor | Na dotaz | Zadat poptávku | |
| 931 0 WHR65205 |
C00320717
481249268225 |
pruzina | 811 Kč
€ 32.00 |
||
| 931 3 WHR65205 |
C00311641
481249268228 |
Pružina agregátu | Na dotaz | Zadat poptávku | |
| 931 4 WHR65205 |
C00333165
481949238135 |
pruzina | 977 Kč
€ 38.60 |
||
| 931 5 WHR65205 |
C00336076
481249268226 |
pružina | 865 Kč
€ 34.10 |
||
| 950 0 WHR65205 |
C00316631
481246689027 |
těsnění | 1 020 Kč
€ 40.30 |
||
| 950 1 WHR65205 |
C00320037
481246689038 |
Gasket conveyer | Na dotaz | Zadat poptávku | |
| 951 1 WHR65205 |
C00316833
481953057019 |
tesneni ventilatoru | 608 Kč
€ 24.00 |
||
| 952 2 WHR65205 |
C00331508
481246688793 |
tesneni | 669 Kč
€ 26.40 |
||
| 962 0 WHR65205 |
C00337092
481246638122 |
Protector drain pump | Na dotaz | Zadat poptávku | |
| 993 0 WHR65205 |
C00332909
481940118345 |
koleno vyt. hadice | 76 Kč
€ 3.00 |
||
