WHIRLPOOL AWZ 8470
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ 8470 |
| Kód 12NC: | 857584738000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857584738001 |
Potřebujete servis? Jsme tady pro Vás

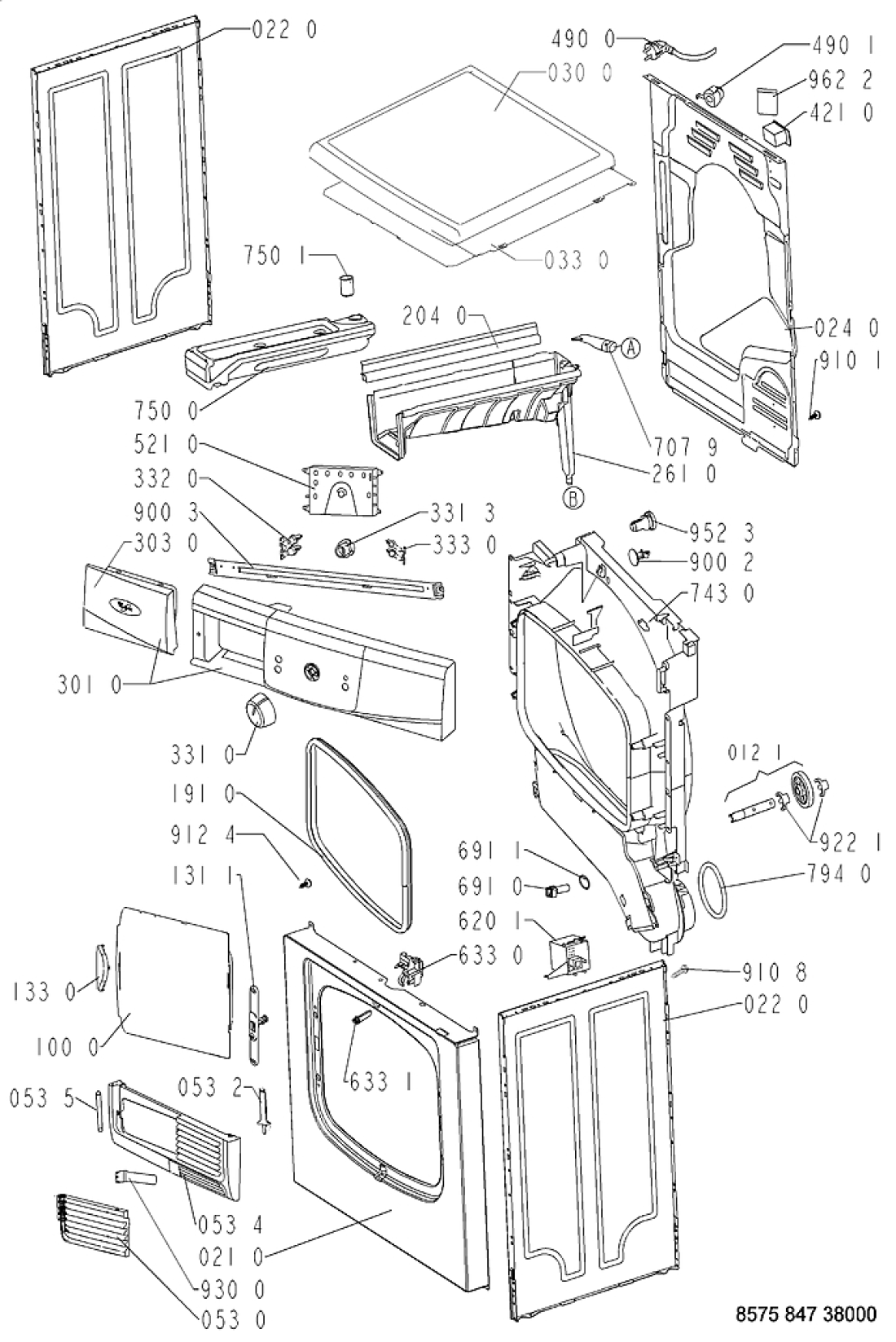

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR12368 |
C00316150
481244019718 |
sokl | 4 064 Kč
€ 161.10 |
||
| 011 0 WHR12368 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR12368 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.40 |
||
| 012 1 WHR12368 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.80 |
||
| 012 2 WHR12368 |
C00312253
481252028188 |
osa kolecka | 472 Kč
€ 18.70 |
||
| 021 0 WHR12368 |
C00340646
481244010819 |
Stěna přední | 3 440 Kč
€ 136.40 |
||
| 022 0 WHR12368 |
C00327967
481244010821 |
stena bocni prava | 3 916 Kč
€ 155.20 |
||
| 024 0 WHR12368 |
C00341572
481244011569 |
Panel rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR12368 |
C00317163
481244011504 |
deska horni | Na dotaz | Zadat poptávku | |
| 033 0 WHR12368 |
C00318645
481231018582 |
Kit Push in cover | Na dotaz | Zadat poptávku | |
| 053 0 WHR12368 |
C00316489
481244011155 |
dvere kondenzatu | Na dotaz | Zadat poptávku | |
| 053 2 WHR12368 |
C00315514
481241728103 |
tahlo | Na dotaz | Zadat poptávku | |
| 053 4 WHR12368 |
C00337682
481244011171 |
Plinth EBL WH | Na dotaz | Zadat poptávku | |
| 053 5 WHR12368 |
C00344544
481241728102 |
osa | 370 Kč
€ 14.70 |
||
| 100 0 WHR12368 |
C00317157
481244011154 |
DoorCD WH EBL | Na dotaz | Zadat poptávku | |
| 131 1 WHR12368 |
C00313071
481227138354 |
Zámek sušičky | 467 Kč
€ 18.50 |
||
| 133 0 WHR12368 |
C00317836
481245214629 |
Handle door + hook WH EBL | Na dotaz | Zadat poptávku | |
| 133 2 WHR12368 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR12368 |
C00312285
481246668607 |
Těsnění dveří sušičky | 1 007 Kč
€ 39.90 |
||
| 204 0 WHR12368 |
C00337108
481246638014 |
OCHRANA AWZ565 | 431 Kč
€ 17.10 |
||
| 220 0 WHR12368 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 165.90 |
||
| 223 0 WHR12368 |
C00316053
481241889017 |
žebro bubnu sušičky | 539 Kč
€ 21.40 |
||
| 261 0 WHR12368 |
C00342775
481241879821 |
Case f.water cont. | Na dotaz | Zadat poptávku | |
| 271 0 WHR12368 |
C00311016
481235818164 |
Řemen sušičky 1936H6 | 201 Kč
€ 8.00 |
||
| 273 0 WHR12368 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.60 |
||
| 275 0 WHR12368 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR12368 |
C00313025
481246668561 |
tesneni bubnu predni | 1 262 Kč
€ 50.00 |
||
| 291 2 WHR12368 |
C00311349
481246668837 |
Těsnění bubnu zadní | 1 868 Kč
€ 74.10 |
||
| 301 0 WHR12368 |
C00461493
481245217931 |
Control panel + handle drawer | Na dotaz | Zadat poptávku | |
| 303 0 WHR12368 |
C00312041
481249818649 |
Čelo zásobníků na vodu | 1 040 Kč
€ 41.20 |
||
| 331 0 WHR12368 |
C00457863
481241259163 |
Knob,timer | Na dotaz | Zadat poptávku | |
| 331 3 WHR12368 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 16.10 |
||
| 332 0 WHR12368 |
C00312048
481241029401 |
tlacitko | 397 Kč
€ 15.70 |
||
| 333 0 WHR12368 |
C00310977
481251318172 |
Tlačítko | 184 Kč
€ 7.30 |
||
| 401 0 WHR12368 |
C00313120
481236118532 |
Motor + fan wheel + clamp | Na dotaz | Zadat poptávku | |
| 401 1 WHR12368 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR12368 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR12368 |
C00317585
481212118284 |
Filtr | 1 543 Kč
€ 61.20 |
||
| 430 0 WHR12368 |
C00311834
481236058212 |
Čerpadlo kondenzační pro sušičky Whirlpool, Bauknecht | 1 524 Kč
€ 60.40 |
||
| 443 0 WHR12368 |
C00313112
481236118537 |
vrtule ventilatoru+spona | 1 214 Kč
€ 48.10 |
||
| 443 1 WHR12368 |
C00313062
481236118518 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 443 2 WHR12368 |
C00311527
481229088096 |
pojistka | 199 Kč
€ 7.90 |
||
| 456 0 WHR12368 |
C00373839
481225928895 |
Topení sušičky | 2 861 Kč
€ 113.40 |
||
| 490 0 WHR12368 |
C00316380
481232118044 |
CABLE,MAINS 5M 4X1 | Na dotaz | Zadat poptávku | |
| 490 0 WHR12368 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR12368 |
C00328506
481232128433 |
Strain relief + protect. | Na dotaz | Zadat poptávku | |
| 492 2 WHR12368 |
C00343100
481231618014 |
Connector AC - Mot. earth | Na dotaz | Zadat poptávku | |
| 521 0 WHR12368 |
C00455304
481221470282 |
Control unit TINY/DOMINO BK | Na dotaz | Zadat poptávku | |
| 620 1 WHR12368 |
C00313090
481223958063 |
modul vlhkosti | 4 357 Kč
€ 172.70 |
||
| 631 0 WHR12368 |
C00315891
481227138497 |
Mikrospínač plováku | 782 Kč
€ 31.00 |
||
| 631 1 WHR12368 |
C00312420
481236018476 |
Plovák | Na dotaz | Zadat poptávku | |
| 631 2 WHR12368 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 0 WHR12368 |
C00313326
481227618523 |
Switch door | Na dotaz | Zadat poptávku | |
| 633 1 WHR12368 |
C00312237
481227618422 |
Kolík | 540 Kč
€ 21.40 |
||
| 691 0 WHR12368 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.20 |
||
| 691 1 WHR12368 |
C00315185
481228298014 |
tesneni | 421 Kč
€ 16.70 |
||
| 692 0 WHR12368 |
C00315824
481221058055 |
kryt senzoru | Na dotaz | Zadat poptávku | |
| 692 1 WHR12368 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 45.00 |
||
| 692 2 WHR12368 |
C00315826
481221058075 |
Cover Sensor, Kit | Na dotaz | Zadat poptávku | |
| 707 9 WHR12368 |
C00337380
481253048165 |
TRUBKA AWZ565 | 581 Kč
€ 23.00 |
||
| 740 0 WHR12368 |
C00312656
481251148417 |
Výměník tepla | 5 547 Kč
€ 219.90 |
||
| 741 0 WHR12368 |
C00316089
481244008035 |
Blower cold air | Na dotaz | Zadat poptávku | |
| 741 1 WHR12368 |
C00318903
481253048244 |
Cover blower house | Na dotaz | Zadat poptávku | |
| 743 0 WHR12368 |
C00344567
481253048912 |
Air guide without hole | Na dotaz | Zadat poptávku | |
| 743 1 WHR12368 |
C00320329
481253049096 |
Heating chamber SS | Na dotaz | Zadat poptávku | |
| 743 3 WHR12368 |
C00342555
481253048239 |
kryt | 1 502 Kč
€ 59.50 |
||
| 743 8 WHR12368 |
C00340450
481246688519 |
tesneni | 216 Kč
€ 8.60 |
||
| 750 0 WHR12368 |
C00317107
481241879823 |
zasobnik vody | 2 354 Kč
€ 93.30 |
||
| 750 1 WHR12368 |
C00337202
481253028856 |
Water guide | Na dotaz | Zadat poptávku | |
| 751 1 WHR12368 |
C00314706
481241888044 |
nadoba sberna | 684 Kč
€ 27.10 |
||
| 751 2 WHR12368 |
C00343340
481240118472 |
Clamp sump cover | Na dotaz | Zadat poptávku | |
| 751 3 WHR12368 |
C00342343
481227118014 |
Cover water switch | Na dotaz | Zadat poptávku | |
| 761 0 WHR12368 |
C00311293
481248058322 |
Filtr sušičky | 1 045 Kč
€ 41.40 |
||
| 781 0 WHR12368 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 12.20 |
||
| 783 0 WHR12368 |
C00339355
481253008003 |
Vypouštěcí hadice sušičky Whirlpool, Bauknecht | 775 Kč
€ 30.70 |
||
| 783 1 WHR12368 |
C00339254
481253008009 |
hadice sušičky čerpadlo-nádoba | 278 Kč
€ 11.00 |
||
| 783 2 WHR12368 |
C00339260
481253008001 |
Hose Pump bottom | Na dotaz | Zadat poptávku | |
| 794 0 WHR12368 |
C00313992
481246688863 |
tesneni | 805 Kč
€ 31.90 |
||
| 794 1 WHR12368 |
C00319699
481246628108 |
tesneni | 695 Kč
€ 27.60 |
||
| 794 4 WHR12368 |
C00313984
481246688521 |
Těsnění dveřního filtru sušičky | 1 125 Kč
€ 44.60 |
||
| 900 1 WHR12368 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 900 2 WHR12368 |
C00327317
481229088099 |
Clip for Heater | Na dotaz | Zadat poptávku | |
| 900 3 WHR12368 |
C00342255
481240418529 |
Crossbar Control panel | Na dotaz | Zadat poptávku | |
| 903 0 WHR12368 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 910 1 WHR12368 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 6.50 |
||
| 910 8 WHR12368 |
C00332164
481250248348 |
Screw ST 4,2x11 | Na dotaz | Zadat poptávku | |
| 912 4 WHR12368 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.60 |
||
| 922 0 WHR12368 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR12368 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.90 |
||
| 930 0 WHR12368 |
C00318247
481249298039 |
spojka | 219 Kč
€ 8.70 |
||
| 950 0 WHR12368 |
C00319725
481246648101 |
Felt,strip bottom group | Na dotaz | Zadat poptávku | |
| 950 1 WHR12368 |
C00312097
481246688517 |
Těsnění sběrné nádoby | 680 Kč
€ 27.00 |
||
| 952 3 WHR12368 |
C00340432
481246688522 |
Gasket sensor wiring | Na dotaz | Zadat poptávku | |
| 962 0 WHR12368 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 962 2 WHR12368 |
C00319715
481246638056 |
Foil Aluminium Display board | Na dotaz | Zadat poptávku | |
