INDESIT B 16 NF (LZ)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | B 16 NF (LZ) |
| Kód 12NC: | 869990392020 |
| I.C. kód: | 58392020000 |
| Značka: | INDESIT |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

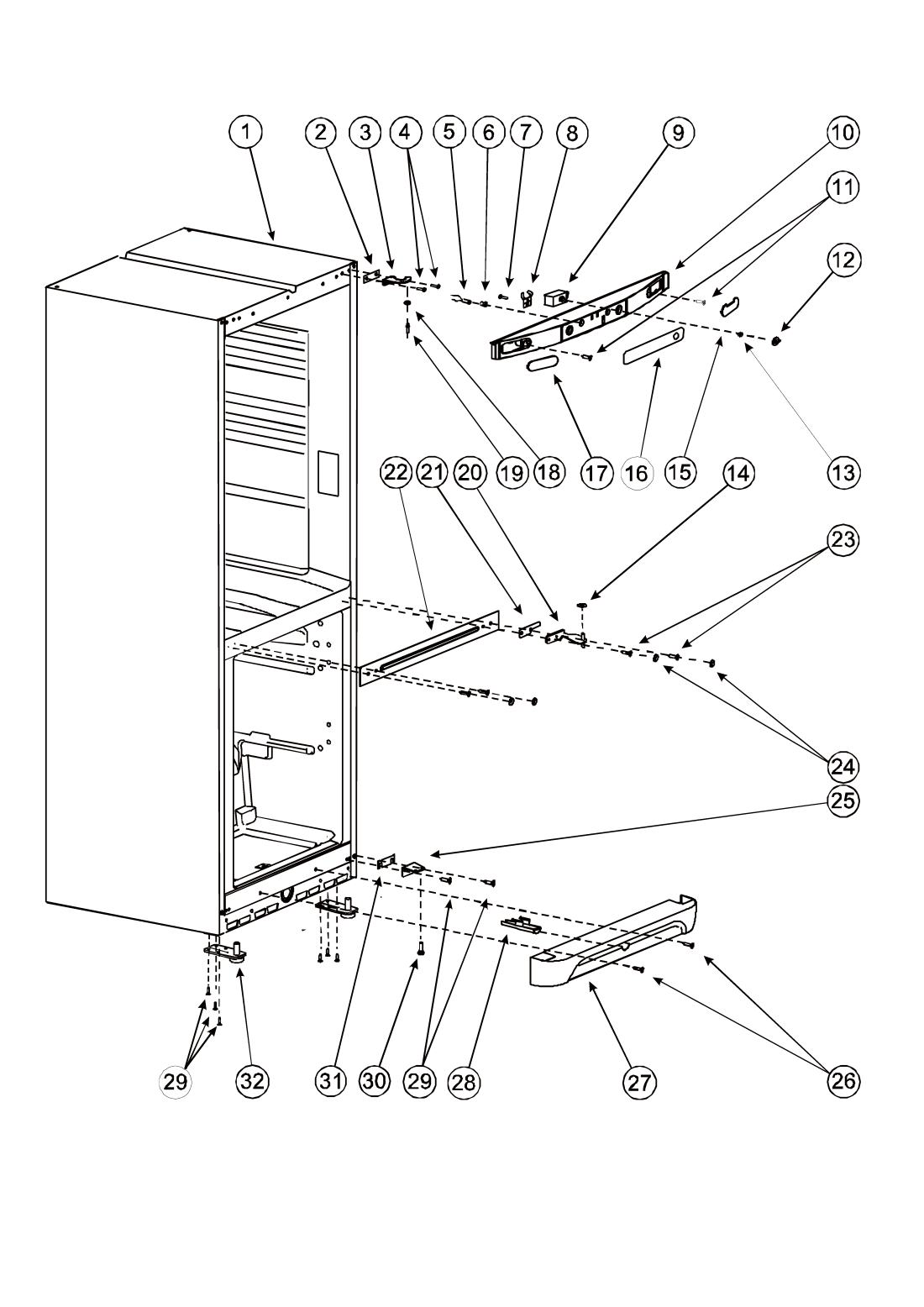

| 001 LIP0152 |
C00854202 | CABINET ASSEMBLY | Na dotaz | Zadat poptávku | |
| 002,014,021,031 LIP0152 |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
| 003 LIP0152 |
C00855093 | UPPER HINGE | Na dotaz | Zadat poptávku | |
| 004,029 LIP0152 |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
| 005 LIP0152 |
C00851057 | INDICATOR LAMP | Na dotaz | Zadat poptávku | |
| 006 LIP0152 |
C00857017
488000857017 |
Light Holder | Na dotaz | Zadat poptávku | |
| 007 LIP0152 |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
| 008 LIP0152 |
C00857163
488000857163 |
Bracket Support for Harness PW | Na dotaz | Zadat poptávku | |
| 009 LIP0152 |
C00851091
482000048791 |
THERMOSTAT | Na dotaz | Zadat poptávku | |
| 010 LIP0152 |
C00857217 | control panel | Na dotaz | Zadat poptávku | |
| 011 LIP0152 |
C00855016
488000855016 |
SELF-TAPP. SCREW ТСВ 4,8x22,22 | Na dotaz | Zadat poptávku | |
| 012 LIP0152 |
C00856070 | TERMOSTAT SWITCH KNOB PAINTED | Na dotaz | Zadat poptávku | |
| 013 LIP0152 |
C00855021
488000855021 |
CLEMPING COLLAR | Na dotaz | Zadat poptávku | |
| 015 LIP0152 |
C00857219
488000857219 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 016 LIP0152 |
C00856108 | DECORATIVE PLATE | Na dotaz | Zadat poptávku | |
| 017 LIP0152 |
C00857218
488000857218 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 018 LIP0152 |
C00855027 | WASHER | Na dotaz | Zadat poptávku | |
| 019 LIP0152 |
C00855088 | Hinge pivot | Na dotaz | Zadat poptávku | |
| 020 LIP0152 |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
| 022 LIP0152 |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
| 023 LIP0152 |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
| 024 LIP0152 |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
| 025 LIP0152 |
C00855041 | Hinge | Na dotaz | Zadat poptávku | |
| 026 LIP0152 |
C00855015
488000855015 |
SELF-TAPP. SCREW ТСВ 4,2x22,22 | Na dotaz | Zadat poptávku | |
| 027 LIP0152 |
C00857269 | KICKSTRIP | Na dotaz | Zadat poptávku | |
| 028 LIP0152 |
C00857223 | Condensation Passage | Na dotaz | Zadat poptávku | |
| 030 LIP0152 |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
| 032 LIP0152 |
C00855072 | FOOT AND SUPPORT | Na dotaz | Zadat poptávku | |
| 001 LIP0252 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
| 002 LIP0252 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
| 003 LIP0252 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
| 005 LIP0252 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
| 006 LIP0252 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
| 007 LIP0252 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.70 |
||
| 008 LIP0252 |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
| 010 LIP0252 |
C00857052
488000857052 |
LIGHTING BOX FIXTURE | Na dotaz | Zadat poptávku | |
| 011 LIP0252 |
C00851049
482000049300 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
| 012 LIP0252 |
C00857170
488000857170 |
PUSHER PW | Na dotaz | Zadat poptávku | |
| 013 LIP0252 |
C00850920
482000048784 |
OVERPRINTED GLASS SHELF | Na dotaz | Zadat poptávku | |
| 014 LIP0252 |
C00857286 | MEAT BASKET | Na dotaz | Zadat poptávku | |
| 014 LIP0252 |
C00857287 | MEAT BASKET COVER | Na dotaz | Zadat poptávku | |
| 015 LIP0252 |
C00850921
482000043261 |
FRIDGE SHELF | Na dotaz | Zadat poptávku | |
| 016 LIP0252 |
C00857283
482000048833 |
SEPARATOR | Na dotaz | Zadat poptávku | |
| 017 LIP0252 |
C00857206 | Vegetable Tray | Na dotaz | Zadat poptávku | |
| 018 LIP0252 |
C00857275 | VEGETAIBLE TRAY FRONT | Na dotaz | Zadat poptávku | |
| 019 LIP0252 |
C00855014 | SELF-TAPP. SCREW ТСВ 4,2x19,05 | Na dotaz | Zadat poptávku | |
| 020 LIP0252 |
C00857106 | AIR INLET PANEL | Na dotaz | Zadat poptávku | |
| 021,022 LIP0252 |
C00857274 | DRAWER FRONT | Na dotaz | Zadat poptávku | |
| 023 LIP0252 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 024 LIP0252 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
| 025 LIP0252 |
C00857020
488000857020 |
ICE TRAY | Na dotaz | Zadat poptávku | |
| 026 LIP0252 |
C00855057
482000041857 |
PLASTICIZED WIRE SHELF OF FREEZER | Na dotaz | Zadat poptávku | |
| 027 LIP0252 |
C00857290 | Easy Space Net | Na dotaz | Zadat poptávku | |
| 028 LIP0252 |
C00857025
488000857025 |
BRUSH | Na dotaz | Zadat poptávku | |
| 001 LIP0352 |
C00857145 | RUBBER SPACER FOR MOTOR-FAN | Na dotaz | Zadat poptávku | |
| 002 LIP0352 |
C00851102 | FAN ELECTROMOTOR | Na dotaz | Zadat poptávku | |
| 003 LIP0352 |
C00857142 | EXPANDER | Na dotaz | Zadat poptávku | |
| 005 LIP0352 |
C00850004 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
| 006 LIP0352 |
C00857134 | CHAMBERS DIVIDER | Na dotaz | Zadat poptávku | |
| 008 LIP0352 |
C00859992 | IMPELLER | Na dotaz | Zadat poptávku | |
| 009 LIP0352 |
C00855061 | EVAPORATOR UPPER TRAY | Na dotaz | Zadat poptávku | |
| 010 LIP0352 |
C00853006 | EVAPORATOR WELDED | Na dotaz | Zadat poptávku | |
| 011 LIP0352 |
C00851084
482000042770 |
RELAY THERMAL WITH THERMAL SWITCH | Na dotaz | Zadat poptávku | |
| 013 LIP0352 |
C00855012 | SELF-TAPP. SCREW Т1/2Т 2,9x9,52 | Na dotaz | Zadat poptávku | |
| 014 LIP0352 |
C00855062 | BOTTOM TRAY OF EVAPORATOR | Na dotaz | Zadat poptávku | |
| 016 LIP0352 |
C00851066
488000851066 |
EVAPORATOR TRAY HEATER | Na dotaz | Zadat poptávku | |
| 017 LIP0352 |
C00856017 | DIVIDER TOP INSULATOR | Na dotaz | Zadat poptávku | |
| 018 LIP0352 |
C00851005 | EL.MOTOR KNOB | Na dotaz | Zadat poptávku | |
| 019 LIP0352 |
C00857171
488000857171 |
PUSHER | Na dotaz | Zadat poptávku | |
| 020 LIP0352 |
C00857071
488000857071 |
CONNECTIONS COVER PW | Na dotaz | Zadat poptávku | |
| 021 LIP0352 |
C00855020 | SELF-TAPP. SCREW Т1/2Т | Na dotaz | Zadat poptávku | |
| 022 LIP0352 |
C00857073 | TIMER COVER | Na dotaz | Zadat poptávku | |
| 023 LIP0352 |
C00851086
482000048789 |
TIMER | Na dotaz | Zadat poptávku | |
| 024 LIP0352 |
C00857012
488000857012 |
DIVIDER BOTTOM PART | Na dotaz | Zadat poptávku | |
| 025 LIP0352 |
C00850006 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
| 026 LIP0352 |
C00856019 | CABLE TROUGH INSULATOR | Na dotaz | Zadat poptávku | |
| 027 LIP0352 |
C00857026
488000857026 |
CABLE TROUGH PW | Na dotaz | Zadat poptávku | |
| 028 LIP0352 |
C00850005 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
| 029 LIP0352 |
C00855025 | MOTOR-FAN BRACKET | Na dotaz | Zadat poptávku | |
| 001 LIP0452 |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
| 002 LIP0452 |
C00855001 | TOP PAINTED | Na dotaz | Zadat poptávku | |
| 003 LIP0452 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
| 004 LIP0452 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
| 005 LIP0452 |
C00855078 | WASHER 4.01.016 | Na dotaz | Zadat poptávku | |
| 006 LIP0452 |
C00853013 | CONDENSATOR PAINTED | Na dotaz | Zadat poptávku | |
| 007 LIP0452 |
C00857005 | SIPHON TRAY | Na dotaz | Zadat poptávku | |
| 009 LIP0452 |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
| 010 LIP0452 |
C00855077
488000855077 |
FILTER WITH MOLECULAR SIEVES COMPLETE | Na dotaz | Zadat poptávku | |
| 011 LIP0452 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 012 LIP0452 |
C00260796
482000047566 |
Compressor GVM66AA | Na dotaz | Zadat poptávku | |
| 013 LIP0452 |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
| 015 LIP0452 |
C00855063
488000855063 |
CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
| 016 LIP0452 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
| 017 LIP0452 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
| 018 LIP0452 |
C00857168 | CONDENSATE DRAIN PIPE OF REFRIG. | Na dotaz | Zadat poptávku | |
| 001 LIP0552 |
C00857277 | False control panel | Na dotaz | Zadat poptávku | |
| 002 LIP0552 |
C00855011
488000855011 |
SELF-TAPP. SCREW 3,5x13 | Na dotaz | Zadat poptávku | |
| 003 LIP0552 |
C00857063
488000857063 |
DECORATIVE COVER PW | Na dotaz | Zadat poptávku | |
| 004 LIP0552 |
C00857279 | Upper Plate Cover | Na dotaz | Zadat poptávku | |
| 005 LIP0552 |
C00857278
488000857278 |
Upper Plate Cover | Na dotaz | Zadat poptávku | |
| 006 LIP0552 |
C00854015
488000854015 |
Magnet Gasket 832x571 | Na dotaz | Zadat poptávku | |
| 006 LIP0552 |
C00853192 | FRIDGE FOAMED DOOR | Na dotaz | Zadat poptávku | |
| 007 LIP0552 |
C00857271 | SMALL DOOR SHELF LID | Na dotaz | Zadat poptávku | |
| 008 LIP0552 |
C00857280
482000052489 |
BUTTER DISH LID | Na dotaz | Zadat poptávku | |
| 009 LIP0552 |
C00857282
482000052490 |
BUTTER DISH | Na dotaz | Zadat poptávku | |
| 010 LIP0552 |
C00857270 | UPPER DOOR SHELF | Na dotaz | Zadat poptávku | |
| 011 LIP0552 |
C00857281 | EGG HOLDER | Na dotaz | Zadat poptávku | |
| 012 LIP0552 |
C00857272 | SMALL DOOR SHELF | Na dotaz | Zadat poptávku | |
| 013 LIP0552 |
C00857213
482000049147 |
Bottle Holder PW | Na dotaz | Zadat poptávku | |
| 014 LIP0552 |
C00857273 | SMALL DOOR SHELF | Na dotaz | Zadat poptávku | |
| 017 LIP0552 |
C00857184 | Zámek | 25 Kč
€ 1.00 |
||
| 018 LIP0552 |
C00854010
488000854010 |
Magnet Gasket 654x571 | Na dotaz | Zadat poptávku | |
| 018 LIP0552 |
C00853191 | FREEZER FOAMED DOOR | Na dotaz | Zadat poptávku | |
| 019 LIP0552 |
C00857186 | Closure Aid | Na dotaz | Zadat poptávku | |
| 020 LIP0552 |
C00857188 | Closure Aid | Na dotaz | Zadat poptávku | |
| 021 LIP0552 |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku | |
