HOT POINT BD52P/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BD52P/1 |
| Kód 12NC: | 869990316070 |
| I.C. kód: | 07316070000 |
| Značka: | HOT POINT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

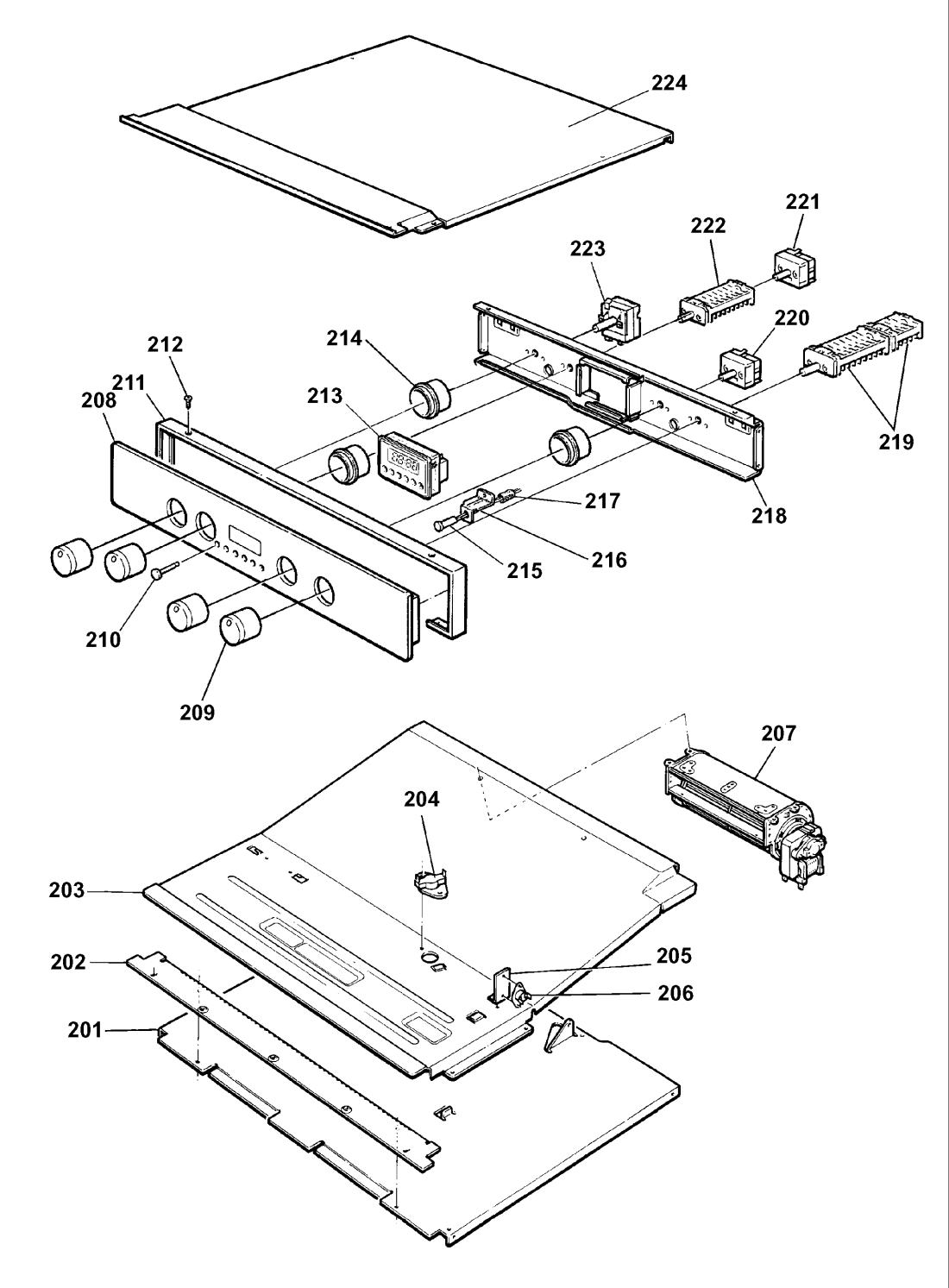

| 201 12591-05 |
C00199525
482000066446 |
INNER TOP PANEL | Na dotaz | Zadat poptávku | |
| 202 12591-05 |
C00199505
482000062912 |
CONTL PNL GRILLE BLK | Na dotaz | Zadat poptávku | |
| 203 12591-05 |
C00224787
482000066246 |
COOLING FAN DUCT | Na dotaz | Zadat poptávku | |
| 204 12591-05 |
C00199515
482000083672 |
CUT-OUT THERMOSTAT | Na dotaz | Zadat poptávku | |
| 205 12591-05 |
C00227315
488000227315 |
M/O CUT-IN MTG PLATE | Na dotaz | Zadat poptávku | |
| 206 12591-05 |
C00199503
482000083671 |
CUT-IN | Na dotaz | Zadat poptávku | |
| 207 12591-05 |
C00199558
482000063350 |
COOLING FAN | Na dotaz | Zadat poptávku | |
| 207 12591-05 |
C00224788
482000084652 |
VENTILÁTOR TANGENCIÁLNÍ | Na dotaz | Zadat poptávku | |
| 208 12591-05 |
C00225002 | GLASS CTRL PANEL WH | Na dotaz | Zadat poptávku | |
| 208 12591-05 |
C00225283 | CONTROL PANEL GLASS | Na dotaz | Zadat poptávku | |
| 209 12591-05 |
C00224991 | CONTROL KNOB PUSH-PUSH (CHROME) | Na dotaz | Zadat poptávku | |
| 210 12591-05 |
C00225405
482000062339 |
TIMER BUTTON - CHROME | Na dotaz | Zadat poptávku | |
| 211 12591-05 |
C00227300 | CONT PAN TRIM-WHITE | Na dotaz | Zadat poptávku | |
| 212 12591-05 |
C00199816
482000033340 |
NO 6X1/2P CSK AB BLK | Na dotaz | Zadat poptávku | |
| 213 12591-05 |
C00199539
482000054744 |
TIMER 6 BUTTON BLUE | Na dotaz | Zadat poptávku | |
| 213 12591-05 |
C00224974 | TIMER BLUE DISPLAY | Na dotaz | Zadat poptávku | |
| 214 12591-05 |
C00199530
482000063312 |
DISC SUPPORT COLLAR | Na dotaz | Zadat poptávku | |
| 215 12591-05 |
C00199612
482000063002 |
NEON LENS HLDER | Na dotaz | Zadat poptávku | |
| 216 12591-05 |
C00199598
482000062946 |
NEON MTG BRACKET | Na dotaz | Zadat poptávku | |
| 217 12591-05 |
C00199706
482000061710 |
NEON ASSEMBLY | Na dotaz | Zadat poptávku | |
| 218 12591-05 |
C00199556
482000062969 |
CONTROLS MTG PANEL | Na dotaz | Zadat poptávku | |
| 219 12591-05 |
C00199601
482000063210 |
SELECTOR SWITCH | Na dotaz | Zadat poptávku | |
| 220 12591-05 |
C00199551
482000083677 |
MAIN OVEN THERMOSTAT | Na dotaz | Zadat poptávku | |
| 220 12591-05 |
C00231795
482000063228 |
MAIN OVEN THERMOSTAT | Na dotaz | Zadat poptávku | |
| 221 12591-05 |
C00199554
482000062964 |
THERMOSTAT TOP | Na dotaz | Zadat poptávku | |
| 221 12591-05 |
C00240124
482000063213 |
T/OVEN THERMOSTAT | Na dotaz | Zadat poptávku | |
| 222 12591-05 |
C00199603
482000072309 |
TOP OVEN SWITCH PACK | Na dotaz | Zadat poptávku | |
| 223 12591-05 |
C00199654
482000083687 |
REGULATOR SINGLE | Na dotaz | Zadat poptávku | |
| 224 12591-05 |
C00199508
482000062971 |
TOP COVER | Na dotaz | Zadat poptávku | |
| 224 12591-05 |
C00199823
482000033337 |
SCREW & WSH NO6X3/8 | Na dotaz | Zadat poptávku | |
| 301 12591-10 |
C00225709 | MAIN OVEN DOOR GLASS | Na dotaz | Zadat poptávku | |
| 301,302 12591-10 |
C00199661
482000061989 |
HANDLE MOUNTING CHANNEL | Na dotaz | Zadat poptávku | |
| 302 12591-10 |
C00225410
482000060361 |
TOP DOOR GLASS | Na dotaz | Zadat poptávku | |
| 303 12591-10 |
C00224993
482000053255 |
HANDLE ALUMINIUM | Na dotaz | Zadat poptávku | |
| 303,306 12591-10 |
C00199659
482000062475 |
PLASTIC BUSH | Na dotaz | Zadat poptávku | |
| 304 12591-10 |
C00199648
482000062444 |
WASHER | Na dotaz | Zadat poptávku | |
| 305 12591-10 |
C00149708
482000061582 |
WASHER | Na dotaz | Zadat poptávku | |
| 306 12591-10 |
C00250735
482000084789 |
SCREW (M4 X 14MM) | Na dotaz | Zadat poptávku | |
| 308 12591-10 |
C00199565
482000083680 |
MAIN OVEN DOOR HINGE WITH SADDLEBRACKET | Na dotaz | Zadat poptávku | |
| 308 12591-10 |
C00223300
482000053894 |
HINGE - PAIR. | Na dotaz | Zadat poptávku | |
| 309 12591-10 |
C00199563
482000083679 |
HINGE | Na dotaz | Zadat poptávku | |
| 309 12591-10 |
C00223945
482000063126 |
DROP DOWN HINGE | Na dotaz | Zadat poptávku | |
| 309 12591-10 |
C00225259 | HINGE | Na dotaz | Zadat poptávku | |
| 310,317 12591-10 |
C00199827
482000063016 |
FIBRE WASHER | Na dotaz | Zadat poptávku | |
| 311 12591-10 |
C00981150
482000090170 |
šroub | 141 Kč
€ 5.60 |
||
| 312 12591-10 |
C00199527
482000062950 |
MAIN DOOR INNER PNL | Na dotaz | Zadat poptávku | |
| 313 12591-10 |
C00199627
482000062951 |
INNER PNL TOP DOOR | Na dotaz | Zadat poptávku | |
| 315 12591-10 |
C00146183
482000082431 |
FIBRE WASHER M4 BLACK | Na dotaz | Zadat poptávku | |
| 316 12591-10 |
C00199818
482000083714 |
SCREW M5 POZI CSK | Na dotaz | Zadat poptávku | |
| 318 12591-10 |
C00199754
482000054025 |
SKLO VNITŘEK DVEŘE TROUBA | Na dotaz | Zadat poptávku | |
| 319 12591-10 |
C00199738
482000054049 |
T/O DOOR INNER GLASS | Na dotaz | Zadat poptávku | |
| 320 12591-10 |
C00249461
482000054414 |
FLANGED HD POZI NO.8 | Na dotaz | Zadat poptávku | |
| 321 12591-10 |
C00199740
482000053632 |
GLASS CLAMPING PLTE | Na dotaz | Zadat poptávku | |
| 322 12591-10 |
C00251064 | QUICK RELEASE STUD | Na dotaz | Zadat poptávku | |
| 401 12591-15 |
C00235046
482000084676 |
GRILL PAN HANDLE | Na dotaz | Zadat poptávku | |
| 402 12591-15 |
C00227326
482000052891 |
SHELF OVEN | Na dotaz | Zadat poptávku | |
| 402 12591-15 |
C00228823 | EASY GLIDE SHELF | Na dotaz | Zadat poptávku | |
| 403 12591-15 |
C00199497
482000083669 |
GRILL PAN | Na dotaz | Zadat poptávku | |
| 404 12591-15 |
C00231375 | ANTI SPLASH TRAY VITREOUS | Na dotaz | Zadat poptávku | |
| 405 12591-15 |
C00199615
482000053843 |
GRID GRILL PAN | Na dotaz | Zadat poptávku | |
| 406 12591-15 |
C00224168 | OVEN LINER CATALYTIC | Na dotaz | Zadat poptávku | |
| 406,407,409,410,413 12591-15 |
C00251174
482000060924 |
SCREW N6X3/8 | Na dotaz | Zadat poptávku | |
| 407 12591-15 |
C00199522
482000055208 |
HIGH SPEED GRILL | Na dotaz | Zadat poptávku | |
| 407 12591-15 |
C00199625
482000063313 |
MESH SPACER | Na dotaz | Zadat poptávku | |
| 407 12591-15 |
C00250952
482000070078 |
SCREW SELF TAPPING | Na dotaz | Zadat poptávku | |
| 408 12591-15 |
C00199596
482000062983 |
H/SPEED GRILL FRONT | Na dotaz | Zadat poptávku | |
| 409 12591-15 |
C00199582
482000067635 |
FRONT SUPP BKT GRILL | Na dotaz | Zadat poptávku | |
| 410 12591-15 |
C00199623
482000062982 |
GRILL REFLECTOR | Na dotaz | Zadat poptávku | |
| 411 12591-15 |
C00199577
482000083681 |
TOP OVEN DOOR SEAL | Na dotaz | Zadat poptávku | |
| 412 12591-15 |
C00199766
482000062977 |
PHIAL FIXING CLIP | Na dotaz | Zadat poptávku | |
| 412 12591-15 |
C00229869
482000054441 |
STAT PHIAL CLIP | Na dotaz | Zadat poptávku | |
| 413 12591-15 |
C00199689
482000067642 |
VENT TUBE SEC WASHER | Na dotaz | Zadat poptávku | |
| 414 12591-15 |
C00227278 | TOP OVEN VENT PIPE | Na dotaz | Zadat poptávku | |
| 416 12591-15 |
C00199517
482000054628 |
INT LIGHT ASSY V/S | Na dotaz | Zadat poptávku | |
| 418 12591-15 |
C00199573
482000062985 |
HINGE MOUNTING | Na dotaz | Zadat poptávku | |
| 418 12591-15 |
C00225413
488000225413 |
HINGE SUPPORT | Na dotaz | Zadat poptávku | |
| 419 12591-15 |
C00229284
482000060592 |
LAGGING GUARD HINGE | Na dotaz | Zadat poptávku | |
| 420 12591-15 |
C00233808 | BASE ELEMENT | Na dotaz | Zadat poptávku | |
| 421 12591-15 |
C00199652
482000061944 |
BASE ELEM TRAY TOPOV | Na dotaz | Zadat poptávku | |
| 502 12591-20 |
C00199570
482000062070 |
MEAT PAN | Na dotaz | Zadat poptávku | |
| 504 12591-20 |
C00199709
482000062907 |
ROASTING RACK | Na dotaz | Zadat poptávku | |
| 505 12591-20 |
C00237608
482000033256 |
LINER OVEN SIDE CATALYTIC | Na dotaz | Zadat poptávku | |
| 507 12591-20 |
C00199665
482000061589 |
OVEN HEATING ELEMENT 2.5 KW CIRCULAR | Na dotaz | Zadat poptávku | |
| 507 12591-20 |
C00225610 | FAN OVEN ELEMENT 2KW | Na dotaz | Zadat poptávku | |
| 508,517 12591-20 |
C00095612
482000078223 |
SCREW M5X10 HEX | Na dotaz | Zadat poptávku | |
| 509,517 12591-20 |
C00149712
482000061583 |
WASHER | Na dotaz | Zadat poptávku | |
| 510 12591-20 |
C00199691
482000067643 |
ELEM RETAINING BRKT | Na dotaz | Zadat poptávku | |
| 511 12591-20 |
C00199699
482000060200 |
MOTOR FAN FIXING NUT | Na dotaz | Zadat poptávku | |
| 512 12591-20 |
C00199694
482000054587 |
FAN MAIN OVEN | Na dotaz | Zadat poptávku | |
| 515,536 12591-20 |
C00199696
482000062941 |
OVEN LAMP SURROUND | Na dotaz | Zadat poptávku | |
| 516 12591-20 |
C00199703
482000083694 |
MAIN OVEN DOOR SEAL | Na dotaz | Zadat poptávku | |
| 517 12591-20 |
C00199513
482000063292 |
GRILL/TOP ELEMENT | Na dotaz | Zadat poptávku | |
| 518 12591-20 |
C00199748
482000037231 |
SUPPORT-GRILL ELEMNT | Na dotaz | Zadat poptávku | |
| 519 12591-20 |
C00199701
482000062974 |
PANEL REMOVABLE ROOF | Na dotaz | Zadat poptávku | |
| 520 12591-20 |
C00199587
482000053253 |
MAIN OVEN VENT PIPE | Na dotaz | Zadat poptávku | |
| 523 12591-20 |
C00149759
482000065982 |
SCREW M5 X 16 | Na dotaz | Zadat poptávku | |
| 524 12591-20 |
C00199746
482000061784 |
FAN MOTOR INSULATION | Na dotaz | Zadat poptávku | |
| 525 12591-20 |
C00199560
482000083678 |
MOTOR | Na dotaz | Zadat poptávku | |
| 525 12591-20 |
C00230107
482000054412 |
M5X12 P.PAN+WASHER | Na dotaz | Zadat poptávku | |
| 526 12591-20 |
C00199589
482000067636 |
LWR FIXING BRKT | Na dotaz | Zadat poptávku | |
| 526,540 12591-20 |
C00095510
482000078183 |
SCREW NO8 X 1/2 | Na dotaz | Zadat poptávku | |
| 527 12591-20 |
C00226778 | THERMAL CUT-OUT | Na dotaz | Zadat poptávku | |
| 528 12591-20 |
C00199541
482000054595 |
DOOR MICROSWITCH | Na dotaz | Zadat poptávku | |
| 531 12591-20 |
C00224671 | CUT OUT MTG BKT | Na dotaz | Zadat poptávku | |
| 532 12591-20 |
C00199510
482000053603 |
BASE ELEMENT TRAY | Na dotaz | Zadat poptávku | |
| 533 12591-20 |
C00199711
482000066581 |
BASE ELEMENT | Na dotaz | Zadat poptávku | |
| 534 12591-20 |
C00224243 | BASE COVER PLATE | Na dotaz | Zadat poptávku | |
| 535,539 12591-20 |
C00199580
482000062976 |
INNER REAR PANEL CATALYTIC | Na dotaz | Zadat poptávku | |
| 538 12591-20 |
C00199832
482000054452 |
CAPTIVE NUT (No.8) | Na dotaz | Zadat poptávku | |
| 538 12591-20 |
C00228921
482000062975 |
INNER REAR PANEL SUPPORT | Na dotaz | Zadat poptávku | |
| 601 12591-25 |
C00199520
482000062916 |
RETAINING BKT | Na dotaz | Zadat poptávku | |
| 602 12591-25 |
C00224804
482000063307 |
R/H SIDE TRIM - WHT | Na dotaz | Zadat poptávku | |
| 602 12591-25 |
C00225309 | SIDE TRIM RH WHITE | Na dotaz | Zadat poptávku | |
| 603 12591-25 |
C00199732
482000036610 |
BOTTOM TRIM-BLACK | Na dotaz | Zadat poptávku | |
| 603 12591-25 |
C00228859 | BOTTOM TRIM SUPPORT | Na dotaz | Zadat poptávku | |
| 604 12591-25 |
C00199730
482000036611 |
FOOT CHANNEL | Na dotaz | Zadat poptávku | |
| 605 12591-25 |
C00224803
482000063306 |
L/H SIDE TRIM - WHT | Na dotaz | Zadat poptávku | |
| 605 12591-25 |
C00225308 | SIDE TRIM LH WHITE | Na dotaz | Zadat poptávku | |
| 606 12591-25 |
C00199605
482000062945 |
SIDE PANEL | Na dotaz | Zadat poptávku | |
| 606 12591-25 |
C00251169 | NO. 6 SCREW | Na dotaz | Zadat poptávku | |
| 607,614,616,619 12591-25 |
C00149715 | LOCKWASHER | Na dotaz | Zadat poptávku | |
| 608 12591-25 |
C00199670
482000083690 |
MAINS TERM BLOCK | Na dotaz | Zadat poptávku | |
| 610 12591-25 |
C00199835
482000070077 |
M6 X 25 SCREW | Na dotaz | Zadat poptávku | |
| 611 12591-25 |
C00199840
482000037412 |
M6 SHAKEPROOF WASHER | Na dotaz | Zadat poptávku | |
| 615,617,620 12591-25 |
C00199838
482000063019 |
M6 LOCKNUT | Na dotaz | Zadat poptávku | |
| 618 12591-25 |
C00199830
482000063017 |
CLAMPING WASHER | Na dotaz | Zadat poptávku | |
| 621 12591-25 |
C00199620
482000060199 |
SCREW NO 6X1/2 | Na dotaz | Zadat poptávku | |
| 621 12591-25 |
C00199727
482000036604 |
REAR PANEL | Na dotaz | Zadat poptávku | |
| 622 12591-25 |
C00199592
482000062948 |
MTB COVER | Na dotaz | Zadat poptávku | |
| 623 12591-25 |
C00199811
482000070079 |
SELF TAPPING SCREW | Na dotaz | Zadat poptávku | |
| 624 12591-25 |
C00199813
482000066606 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 625 12591-25 |
C00199682
482000061777 |
REAR LAGGING MAT | Na dotaz | Zadat poptávku | |
| 626,628 12591-25 |
C00227288 | LAGGING WRAP 1 | Na dotaz | Zadat poptávku | |
| 629 12591-25 |
C00226793 | EDGING STRIP | Na dotaz | Zadat poptávku | |
| 631 12591-25 |
C00161103 | HANDBOOK | Na dotaz | Zadat poptávku | |
| 631 12591-25 |
C00161332 | HANDBOOK | Na dotaz | Zadat poptávku | |
| 631 12591-25 |
C00186237 | HANDBOOK | Na dotaz | Zadat poptávku | |
