| Komerční kód: | BLZE 6290/1 IN BI Electr.Oven -90cm BK |
| Kód 12NC: | 855643901000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

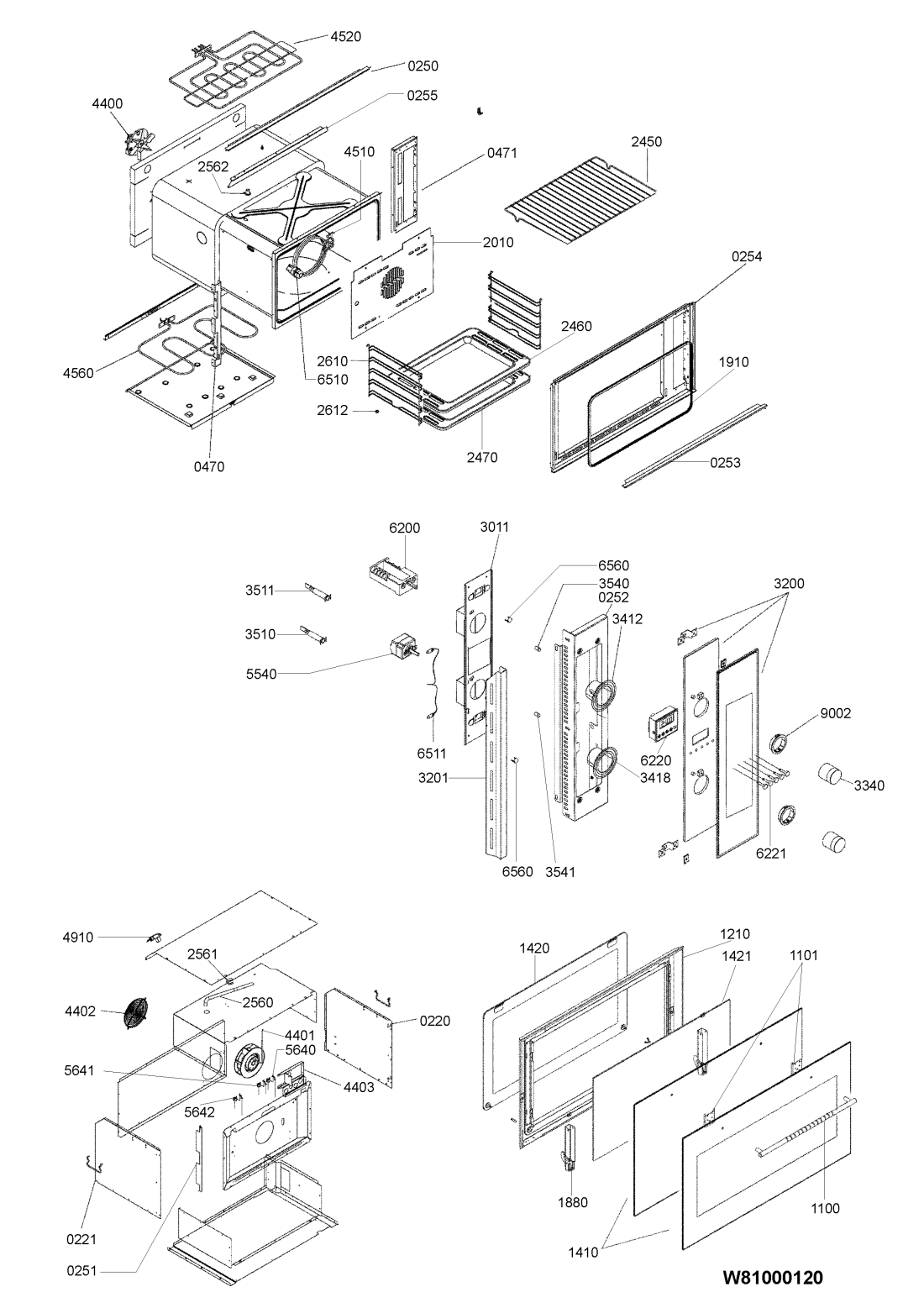

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR27349 |
C00403206
481244011683 |
Side panel ,oven right | Na dotaz | Zadat poptávku | |
| 022 1 WHR27349 |
C00403207
481244011684 |
Side panel ,oven left | Na dotaz | Zadat poptávku | |
| 025 0 WHR27349 |
C00330442
481246098115 |
Trim upper | Na dotaz | Zadat poptávku | |
| 025 1 WHR27349 |
C00404695
481246079225 |
Frame ,left | Na dotaz | Zadat poptávku | |
| 025 2 WHR27349 |
C00404146
481245350349 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 025 3 WHR27349 |
C00404696
481246079226 |
Frame ,lower oven | Na dotaz | Zadat poptávku | |
| 025 4 WHR27349 |
C00404697
481246079227 |
Frame ,front cavity | Na dotaz | Zadat poptávku | |
| 025 5 WHR27349 |
C00404721
481246098116 |
Trim ,covering | Na dotaz | Zadat poptávku | |
| 047 0 WHR27349 |
C00402785
481241758402 |
Hinge support left | Na dotaz | Zadat poptávku | |
| 047 1 WHR27349 |
C00329795
481241758403 |
Hinge support right | Na dotaz | Zadat poptávku | |
| 110 0 WHR27349 |
C00391229
480121103403 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR27349 |
C00329130
481240449831 |
Support handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR27349 |
C00404975
481246418251 |
Frame ,inner door 948 06 black | Na dotaz | Zadat poptávku | |
| 141 0 WHR27349 |
C00401223
481231039235 |
Door outer | Na dotaz | Zadat poptávku | |
| 142 0 WHR27349 |
C00403886
481245168067 |
Door glass ,inner | Na dotaz | Zadat poptávku | |
| 142 1 WHR27349 |
C00331255
481245168068 |
Glass door medium | Na dotaz | Zadat poptávku | |
| 188 0 WHR27349 |
C00391230
480121103404 |
Hinge ,OVEN DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR27349 |
C00319993
481246688997 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 201 0 WHR27349 |
C00403712
481244528073 |
Fan ,diffuser | Na dotaz | Zadat poptávku | |
| 245 0 WHR27349 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR27349 |
C00344539
481241838089 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR27349 |
C00327786
481241838077 |
plech na peceni | 2 107 Kč
€ 83.20 |
||
| 256 0 WHR27349 |
C00403713
481244528074 |
Chimney ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 256 1 WHR27349 |
C00402064
481240449832 |
Support ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 256 2 WHR27349 |
C00389901
480121101051 |
Tube condensation | Na dotaz | Zadat poptávku | |
| 261 0 WHR27349 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
| 261 2 WHR27349 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 301 1 WHR27349 |
C00402189
481240478933 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 320 0 WHR27349 |
C00404070
481245310809 |
Control panel ,complete | Na dotaz | Zadat poptávku | |
| 320 1 WHR27349 |
C00404809
481246228931 |
Cover ,control panel | Na dotaz | Zadat poptávku | |
| 334 0 WHR27349 |
C00329364
481241128948 |
Knoflík | Na dotaz | Zadat poptávku | |
| 341 2 WHR27349 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
| 341 8 WHR27349 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
| 351 0 WHR27349 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 351 1 WHR27349 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 354 0 WHR27349 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 354 1 WHR27349 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 440 0 WHR27349 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 440 1 WHR27349 |
C00328816
481236118623 |
Fan wheel fan | Na dotaz | Zadat poptávku | |
| 440 2 WHR27349 |
C00328831
481236158396 |
Cover fan motor | Na dotaz | Zadat poptávku | |
| 440 3 WHR27349 |
C00401886
481240418602 |
Support ,fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR27349 |
C00327155
481225928839 |
Heating element circular 2500W | Na dotaz | Zadat poptávku | |
| 452 0 WHR27349 |
C00316996
481225928948 |
topeni trouby universální 1050W/2250W 365x540 | 2 797 Kč
€ 110.40 |
||
| 456 0 WHR27349 |
C00327156
481225928841 |
Heating element lower 1550W | Na dotaz | Zadat poptávku | |
| 491 0 WHR27349 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 554 0 WHR27349 |
C00327558
481228238248 |
Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR27349 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 564 1 WHR27349 |
C00319446
481228248286 |
termostat | 697 Kč
€ 27.50 |
||
| 564 2 WHR27349 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | 898 Kč
€ 35.50 |
||
| 620 0 WHR27349 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 622 0 WHR27349 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 622 1 WHR27349 |
C00391228
480121103402 |
Push button | Na dotaz | Zadat poptávku | |
| 651 0 WHR27349 |
C00327133
481225518311 |
Lamp oven 25 W | Na dotaz | Zadat poptávku | |
| 651 1 WHR27349 |
C00341819
481213448291 |
Lamp illumination neon | Na dotaz | Zadat poptávku | |
| 656 0 WHR27349 |
C00341827
481213448292 |
Lamp cover | Na dotaz | Zadat poptávku | |
| 900 2 WHR27349 |
C00402525
481241458339 |
Flange ,for knob | Na dotaz | Zadat poptávku | |
| 993 0 WHR27349 |
C00321946
480121100733 |
Inset grid + sliding guide 3X left | Na dotaz | Zadat poptávku | |
| 993 0 WHR27349 |
C00321947
480121100734 |
Inset grid + sliding guide 3X right | Na dotaz | Zadat poptávku | |
| 993 0 WHR27349 |
C00344659
481269048009 |
Accessory pizza stone | Na dotaz | Zadat poptávku | |
| 993 0 WHR27349 |
C00390110
480121101443 |
Plate selfclean kit 3 pieces | Na dotaz | Zadat poptávku | |
