HOT POINT BS41B
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BS41B |
| Kód 12NC: | 869990326990 |
| I.C. kód: | AQ326990000 |
| Značka: | HOT POINT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | AQ326990000, AQ326990000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

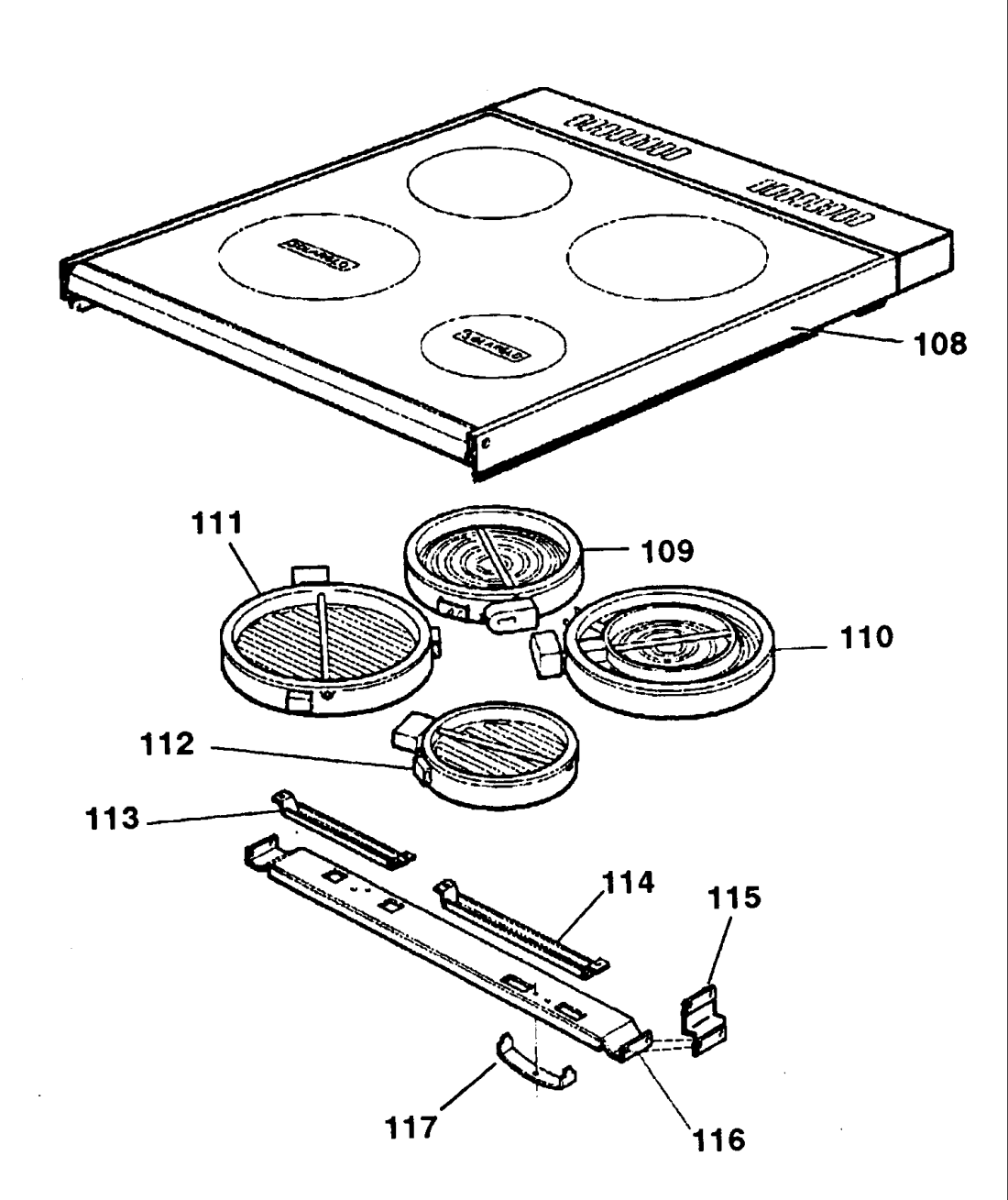

| 108 01680-14 |
C00227186
482000066417 |
CERAMIC HOB ASSY BR## | Na dotaz | Zadat poptávku | |
| 108 01680-14 |
C00250955
482000084803 |
SCREW NO6 X 3/8 | Na dotaz | Zadat poptávku | |
| 108,114,999 01680-14 |
C00199823
482000033337 |
SCREW & WSH NO6X3/8 | Na dotaz | Zadat poptávku | |
| 109,112 01680-14 |
C00228944
482000084659 |
CERAMIC ELEMENT 1200W (165MM) | Na dotaz | Zadat poptávku | |
| 110,111 01680-14 |
C00228943
482000084658 |
PLOTÝNKA 1800W(200MM) | Na dotaz | Zadat poptávku | |
| 113 01680-14 |
C00232619 | HEATER SUPPORT SHORT | Na dotaz | Zadat poptávku | |
| 114 01680-14 |
C00230865 | HEATER SUPPORT STRAP | Na dotaz | Zadat poptávku | |
| 115 01680-14 |
C00227261 | HEATER SUPP FIX BKT | Na dotaz | Zadat poptávku | |
| 116 01680-14 |
C00232734 | HEATER SUPPORT | Na dotaz | Zadat poptávku | |
| 117 01680-14 |
C00230866 | HTR RETENTION SPRING | Na dotaz | Zadat poptávku | |
| 999 01680-14 |
C00225334
482000063003 |
SLEEVING 11MM X 80MM | Na dotaz | Zadat poptávku | |
| 999 01680-14 |
C00251270 | NO8 X 3/8 SCREW | Na dotaz | Zadat poptávku | |
| 999 01680-14 |
C00251327 | P CLAMP | Na dotaz | Zadat poptávku | |
| 999 01680-14 |
C00251650 | EDGE CLIP | Na dotaz | Zadat poptávku | |
| 999 01680-14 |
C00251725 | CABLE CLIP | Na dotaz | Zadat poptávku | |
| 201 01680-16 |
C00227408 | CONTL PNL TOE MINK | Na dotaz | Zadat poptávku | |
| 202 01680-16 |
C00223833 | KNOB KIT 6100877 BRN | Na dotaz | Zadat poptávku | |
| 203 01680-16 |
C00227409 | HPT CONTL PNL MINK | Na dotaz | Zadat poptávku | |
| 204 01680-16 |
C00227407 | CONTL MTG PANEL | Na dotaz | Zadat poptávku | |
| 205,209 01680-16 |
C00199679
482000062476 |
CAPTIVE NUT | Na dotaz | Zadat poptávku | |
| 206 01680-16 |
C00199654
482000083687 |
REGULATOR SINGLE | Na dotaz | Zadat poptávku | |
| 207 01680-16 |
C00227406 | FAN CHAMBER | Na dotaz | Zadat poptávku | |
| 208 01680-16 |
C00231835 | THERMAL CUT OUT | Na dotaz | Zadat poptávku | |
| 210 01680-16 |
C00223849
482000052997 |
NEON HOLDER/LENS | Na dotaz | Zadat poptávku | |
| 210 01680-16 |
C00233283 | NEON | Na dotaz | Zadat poptávku | |
| 211 01680-16 |
C00225901 | SWITCH PACK | Na dotaz | Zadat poptávku | |
| 212 01680-16 |
C00226950
482000063247 |
MAIN OVEN THERMOSTAST | Na dotaz | Zadat poptávku | |
| 213 01680-16 |
C00226163 | GRILL/T OVN CNTRL | Na dotaz | Zadat poptávku | |
| 999 01680-16 |
C00251173
482000070082 |
SCREW 6X3/8 | Na dotaz | Zadat poptávku | |
| 999 01680-16 |
C00251174
482000060924 |
SCREW N6X3/8 | Na dotaz | Zadat poptávku | |
| 999 01680-16 |
C00251384
482000071367 |
SCREW M4X6MM | Na dotaz | Zadat poptávku | |
| 301 01680-18 |
C00233108 | M OVEN DR GLS TRIM | Na dotaz | Zadat poptávku | |
| 301,306,311,999 01680-18 |
C00251168
482000033339 |
SCREW NO6 X 3/8 | Na dotaz | Zadat poptávku | |
| 301,311,315,325,999 01680-18 |
C00199827
482000063016 |
FIBRE WASHER | Na dotaz | Zadat poptávku | |
| 303 01680-18 |
C00227411 | MAIN DR GL MINK | Na dotaz | Zadat poptávku | |
| 303,318 01680-18 |
C00251506
482000063024 |
SEALING TAPE (1 METRE) | Na dotaz | Zadat poptávku | |
| 304 01680-18 |
C00235690 | DOOR PULL IDENTIFIER | Na dotaz | Zadat poptávku | |
| 304,319 01680-18 |
C00115556
482000068489 |
BOLT | Na dotaz | Zadat poptávku | |
| 304,319 01680-18 |
C00149708
482000061582 |
WASHER | Na dotaz | Zadat poptávku | |
| 304,319 01680-18 |
C00227367 | DOOR HANDLE - BROWN | Na dotaz | Zadat poptávku | |
| 305,320 01680-18 |
C00230101
482000062016 |
HANDLE MOUNTING BRACKET | Na dotaz | Zadat poptávku | |
| 307 01680-18 |
C00227171 | HANDLE BAFFLE | Na dotaz | Zadat poptávku | |
| 308 01680-18 |
C00232921 | MAIN OVEN BOTTOM DOOR HINGE PLATE | Na dotaz | Zadat poptávku | |
| 308 01680-18 |
C00251102
482000033345 |
M5 X 10 SCREW BLACK | Na dotaz | Zadat poptávku | |
| 309 01680-18 |
C00232336 | HINGE TAPPING PLATE | Na dotaz | Zadat poptávku | |
| 310 01680-18 |
C00232922 | DOOR HINGE PLATE TOP | Na dotaz | Zadat poptávku | |
| 311 01680-18 |
C00240100
482000084715 |
INNER DOOR PANEL KIT | Na dotaz | Zadat poptávku | |
| 311 01680-18 |
C00251718 | PLUG BUTTON | Na dotaz | Zadat poptávku | |
| 312 01680-18 |
C00227005
482000054031 |
DOOR INNER GLASS | Na dotaz | Zadat poptávku | |
| 313 01680-18 |
C00095638 | TAPTITE SCREW | Na dotaz | Zadat poptávku | |
| 314 01680-18 |
C00225934
482000053633 |
GLASS CLAMPING PLATE | Na dotaz | Zadat poptávku | |
| 315 01680-18 |
C00235546
482000054594 |
CATCH DOOR | Na dotaz | Zadat poptávku | |
| 315 01680-18 |
C00251717
482000070065 |
SCREW M4 X 6MM BLACK | Na dotaz | Zadat poptávku | |
| 316 01680-18 |
C00251329 | M5 CAGE NUT | Na dotaz | Zadat poptávku | |
| 318 01680-18 |
C00227414 | TOP DR GL MINK | Na dotaz | Zadat poptávku | |
| 322 01680-18 |
C00227175 | TOP DOOR FILLER | Na dotaz | Zadat poptávku | |
| 323 01680-18 |
C00240699
482000066464 |
SOLID PANEL + HINGES | Na dotaz | Zadat poptávku | |
| 324 01680-18 |
C00199818
482000083714 |
SCREW M5 POZI CSK | Na dotaz | Zadat poptávku | |
| 326 01680-18 |
C00223664 | HINGE WITH DETENT | Na dotaz | Zadat poptávku | |
| 999 01680-18 |
C00199821
482000033511 |
NO 8X3/8 P/FLG SCR | Na dotaz | Zadat poptávku | |
| 999 01680-18 |
C00232831 | T/O DOOR INSULTN SHT | Na dotaz | Zadat poptávku | |
| 999 01680-18 |
C00251514
482000084810 |
THERMOSET TAPE ROLL | Na dotaz | Zadat poptávku | |
| 401 01680-22 |
C00235046
482000084676 |
GRILL PAN HANDLE | Na dotaz | Zadat poptávku | |
| 401 01680-22 |
C00250969
482000035331 |
SCREW NO8 X 5/8 INCH | Na dotaz | Zadat poptávku | |
| 401 01680-22 |
C00251280
482000054409 |
CAPTIVE NUT | Na dotaz | Zadat poptávku | |
| 402 01680-22 |
C00229018
482000063000 |
ROD SHELF | Na dotaz | Zadat poptávku | |
| 405 01680-22 |
C00199497
482000083669 |
GRILL PAN | Na dotaz | Zadat poptávku | |
| 406 01680-22 |
C00199615
482000053843 |
GRID GRILL PAN | Na dotaz | Zadat poptávku | |
| 407 01680-22 |
C00233808 | BASE ELEMENT | Na dotaz | Zadat poptávku | |
| 407 01680-22 |
C00250965 | SCREW 8 X 3/8 | Na dotaz | Zadat poptávku | |
| 408 01680-22 |
C00199832
482000054452 |
CAPTIVE NUT (No.8) | Na dotaz | Zadat poptávku | |
| 409 01680-22 |
C00199652
482000061944 |
BASE ELEM TRAY TOPOV | Na dotaz | Zadat poptávku | |
| 410 01680-22 |
C00251205 | FIBRE PODLOŽKA | Na dotaz | Zadat poptávku | |
| 411 01680-22 |
C00251124
482000084807 |
SCREW (M5 X 10mm) | Na dotaz | Zadat poptávku | |
| 412 01680-22 |
C00232827 | T/O ROD SHELF SUPT CATALYTIC | Na dotaz | Zadat poptávku | |
| 413 01680-22 |
C00232832 | SEAL TOP OVEN DOOR | Na dotaz | Zadat poptávku | |
| 414 01680-22 |
C00095612
482000078223 |
SCREW M5X10 HEX | Na dotaz | Zadat poptávku | |
| 414 01680-22 |
C00226158
482000084655 |
GRILL ELEMENT | Na dotaz | Zadat poptávku | |
| 414,416 01680-22 |
C00251343 | CABLE CLIP | Na dotaz | Zadat poptávku | |
| 415 01680-22 |
C00232826 | REMOVEABLE ROOF LINER | Na dotaz | Zadat poptávku | |
| 416 01680-22 |
C00240132
482000062981 |
ELEMENT SUPPORT | Na dotaz | Zadat poptávku | |
| 419 01680-22 |
C00235687 | VENT BLANKING PLATE | Na dotaz | Zadat poptávku | |
| 420 01680-22 |
C00199766
482000062977 |
PHIAL FIXING CLIP | Na dotaz | Zadat poptávku | |
| 421 01680-22 |
C00199573
482000062985 |
HINGE MOUNTING | Na dotaz | Zadat poptávku | |
| 422 01680-22 |
C00224167
482000061530 |
HINGE LAGIN GUARD | Na dotaz | Zadat poptávku | |
| 502 01680-24 |
C00237996
482000033258 |
MEAT PAN | Na dotaz | Zadat poptávku | |
| 503 01680-24 |
C00227631 | OVEN SIDE LINER CATALYTIC | Na dotaz | Zadat poptávku | |
| 504 01680-24 |
C00199665
482000061589 |
OVEN HEATING ELEMENT 2.5 KW CIRCULAR | Na dotaz | Zadat poptávku | |
| 504 01680-24 |
C00149712
482000061583 |
WASHER | Na dotaz | Zadat poptávku | |
| 505 01680-24 |
C00199691
482000067643 |
ELEM RETAINING BRKT | Na dotaz | Zadat poptávku | |
| 506 01680-24 |
C00199699
482000060200 |
MOTOR FAN FIXING NUT | Na dotaz | Zadat poptávku | |
| 507 01680-24 |
C00199694
482000054587 |
FAN MAIN OVEN | Na dotaz | Zadat poptávku | |
| 508 01680-24 |
C00232729 | SECONDARY FAN | Na dotaz | Zadat poptávku | |
| 509 01680-24 |
C00112990
482000051880 |
WASHER | Na dotaz | Zadat poptávku | |
| 510 01680-24 |
C00232811
482000063235 |
OVEN SEAL 4 SIDED | Na dotaz | Zadat poptávku | |
| 511 01680-24 |
C00199838
482000063019 |
M6 LOCKNUT | Na dotaz | Zadat poptávku | |
| 511 01680-24 |
C00149715 | LOCKWASHER | Na dotaz | Zadat poptávku | |
| 511 01680-24 |
C00228200
482000061614 |
DOOR STRIKER | Na dotaz | Zadat poptávku | |
| 512 01680-24 |
C00230895 | ALUM WASHER | Na dotaz | Zadat poptávku | |
| 513 01680-24 |
C00230896 | TAPPING STRIP | Na dotaz | Zadat poptávku | |
| 513 01680-24 |
C00251392
482000070081 |
M5 X 10MM SCREW | Na dotaz | Zadat poptávku | |
| 513 01680-24 |
C00251509
482000061645 |
DBLE SIDED TAPE ROLL | Na dotaz | Zadat poptávku | |
| 515 01680-24 |
C00251084 | BLANKING PLUG | Na dotaz | Zadat poptávku | |
| 516 01680-24 |
C00226520 | CONNECTOR-VENT PIPE | Na dotaz | Zadat poptávku | |
| 516 01680-24 |
C00227157 | OVEN VENT PIPE | Na dotaz | Zadat poptávku | |
| 517 01680-24 |
C00199689
482000067642 |
VENT TUBE SEC WASHER | Na dotaz | Zadat poptávku | |
| 518 01680-24 |
C00232802 | TAPPING PLATE-BOTTOM | Na dotaz | Zadat poptávku | |
| 519 01680-24 |
C00227297
482000063232 |
LAMPCOVER | Na dotaz | Zadat poptávku | |
| 520 01680-24 |
C00015910
482000025965 |
ŽÁROVKA DO TROUBY E14 220V 15W | Na dotaz | Zadat poptávku | |
| 521 01680-24 |
C00223805
482000063231 |
LAMP HOLDER | Na dotaz | Zadat poptávku | |
| 522 01680-24 |
C00199696
482000062941 |
OVEN LAMP SURROUND | Na dotaz | Zadat poptávku | |
| 523 01680-24 |
C00232924 | M/O DOOR BOTTOM SHIM | Na dotaz | Zadat poptávku | |
| 523 01680-24 |
C00232942 | MAIN OVEN DOOR BOTTOM HINGE | Na dotaz | Zadat poptávku | |
| 523 01680-24 |
C00251073
482000084805 |
PLUG BUTTON | Na dotaz | Zadat poptávku | |
| 523,525 01680-24 |
C00251125
482000033239 |
M5 X 16 SCREW | Na dotaz | Zadat poptávku | |
| 524 01680-24 |
C00149710
482000052824 |
WASHER | Na dotaz | Zadat poptávku | |
| 524 01680-24 |
C00251445 | LOCK NUT | Na dotaz | Zadat poptávku | |
| 525 01680-24 |
C00232923 | M/OVEN DOOR TOP SHIM | Na dotaz | Zadat poptávku | |
| 525 01680-24 |
C00232943 | MAIN OVEN DOOR HINGE TOP | Na dotaz | Zadat poptávku | |
| 526 01680-24 |
C00232803 | TAPPING PLATE-TOP | Na dotaz | Zadat poptávku | |
| 527 01680-24 |
C00232805
482000061541 |
FAN MTR INSUL COVER | Na dotaz | Zadat poptávku | |
| 528 01680-24 |
C00199560
482000083678 |
MOTOR | Na dotaz | Zadat poptávku | |
| 529 01680-24 |
C00149759
482000065982 |
SCREW M5 X 16 | Na dotaz | Zadat poptávku | |
| 530 01680-24 |
C00228666 | OVEN REAR BRACE | Na dotaz | Zadat poptávku | |
| 530 01680-24 |
C00251302
482000063018 |
EDGE CLIP | Na dotaz | Zadat poptávku | |
| 530 01680-24 |
C00981079
482000090168 |
SCREW SPECIAL | Na dotaz | Zadat poptávku | |
| 531 01680-24 |
C00231906 | MESH GRILLE | Na dotaz | Zadat poptávku | |
| 532 01680-24 |
C00251282 | SPEED NUT | Na dotaz | Zadat poptávku | |
| 533 01680-24 |
C00232813 | I/REAR PANEL SUPPORT | Na dotaz | Zadat poptávku | |
| 535 01680-24 |
C00228896
482000066576 |
INNER REAR PNL CATALYTIC | Na dotaz | Zadat poptávku | |
| 535 01680-24 |
C00981150
482000090170 |
šroub | 141 Kč
€ 5.60 |
||
| 602 01680-26 |
C00251723 | PLUG BUTTON | Na dotaz | Zadat poptávku | |
| 603,605,616 01680-26 |
C00122256
482000080957 |
ŠROUB 6X3/8 | Na dotaz | Zadat poptávku | |
| 604 01680-26 |
C00229849
482000066386 |
OUTER REAR PANEL | Na dotaz | Zadat poptávku | |
| 605 01680-26 |
C00257767
482000061977 |
HOB REAR SUPPORT BRACKET | Na dotaz | Zadat poptávku | |
| 606 01680-26 |
C00199835
482000070077 |
M6 X 25 SCREW | Na dotaz | Zadat poptávku | |
| 607 01680-26 |
C00199840
482000037412 |
M6 SHAKEPROOF WASHER | Na dotaz | Zadat poptávku | |
| 609 01680-26 |
C00199830
482000063017 |
CLAMPING WASHER | Na dotaz | Zadat poptávku | |
| 611 01680-26 |
C00199670
482000083690 |
MAINS TERM BLOCK | Na dotaz | Zadat poptávku | |
| 612 01680-26 |
C00226960 | MTB COVER | Na dotaz | Zadat poptávku | |
| 613 01680-26 |
C00199813
482000066606 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 613 01680-26 |
C00251276 | ST SCREW TYPE B | Na dotaz | Zadat poptávku | |
| 614 01680-26 |
C00235684 | REAR PANEL COVER | Na dotaz | Zadat poptávku | |
| 615 01680-26 |
C00227144 | FAN ACCS COVER | Na dotaz | Zadat poptávku | |
| 616 01680-26 |
C00226683 | PLINTH | Na dotaz | Zadat poptávku | |
| 616 01680-26 |
C00251116
482000084806 |
SCREW-NO6X3/8 | Na dotaz | Zadat poptávku | |
| 617 01680-26 |
C00227188
482000060458 |
SIDE TRIM L/H BROWN | Na dotaz | Zadat poptávku | |
| 617 01680-26 |
C00227189
482000060459 |
SIDE TRIM R/H BROWN | Na dotaz | Zadat poptávku | |
| 618 01680-26 |
C00233351 | REAR LAGGING MAT | Na dotaz | Zadat poptávku | |
| 619 01680-26 |
C00232812
482000055696 |
OVEN LAGGING | Na dotaz | Zadat poptávku | |
| 619,999 01680-26 |
C00227007 | HOB POLISH | Na dotaz | Zadat poptávku | |
| 999 01680-26 |
C00181665 | HANDBOOK EW41 | Na dotaz | Zadat poptávku | |
| 999 01680-26 |
C00220610 | MANUAL EW41B/P | Na dotaz | Zadat poptávku | |
