INDESIT C 138 NF (LZ)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | C 138 NF (LZ) |
Kód 12NC: | 869990279270 |
I.C. kód: | 58279270000 |
Značka: | INDESIT |
Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

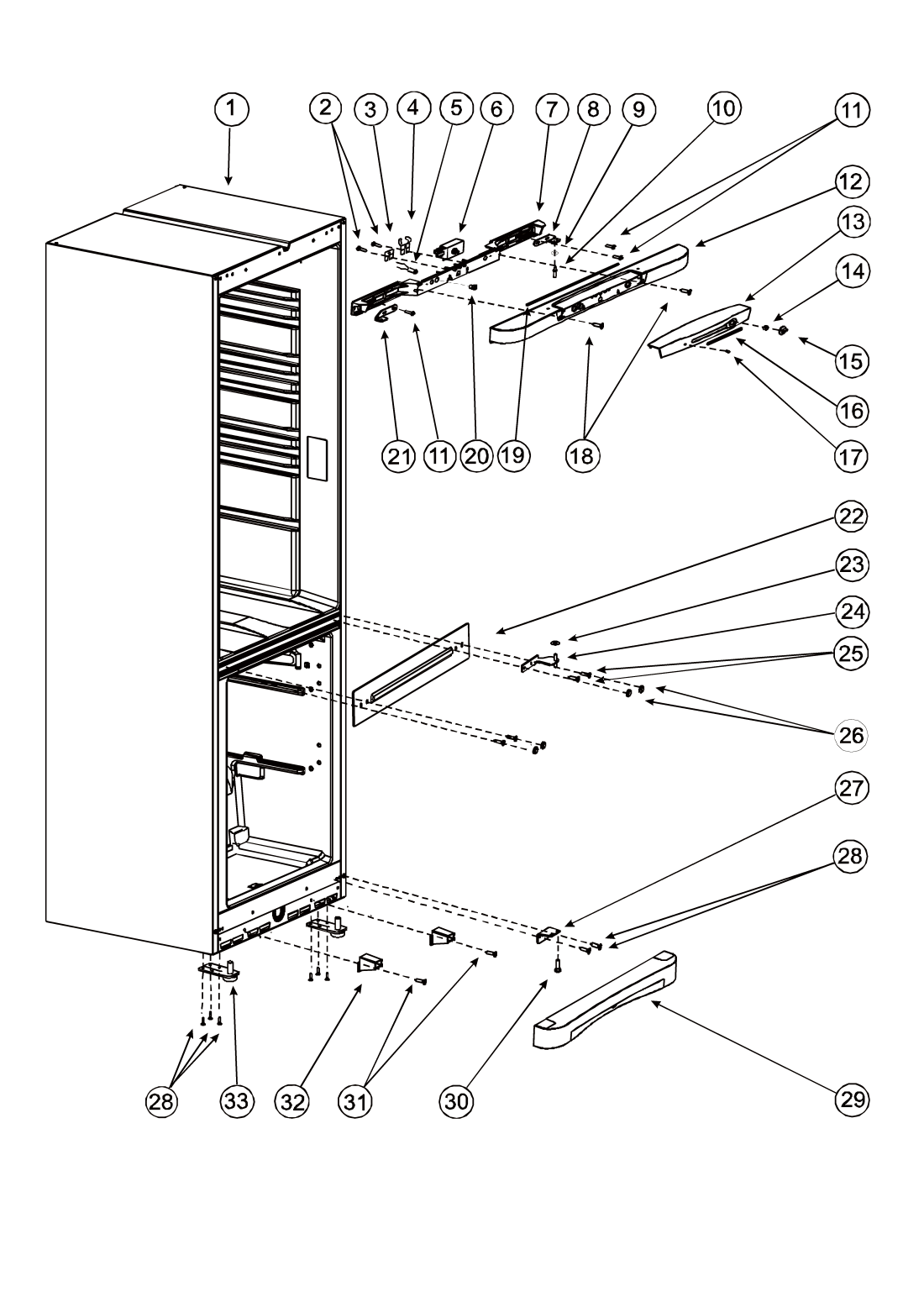

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
001 LIP0178 |
C00854203 | CABINET ASSEMBLY | Na dotaz | Zadat poptávku | |
002 LIP0178 |
C00855010
488000855010 |
SELF-TAPP. SCREW Т1/2Т 4,2х15,87 | Na dotaz | Zadat poptávku | |
003 LIP0178 |
C00857190
488000857190 |
FLEXIBLE COUPLING PW | Na dotaz | Zadat poptávku | |
004 LIP0178 |
C00857163
488000857163 |
Bracket Support for Harness PW | Na dotaz | Zadat poptávku | |
005 LIP0178 |
C00851058 | INDICATOR LAMP | Na dotaz | Zadat poptávku | |
006 LIP0178 |
C00851092
488000851092 |
THERMOSTAT | Na dotaz | Zadat poptávku | |
007 LIP0178 |
C00857095 | CONTROL PANEL BASE | Na dotaz | Zadat poptávku | |
008 LIP0178 |
C00855038 | Hinge with Thread | Na dotaz | Zadat poptávku | |
011 LIP0178 |
C00855008 | S-TAPP. SCREW WITH WASHER ТЕ 4,8x32 | Na dotaz | Zadat poptávku | |
012 LIP0178 |
C00857041 | Control Panel | Na dotaz | Zadat poptávku | |
013 LIP0178 |
C00856025 | Moulding-Screened | Na dotaz | Zadat poptávku | |
014 LIP0178 |
C00855021
488000855021 |
CLEMPING COLLAR | Na dotaz | Zadat poptávku | |
015 LIP0178 |
C00857157
488000857157 |
SENSOR-THERMORELAY HANDLE | Na dotaz | Zadat poptávku | |
016 LIP0178 |
C00856050 | DECORATIVE PANEL | Na dotaz | Zadat poptávku | |
017 LIP0178 |
C00857141 | LIGHT DIFFUSER | Na dotaz | Zadat poptávku | |
018 LIP0178 |
C00855013
488000855013 |
SELF-TAPP. SCREW Т1/2Т 3,5x12,7 | Na dotaz | Zadat poptávku | |
020 LIP0178 |
C00857017
488000857017 |
Light Holder | Na dotaz | Zadat poptávku | |
021 LIP0178 |
C00855036 | Hinge with Thread | Na dotaz | Zadat poptávku | |
022 LIP0178 |
C00855051 | PLATE CENTRAL PAINTED | Na dotaz | Zadat poptávku | |
023 LIP0178 |
C00857199
488000857199 |
ADJUSTMENT WASHER PW | Na dotaz | Zadat poptávku | |
024 LIP0178 |
C00855044 | Complete Hinge | Na dotaz | Zadat poptávku | |
025 LIP0178 |
C00855006
488000855006 |
SCREW SТ 4,8x22 | Na dotaz | Zadat poptávku | |
026 LIP0178 |
C00857057
488000857057 |
PLUG PW | Na dotaz | Zadat poptávku | |
027 LIP0178 |
C00855041 | Hinge | Na dotaz | Zadat poptávku | |
028 LIP0178 |
C00855007
488000855007 |
S-TAPP. SCREW WITH WASHER ТЕ 4,8x16 | Na dotaz | Zadat poptávku | |
029 LIP0178 |
C00857196 | Kickstrip | Na dotaz | Zadat poptávku | |
030 LIP0178 |
C00855046
488000855046 |
BOTTOM HINGE PIN | Na dotaz | Zadat poptávku | |
031 LIP0178 |
C00855015
488000855015 |
SELF-TAPP. SCREW ТСВ 4,2x22,22 | Na dotaz | Zadat poptávku | |
032 LIP0178 |
C00857056 | Holder | Na dotaz | Zadat poptávku | |
033 LIP0178 |
C00855072 | FOOT AND SUPPORT | Na dotaz | Zadat poptávku | |
001 LIP0278 |
C00857109
488000857109 |
Ceiling Light Fixture | Na dotaz | Zadat poptávku | |
002 LIP0278 |
C00856029
488000856029 |
Light Heat Protection | Na dotaz | Zadat poptávku | |
003 LIP0278 |
C00857027
488000857027 |
PLUG FOR BUSH | Na dotaz | Zadat poptávku | |
005 LIP0278 |
C00857046 | THERMOSTAT BOX PW | Na dotaz | Zadat poptávku | |
006 LIP0278 |
C00851049
482000049300 |
LAMP SWITCH | Na dotaz | Zadat poptávku | |
007 LIP0278 |
C00857170
488000857170 |
PUSHER PW | Na dotaz | Zadat poptávku | |
008 LIP0278 |
C00859993
488000859993 |
LAMP HOUSING | Na dotaz | Zadat poptávku | |
009 LIP0278 |
C00857174
488000857174 |
Pouzdro lednice | 43 Kč
€ 1.70 |
||
011 LIP0278 |
C00857052
488000857052 |
LIGHTING BOX FIXTURE | Na dotaz | Zadat poptávku | |
013 LIP0278 |
C00857191 | EGGS TRAY | Na dotaz | Zadat poptávku | |
014 LIP0278 |
C00850911
482000042469 |
REFRIGERATOR SHELF | Na dotaz | Zadat poptávku | |
015 LIP0278 |
C00857023 | COOLING CONTAINER | Na dotaz | Zadat poptávku | |
016 LIP0278 |
C00856009
482000048816 |
DOOR UPPER WITH PICTOGRAM | Na dotaz | Zadat poptávku | |
017 LIP0278 |
C00850907
482000048781 |
GLASS TRAY | Na dotaz | Zadat poptávku | |
018 LIP0278 |
C00857135
482000048826 |
Vegetable Tray Divider | Na dotaz | Zadat poptávku | |
019 LIP0278 |
C00857206 | Vegetable Tray | Na dotaz | Zadat poptávku | |
019 LIP0278 |
C00516551
488000516551 |
Vegetable Tray | Na dotaz | Zadat poptávku | |
020,021 LIP0278 |
C00856033
482000042598 |
Vegetable Tray Front-Screened | Na dotaz | Zadat poptávku | |
022 LIP0278 |
C00855014 | SELF-TAPP. SCREW ТСВ 4,2x19,05 | Na dotaz | Zadat poptávku | |
023,024 LIP0278 |
C00856032
482000049135 |
Drawer Front | Na dotaz | Zadat poptávku | |
025 LIP0278 |
C00857048
488000857048 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
026 LIP0278 |
C00857049
488000857049 |
Freezer Drawer | Na dotaz | Zadat poptávku | |
027 LIP0278 |
C00855057
482000041857 |
PLASTICIZED WIRE SHELF OF FREEZER | Na dotaz | Zadat poptávku | |
028 LIP0278 |
C00857106 | AIR INLET PANEL | Na dotaz | Zadat poptávku | |
029 LIP0278 |
C00857025
488000857025 |
BRUSH | Na dotaz | Zadat poptávku | |
001 LIP0352 |
C00857145 | RUBBER SPACER FOR MOTOR-FAN | Na dotaz | Zadat poptávku | |
002 LIP0352 |
C00851102 | FAN ELECTROMOTOR | Na dotaz | Zadat poptávku | |
003 LIP0352 |
C00857142 | EXPANDER | Na dotaz | Zadat poptávku | |
005 LIP0352 |
C00850004 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
006 LIP0352 |
C00857134 | CHAMBERS DIVIDER | Na dotaz | Zadat poptávku | |
008 LIP0352 |
C00859992 | IMPELLER | Na dotaz | Zadat poptávku | |
009 LIP0352 |
C00855061 | EVAPORATOR UPPER TRAY | Na dotaz | Zadat poptávku | |
010 LIP0352 |
C00853006 | EVAPORATOR WELDED | Na dotaz | Zadat poptávku | |
011 LIP0352 |
C00851084
482000042770 |
RELAY THERMAL WITH THERMAL SWITCH | Na dotaz | Zadat poptávku | |
013 LIP0352 |
C00855012 | SELF-TAPP. SCREW Т1/2Т 2,9x9,52 | Na dotaz | Zadat poptávku | |
014 LIP0352 |
C00855062 | BOTTOM TRAY OF EVAPORATOR | Na dotaz | Zadat poptávku | |
016 LIP0352 |
C00851066
488000851066 |
EVAPORATOR TRAY HEATER | Na dotaz | Zadat poptávku | |
017 LIP0352 |
C00856017 | DIVIDER TOP INSULATOR | Na dotaz | Zadat poptávku | |
018 LIP0352 |
C00851005 | EL.MOTOR KNOB | Na dotaz | Zadat poptávku | |
019 LIP0352 |
C00857171
488000857171 |
PUSHER | Na dotaz | Zadat poptávku | |
020 LIP0352 |
C00857071
488000857071 |
CONNECTIONS COVER PW | Na dotaz | Zadat poptávku | |
021 LIP0352 |
C00855020 | SELF-TAPP. SCREW Т1/2Т | Na dotaz | Zadat poptávku | |
022 LIP0352 |
C00857073 | TIMER COVER | Na dotaz | Zadat poptávku | |
023 LIP0352 |
C00851086
482000048789 |
TIMER | Na dotaz | Zadat poptávku | |
024 LIP0352 |
C00857012
488000857012 |
DIVIDER BOTTOM PART | Na dotaz | Zadat poptávku | |
025 LIP0352 |
C00850006 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
026 LIP0352 |
C00856019 | CABLE TROUGH INSULATOR | Na dotaz | Zadat poptávku | |
027 LIP0352 |
C00857026
488000857026 |
CABLE TROUGH PW | Na dotaz | Zadat poptávku | |
028 LIP0352 |
C00850005 | FOAMED POLYETHYLENE | Na dotaz | Zadat poptávku | |
029 LIP0352 |
C00855025 | MOTOR-FAN BRACKET | Na dotaz | Zadat poptávku | |
002 LIP0478 |
C00855001 | TOP PAINTED | Na dotaz | Zadat poptávku | |
003 LIP0478 |
C00857178 | REAR REST | Na dotaz | Zadat poptávku | |
004 LIP0478 |
C00857009 | CABLING SLEEVE | Na dotaz | Zadat poptávku | |
005 LIP0478 |
C00855078 | WASHER 4.01.016 | Na dotaz | Zadat poptávku | |
006 LIP0478 |
C00857013 | DAMPER | Na dotaz | Zadat poptávku | |
007 LIP0478 |
C00857005 | SIPHON TRAY | Na dotaz | Zadat poptávku | |
009 LIP0478 |
C00857114
488000857114 |
CONDENDSATE TRAY ASSEMBLY | Na dotaz | Zadat poptávku | |
010 LIP0478 |
C00857077
488000857077 |
MEMBRANE FOR CONDENSATE Drain membrane | Na dotaz | Zadat poptávku | |
011 LIP0478 |
C00260795 | Compressor GVM57AA | Na dotaz | Zadat poptávku | |
011 LIP0478 |
C00851123
482000048793 |
COMPRESSOR TLES6F IN ASSEMBLY. | Na dotaz | Zadat poptávku | |
012 LIP0478 |
C00855023
488000855023 |
PROCESS TUBE DIAM. 6 | Na dotaz | Zadat poptávku | |
014 LIP0478 |
C00855063
488000855063 |
CROSS PIECE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
015 LIP0478 |
C00855047
488000855047 |
ROLLER PIN | Na dotaz | Zadat poptávku | |
016 LIP0478 |
C00857146
488000857146 |
ROLLER | Na dotaz | Zadat poptávku | |
017 LIP0478 |
C00855058
488000855058 |
PLATE OF COMPRESSOR | Na dotaz | Zadat poptávku | |
018 LIP0478 |
C00857068 | JUNCTION BOX COVER | Na dotaz | Zadat poptávku | |
019 LIP0478 |
C00855077
488000855077 |
FILTER WITH MOLECULAR SIEVES COMPLETE | Na dotaz | Zadat poptávku | |
020 LIP0478 |
C00851048 | WIRING BOX ASSY | Na dotaz | Zadat poptávku | |
021 LIP0478 |
C00857165 | CONDENSATE DRAIN PIPE OF FREEZER | Na dotaz | Zadat poptávku | |
022 LIP0478 |
C00857168 | CONDENSATE DRAIN PIPE OF REFRIG. | Na dotaz | Zadat poptávku | |
023 LIP0478 |
C00853008 | FINISHED CONDENSATOR L=1200 | Na dotaz | Zadat poptávku | |
001 LIP0578 |
C00854009
488000854009 |
Magnet Gasket 1009x571 | Na dotaz | Zadat poptávku | |
001 LIP0578 |
C00853149 | Foamed Door | Na dotaz | Zadat poptávku | |
003 LIP0578 |
C00857152
488000857152 |
HANDLE UPPER | Na dotaz | Zadat poptávku | |
005,007 LIP0578 |
C00857063
488000857063 |
DECORATIVE COVER PW | Na dotaz | Zadat poptávku | |
006 LIP0578 |
C00855011
488000855011 |
SELF-TAPP. SCREW 3,5x13 | Na dotaz | Zadat poptávku | |
008 LIP0578 |
C00857060 | Small Door Shelf Lid | Na dotaz | Zadat poptávku | |
009,012 LIP0578 |
C00856000 | Small Door Shelf-Screened | Na dotaz | Zadat poptávku | |
010 LIP0578 |
C00856002 | Small Door Shelf-Screened | Na dotaz | Zadat poptávku | |
011 LIP0578 |
C00855000 | RACK HOLDER | Na dotaz | Zadat poptávku | |
013 LIP0578 |
C00857015
482000042299 |
SLIDING DIVIDER FOR BOTTLESDOOR SHELF FO | Na dotaz | Zadat poptávku | |
014 LIP0578 |
C00859989
482000042300 |
DOOR SHELF ASSEMBLY | Na dotaz | Zadat poptávku | |
015 LIP0578 |
C00857070
482000048822 |
BUTTER BOX COVER | Na dotaz | Zadat poptávku | |
016 LIP0578 |
C00857076
482000048824 |
BUTTER PLATE | Na dotaz | Zadat poptávku | |
017 LIP0578 |
C00857155
488000857155 |
HANDLE LOWER | Na dotaz | Zadat poptávku | |
019 LIP0578 |
C00859994 | ice bucket assembly | Na dotaz | Zadat poptávku | |
020 LIP0578 |
C00857184 | Zámek | 25 Kč
€ 1.00 |
||
021 LIP0578 |
C00854010
488000854010 |
Magnet Gasket 654x571 | Na dotaz | Zadat poptávku | |
021 LIP0578 |
C00853117 | Foamed Door | Na dotaz | Zadat poptávku | |
022 LIP0578 |
C00857186 | Closure Aid | Na dotaz | Zadat poptávku | |
023 LIP0578 |
C00857188 | Closure Aid | Na dotaz | Zadat poptávku | |
024 LIP0578 |
C00857006
488000857006 |
DOOR HINGE BUSH | Na dotaz | Zadat poptávku |
