| Komerční kód: | CBA 308 NF / AL |
| Kód 12NC: | 853922901280 |
| I.C. kód: | 853922901284 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853922901285, 853922901280 |
Potřebujete servis? Jsme tady pro Vás

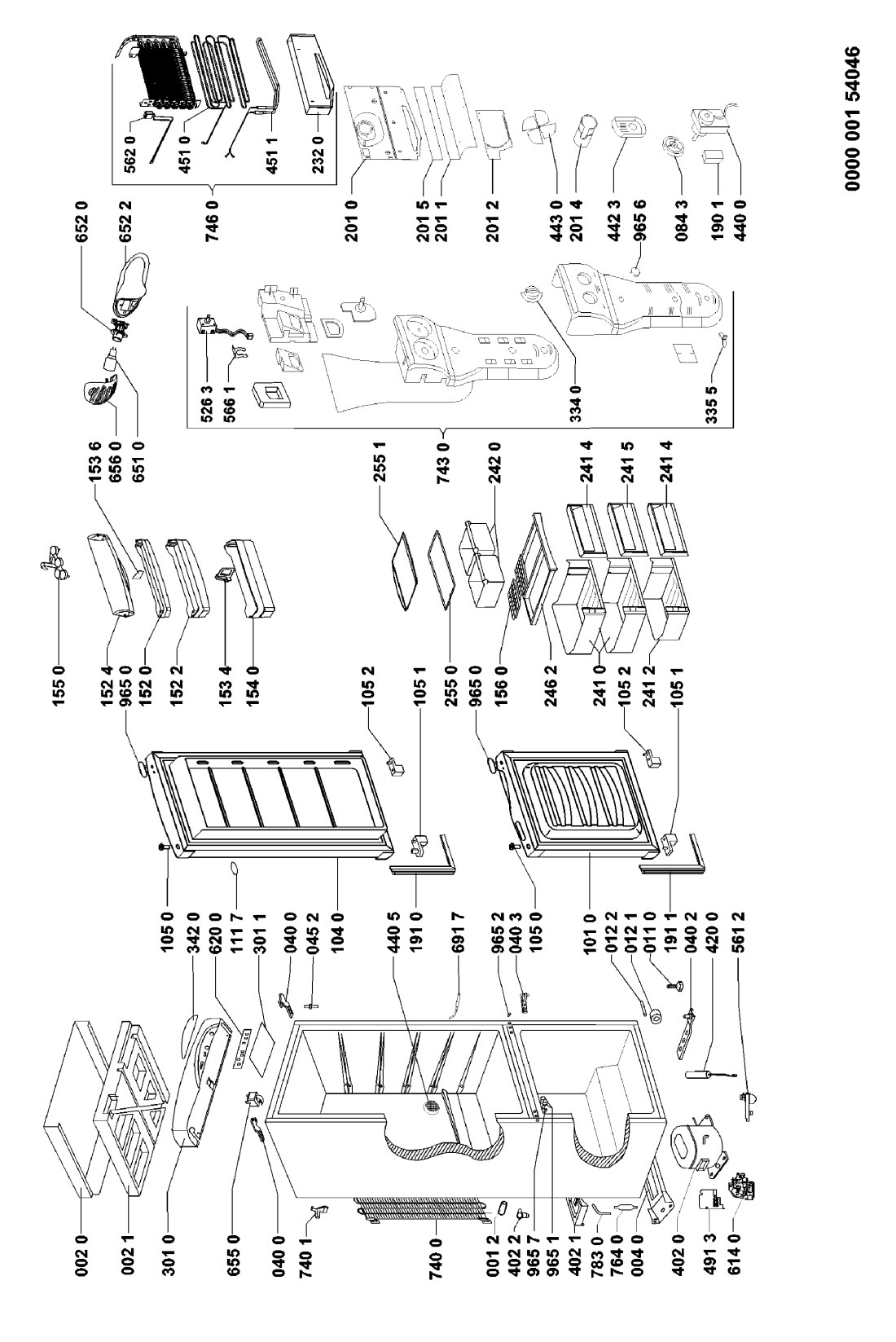

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 2 WHR42301 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR42301 |
C00342568
481246418148 |
Cover AL | Na dotaz | Zadat poptávku | |
| 002 1 WHR42301 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 004 0 WHR42301 |
C00330828
481246428054 |
drzak kompr.a kolec | 925 Kč
€ 36.50 |
||
| 011 0 WHR42301 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 012 1 WHR42301 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 20.90 |
||
| 012 2 WHR42301 |
C00332726
481253578074 |
osa kolecka lednice | 430 Kč
€ 17.00 |
||
| 040 0 WHR42301 |
C00339765
481241719396 |
závěs | 151 Kč
€ 6.00 |
||
| 040 2 WHR42301 |
C00329743
481241719394 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR42301 |
C00319930
481231028329 |
Hinge,middle | Na dotaz | Zadat poptávku | |
| 045 2 WHR42301 |
C00327085
481222608042 |
PIN HINGE | Na dotaz | Zadat poptávku | |
| 084 3 WHR42301 |
C00333280
481952918093 |
tlumic ventilatoru | 587 Kč
€ 23.20 |
||
| 101 0 WHR42301 |
C00458496
481241619867 |
Door freezer AL | Na dotaz | Zadat poptávku | |
| 104 0 WHR42301 |
C00458476
481241619829 |
Door refrigerator AL | Na dotaz | Zadat poptávku | |
| 105 0 WHR42301 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 105 1 WHR42301 |
C00332700
481253288075 |
Pouzdro závěsu - pravé | Na dotaz | Zadat poptávku | |
| 105 2 WHR42301 |
C00320229
481253288073 |
Pouzdro závěsu levé | Na dotaz | Zadat poptávku | |
| 111 7 WHR42301 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 152 0 WHR42301 |
C00345098
481241828615 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR42301 |
C00489040
481241828614 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 4 WHR42301 |
C00331038
481244228018 |
Flap f.dairy door | Na dotaz | Zadat poptávku | |
| 153 4 WHR42301 |
C00329926
481241828489 |
Separator | Na dotaz | Zadat poptávku | |
| 153 6 WHR42301 |
C00489033
481241828544 |
Separator upper shelf | Na dotaz | Zadat poptávku | |
| 154 0 WHR42301 |
C00574814
481241828613 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 155 0 WHR42301 |
C00489029
481241828486 |
Rack,egg | 155 Kč
€ 6.10 |
||
| 156 0 WHR42301 |
C00574812
481241828525 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 190 1 WHR42301 |
C00333144
481946698957 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 0 WHR42301 |
C00314804
481246668822 |
Těsnění - magnetické - chladnička | 1 679 Kč
€ 66.30 |
||
| 191 1 WHR42301 |
C00313491
481246668823 |
Těsnění magnetické - mraznička | 2 139 Kč
€ 84.40 |
||
| 201 0 WHR42301 |
C00342325
481246228817 |
Cover,front | Na dotaz | Zadat poptávku | |
| 201 1 WHR42301 |
C00331047
481244229286 |
Air conveyor complete | Na dotaz | Zadat poptávku | |
| 201 2 WHR42301 |
C00480838
481246228691 |
Cover | Na dotaz | Zadat poptávku | |
| 201 4 WHR42301 |
C00333098
481946279776 |
Cover wires | Na dotaz | Zadat poptávku | |
| 201 5 WHR42301 |
C00333063
481946078208 |
Foil alum.adhesive | Na dotaz | Zadat poptávku | |
| 232 0 WHR42301 |
C00458777
481241829735 |
Cup thaw water with round hole | Na dotaz | Zadat poptávku | |
| 241 0 WHR42301 |
C00317077
481241868334 |
kos mraznicky | 3 995 Kč
€ 157.70 |
||
| 241 2 WHR42301 |
C00315606
481241868299 |
kos mraznicky maly | Na dotaz | Zadat poptávku | |
| 241 4 WHR42301 |
C00342561
481241848763 |
Čelo koše | Na dotaz | Zadat poptávku | |
| 241 5 WHR42301 |
C00484998
481241848764 |
Cover basket printed | Na dotaz | Zadat poptávku | |
| 242 0 WHR42301 |
C00342297
481241879995 |
Zásuvka na zeleninu | 911 Kč
€ 36.00 |
||
| 246 2 WHR42301 |
C00335341
481241848881 |
Tray ice cubes | Na dotaz | Zadat poptávku | |
| 255 0 WHR42301 |
C00487622
481245088284 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR42301 |
C00317786
481245088285 |
glass shelf | Na dotaz | Zadat poptávku | |
| 301 0 WHR42301 |
C00464264
481246469155 |
Control panel AL | Na dotaz | Zadat poptávku | |
| 301 1 WHR42301 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 334 0 WHR42301 |
C00338530
481241218034 |
Knob | Na dotaz | Zadat poptávku | |
| 335 5 WHR42301 |
C00327070
481222318433 |
Regulator | 147 Kč
€ 5.80 |
||
| 342 0 WHR42301 |
C00489793
481245310334 |
Insert printed | Na dotaz | Zadat poptávku | |
| 402 0 WHR42301 |
C00313753
481236058114 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
| 402 1 WHR42301 |
C00335353
481241870016 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 402 2 WHR42301 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
| 420 0 WHR42301 |
C00326752
481212028035 |
Capacitor | Na dotaz | Zadat poptávku | |
| 440 0 WHR42301 |
C00312313
481936118428 |
motor ventilatoru | 2 953 Kč
€ 116.60 |
||
| 440 5 WHR42301 |
C00340262
481945858558 |
Grid air | Na dotaz | Zadat poptávku | |
| 442 3 WHR42301 |
C00333097
481946279775 |
Cover | Na dotaz | Zadat poptávku | |
| 443 0 WHR42301 |
C00313351
481951548034 |
vrtule ventilatoru | 430 Kč
€ 17.00 |
||
| 451 0 WHR42301 |
C00314276
481225948194 |
topeni | 3 474 Kč
€ 137.20 |
||
| 451 1 WHR42301 |
C00319364
481225948205 |
topeni | 1 718 Kč
€ 67.80 |
||
| 491 3 WHR42301 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 526 3 WHR42301 |
C00315770
481244079239 |
prepinac otocny | 1 759 Kč
€ 69.40 |
||
| 561 2 WHR42301 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 562 0 WHR42301 |
C00312889
481228228281 |
termostat | 1 889 Kč
€ 74.60 |
||
| 566 1 WHR42301 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 614 0 WHR42301 |
C00327503
481228068373 |
Monoblock | Na dotaz | Zadat poptávku | |
| 620 0 WHR42301 |
C00455932
481221479744 |
CONTROL BOARD NF | Na dotaz | Zadat poptávku | |
| 651 0 WHR42301 |
C00313818
481913488178 |
Žárovka Tclick E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR42301 |
C00315045
481225528026 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR42301 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR42301 |
C00456571
481227618503 |
Switch AL | Na dotaz | Zadat poptávku | |
| 656 0 WHR42301 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 691 7 WHR42301 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 65.70 |
||
| 740 0 WHR42301 |
C00332244
481251148382 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR42301 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 743 0 WHR42301 |
C00586688
481244079152 |
Cover multiflow complete | Na dotaz | Zadat poptávku | |
| 746 0 WHR42301 |
C00341084
481251138328 |
Evaporator set with round hole | Na dotaz | Zadat poptávku | |
| 764 0 WHR42301 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 783 0 WHR42301 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 965 0 WHR42301 |
C00464098
481246228757 |
Cover AL | Na dotaz | Zadat poptávku | |
| 965 1 WHR42301 |
C00327077
481222608012 |
zaslepka | 178 Kč
€ 7.00 |
||
| 965 2 WHR42301 |
C00327083
481222608031 |
zaslepka | 285 Kč
€ 11.30 |
||
| 965 6 WHR42301 |
C00330501
481246228511 |
drzak | 109 Kč
€ 4.30 |
||
| 965 7 WHR42301 |
C00327076
481222608011 |
zaslepka | 75 Kč
€ 3.00 |
||
| 999 WHR42301 |
C00346098 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
