IGNIS CBA 392/AL REFRIGERATORS COMBI IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CBA 392/AL REFRIGERATORS COMBI IG |
| Kód 12NC: | 853922401280 |
| I.C. kód: | 853922401284 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 853922401200 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

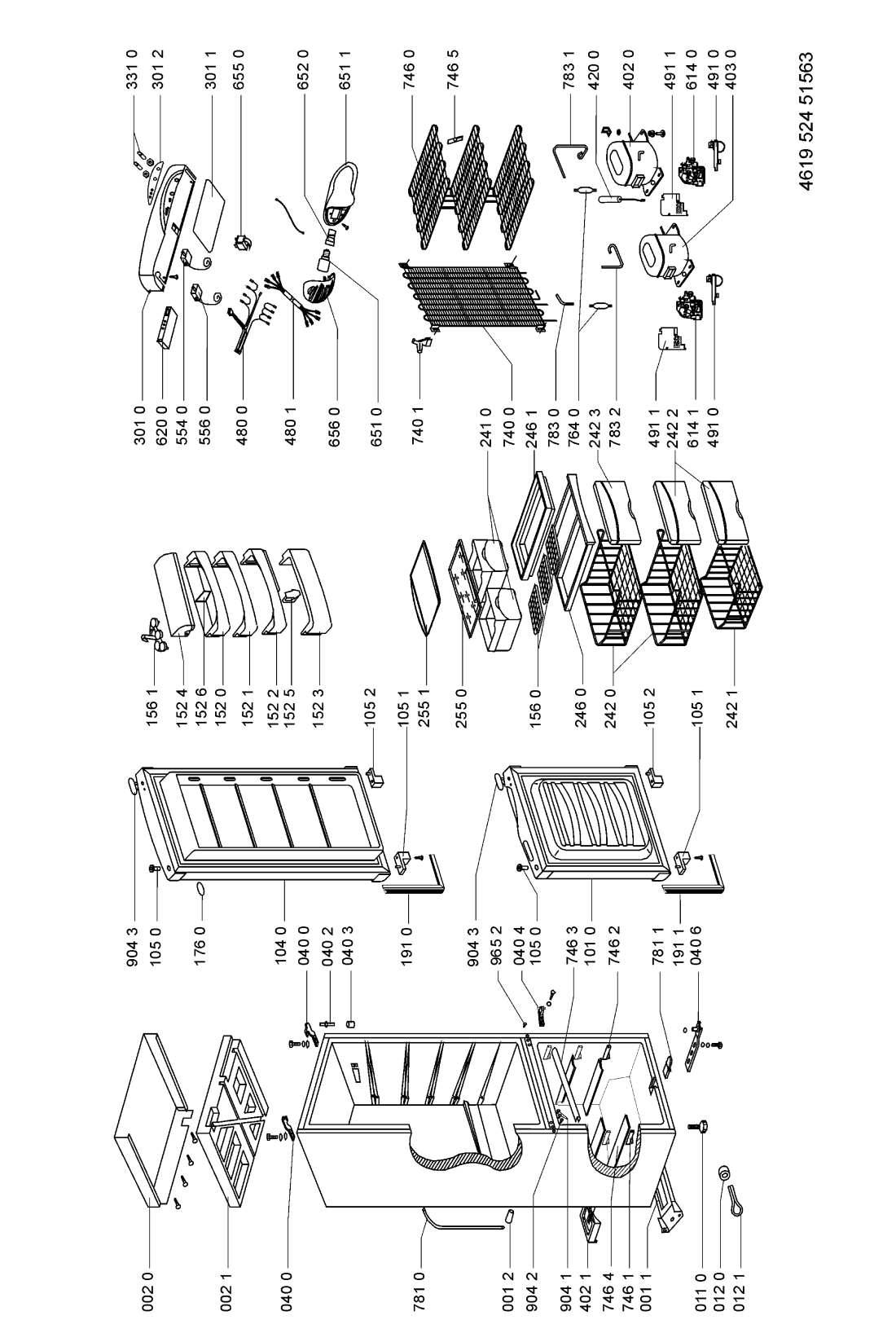

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR78865 |
C00464236
481246428053 |
CROSSBAR COMPRESSOR CPL | Na dotaz | Zadat poptávku | |
| 001 2 WHR78865 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR78865 |
C00342568
481246418148 |
Cover AL | Na dotaz | Zadat poptávku | |
| 002 1 WHR78865 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 011 0 WHR78865 |
C00330455
481246218263 |
noha lednice | 138 Kč
€ 5.40 |
||
| 012 0 WHR78865 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 20.90 |
||
| 012 1 WHR78865 |
C00336462
481253548025 |
SHAFT | 944 Kč
€ 37.30 |
||
| 040 0 WHR78865 |
C00339765
481241719396 |
závěs | 151 Kč
€ 6.00 |
||
| 040 2 WHR78865 |
C00327085
481222608042 |
PIN HINGE | Na dotaz | Zadat poptávku | |
| 040 3 WHR78865 |
C00336279
481247838002 |
Sleeve | Na dotaz | Zadat poptávku | |
| 040 4 WHR78865 |
C00319930
481231028329 |
Hinge,middle | Na dotaz | Zadat poptávku | |
| 040 6 WHR78865 |
C00329743
481241719394 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR78865 |
C00458477
481241619831 |
DVEŘE MRAZNIČKY AL | Na dotaz | Zadat poptávku | |
| 104 0 WHR78865 |
C00458047
481241610093 |
Door refriger. ,AL | Na dotaz | Zadat poptávku | |
| 105 0 WHR78865 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 105 1 WHR78865 |
C00332700
481253288075 |
Pouzdro závěsu - pravé | Na dotaz | Zadat poptávku | |
| 105 2 WHR78865 |
C00320229
481253288073 |
Pouzdro závěsu levé | Na dotaz | Zadat poptávku | |
| 152 0 WHR78865 |
C00345098
481241828615 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 1 WHR78865 |
C00489040
481241828614 |
Door dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR78865 |
C00574813
481241828542 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 152 3 WHR78865 |
C00574814
481241828613 |
Bottle shelf. | Na dotaz | Zadat poptávku | |
| 152 4 WHR78865 |
C00331038
481244228018 |
Flap f.dairy door | Na dotaz | Zadat poptávku | |
| 152 5 WHR78865 |
C00329926
481241828489 |
Separator | Na dotaz | Zadat poptávku | |
| 152 6 WHR78865 |
C00489033
481241828544 |
Separator upper shelf | Na dotaz | Zadat poptávku | |
| 156 0 WHR78865 |
C00574812
481241828525 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR78865 |
C00489029
481241828486 |
Rack,egg | 155 Kč
€ 6.10 |
||
| 176 0 WHR78865 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 191 0 WHR78865 |
C00490144
481246668836 |
Magnetic seal grey | Na dotaz | Zadat poptávku | |
| 191 1 WHR78865 |
C00338271
481246668804 |
Magnetic sealgrey | Na dotaz | Zadat poptávku | |
| 241 0 WHR78865 |
C00342287
481241879834 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR78865 |
C00344510
481241838091 |
kos mraznicky | 1 269 Kč
€ 50.10 |
||
| 242 1 WHR78865 |
C00344511
481241838092 |
Koš mrazničky drátěný - malý | 1 003 Kč
€ 39.60 |
||
| 242 2 WHR78865 |
C00548194
481241858047 |
KRYT KOSA PLAST | Na dotaz | Zadat poptávku | |
| 242 3 WHR78865 |
C00574827
481241848724 |
Cover basket | Na dotaz | Zadat poptávku | |
| 246 0 WHR78865 |
C00335343
481246228616 |
Šuplík mrazáku horní na misky na led a zásobník | 1 279 Kč
€ 50.50 |
||
| 246 1 WHR78865 |
C00335361
481246228453 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR78865 |
C00574863
481245088192 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 255 1 WHR78865 |
C00460208
481245088385 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 301 0 WHR78865 |
C00464264
481246469155 |
Control panel AL | Na dotaz | Zadat poptávku | |
| 301 1 WHR78865 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 2 WHR78865 |
C00489790
481245310327 |
Panel insert AL | Na dotaz | Zadat poptávku | |
| 331 0 WHR78865 |
C00457840
481241218044 |
KNOB THERMOSTAT AL | Na dotaz | Zadat poptávku | |
| 402 0 WHR78865 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 1 WHR78865 |
C00327837
481241848824 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 403 0 WHR78865 |
C00401382
481236038981 |
KOMPRESOR | Na dotaz | Zadat poptávku | |
| 420 0 WHR78865 |
C00482204
481212158153 |
Capacitor | Na dotaz | Zadat poptávku | |
| 480 0 WHR78865 |
C00457239
481232178258 |
Cable harness | Na dotaz | Zadat poptávku | |
| 480 1 WHR78865 |
C00454861
481201978853 |
Cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR78865 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
| 491 1 WHR78865 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
| 554 0 WHR78865 |
C00456866
481228238197 |
TERMOSTAT k59 L2135500 | Na dotaz | Zadat poptávku | |
| 556 0 WHR78865 |
C00380410
481228238211 |
Termostat mrazničky | 1 628 Kč
€ 64.30 |
||
| 614 0 WHR78865 |
C00327467
481228038092 |
PTC-Unit MIT 4V TV1F0 | Na dotaz | Zadat poptávku | |
| 614 1 WHR78865 |
C00327456
481228038049 |
ptc jednotka | Na dotaz | Zadat poptávku | |
| 620 0 WHR78865 |
C00455928
481221479735 |
Control unit AL | Na dotaz | Zadat poptávku | |
| 651 0 WHR78865 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 651 1 WHR78865 |
C00317259
481244098245 |
Housing lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR78865 |
C00313006
481225518292 |
objimka zarovky | 238 Kč
€ 9.40 |
||
| 655 0 WHR78865 |
C00456570
481227618502 |
Switch AL | Na dotaz | Zadat poptávku | |
| 656 0 WHR78865 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 740 0 WHR78865 |
C00574591
481251148346 |
VYPARNIK | 1 760 Kč
€ 69.50 |
||
| 740 1 WHR78865 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 0 WHR78865 |
C00486263
481251138226 |
vyparnik | 3 461 Kč
€ 136.60 |
||
| 746 1 WHR78865 |
C00319703
481246628139 |
drzak vyparniku l | 154 Kč
€ 6.10 |
||
| 746 2 WHR78865 |
C00319357
481246228447 |
drzak vyparniku p | 148 Kč
€ 5.80 |
||
| 746 3 WHR78865 |
C00319331
481246098081 |
lista kryci vyparnik | 196 Kč
€ 7.70 |
||
| 746 4 WHR78865 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 746 5 WHR78865 |
C00491525
481240448839 |
Holder | Na dotaz | Zadat poptávku | |
| 764 0 WHR78865 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR78865 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR78865 |
C00319432
481217158005 |
Odtokový kanál - odmražení | 231 Kč
€ 9.10 |
||
| 783 0 WHR78865 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 783 1 WHR78865 |
C00493735
481253029214 |
Pipe | Na dotaz | Zadat poptávku | |
| 783 2 WHR78865 |
C00574983
481253029213 |
Pipe | Na dotaz | Zadat poptávku | |
| 904 1 WHR78865 |
C00327077
481222608012 |
zaslepka | 178 Kč
€ 7.00 |
||
| 904 2 WHR78865 |
C00327076
481222608011 |
zaslepka | 75 Kč
€ 3.00 |
||
| 904 3 WHR78865 |
C00464098
481246228757 |
Cover AL | Na dotaz | Zadat poptávku | |
| 965 2 WHR78865 |
C00327083
481222608031 |
zaslepka | 285 Kč
€ 11.30 |
||
| 999 WHR78865 |
C00707535 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
