WHIRLPOOL CBB 392 REFRIGERATORS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CBB 392 REFRIGERATORS IG |
| Kód 12NC: | 850323801000 |
| I.C. kód: | 850323801001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850323801005, 850323801000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

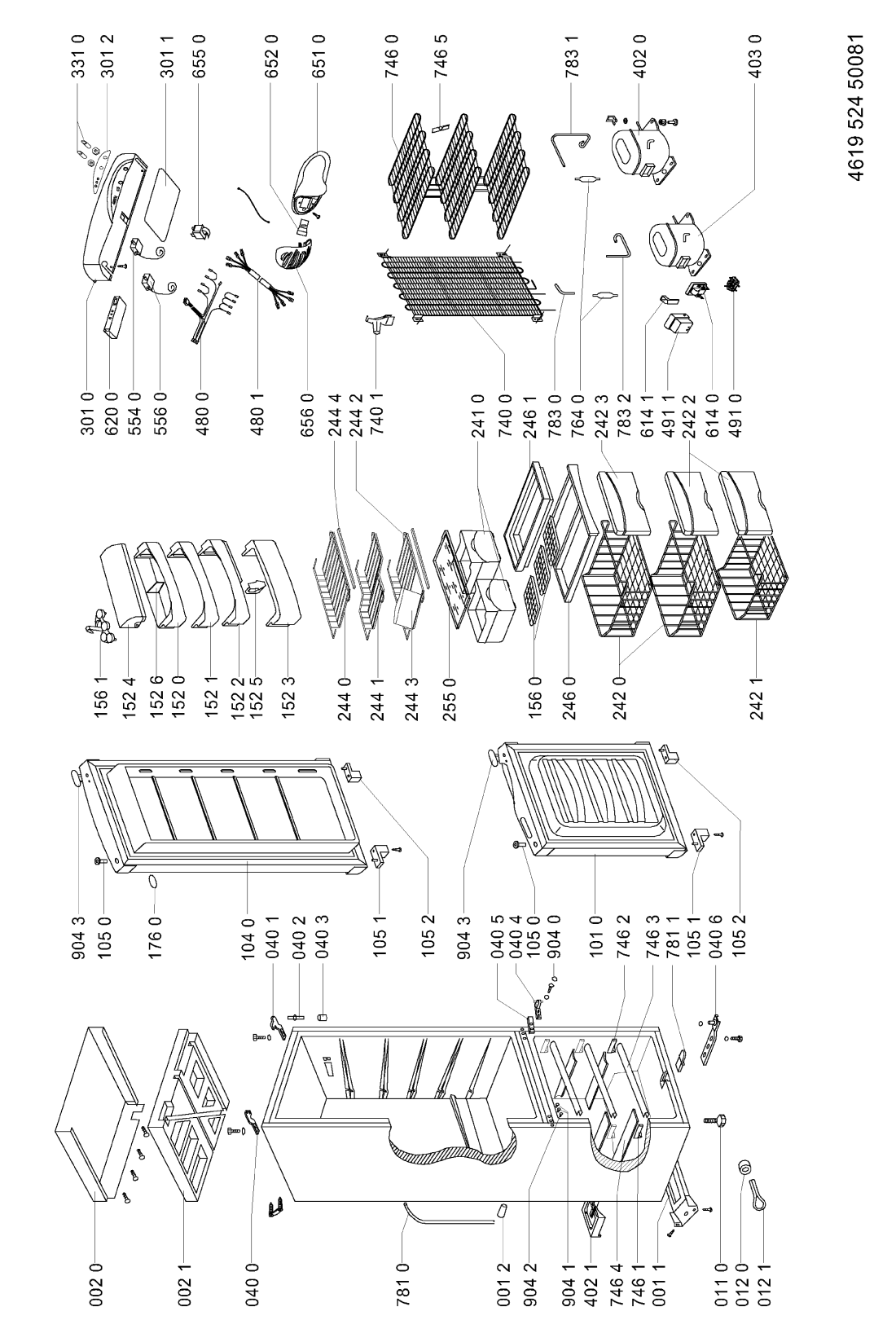

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR77583 |
C00498433
481246418099 |
Traverse | Na dotaz | Zadat poptávku | |
| 001 2 WHR77583 |
C00498593
481252518014 |
Guide | Na dotaz | Zadat poptávku | |
| 002 0 WHR77583 |
C00342942
481246418098 |
Cover | Na dotaz | Zadat poptávku | |
| 002 1 WHR77583 |
C00326888
481215748001 |
VLOZKA PLAST | 453 Kč
€ 17.90 |
||
| 011 0 WHR77583 |
C00344635
481246218249 |
Adjusting screw | Na dotaz | Zadat poptávku | |
| 012 0 WHR77583 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 20.90 |
||
| 012 1 WHR77583 |
C00336462
481253548025 |
SHAFT | 944 Kč
€ 37.30 |
||
| 040 0 WHR77583 |
C00339755
481241778092 |
pant | 343 Kč
€ 13.50 |
||
| 040 1 WHR77583 |
C00497797
481241778093 |
Hinge,upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR77583 |
C00327075
481222608004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR77583 |
C00336279
481247838002 |
Sleeve | Na dotaz | Zadat poptávku | |
| 040 4 WHR77583 |
C00497788
481241719139 |
NAHRADA 481241718139 N | Na dotaz | Zadat poptávku | |
| 040 5 WHR77583 |
C00480844
481252648142 |
STRIEKACIE RAMENO UMYVACKY | Na dotaz | Zadat poptávku | |
| 040 6 WHR77583 |
C00329708
481241719115 |
Hinge,lower | Na dotaz | Zadat poptávku | |
| 101 0 WHR77583 |
C00574804
481241818418 |
DVERE MRAZNICKY | Na dotaz | Zadat poptávku | |
| 104 0 WHR77583 |
C00553488
481241619209 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 105 0 WHR77583 |
C00332691
481253288034 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR77583 |
C00332690
481253288033 |
Sleeve | Na dotaz | Zadat poptávku | |
| 105 2 WHR77583 |
C00332695
481253288048 |
Sleeveleft | Na dotaz | Zadat poptávku | |
| 152 0 WHR77583 |
C00319174
481241828539 |
Door,dairyupper | Na dotaz | Zadat poptávku | |
| 152 1 WHR77583 |
C00553528
481241828541 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 152 2 WHR77583 |
C00574813
481241828542 |
Door dairy. | Na dotaz | Zadat poptávku | |
| 152 3 WHR77583 |
C00553529
481241828543 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 152 4 WHR77583 |
C00331038
481244228018 |
Flap f.dairy door | Na dotaz | Zadat poptávku | |
| 152 5 WHR77583 |
C00329926
481241828489 |
Separator | Na dotaz | Zadat poptávku | |
| 152 6 WHR77583 |
C00489033
481241828544 |
Separator upper shelf | Na dotaz | Zadat poptávku | |
| 156 0 WHR77583 |
C00574812
481241828525 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 156 1 WHR77583 |
C00489029
481241828486 |
Rack,egg | 155 Kč
€ 6.10 |
||
| 176 0 WHR77583 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 241 0 WHR77583 |
C00342287
481241879834 |
Crisper | Na dotaz | Zadat poptávku | |
| 242 0 WHR77583 |
C00344510
481241838091 |
kos mraznicky | 1 269 Kč
€ 50.10 |
||
| 242 1 WHR77583 |
C00344511
481241838092 |
Koš mrazničky drátěný - malý | 1 003 Kč
€ 39.60 |
||
| 242 2 WHR77583 |
C00342334
481241858039 |
Cover,basket | Na dotaz | Zadat poptávku | |
| 242 3 WHR77583 |
C00553533
481241848654 |
Cover,basket | Na dotaz | Zadat poptávku | |
| 244 0 WHR77583 |
C00574519
481245819155 |
POLICKA | Na dotaz | Zadat poptávku | |
| 244 1 WHR77583 |
C00574890
481245819156 |
Shelf. | Na dotaz | Zadat poptávku | |
| 244 2 WHR77583 |
C00487637
481245819157 |
Shelf | Na dotaz | Zadat poptávku | |
| 244 3 WHR77583 |
C00574736
481240478641 |
Shelf flap. | Na dotaz | Zadat poptávku | |
| 244 4 WHR77583 |
C00335293
481245938054 |
Trim | Na dotaz | Zadat poptávku | |
| 246 0 WHR77583 |
C00335360
481246228454 |
RAM PLAST | 681 Kč
€ 26.90 |
||
| 246 1 WHR77583 |
C00335361
481246228453 |
Tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR77583 |
C00574863
481245088192 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 301 0 WHR77583 |
C00553728
481246469026 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR77583 |
C00328422
481244098137 |
kryt | 152 Kč
€ 6.00 |
||
| 301 2 WHR77583 |
C00574885
481245310263 |
Panel control. | Na dotaz | Zadat poptávku | |
| 331 0 WHR77583 |
C00338432
481241218031 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR77583 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 1 WHR77583 |
C00333005
481941878641 |
miska na kondenzat | 171 Kč
€ 6.80 |
||
| 403 0 WHR77583 |
C00498951
481936038704 |
nahradene 481281718829 | Na dotaz | Zadat poptávku | |
| 480 0 WHR77583 |
C00492872
481201978825 |
Cable harness | Na dotaz | Zadat poptávku | |
| 480 1 WHR77583 |
C00574669
481201978828 |
Cable compressor. | Na dotaz | Zadat poptávku | |
| 491 0 WHR77583 |
C00330757
481246279861 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR77583 |
C00326886
481215128002 |
Cover | Na dotaz | Zadat poptávku | |
| 554 0 WHR77583 |
C00491353
481228238132 |
TERMOSTAT K59 L2119 N | Na dotaz | Zadat poptávku | |
| 556 0 WHR77583 |
C00574325
481228238133 |
TERMOSTAT K54 L2051 bimetalovy | Na dotaz | Zadat poptávku | |
| 614 0 WHR77583 |
C00327500
481228068367 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| 614 1 WHR77583 |
C00497259
481215128003 |
Cover | Na dotaz | Zadat poptávku | |
| 620 0 WHR77583 |
C00574679
481227148006 |
spinac | Na dotaz | Zadat poptávku | |
| 651 0 WHR77583 |
C00339203
481244098138 |
Housing | Na dotaz | Zadat poptávku | |
| 652 0 WHR77583 |
C00320404
481225528015 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR77583 |
C00574278
481227148007 |
spinac osvetleni | 498 Kč
€ 19.70 |
||
| 656 0 WHR77583 |
C00312883
481246098066 |
Stínidlo světla | 735 Kč
€ 29.00 |
||
| 740 0 WHR77583 |
C00486282
481251148313 |
KONDENZÁTOR | Na dotaz | Zadat poptávku | |
| 740 1 WHR77583 |
C00330494
481246228448 |
Holder | Na dotaz | Zadat poptávku | |
| 746 0 WHR77583 |
C00486263
481251138226 |
vyparnik | 3 461 Kč
€ 136.60 |
||
| 746 1 WHR77583 |
C00319703
481246628139 |
drzak vyparniku l | 154 Kč
€ 6.10 |
||
| 746 2 WHR77583 |
C00319357
481246228447 |
drzak vyparniku p | 148 Kč
€ 5.80 |
||
| 746 3 WHR77583 |
C00342034
481246098054 |
lista kryci vyparnik | Na dotaz | Zadat poptávku | |
| 746 4 WHR77583 |
C00319325
481246098055 |
Podpora koše mrazničky | 191 Kč
€ 7.50 |
||
| 746 5 WHR77583 |
C00491525
481240448839 |
Holder | Na dotaz | Zadat poptávku | |
| 764 0 WHR77583 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR77583 |
C00326893
481217158001 |
Hadice na kondenzát | Na dotaz | Zadat poptávku | |
| 781 1 WHR77583 |
C00342062
481217158002 |
Kanál odtokový | 265 Kč
€ 10.50 |
||
| 783 0 WHR77583 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 12.10 |
||
| 783 1 WHR77583 |
C00493735
481253029214 |
Pipe | Na dotaz | Zadat poptávku | |
| 783 2 WHR77583 |
C00574983
481253029213 |
Pipe | Na dotaz | Zadat poptávku | |
| 904 0 WHR77583 |
C00498384
481246228508 |
kryt | 67 Kč
€ 2.60 |
||
| 904 1 WHR77583 |
C00332688
481253288029 |
zaslepka 480132102378 | 186 Kč
€ 7.30 |
||
| 904 2 WHR77583 |
C00316993
481222608003 |
zaslepka | 303 Kč
€ 12.00 |
||
| 904 3 WHR77583 |
C00332689
481253288032 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR77583 |
C00704989 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
