WHIRLPOOL AWZ CHICAGO AV TUMBLE DRYER WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWZ CHICAGO AV TUMBLE DRYER WP |
| Kód 12NC: | 857513912020 |
| I.C. kód: | 857513912021 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 857513912020 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

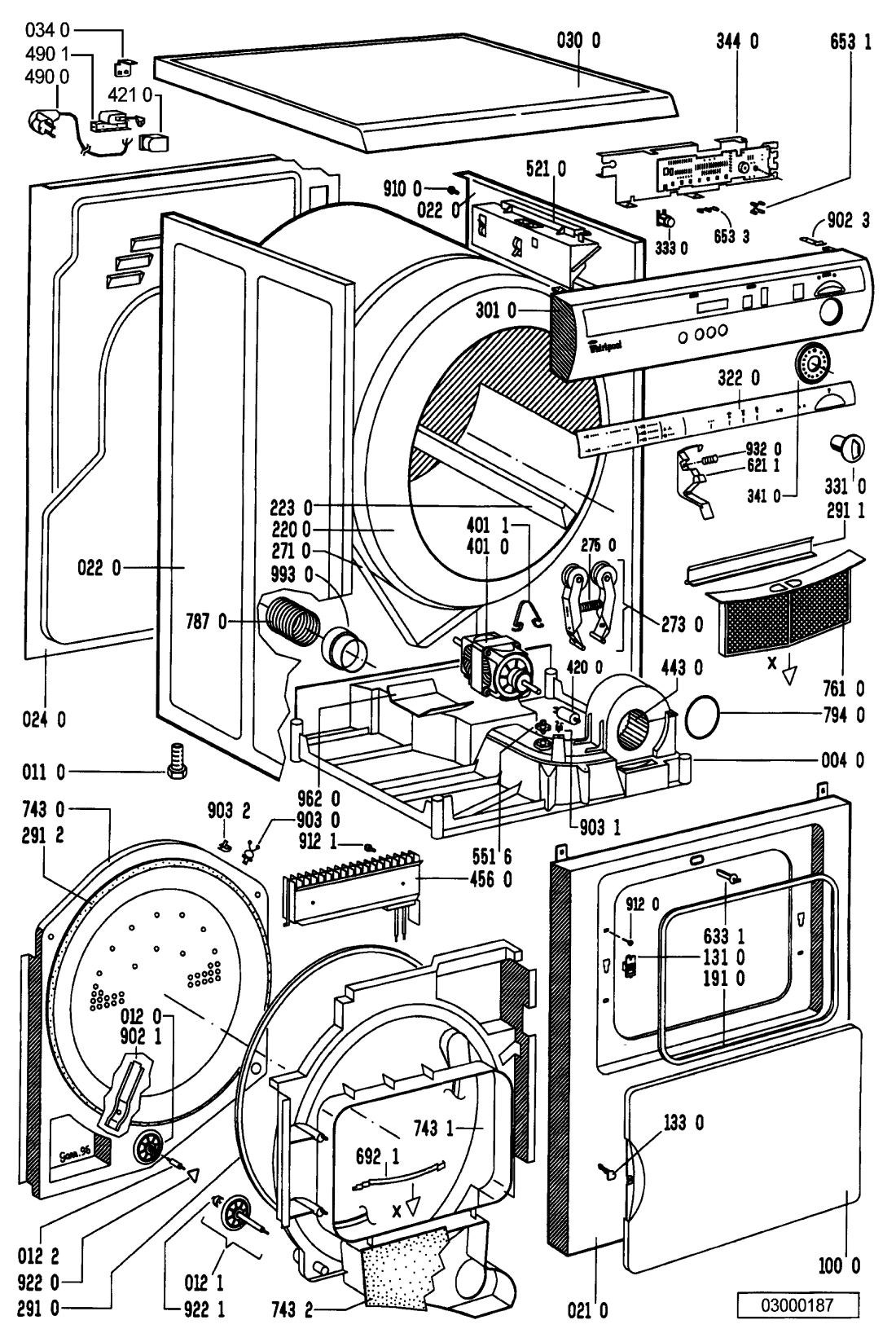

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR83469 |
C00314562
481244010615 |
kryt ventilatoru | 4 135 Kč
€ 163.10 |
||
| 011 0 WHR83469 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.30 |
||
| 012 0 WHR83469 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 50.10 |
||
| 012 1 WHR83469 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 54.50 |
||
| 012 2 WHR83469 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 15.00 |
||
| 021 0 WHR83469 |
C00340667
481244019387 |
PANEL | 2 499 Kč
€ 98.60 |
||
| 022 0 WHR83469 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR83469 |
C00341540
481244019467 |
Panel rear from 98/34 | Na dotaz | Zadat poptávku | |
| 024 0 WHR83469 |
C00497931
481244019441 |
STENA ZADNA DO33/98 AWZ121 N | Na dotaz | Zadat poptávku | |
| 030 0 WHR83469 |
C00527981
481244019388 |
HORNA DOSKA N | Na dotaz | Zadat poptávku | |
| 034 0 WHR83469 |
C00340984
481241778015 |
Fastener Tabletop | Na dotaz | Zadat poptávku | |
| 100 0 WHR83469 |
C00342130
481241738012 |
dvere susicky | Na dotaz | Zadat poptávku | |
| 131 0 WHR83469 |
C00317473
481227138362 |
Door lock | Na dotaz | Zadat poptávku | |
| 133 0 WHR83469 |
C00319948
481241728049 |
Pin Door | Na dotaz | Zadat poptávku | |
| 191 0 WHR83469 |
C00314982
481246668539 |
Gasket door | Na dotaz | Zadat poptávku | |
| 220 0 WHR83469 |
C00341183
481241818199 |
Drum coatedcoated | Na dotaz | Zadat poptávku | |
| 223 0 WHR83469 |
C00341178
481241888027 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 271 0 WHR83469 |
C00314936
481235818162 |
Belt 1965-H7 EH81 | Na dotaz | Zadat poptávku | |
| 273 0 WHR83469 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 44.40 |
||
| 275 0 WHR83469 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR83469 |
C00312073
481246668563 |
Těsnění bubnu přední | 1 968 Kč
€ 77.60 |
||
| 291 1 WHR83469 |
C00340447
481246668541 |
Gasket Fluff Filter | Na dotaz | Zadat poptávku | |
| 291 2 WHR83469 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR83469 |
C00597986
481245219479 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 322 0 WHR83469 |
C00528399
481245210401 |
Insert panel CHICAGO AV | Na dotaz | Zadat poptávku | |
| 331 0 WHR83469 |
C00597791
481241348286 |
Knob (program). | Na dotaz | Zadat poptávku | |
| 333 0 WHR83469 |
C00597735
481227618257 |
Button. | Na dotaz | Zadat poptávku | |
| 341 0 WHR83469 |
C00553428
481241378485 |
INDEX,PROGRAMM.. | Na dotaz | Zadat poptávku | |
| 344 0 WHR83469 |
C00482258
481221478176 |
Deska displeje | 5 725 Kč
€ 225.80 |
||
| 401 0 WHR83469 |
C00313823
481236118361 |
Motor incl. fan wheel | Na dotaz | Zadat poptávku | |
| 401 1 WHR83469 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 9.80 |
||
| 420 0 WHR83469 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 13.80 |
||
| 421 0 WHR83469 |
C00313712
481212118161 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 443 0 WHR83469 |
C00311873
481236118292 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR83469 |
C00339928
481225928674 |
Heating element 2300W - 1T18275001 | Na dotaz | Zadat poptávku | |
| 490 0 WHR83469 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 0 WHR83469 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR83469 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR83469 |
C00378885
481221478339 |
Control board TRA | Na dotaz | Zadat poptávku | |
| 551 6 WHR83469 |
C00312421
481227128369 |
termostat susicky ST | Na dotaz | Zadat poptávku | |
| 621 1 WHR83469 |
C00335733
481227018001 |
Switch lever Doorswitch | Na dotaz | Zadat poptávku | |
| 633 1 WHR83469 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 653 1 WHR83469 |
C00597723
481213448207 |
Light guide WH 4x. | Na dotaz | Zadat poptávku | |
| 653 3 WHR83469 |
C00597722
481213448206 |
Light guide WH 3x. | Na dotaz | Zadat poptávku | |
| 692 1 WHR83469 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 44.70 |
||
| 743 0 WHR83469 |
C00339958
481253048147 |
TEPLOVZDUSNY KA | 2 281 Kč
€ 90.00 |
||
| 743 1 WHR83469 |
C00344604
481253048145 |
navadec vzduchu | 1 424 Kč
€ 56.20 |
||
| 743 2 WHR83469 |
C00330911
481246668538 |
tesneni | 480 Kč
€ 18.90 |
||
| 761 0 WHR83469 |
C00340972
481248058077 |
filtr susicky | 917 Kč
€ 36.20 |
||
| 787 0 WHR83469 |
C00314770
481231018413 |
sada pro odvětrání sušičky | Na dotaz | Zadat poptávku | |
| 794 0 WHR83469 |
C00319697
481246628107 |
Gasket | Na dotaz | Zadat poptávku | |
| 902 1 WHR83469 |
C00344157
481225638002 |
Bracket Roller | Na dotaz | Zadat poptávku | |
| 902 3 WHR83469 |
C00343410
481253228915 |
SVORKA | 100 Kč
€ 3.90 |
||
| 903 0 WHR83469 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 9.00 |
||
| 903 1 WHR83469 |
C00343322
481229088053 |
PLASTOVA PRICHYTKA | 198 Kč
€ 7.80 |
||
| 903 2 WHR83469 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR83469 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR83469 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 912 1 WHR83469 |
C00336571
481250238142 |
Screw M5 x 10 | Na dotaz | Zadat poptávku | |
| 922 0 WHR83469 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR83469 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 10.80 |
||
| 932 0 WHR83469 |
C00497339
481227818001 |
Spring | Na dotaz | Zadat poptávku | |
| 962 0 WHR83469 |
C00330880
481246638012 |
Protector Motor | Na dotaz | Zadat poptávku | |
| 993 0 WHR83469 |
C00327219
481226378014 |
priruba hadice plast | 483 Kč
€ 19.00 |
||
