HOT POINT CTD40G
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CTD40G |
| Kód 12NC: | 869990313610 |
| I.C. kód: | 95313610000 |
| Značka: | HOT POINT |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

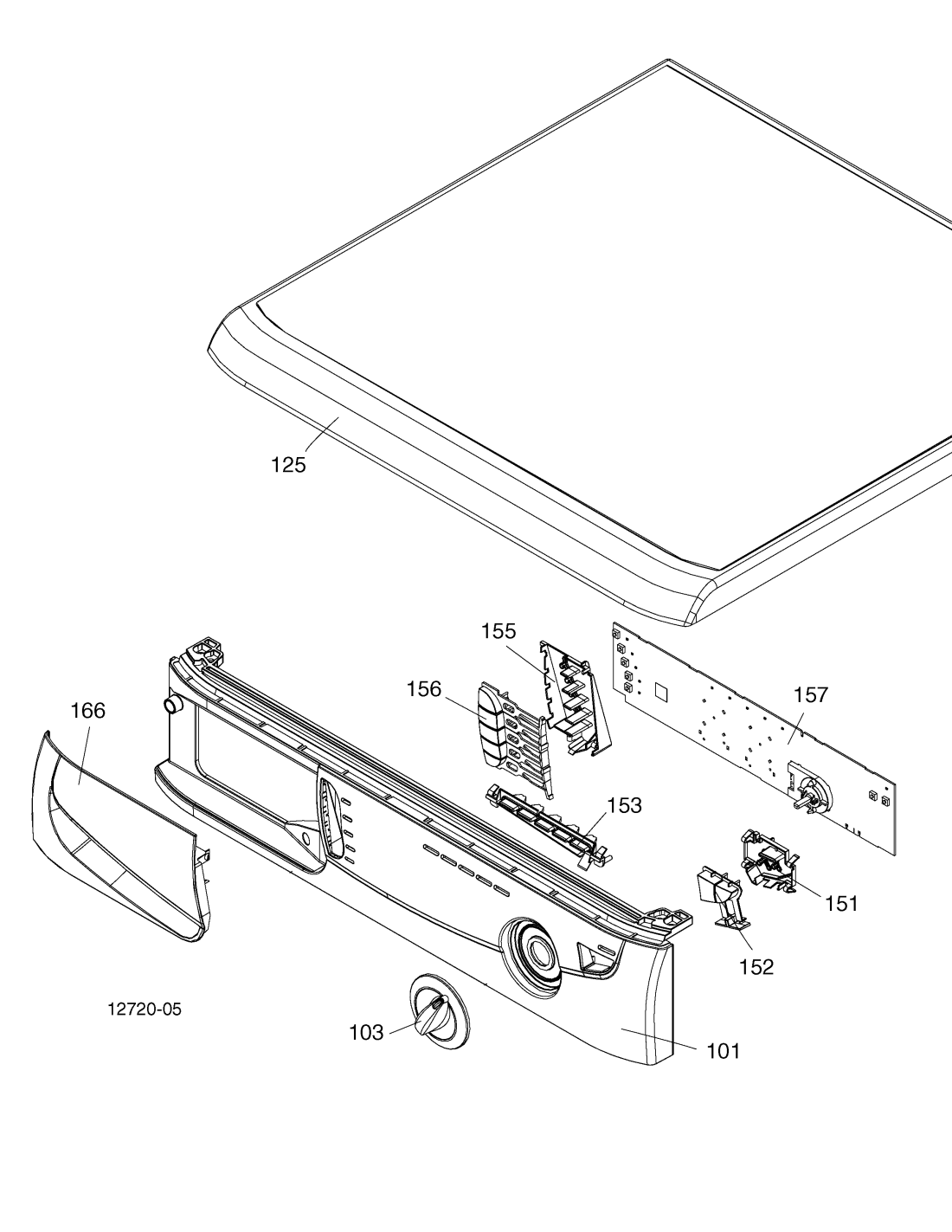

| 101 12720-05 |
C00250852
482000084796 |
NO8 X 1PAN HEAD | Na dotaz | Zadat poptávku | |
| 101 12720-05 |
C00208311
482000084509 |
CONSOLE | Na dotaz | Zadat poptávku | |
| 103 12720-05 |
C00207775 | TIMER KNOB | Na dotaz | Zadat poptávku | |
| 103 12720-05 |
C00208312 | TIMER KNOB | Na dotaz | Zadat poptávku | |
| 125 12720-05 |
C00095621
482000078225 |
ŠROUB 8X1/2. | Na dotaz | Zadat poptávku | |
| 125 12720-05 |
C00207751 | WORKTOP | Na dotaz | Zadat poptávku | |
| 151 12720-05 |
C00112608
482000028600 |
SVĚTLOVOD ON-OFF | Na dotaz | Zadat poptávku | |
| 152 12720-05 |
C00202730
482000084054 |
START BUTTON | Na dotaz | Zadat poptávku | |
| 153 12720-05 |
C00112609
482000079821 |
SVĚTLOVOD | Na dotaz | Zadat poptávku | |
| 153 12720-05 |
C00113894 | LIGHT GUIDE COVER | Na dotaz | Zadat poptávku | |
| 155 12720-05 |
C00112613
482000079823 |
SVĚTLOVOD PROGRAMY | Na dotaz | Zadat poptávku | |
| 155 12720-05 |
C00113895 | COVER LIGHT GUIDE OPTIONS | Na dotaz | Zadat poptávku | |
| 156 12720-05 |
C00202828
482000084069 |
OPTION BUTTON 5 | Na dotaz | Zadat poptávku | |
| 157 12720-05 |
C00113983
482000028705 |
CONSOLE MODULE | Na dotaz | Zadat poptávku | |
| 166 12720-05 |
C00207752 | DRŽADLO VANIČKY GREY | Na dotaz | Zadat poptávku | |
| 301 12720-15 |
C00115734 | FUNCTION BUTTON L/H | Na dotaz | Zadat poptávku | |
| 301 12720-15 |
C00219298
482000049389 |
HOTPOINT LOGO | Na dotaz | Zadat poptávku | |
| 301 12720-15 |
C00207748
482000084433 |
HOTPOINT BADGE | Na dotaz | Zadat poptávku | |
| 301,302 12720-15 |
C00207753
482000084434 |
DOOR & LINER Graphite | Na dotaz | Zadat poptávku | |
| 303,312 12720-15 |
C00255839
482000030428 |
KIT DOOR LATCH+CATCH EMZ | Na dotaz | Zadat poptávku | |
| 304 12720-15 |
C00095515 | DR LATCH BLANK | Na dotaz | Zadat poptávku | |
| 305 12720-15 |
C00095516
482000078185 |
BUSH | Na dotaz | Zadat poptávku | |
| 306 12720-15 |
C00113847
482000028688 |
DOOR PLASTIC PROBE | Na dotaz | Zadat poptávku | |
| 307 12720-15 |
C00113848
482000022831 |
Filtr sušičky Indesit | 542 Kč
€ 21.40 |
||
| 310 12720-15 |
C00115798
482000028852 |
PLINTH COVER CATCH | Na dotaz | Zadat poptávku | |
| 310 12720-15 |
C00207754 | PLINTH | Na dotaz | Zadat poptávku | |
| 311 12720-15 |
C00207755
482000084435 |
FRONT PANEL | Na dotaz | Zadat poptávku | |
| 311,312,330 12720-15 |
C00250713
482000070071 |
SCREW 8X.5 P/PAN | Na dotaz | Zadat poptávku | |
| 315 12720-15 |
C00113851
482000079981 |
DOOR HINGE UPPER | Na dotaz | Zadat poptávku | |
| 315,316 12720-15 |
C00250851
482000084795 |
M3.5 X 12 POZI PAN | Na dotaz | Zadat poptávku | |
| 316 12720-15 |
C00113852
482000028689 |
DOOR LOWER HINGE FMD | Na dotaz | Zadat poptávku | |
| 318 12720-15 |
C00255987
482000085009 |
TĚSNĚNÍ KUL. DVÍŘEK PRAČKY GREY | Na dotaz | Zadat poptávku | |
| 323 12720-15 |
C00113854
482000022832 |
MICROSWITCH & LEVER | Na dotaz | Zadat poptávku | |
| 330 12720-15 |
C00113855
482000079983 |
FRONT AIR DUCT GREY C CONDENSER | Na dotaz | Zadat poptávku | |
| 330 12720-15 |
C00141612
482000029581 |
SENSOR STRIP | Na dotaz | Zadat poptávku | |
| 330 12720-15 |
C00118931
482000029058 |
KIT BEARING PAD+BEARING+BELT | Na dotaz | Zadat poptávku | |
| 332,340 12720-15 |
C00122256
482000080957 |
ŠROUB 6X3/8 | Na dotaz | Zadat poptávku | |
| 335 12720-15 |
C00095629 | DESTIČKA | Na dotaz | Zadat poptávku | |
| 335 12720-15 |
C00097675 | THERMOSTAT EARTH BRACKET | Na dotaz | Zadat poptávku | |
| 335 12720-15 |
C00113822
482000028683 |
TERMOSTAT | Na dotaz | Zadat poptávku | |
| 335 12720-15 |
C00142702
482000029656 |
TERMOSTAT | Na dotaz | Zadat poptávku | |
| 337 12720-15 |
C00141600
482000081712 |
SEAL DRUM FRONT | Na dotaz | Zadat poptávku | |
| 340 12720-15 |
C00207756
488000207756 |
SIDE PANEL FMD Zircon Silv | Na dotaz | Zadat poptávku | |
| 347 12720-15 |
C00113858
482000028690 |
TEKMELİK KİLİT KAPAĞI | Na dotaz | Zadat poptávku | |
| 349 12720-15 |
C00113859
482000079984 |
AIR DUCT SEAL | Na dotaz | Zadat poptávku | |
| 351 12720-15 |
C00267866
482000086198 |
HINGE SUPPORT BLOCK | Na dotaz | Zadat poptávku | |
| 553 12720-15 |
C00113898
482000028697 |
CONTAINER ADAPTOR | Na dotaz | Zadat poptávku | |
| 501 12720-20 |
C00145651
482000030036 |
Buben sušičky | 3 127 Kč
€ 123.50 |
||
| 502 12720-20 |
C00113860
482000028691 |
SEAL BASE REAR PANEL | Na dotaz | Zadat poptávku | |
| 502 12720-20 |
C00114677
482000080136 |
FOAM PAD REAR PANEL | Na dotaz | Zadat poptávku | |
| 502,510 12720-20 |
C00378867
482000090395 |
Kit Condenser Indesit/ Hotpoint Classic | Na dotaz | Zadat poptávku | |
| 503 12720-20 |
C00113862
482000028692 |
LOŽISKO | Na dotaz | Zadat poptávku | |
| 503 12720-20 |
C00142628
482000022961 |
LOŽISKO | Na dotaz | Zadat poptávku | |
| 504 12720-20 |
C00095549
482000078196 |
COLLAR DRUM SHAFT | Na dotaz | Zadat poptávku | |
| 505 12720-20 |
C00095551
482000028095 |
DRIVE PIN | Na dotaz | Zadat poptávku | |
| 506 12720-20 |
C00095552
482000078197 |
DRUM EARTH STRIP | Na dotaz | Zadat poptávku | |
| 506 12720-20 |
C00095572
482000028097 |
SCREW M3 X 6 | Na dotaz | Zadat poptávku | |
| 507 12720-20 |
C00095553
482000078198 |
KRYT LOŽISKO ZADNÍ | Na dotaz | Zadat poptávku | |
| 507 12720-20 |
C00118929
482000080836 |
KRYT LOŽISKO ZADNÍ | Na dotaz | Zadat poptávku | |
| 508 12720-20 |
C00095554 | MAINS CABLE AND PLUG | Na dotaz | Zadat poptávku | |
| 509 12720-20 |
C00095556
482000078199 |
CABLE CLAMP/GROMMET | Na dotaz | Zadat poptávku | |
| 509 12720-20 |
C00250833
482000084793 |
NO7 HILO POZI SCREW | 223 Kč
€ 8.80 |
||
| 511 12720-20 |
C00115747
482000028844 |
HEATER COVER | Na dotaz | Zadat poptávku | |
| 515 12720-20 |
C00113865
482000028693 |
PIPE PUMP TO WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 515 12720-20 |
C00114676
482000028760 |
PIPE SUPPORT | Na dotaz | Zadat poptávku | |
| 516 12720-20 |
C00113866
482000022834 |
TRUBKA VYPOUŠTĚNÍ | Na dotaz | Zadat poptávku | |
| 521 12720-20 |
C00208298 | SADA TERMOSTATU | Na dotaz | Zadat poptávku | |
| 521 12720-20 |
C00208299
482000084504 |
SADA TERMOSTATU | Na dotaz | Zadat poptávku | |
| 522 12720-20 |
C00257632
482000030496 |
TOPNÉ TĚLÍSKO (ONE SHOT+CYCLING) | Na dotaz | Zadat poptávku | |
| 522 12720-20 |
C00258799
482000030522 |
TOPNÉ TĚLÍSKO (ONE SHOT+CYCLING STATS) | Na dotaz | Zadat poptávku | |
| 522 12720-20 |
C00258828
482000030526 |
TOPNÉ TĚLÍSKO(ONE SHOT+CYCLING+NTC ELTH) | Na dotaz | Zadat poptávku | |
| 522 12720-20 |
C00260045
482000030587 |
TOPNÉ TĚLÍSKO (ONE SHOT+CYCLING STATS) | Na dotaz | Zadat poptávku | |
| 522 12720-20 |
C00145747
482000082410 |
TOPNÉ TĚLÍSKO (ONE SHOT+CYCLING+NTC TOD) | Na dotaz | Zadat poptávku | |
| 526 12720-20 |
C00208347
482000023022 |
CLAMP D.19 | Na dotaz | Zadat poptávku | |
| 527 12720-20 |
C00208040
482000023021 |
VRTULE | Na dotaz | Zadat poptávku | |
| 533 12720-20 |
C00113816
482000079966 |
PODPĚRA | Na dotaz | Zadat poptávku | |
| 533 12720-20 |
C00113817 | SENSING BRUSH | Na dotaz | Zadat poptávku | |
| 538 12720-20 |
C00113838
482000028686 |
INSULATOR BAND | Na dotaz | Zadat poptávku | |
| 539 12720-20 |
C00113837
482000079974 |
SENSING BAND | Na dotaz | Zadat poptávku | |
| 541 12720-20 |
C00113038
482000022828 |
Hřídel bubnu | 844 Kč
€ 33.30 |
||
| 541 12720-20 |
C00305794
482000032268 |
DRUM SHAFT KIT (RIVETED DRUM PLATE) | Na dotaz | Zadat poptávku | |
| 542 12720-20 |
C00250836 | SCREW M5 X 8 T25 | Na dotaz | Zadat poptávku | |
| 544 12720-20 |
C00095586
482000078209 |
SCREW | Na dotaz | Zadat poptávku | |
| 544 12720-20 |
C00113869
482000028694 |
MAINS CON AND SUPPRE | Na dotaz | Zadat poptávku | |
| 545 12720-20 |
C00112186
482000028575 |
DRUM LIFTER LONG | Na dotaz | Zadat poptávku | |
| 545 12720-20 |
C00141607
482000081713 |
DRUM LIFTER | Na dotaz | Zadat poptávku | |
| 545,546 12720-20 |
C00250835
482000084794 |
SCREW 5 X 23 | Na dotaz | Zadat poptávku | |
| 546 12720-20 |
C00113836
482000079973 |
LIFTER SENSING | Na dotaz | Zadat poptávku | |
| 547 12720-20 |
C00113870
482000079988 |
WATER BOTTLE SUPPORT | Na dotaz | Zadat poptávku | |
| 548 12720-20 |
C00193521
482000023003 |
WATER CONTAINER | Na dotaz | Zadat poptávku | |
| 549 12720-20 |
C00113897
482000022836 |
WATER CONT INLET | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00202842
482000084070 |
EEPROM VIERGE (EVOII) | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00195645 | EEPROM CTD40 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00208273
482000084496 |
EEP CTD40 DF 08 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00208274
482000084497 |
EEP CTD40 DF 09 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00208275
482000084498 |
EEP CTD40 DF 10 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00208316 | EEP CDT40 CE 11 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00259141 | EEPROM CTD40 EVOII SW 28313600015 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00260180 | EEPROM CTD40 EVOII SW 28313600016 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00263289
488000263289 |
CARD CTD40 8KB TD SW28313600015 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271769
488000271769 |
CARD CTD40 8KB TD SW28313600010 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271782
488000271782 |
CARD CTD40 8KB TD SW28313600009 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271783
488000271783 |
CARD CTD40 8KB TD SW28313600008 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271804
488000271804 |
CARD CTD40 8KB TD SW28313600014 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271805
488000271805 |
CARD CTD40 8KB TD SW28313600011 | Na dotaz | Zadat poptávku | |
| 551 12720-20 |
C00271816 | CARD CTD40 8KB TD SW28313600016 | Na dotaz | Zadat poptávku | |
| 552 12720-20 |
C00269466
482000030955 |
Modul sušičky | 3 680 Kč
€ 145.30 |
||
| 552,999 12720-20 |
C00199418
482000083634 |
Kabeláž DISPLAY/POWER BD | 1 031 Kč
€ 40.70 |
||
| 555 12720-20 |
C00112144
482000028572 |
BEARING PAD | Na dotaz | Zadat poptávku | |
| 555 12720-20 |
C00113901
482000080008 |
DRUM SUPPORT WHEEL - SEE N1040358 | Na dotaz | Zadat poptávku | |
| 556 12720-20 |
C00116358
482000032360 |
Řemen sušičky Indesit/Whirlpool 1991 H6 | 701 Kč
€ 27.70 |
||
| 557 12720-20 |
C00113902
482000080009 |
SIDE STRUT ANGLED RIGHT | Na dotaz | Zadat poptávku | |
| 558 12720-20 |
C00113830
482000028685 |
TERMOSTAT NTC (ELTH) | Na dotaz | Zadat poptávku | |
| 558 12720-20 |
C00143511
482000029780 |
Termostat NTC | 1 155 Kč
€ 45.60 |
||
| 999 12720-20 |
C00254354
482000084884 |
HARNESS (J10) | Na dotaz | Zadat poptávku | |
| 999 12720-20 |
C00254356
482000084885 |
HARNESS FRONT NTC | Na dotaz | Zadat poptávku | |
| 999 12720-20 |
C00254401
482000084894 |
HARNESS PUMP & FLOAT SWITCH | Na dotaz | Zadat poptávku | |
| 999 12720-20 |
C00279523
482000087768 |
CABLE SENSING STRIP | Na dotaz | Zadat poptávku | |
| 000 12720-25 |
C00280681
482000087861 |
KIT CONNECTION W LVB-DRYER CONDENSER | Na dotaz | Zadat poptávku | |
| 600 12720-25 |
C00113873
482000079991 |
BASE UNIT 'ALE70CFR' | Na dotaz | Zadat poptávku | |
| 600 12720-25 |
C00271612
482000086693 |
SCREW 14mm Cond Base | Na dotaz | Zadat poptávku | |
| 606 12720-25 |
C00113874
482000028695 |
WHEEL AND AXLE | Na dotaz | Zadat poptávku | |
| 611 12720-25 |
C00095596
482000028100 |
Mikrospínač sušičky | 1 056 Kč
€ 41.70 |
||
| 613 12720-25 |
C00113876
482000079993 |
INLET RING | Na dotaz | Zadat poptávku | |
| 614 12720-25 |
C00207723
482000084431 |
VRTULE | Na dotaz | Zadat poptávku | |
| 614 12720-25 |
C00272335
482000023128 |
VRTULE 72mm | Na dotaz | Zadat poptávku | |
| 617 12720-25 |
C00113878
482000079995 |
KRYT | Na dotaz | Zadat poptávku | |
| 621 12720-25 |
C00194453
482000030182 |
CAPACITOR 8 UF (ISKRA) | Na dotaz | Zadat poptávku | |
| 621 12720-25 |
C00258619
482000023051 |
Kondenzator 8.5 UF. | 372 Kč
€ 14.70 |
||
| 621 12720-25 |
C00199432
482000083641 |
CAPACITOR 7UF ROHS | Na dotaz | Zadat poptávku | |
| 623 12720-25 |
C00113879
482000022835 |
JOCKEY WHEEL AND BRACKET | Na dotaz | Zadat poptávku | |
| 625 12720-25 |
C00306348
482000030192 |
MOTOR KIT KONDENZÁTOR 8.5UF & | Na dotaz | Zadat poptávku | |
| 630 12720-25 |
C00161337 | HANDBOOK | Na dotaz | Zadat poptávku | |
| 630 12720-25 |
C00161584 | HANDBOOK | Na dotaz | Zadat poptávku | |
| 632 12720-25 |
C00113883
482000079997 |
FLOAT | Na dotaz | Zadat poptávku | |
| 632 12720-25 |
C00195866
482000023012 |
FLOAT | Na dotaz | Zadat poptávku | |
| 632 12720-25 |
C00259700
482000085313 |
FLOAT PIN 75MM | Na dotaz | Zadat poptávku | |
| 632,633 12720-25 |
C00195868
482000083284 |
FLOAT/PIN KIT | Na dotaz | Zadat poptávku | |
| 633 12720-25 |
C00113884
482000079998 |
FLOAT PIN 78MM | Na dotaz | Zadat poptávku | |
| 634 12720-25 |
C00193127
482000030139 |
PUMP | Na dotaz | Zadat poptávku | |
| 634 12720-25 |
C00260640
482000030605 |
PUMP & FLOAT COVER KIT | Na dotaz | Zadat poptávku | |
| 635 12720-25 |
C00113887
482000080000 |
PUMP AND FLOAT COVER | Na dotaz | Zadat poptávku | |
| 635 12720-25 |
C00113888
482000080001 |
PUMP AND FLOAT COVER | Na dotaz | Zadat poptávku | |
| 635 12720-25 |
C00113892
482000080004 |
WATER DEFLECT HOR | Na dotaz | Zadat poptávku | |
| 635 12720-25 |
C00113893
482000080005 |
WATER DEFLECT VER | Na dotaz | Zadat poptávku | |
| 635 12720-25 |
C00193187
482000083049 |
PUMP AND FLOAT COVER | Na dotaz | Zadat poptávku | |
| 636 12720-25 |
C00113889
482000080002 |
ZÁTKA KONTROLY HARDWARU | Na dotaz | Zadat poptávku | |
| 637 12720-25 |
C00113890
482000080003 |
KONDENZÁTOR 'ALE70CFR' | Na dotaz | Zadat poptávku | |
| 638 12720-25 |
C00113903
482000028698 |
CONDENSOR FRONT COVER SEALCONDENSOR FRON | Na dotaz | Zadat poptávku | |
| 999 12720-25 |
C00149478
482000082521 |
STACKING KIT SHELF | Na dotaz | Zadat poptávku | |
| 999 12720-25 |
C00114866
482000080178 |
STACKING KIT LVB-DRYERS CONDENSER | Na dotaz | Zadat poptávku | |
| 999 12720-25 |
C00146921 | ENERGY LABEL CTD40 | Na dotaz | Zadat poptávku | |
