| Komerční kód: | DMCG 5735 AL MICROWAVES OVEN BK |
| Kód 12NC: | 855802312640 |
| I.C. kód: | 855802312642 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 855802312641 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 1 WHR48851 |
C00336867
481911388001 |
Odpor 100 Ohm 7W | 235 Kč
€ 9.30 |
||
| 000 1 WHR48851 |
C00341793
481913038055 |
LED (not shown) | Na dotaz | Zadat poptávku | |
| 001 1 WHR48851 |
C00484297
481936058462 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 001 2 WHR48851 |
C00586972
481949268559 |
Lever. | Na dotaz | Zadat poptávku | |
| 001 3 WHR48851 |
C00486725
481946248233 |
Cover rubber | Na dotaz | Zadat poptávku | |
| 001 4 WHR48851 |
C00492286
481940118495 |
Clamp lifting arm, | Na dotaz | Zadat poptávku | |
| 001 5 WHR48851 |
C00586864
481940478405 |
Bracket | Na dotaz | Zadat poptávku | |
| 002 0 WHR48851 |
C00591927
481944059524 |
Plate protection bottom | Na dotaz | Zadat poptávku | |
| 002 1 WHR48851 |
C00586888
481944058901 |
Insulator. | Na dotaz | Zadat poptávku | |
| 002 2 WHR48851 |
C00586851
481932518012 |
Insulation. | Na dotaz | Zadat poptávku | |
| 002 3 WHR48851 |
C00591924
481941878445 |
Air guide not shown | Na dotaz | Zadat poptávku | |
| 010 0 WHR48851 |
C00591925
481941878838 |
Air guide assy BI-KIT | Na dotaz | Zadat poptávku | |
| 011 0 WHR48851 |
C00492443
481946279297 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR48851 |
C00492345
481941878446 |
Foot air channel | Na dotaz | Zadat poptávku | |
| 022 0 WHR48851 |
C00586891
481944059522 |
Plate side. | Na dotaz | Zadat poptávku | |
| 022 1 WHR48851 |
C00586970
481946698679 |
Insulation side. | Na dotaz | Zadat poptávku | |
| 024 0 WHR48851 |
C00586950
481946248231 |
Panel rear | Na dotaz | Zadat poptávku | |
| 024 1 WHR48851 |
C00586962
481946688839 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 024 2 WHR48851 |
C00586887
481944058899 |
Bracket Back cover | Na dotaz | Zadat poptávku | |
| 024 3 WHR48851 |
C00486755
481946279298 |
Cover | Na dotaz | Zadat poptávku | |
| 024 4 WHR48851 |
C00486807
481946669759 |
Gasket border | Na dotaz | Zadat poptávku | |
| 030 0 WHR48851 |
C00484407
481944059523 |
Cabinet | Na dotaz | Zadat poptávku | |
| 031 0 WHR48851 |
C00485940
481246088266 |
Profile upper Alu | Na dotaz | Zadat poptávku | |
| 031 1 WHR48851 |
C00485941
481246088267 |
Profile lower Alu | Na dotaz | Zadat poptávku | |
| 032 0 WHR48851 |
C00485942
481246088268 |
Profile side Alu | Na dotaz | Zadat poptávku | |
| 041 0 WHR48851 |
C00490436
481940478053 |
Hinge (Balance arm) | Na dotaz | Zadat poptávku | |
| 044 0 WHR48851 |
C00491999
481249268168 |
Spring | Na dotaz | Zadat poptávku | |
| 044 1 WHR48851 |
C00379172
481949268508 |
Spring balance right | Na dotaz | Zadat poptávku | |
| 044 2 WHR48851 |
C00484364
481940478054 |
Bracket | Na dotaz | Zadat poptávku | |
| 045 0 WHR48851 |
C00484482
481952878053 |
Bearing left | Na dotaz | Zadat poptávku | |
| 045 1 WHR48851 |
C00492128
481253598057 |
Shaft hinge | Na dotaz | Zadat poptávku | |
| 045 2 WHR48851 |
C00490835
481952878064 |
Disc , bearing right | Na dotaz | Zadat poptávku | |
| 065 0 WHR48851 |
C00586852
481932518029 |
Insulation. | Na dotaz | Zadat poptávku | |
| 065 1 WHR48851 |
C00586853
481932518031 |
Insulation right with probehole | Na dotaz | Zadat poptávku | |
| 065 2 WHR48851 |
C00490378
481932518011 |
Insulation back | Na dotaz | Zadat poptávku | |
| 100 0 WHR48851 |
C00486248
481249878266 |
Door assembly Cpl. ALU | Na dotaz | Zadat poptávku | |
| 110 0 WHR48851 |
C00487733
481246268836 |
Door handle AL | Na dotaz | Zadat poptávku | |
| 120 0 WHR48851 |
C00373313
481945948456 |
Frame door inner | Na dotaz | Zadat poptávku | |
| 130 0 WHR48851 |
C00492613
481952838351 |
Cam | Na dotaz | Zadat poptávku | |
| 130 1 WHR48851 |
C00586859
481940478049 |
Hoop (sleving bracket) | Na dotaz | Zadat poptávku | |

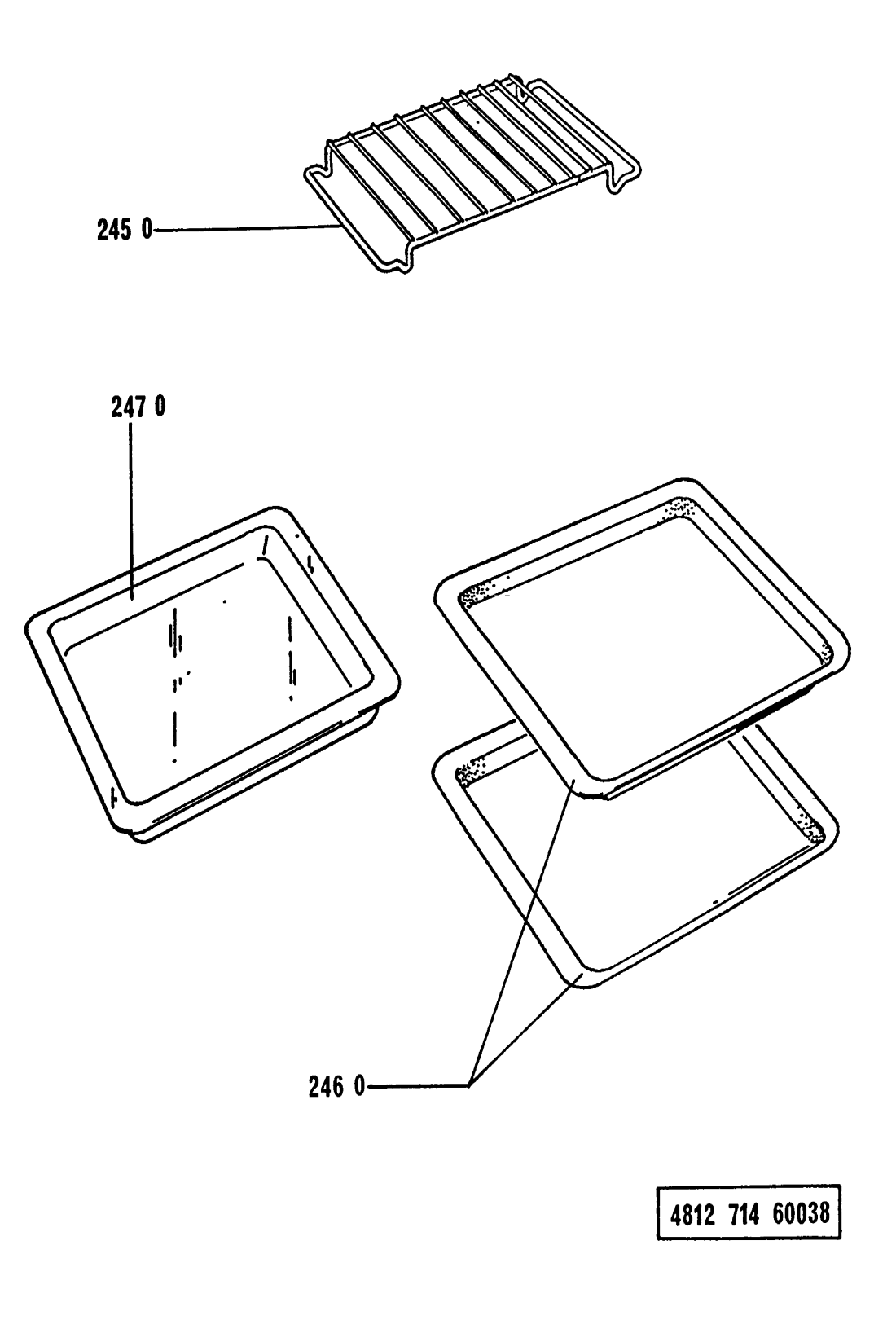

| 245 0 WHR48851 |
C00373315
481945858348 |
Grating | Na dotaz | Zadat poptávku | |
| 246 0 WHR48851 |
C00373327
481944058906 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR48851 |
C00373328
481944058905 |
Fat pan | Na dotaz | Zadat poptávku | |
| 247 1 WHR48851 |
C00373567
481246678409 |
dno MWO | Na dotaz | Zadat poptávku | |
| 320 0 WHR48851 |
C00485702
481245359744 |
Control panel Alu | Na dotaz | Zadat poptávku | |
| 331 0 WHR48851 |
C00491566
481240478521 |
Button assy AL | Na dotaz | Zadat poptávku | |
| 334 0 WHR48851 |
C00487300
481241278818 |
KNOB VBL ALU | Na dotaz | Zadat poptávku | |
| 341 0 WHR48851 |
C00488856
481241378703 |
Indicator illuminator | Na dotaz | Zadat poptávku | |
| 342 0 WHR48851 |
C00490751
481945349005 |
Indication disc TH BL | Na dotaz | Zadat poptávku | |
| 351 0 WHR48851 |
C00488449
481213448295 |
Lamp neon assembly | Na dotaz | Zadat poptávku | |
| 352 0 WHR48851 |
C00586828
481913038044 |
Display. | Na dotaz | Zadat poptávku | |
| 354 0 WHR48851 |
C00488702
481238118288 |
Lens red | Na dotaz | Zadat poptávku | |
| 355 0 WHR48851 |
C00343953
481928018019 |
Buzzer | Na dotaz | Zadat poptávku | |
| 404 0 WHR48851 |
C00311859
481913158019 |
Magnetron | Na dotaz | Zadat poptávku | |
| 404 1 WHR48851 |
C00484404
481944058897 |
Air guide | Na dotaz | Zadat poptávku | |
| 411 0 WHR48851 |
C00455047
481214868033 |
Transformer | Na dotaz | Zadat poptávku | |
| 412 0 WHR48851 |
C00591610
481214538036 |
Transformer HT | Na dotaz | Zadat poptávku | |
| 412 1 WHR48851 |
C00484464
481946279296 |
Grid air | Na dotaz | Zadat poptávku | |
| 420 0 WHR48851 |
C00311879
481212158159 |
kondenzator VN 1,05uF | 333 Kč
€ 13.10 |
||
| 420 1 WHR48851 |
C00586858
481940478048 |
Air guide , holder for capacitor. | Na dotaz | Zadat poptávku | |
| 420 2 WHR48851 |
C00586963
481946688841 |
Insulation. | Na dotaz | Zadat poptávku | |
| 420 3 WHR48851 |
C00586964
481946688989 |
Plate protect.. | Na dotaz | Zadat poptávku | |
| 421 0 WHR48851 |
C00319002
481212208004 |
Filtr odrušovací | 1 355 Kč
€ 53.50 |
||
| 426 0 WHR48851 |
C00314565
481921838038 |
Diode HV | Na dotaz | Zadat poptávku | |
| 440 0 WHR48851 |
C00488691
481236178023 |
Motor,fan 30.94868.08 | Na dotaz | Zadat poptávku | |
| 442 8 WHR48851 |
C00486879
481951528192 |
Ventilator assambly | Na dotaz | Zadat poptávku | |
| 443 0 WHR48851 |
C00492595
481951528193 |
Fan wheel FA | Na dotaz | Zadat poptávku | |
| 451 0 WHR48851 |
C00316924
481225928847 |
Heating element hot air 1700W 230V | Na dotaz | Zadat poptávku | |
| 451 1 WHR48851 |
C00484453
481945858347 |
Air guide unfolded | Na dotaz | Zadat poptávku | |
| 452 0 WHR48851 |
C00490322
481925928703 |
Heating element grill 2000W 220V | Na dotaz | Zadat poptávku | |
| 452 1 WHR48851 |
C00373386
481940118584 |
Bracket porcelain | Na dotaz | Zadat poptávku | |
| 485 0 WHR48851 |
C00343873
481946698742 |
Cable | Na dotaz | Zadat poptávku | |
| 490 0 WHR48851 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 502 0 WHR48851 |
C00482359
481221478987 |
Control board | Na dotaz | Zadat poptávku | |
| 502 1 WHR48851 |
C00455077
481220988093 |
jednotka | 1 914 Kč
€ 75.60 |
||
| 502 2 WHR48851 |
C00492491
481946698566 |
Spacebar | Na dotaz | Zadat poptávku | |
| 502 3 WHR48851 |
C00586512
481210148004 |
Potentiometer | Na dotaz | Zadat poptávku | |
| 502 4 WHR48851 |
C00456597
481228018032 |
Resonator Quarz | Na dotaz | Zadat poptávku | |
| 521 0 WHR48851 |
C00400595
481221479899 |
Control unit power | Na dotaz | Zadat poptávku | |
| 521 1 WHR48851 |
C00586862
481940478147 |
Bracket. | Na dotaz | Zadat poptávku | |
| 521 3 WHR48851 |
C00486410
481911628002 |
Resistor | Na dotaz | Zadat poptávku | |
| 521 4 WHR48851 |
C00586861
481940478146 |
Bracket. | Na dotaz | Zadat poptávku | |
| 521 6 WHR48851 |
C00492239
481931088224 |
Spring | Na dotaz | Zadat poptávku | |
| 554 0 WHR48851 |
C00481783
481927128652 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 1 WHR48851 |
C00586863
481940478404 |
Holder capillary tube | Na dotaz | Zadat poptávku | |
| 561 0 WHR48851 |
C00481784
481927128653 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR48851 |
C00316757
481927128651 |
termostat 175 | 1 306 Kč
€ 51.60 |
||
| 611 0 WHR48851 |
C00345096
481228068364 |
Relay 24V 10A | Na dotaz | Zadat poptávku | |
| 620 0 WHR48851 |
C00491037
481227138457 |
Switch oven rotory | Na dotaz | Zadat poptávku | |
| 620 1 WHR48851 |
C00490834
481952838369 |
DISC,CAM | Na dotaz | Zadat poptávku | |
| 620 2 WHR48851 |
C00492545
481949268558 |
Clip fix | Na dotaz | Zadat poptávku | |
| 620 3 WHR48851 |
C00586860
481940478056 |
Bracket oven switch. | Na dotaz | Zadat poptávku | |
| 622 0 WHR48851 |
C00620493
481927138115 |
mikrospinac | 390 Kč
€ 15.40 |
||
| 633 0 WHR48851 |
C00379188
481927138049 |
mikrospinac | 652 Kč
€ 25.70 |
||
| 633 1 WHR48851 |
C00586854
481932528007 |
Insulation. | Na dotaz | Zadat poptávku | |
| 633 2 WHR48851 |
C00493835
481269018028 |
Mechanism start | Na dotaz | Zadat poptávku | |
| 633 3 WHR48851 |
C00492586
481950518177 |
Nut for switch unit | Na dotaz | Zadat poptávku | |
| 650 0 WHR48851 |
C00492210
481925518182 |
Lampholder | Na dotaz | Zadat poptávku | |
| 650 1 WHR48851 |
C00333175
481949268507 |
Spring cavity lamp assy CB / OMIN | Na dotaz | Zadat poptávku | |
| 650 2 WHR48851 |
C00332897
481938028007 |
Reflector | Na dotaz | Zadat poptávku | |
| 651 0 WHR48851 |
C00490312
481913488142 |
Lamp Halogen MWO 10W | Na dotaz | Zadat poptávku | |
| 652 0 WHR48851 |
C00332901
481938118151 |
Kryt žárovky | 741 Kč
€ 29.30 |
||
| 691 0 WHR48851 |
C00492216
481926438007 |
BUSHING | Na dotaz | Zadat poptávku | |
| 691 1 WHR48851 |
C00492232
481931038672 |
Feeler | Na dotaz | Zadat poptávku | |
| 721 0 WHR48851 |
C00493044
481230398006 |
Antenna assembly | Na dotaz | Zadat poptávku | |
| 721 1 WHR48851 |
C00494444
481930398022 |
Antenna wing | Na dotaz | Zadat poptávku | |
| 901 0 WHR48851 |
C00332915
481940118494 |
Clamp | Na dotaz | Zadat poptávku | |
| 915 0 WHR48851 |
C00492588
481950518248 |
MATICA | Na dotaz | Zadat poptávku | |
| 930 0 WHR48851 |
C00496460
481949268504 |
Spring for switch unit not shown | Na dotaz | Zadat poptávku | |
| 971 0 WHR48851 |
C00311573
481925338019 |
pojistka T 8A | 95 Kč
€ 3.80 |
||
| 972 0 WHR48851 |
C00379145
481925338005 |
Fuse T200mA | Na dotaz | Zadat poptávku | |
| 972 1 WHR48851 |
C00315549
481925338011 |
pojistka 250mA | 228 Kč
€ 9.00 |
||
| 999 WHR48851 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
