BAUKNECHT DNHI 5455 SG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DNHI 5455 SG |
| Kód 12NC: | 857441916000 |
| I.C. kód: | 857441916003 |
| Značka: | BAUKNECHT |
| Typ produktu: | Odsavače a digestoře |
| Další podobné modely: | 857441916000, 857441916001, 857441916002 |
Potřebujete servis? Jsme tady pro Vás

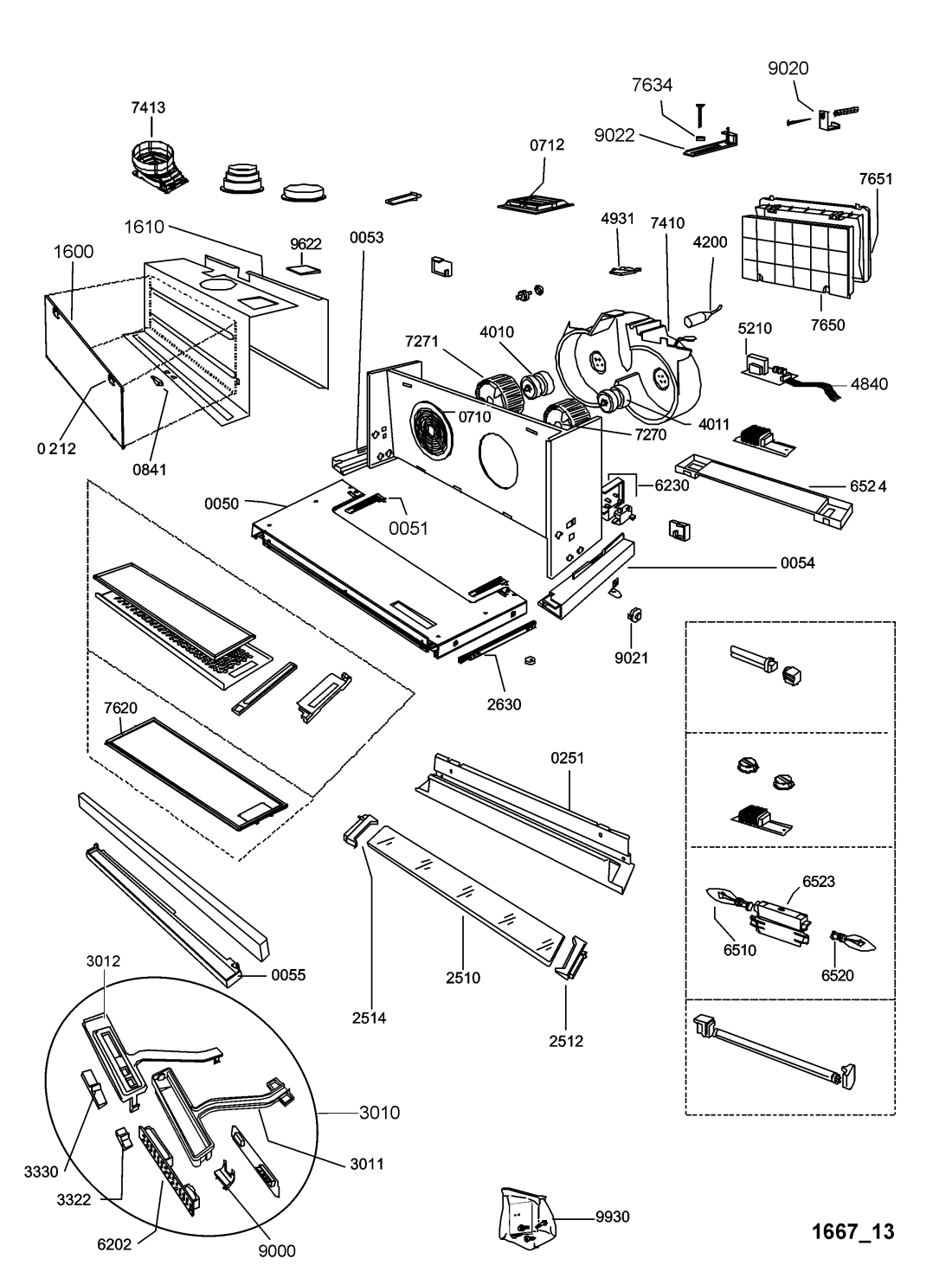

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0050 WHR49472 |
C00409625
482000005849 |
Drawer | Na dotaz | Zadat poptávku | |
| 0051 WHR49472 |
C00329142
481240449865 |
Držák | 656 Kč
€ 25.90 |
||
| 0053 WHR49472 |
C00098589
482000005848 |
PROFIL VNĚJŠÍ LEVÝ | Na dotaz | Zadat poptávku | |
| 0054 WHR49472 |
C00409624
482000005847 |
Guide right | Na dotaz | Zadat poptávku | |
| 0055 WHR49472 |
C00409626
482000005850 |
Cover front lower | Na dotaz | Zadat poptávku | |
| 0212 WHR49472 |
C00315136
481953538139 |
zamek | 222 Kč
€ 8.80 |
||
| 0251 WHR49472 |
C00392439
480122101085 |
Support lamp cover | Na dotaz | Zadat poptávku | |
| 0710 WHR49472 |
C00481336
481952648458 |
mrizka ventilatoru | 426 Kč
€ 16.80 |
||
| 0712 WHR49472 |
C00318087
481944268527 |
Deflector | Na dotaz | Zadat poptávku | |
| 0841 WHR49472 |
C00492626
481952918052 |
TLMIC AKR 633 N | Na dotaz | Zadat poptávku | |
| 1600 WHR49472 |
C00408812
482000004496 |
Cover front | Na dotaz | Zadat poptávku | |
| 1610 WHR49472 |
C00411127
482000008637 |
Cover back | Na dotaz | Zadat poptávku | |
| 2510 WHR49472 |
C00380270
481946279484 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 2512 WHR49472 |
C00492474
481946689139 |
Tailpiece right | Na dotaz | Zadat poptávku | |
| 2514 WHR49472 |
C00492475
481946689141 |
Tailpiece left | Na dotaz | Zadat poptávku | |
| 2630 WHR49472 |
C00330378
481246068566 |
Kolejnice digestoře - samostatná | 713 Kč
€ 28.10 |
||
| 3010 WHR49472 |
C00414609
482000015332 |
Unit control | Na dotaz | Zadat poptávku | |
| 3011 WHR49472 |
C00138595
481946279486 |
kryt desky spinacu | 373 Kč
€ 14.70 |
||
| 3012 WHR49472 |
C00392438
480122101084 |
Control panel | Na dotaz | Zadat poptávku | |
| 3322 WHR49472 |
C00402220
481241029338 |
Knob,slide light | Na dotaz | Zadat poptávku | |
| 3330 WHR49472 |
C00138623
481241029339 |
MOTOR BUTTON IX | Na dotaz | Zadat poptávku | |
| 4010 WHR49472 |
C00413211
482000012904 |
Motor anti-clockwise | Na dotaz | Zadat poptávku | |
| 4011 WHR49472 |
C00413212
482000012905 |
Motor clockwise | Na dotaz | Zadat poptávku | |
| 4200 WHR49472 |
C00374903
482000013014 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4840 WHR49472 |
C00411813
482000009725 |
Connecting cable | Na dotaz | Zadat poptávku | |
| 4931 WHR49472 |
C00407392
482000001551 |
Cover terminal block | Na dotaz | Zadat poptávku | |
| 5210 WHR49472 |
C00392434
480122101079 |
Power unit | Na dotaz | Zadat poptávku | |
| 6202 WHR49472 |
C00392435
480122101081 |
Control board | Na dotaz | Zadat poptávku | |
| 6230 WHR49472 |
C00392436
480122101082 |
Microswitch | Na dotaz | Zadat poptávku | |
| 6510 WHR49472 |
C00314582
482000008069 |
Žárovka 28W/230 E14 halogenová | Na dotaz | Zadat poptávku | |
| 6520 WHR49472 |
C00311279
481225528008 |
Objímka žárovky | 725 Kč
€ 28.60 |
||
| 6523 WHR49472 |
C00411814
482000009726 |
držák | 505 Kč
€ 19.90 |
||
| 6524 WHR49472 |
C00491558
481240478443 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 7270 WHR49472 |
C00138652
481951528261 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 7271 WHR49472 |
C00481334
481951528286 |
vrtule | 894 Kč
€ 35.30 |
||
| 7410 WHR49472 |
C00482974
481244269175 |
Conveyor | Na dotaz | Zadat poptávku | |
| 7413 WHR49472 |
C00333819
482000008638 |
Příruba digestoře | 619 Kč
€ 24.40 |
||
| 7620 WHR49472 |
C00392440
480122101086 |
Grid filter | Na dotaz | Zadat poptávku | |
| 7634 WHR49472 |
C00344098
481953228266 |
Bushing | Na dotaz | Zadat poptávku | |
| 7650 WHR49472 |
C00374973
481281718526 |
Uhlíkový filtr pro odsavače par AKR 615, 633, 638, 675, 969, DNHI 3690 SG BK | Na dotaz | Zadat poptávku | |
| 7651 WHR49472 |
C00379160
481940479216 |
Držák filtru | 550 Kč
€ 21.70 |
||
| 9000 WHR49472 |
C00494532
481940118599 |
Bridge connect. control box | Na dotaz | Zadat poptávku | |
| 9020 WHR49472 |
C00332863
481931038722 |
hak upevneni | 200 Kč
€ 7.90 |
||
| 9021 WHR49472 |
C00492506
481946699113 |
Spacer | Na dotaz | Zadat poptávku | |
| 9022 WHR49472 |
C00332937
481940449068 |
Obruč digestoře | 156 Kč
€ 6.20 |
||
| 9622 WHR49472 |
C00413292
482000013016 |
Cover Control box | Na dotaz | Zadat poptávku | |
| 9930 WHR49472 |
C00411129
482000008640 |
Mounting kit | Na dotaz | Zadat poptávku | |
