IGNIS DPA 24
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DPA 24 |
| Kód 12NC: | 850348201000 |
| I.C. kód: | 850348201001 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850348201000 |
Potřebujete servis? Jsme tady pro Vás

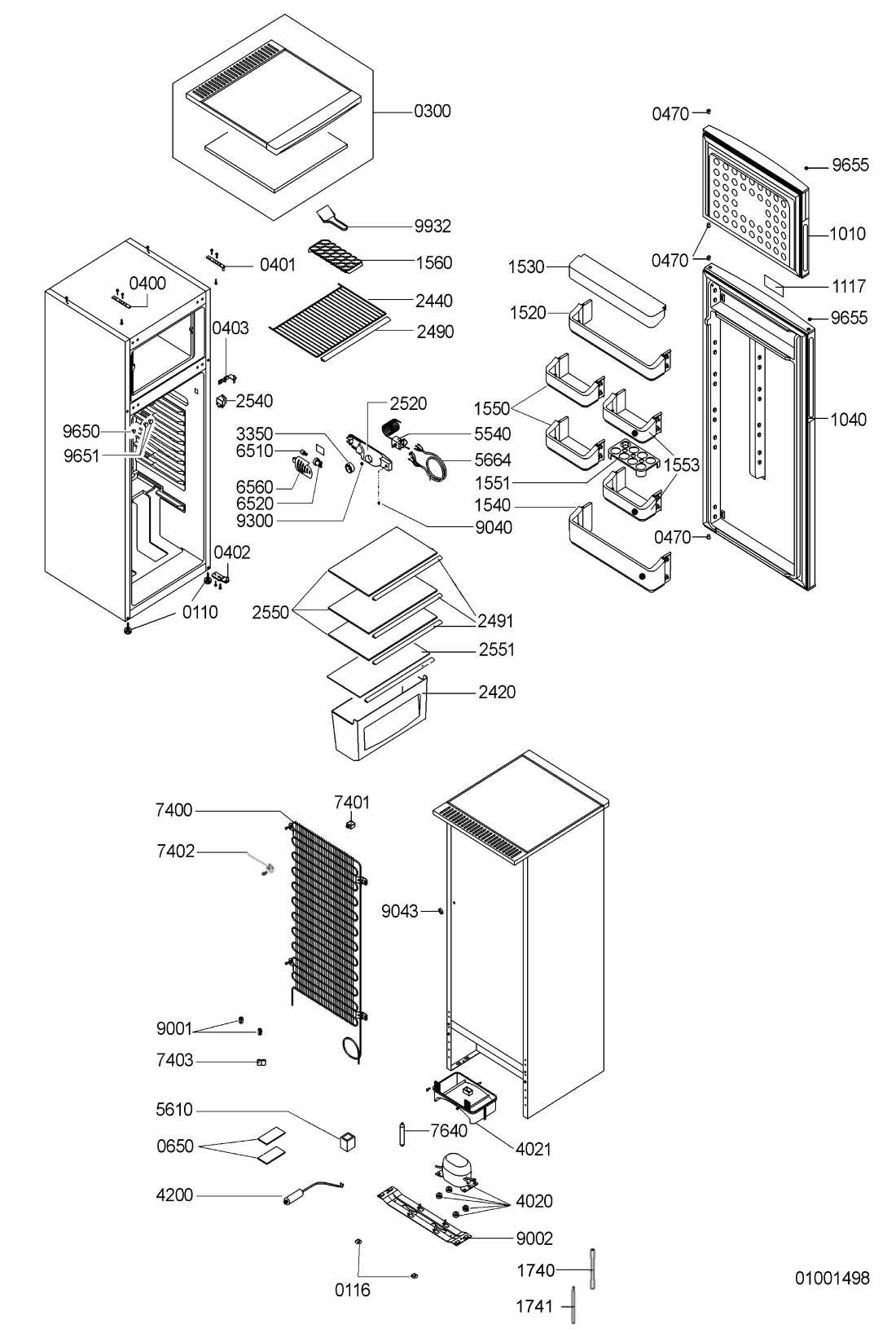

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR48195 |
C00330456
481246218273 |
noha nastavitelna | 211 Kč
€ 8.30 |
||
| 0116 WHR48195 |
C00330458
481246218283 |
Foot | Na dotaz | Zadat poptávku | |
| 0300 WHR48195 |
C00403180
481244011444 |
Table top | Na dotaz | Zadat poptávku | |
| 0400 WHR48195 |
C00329733
481241719314 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 0401 WHR48195 |
C00329732
481241719313 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 0402 WHR48195 |
C00316892
481241719328 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR48195 |
C00319860
481241719327 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0470 WHR48195 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 0650 WHR48195 |
C00330785
481246348012 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 1010 WHR48195 |
C00484908
481241619703 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR48195 |
C00484909
481241619704 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1117 WHR48195 |
C00319169
481245918241 |
Nameplate IGNIS | Na dotaz | Zadat poptávku | |
| 1520 WHR48195 |
C00489083
481241848774 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR48195 |
C00495078
481241828787 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 1540 WHR48195 |
C00513791
481241848775 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1550 WHR48195 |
C00491691
481241848777 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1551 WHR48195 |
C00636316
481241828788 |
Egg trim | Na dotaz | Zadat poptávku | |
| 1553 WHR48195 |
C00491690
481241848776 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1560 WHR48195 |
C00327693
481241828769 |
Ice maker | Na dotaz | Zadat poptávku | |
| 1740 WHR48195 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 1741 WHR48195 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 2420 WHR48195 |
C00489092
481241870004 |
Crisper | Na dotaz | Zadat poptávku | |
| 2440 WHR48195 |
C00330075
481245819294 |
Shelf freezer | Na dotaz | Zadat poptávku | |
| 2490 WHR48195 |
C00330308
481246049624 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 2491 WHR48195 |
C00330299
481246049598 |
lista kryci rostu | 590 Kč
€ 23.30 |
||
| 2520 WHR48195 |
C00328332
481244079158 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 2540 WHR48195 |
C00329453
481241279137 |
spinac | 810 Kč
€ 32.00 |
||
| 2550 WHR48195 |
C00374039
481245088359 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2551 WHR48195 |
C00485370
481245088297 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 3350 WHR48195 |
C00317787
481241458279 |
Knoflík termostatu | 206 Kč
€ 8.10 |
||
| 4020 WHR48195 |
C00527374
481236038962 |
Compressor HQY 90 AA | Na dotaz | Zadat poptávku | |
| 4021 WHR48195 |
C00327879
481241870005 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR48195 |
C00345713
481248028096 |
Capacitor 4#F/400V-M8 WIT | Na dotaz | Zadat poptávku | |
| 4900 WHR48195 |
C00513803
482000007766 |
Cable mains | Na dotaz | Zadat poptávku | |
| 4901 WHR48195 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 5540 WHR48195 |
C00312744
481228208657 |
termostat | 1 821 Kč
€ 71.90 |
||
| 5610 WHR48195 |
C00484671
481228268043 |
Protect motor | Na dotaz | Zadat poptávku | |
| 5664 WHR48195 |
C00328485
481232058171 |
Cable harness thermostat | Na dotaz | Zadat poptávku | |
| 6510 WHR48195 |
C00335149
482213488089 |
Žárovka T22 E14 15W do trouby | Na dotaz | Zadat poptávku | |
| 6520 WHR48195 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 6521 WHR48195 |
C00513139
481225568016 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 6560 WHR48195 |
C00330535
481246228694 |
kryt | 559 Kč
€ 22.10 |
||
| 7400 WHR48195 |
C00332247
481251148399 |
Condenser | Na dotaz | Zadat poptávku | |
| 7401 WHR48195 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 7402 WHR48195 |
C00329058
481240448976 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 7403 WHR48195 |
C00329065
481240448984 |
Bracket condenser | Na dotaz | Zadat poptávku | |
| 7640 WHR48195 |
C00405573
481252648251 |
Filter dryer | Na dotaz | Zadat poptávku | |
| 9000 WHR48195 |
C00402055
481240449788 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 9001 WHR48195 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 9002 WHR48195 |
C00330298
481246049588 |
Base compressor | Na dotaz | Zadat poptávku | |
| 9040 WHR48195 |
C00327204
481226278023 |
Cap | Na dotaz | Zadat poptávku | |
| 9043 WHR48195 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 9300 WHR48195 |
C00345850
481249258054 |
Knob thermostat spring | Na dotaz | Zadat poptávku | |
| 9650 WHR48195 |
C00330532
481246228675 |
Cap | Na dotaz | Zadat poptávku | |
| 9651 WHR48195 |
C00330554
481246228805 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 9655 WHR48195 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 4.80 |
||
| 9932 WHR48195 |
C00332756
481269028036 |
Swab | Na dotaz | Zadat poptávku | |
| 999 WHR48195 |
C00640691 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
