WHIRLPOOL DWF 007 DISHWASHERS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | DWF 007 DISHWASHERS |
| Kód 12NC: | 854500153710 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás

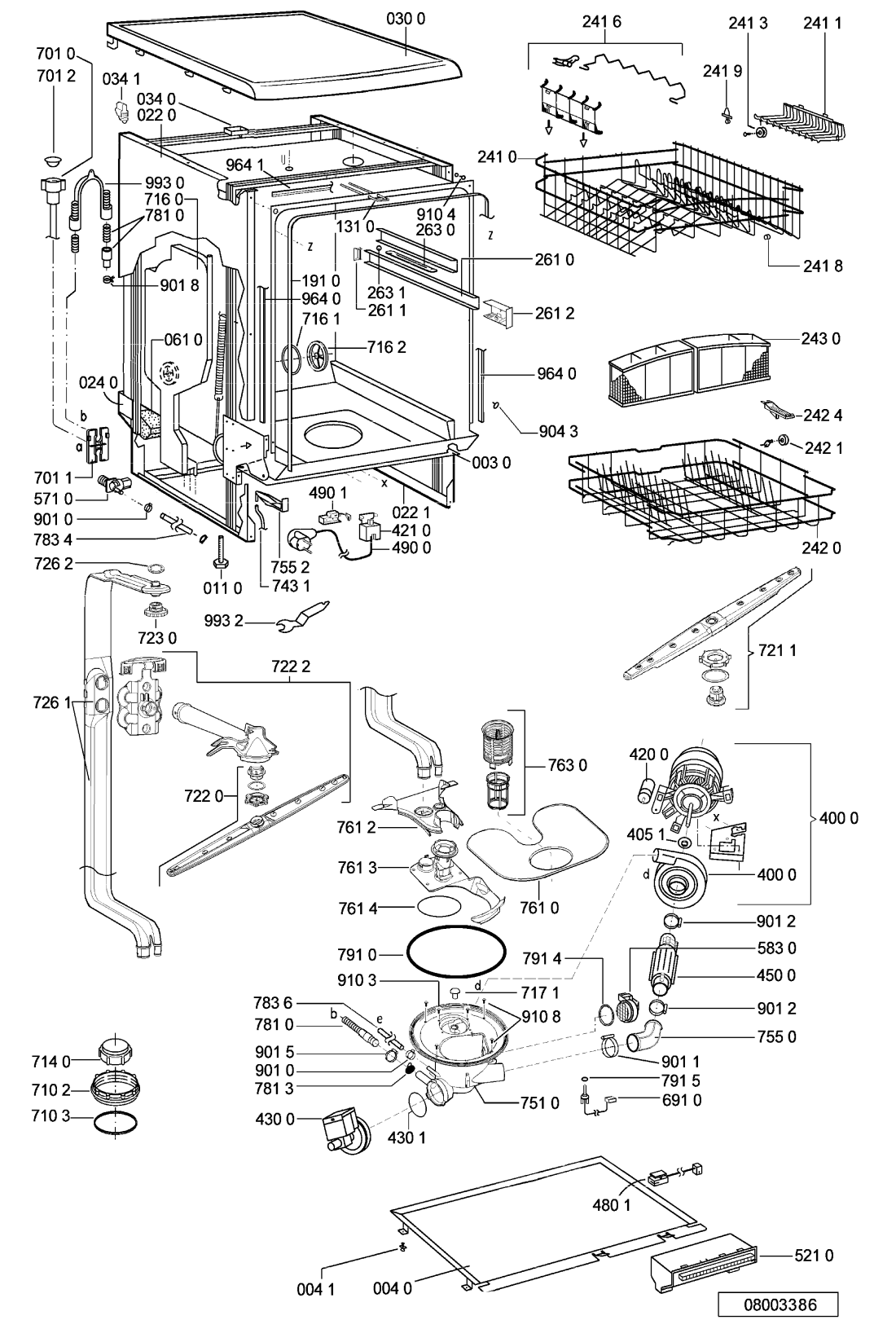

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR63750 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR63750 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR63750 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR63750 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR63750 |
C00327954
481244010755 |
stena bocni leva | 2 628 Kč
€ 103.80 |
||
| 022 1 WHR63750 |
C00327953
481244010754 |
stena bocni prava | 2 628 Kč
€ 103.80 |
||
| 030 0 WHR63750 |
C00314327
481231018917 |
deska horni mycky | 4 496 Kč
€ 177.50 |
||
| 034 0 WHR63750 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR63750 |
C00313535
481240478242 |
drzak desky horni | 671 Kč
€ 26.50 |
||
| 040 1 WHR63750 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR63750 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR63750 |
C00317957
481241719172 |
Protector f.door white SKIT | Na dotaz | Zadat poptávku | |
| 044 0 WHR63750 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 044 1 WHR63750 |
C00336089
481249238364 |
pruzina | 109 Kč
€ 4.30 |
||
| 047 0 WHR63750 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR63750 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR63750 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR63750 |
C00328390
481244089031 |
sokl mycky - plech | 847 Kč
€ 33.40 |
||
| 061 0 WHR63750 |
C00331004
481246688672 |
senzor hmotnosti | 1 632 Kč
€ 64.40 |
||
| 103 0 WHR63750 |
C00500524
481244010759 |
Door outer WH | Na dotaz | Zadat poptávku | |
| 120 0 WHR63750 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR63750 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR63750 |
C00335456
481241758361 |
Tilt lock cpl. wh | Na dotaz | Zadat poptávku | |
| 131 0 WHR63750 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 175 0 WHR63750 |
C00484685
481231018921 |
Trim ornamental left WH | Na dotaz | Zadat poptávku | |
| 175 1 WHR63750 |
C00527176
481231018919 |
Trim,ornamental right WH | Na dotaz | Zadat poptávku | |
| 175 2 WHR63750 |
C00527177
481231018922 |
Trim,ornamental lower WH | Na dotaz | Zadat poptávku | |
| 191 0 WHR63750 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR63750 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR63750 |
C00498279
481245819027 |
KOS NA RIAD HORNY KOV N | Na dotaz | Zadat poptávku | |
| 241 1 WHR63750 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR63750 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 6 WHR63750 |
C00319342
481231018757 |
Držák skleniček WGH1000 | 1 293 Kč
€ 51.00 |
||
| 241 8 WHR63750 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 241 9 WHR63750 |
C00317116
481252888101 |
drzak kolecka kompl. náhrada 481252888117 | Na dotaz | Zadat poptávku | |
| 242 0 WHR63750 |
C00313639
481231028134 |
Basket lower KIT wh | Na dotaz | Zadat poptávku | |
| 242 1 WHR63750 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR63750 |
C00330894
481246648091 |
Fixation grgr | Na dotaz | Zadat poptávku | |
| 243 0 WHR63750 |
C00315811
481245818272 |
Basket cutlery cutlery | Na dotaz | Zadat poptávku | |
| 261 0 WHR63750 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR63750 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR63750 |
C00330752
481246279832 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR63750 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR63750 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 301 0 WHR63750 |
C00588794
481245372361 |
Control panel WH. | Na dotaz | Zadat poptávku | |
| 303 1 WHR63750 |
C00490038
481246038141 |
Plate,handle WH | Na dotaz | Zadat poptávku | |
| 305 0 WHR63750 |
C00587560
481244010769 |
Batten WH. | Na dotaz | Zadat poptávku | |
| 331 0 WHR63750 |
C00587551
481241359141 |
Knob program cpl. WH. | Na dotaz | Zadat poptávku | |
| 332 0 WHR63750 |
C00587536
481241029037 |
Push button cap WH. | Na dotaz | Zadat poptávku | |
| 350 0 WHR63750 |
C00531504
481931039836 |
Display board (DB) KIT (DB) KIT | Na dotaz | Zadat poptávku | |
| 351 1 WHR63750 |
C00497541
481238128019 |
Guide,light | Na dotaz | Zadat poptávku | |
| 400 0 WHR63750 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 405 1 WHR63750 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 421 0 WHR63750 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR63750 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR63750 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR63750 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR63750 |
C00343758
481232128408 |
Cable harnessset | Na dotaz | Zadat poptávku | |
| 480 1 WHR63750 |
C00343881
481232128371 |
vodic spojovaci | 581 Kč
€ 22.90 |
||
| 480 2 WHR63750 |
C00493174
481232128383 |
VODIČ 6 POLOVY | 399 Kč
€ 15.80 |
||
| 480 3 WHR63750 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR63750 |
C00493118
481232118051 |
Cable mains | Na dotaz | Zadat poptávku | |
| 490 1 WHR63750 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR63750 |
C00588480
481221479152 |
Control board (CB). | Na dotaz | Zadat poptávku | |
| 571 0 WHR63750 |
C00312837
481228128379 |
Valve inlet inlet | Na dotaz | Zadat poptávku | |
| 583 0 WHR63750 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 620 0 WHR63750 |
C00337325
481221838071 |
User board (UB) | Na dotaz | Zadat poptávku | |
| 633 0 WHR63750 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR63750 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR63750 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR63750 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR63750 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR63750 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR63750 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR63750 |
C00309500
481953028928 |
hadice napousteci | Na dotaz | Zadat poptávku | |
| 701 0 WHR63750 |
C00339221
481253028082 |
Hose, inlet 3/8Z cpl. | Na dotaz | Zadat poptávku | |
| 701 0 WHR63750 |
C00498607
481253028081 |
HADICA | Na dotaz | Zadat poptávku | |
| 701 1 WHR63750 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR63750 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 2 WHR63750 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR63750 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR63750 |
C00491934
481246278012 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 716 0 WHR63750 |
C00587556
481241868142 |
REG.DOSAGE. | Na dotaz | Zadat poptávku | |
| 716 1 WHR63750 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR63750 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 1 WHR63750 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 721 1 WHR63750 |
C00311729
481236068347 |
Spray arm lower. cpl. | Na dotaz | Zadat poptávku | |
| 722 0 WHR63750 |
C00497514
481236068348 |
RAMENO STRIEKIACIE PLAST N | Na dotaz | Zadat poptávku | |
| 722 2 WHR63750 |
C00312995
481236068349 |
Spray arm 2nd level cp sub 481010555121 | Na dotaz | Zadat poptávku | |
| 723 0 WHR63750 |
C00318248
481236068351 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR63750 |
C00314298
481253029118 |
Tube assembly cpl. SUB 481253029331 | Na dotaz | Zadat poptávku | |
| 726 2 WHR63750 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR63750 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR63750 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR63750 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR63750 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 761 0 WHR63750 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR63750 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR63750 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR63750 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR63750 |
C00345765
481248058123 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR63750 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR63750 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR63750 |
C00493702
481253028904 |
Hose 10x3x265+10 | Na dotaz | Zadat poptávku | |
| 783 6 WHR63750 |
C00345185
481253028824 |
Hose 10,3X3X245 | Na dotaz | Zadat poptávku | |
| 791 0 WHR63750 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 4 WHR63750 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR63750 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 901 0 WHR63750 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR63750 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR63750 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR63750 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 904 3 WHR63750 |
C00330743
481246279636 |
krytka | 42 Kč
€ 1.70 |
||
| 904 4 WHR63750 |
C00319579
481246279659 |
THREADED CAP | 378 Kč
€ 14.90 |
||
| 910 1 WHR63750 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 910 2 WHR63750 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR63750 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 4 WHR63750 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR63750 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR63750 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR63750 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 9 WHR63750 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 911 0 WHR63750 |
C00620454
481250238148 |
SKRUTKA 3,5X9,5 N | Na dotaz | Zadat poptávku | |
| 964 0 WHR63750 |
C00330910
481246668536 |
Gasket housing ri/lehousing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR63750 |
C00330908
481246668469 |
tesneni skrine horni | 372 Kč
€ 14.70 |
||
| 993 0 WHR63750 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
