BAUKNECHT ECSK9 P845 PT
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ECSK9 P845 PT |
| Kód 12NC: | 859991563690 |
| I.C. kód: | 759991563690 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 759991563692, 759991563694 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

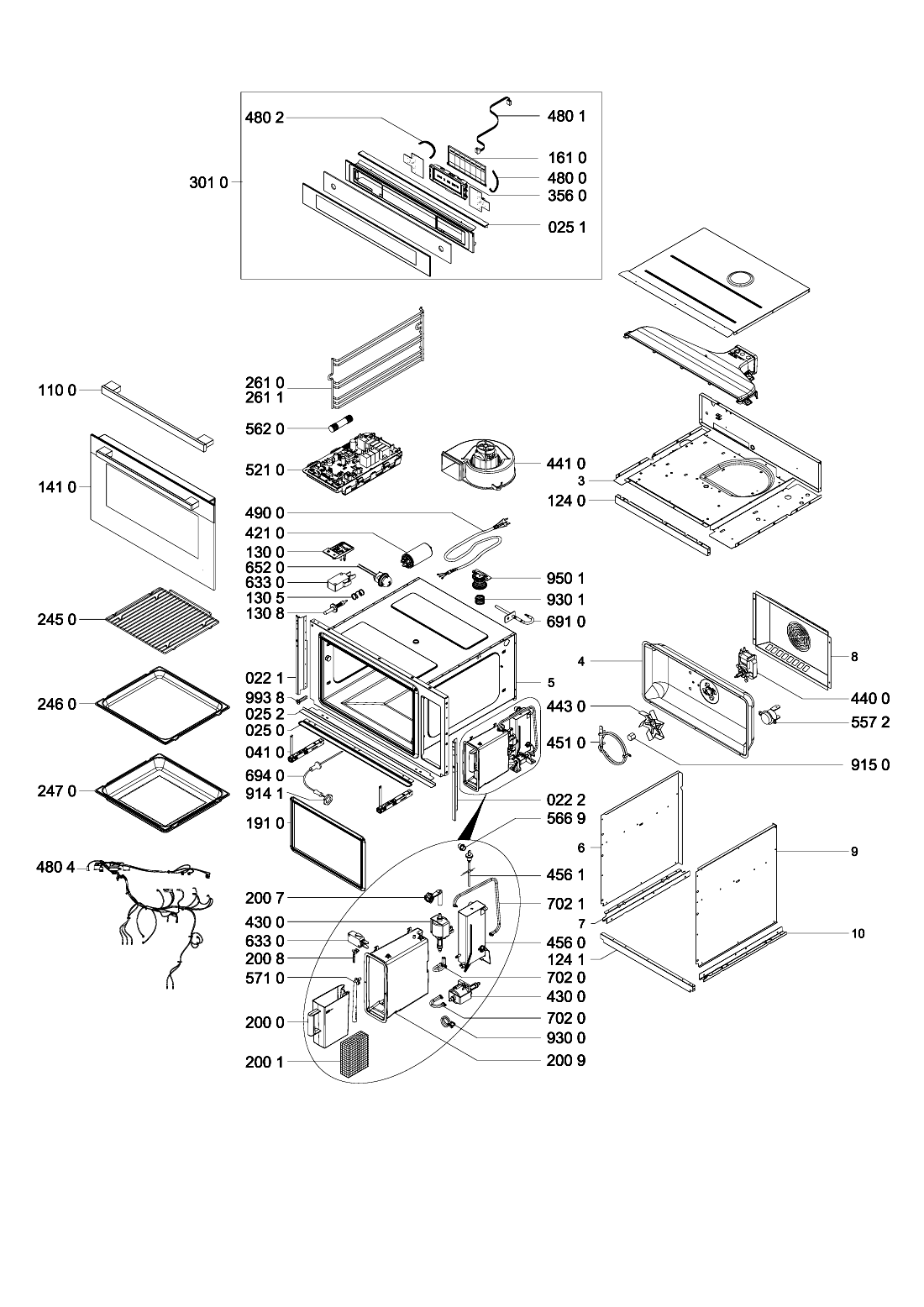

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 91560660 |
C00321529
480123100299 |
Trim lateral left | Na dotaz | Zadat poptávku | |
| 0222 91560660 |
C00321528
480123100298 |
Trim lateral right | Na dotaz | Zadat poptávku | |
| 0250 91560660 |
C00383077
481068972371 |
Trim Shelf BL SAUNA | Na dotaz | Zadat poptávku | |
| 0251 91560660 |
C00507293
481010914742 |
Lišta nad ovládací panel trouby | 1 118 Kč
€ 44.10 |
||
| 0252 91560660 |
C00321732
480120101582 |
Lišta spodní | 725 Kč
€ 28.60 |
||
| 0410 91560660 |
C00332138
481250218782 |
Screw | 386 Kč
€ 15.20 |
||
| 0410 91560660 |
C00321534
480123100306 |
Hinge door | Na dotaz | Zadat poptávku | |
| 1100 91560660 |
C00385939
481010817197 |
Door handle assembly | Na dotaz | Zadat poptávku | |
| 1240 91560660 |
C00321530
480123100301 |
Vapour catcher (FRONT EXTENSION BOTTOM) | Na dotaz | Zadat poptávku | |
| 1241 91560660 |
C00382862
481068973691 |
Grid VENT 450 SAUNA | Na dotaz | Zadat poptávku | |
| 1300 91560660 |
C00321524
480123100293 |
Bracket door switch | Na dotaz | Zadat poptávku | |
| 1305 91560660 |
C00322402
480121104016 |
Spring | Na dotaz | Zadat poptávku | |
| 1308 91560660 |
C00321525
480123100294 |
Pin door switch | Na dotaz | Zadat poptávku | |
| 1410 91560660 |
C00624412
488000624412 |
DOOR ASSY SAUNA BK CLASS 9 | Na dotaz | Zadat poptávku | |
| 1610 91560660 |
C00535736
488000535736 |
Cover of electric | Na dotaz | Zadat poptávku | |
| 1910 91560660 |
C00322280
480121103392 |
Těsnění dveří trouby | 2 798 Kč
€ 110.50 |
||
| 2000 91560660 |
C00321517
480123100285 |
Nádoba na vodu | 2 235 Kč
€ 88.20 |
||
| 2001 91560660 |
C00322441
480121104258 |
Sponge not shown | Na dotaz | Zadat poptávku | |
| 2007 91560660 |
C00321520
480123100288 |
Tube connection Sauna | Na dotaz | Zadat poptávku | |
| 2008 91560660 |
C00321518
480123100286 |
Sensor water | Na dotaz | Zadat poptávku | |
| 2009 91560660 |
C00321519
480123100287 |
Guide water tank | Na dotaz | Zadat poptávku | |
| 2009 91560660 |
C00535924
488000535924 |
TAPE HOLDER SAUNA | Na dotaz | Zadat poptávku | |
| 2450 91560660 |
C00325224
481010558232 |
Rošt trouby | 2 432 Kč
€ 96.00 |
||
| 2460 91560660 |
C00325222
481010558224 |
plech mělký SAUNA W | 1 997 Kč
€ 78.80 |
||
| 2470 91560660 |
C00325223
481010558226 |
Plech - perforovaný | 3 081 Kč
€ 121.60 |
||
| 2610 91560660 |
C00321516
480123100284 |
Insert grid left | Na dotaz | Zadat poptávku | |
| 2611 91560660 |
C00321515
480123100283 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3010 91560660 |
C00623705
488000623705 |
PANEL ASSY TOURMALINE BK SAUNA | Na dotaz | Zadat poptávku | |
| 3010 91560660 |
C00664019
488000664019 |
PANEL ASSY TOURMALINE BK SAUNA | Na dotaz | Zadat poptávku | |
| 3560 91560660 |
C00623706
488000623706 |
DISPLAY TOURMALINE - BK - BIO - WAVE 2 | Na dotaz | Zadat poptávku | |
| 3560 91560660 |
C00665809
488000665809 |
DISPLAY TOURMALINE BK OTA3 BIO - WAVE 2 | Na dotaz | Zadat poptávku | |
| 4210 91560660 |
C00316062
481212208003 |
Filtr odrušovací | 1 456 Kč
€ 57.50 |
||
| 4300 91560660 |
C00325511
481068979381 |
Pump KIT 22W 230V/50Hz | Na dotaz | Zadat poptávku | |
| 4400 91560660 |
C00313819
480120100529 |
motor ventilátoru horkovzduchu mikrovlnné trouby | 1 517 Kč
€ 59.90 |
||
| 4410 91560660 |
C00386906
481068974051 |
Motor fan SAUNA | Na dotaz | Zadat poptávku | |
| 4430 91560660 |
C00321514
480123100282 |
Vrtule ventilátoru | 579 Kč
€ 22.90 |
||
| 4510 91560660 |
C00321573
480120100773 |
Topení horkovduchu 1400W/230V | 2 484 Kč
€ 98.10 |
||
| 4560 91560660 |
C00624407
488000624407 |
STEAM GENERATOR | Na dotaz | Zadat poptávku | |
| 4561 91560660 |
C00382920
481067015221 |
Water level Probe SAUNA | Na dotaz | Zadat poptávku | |
| 4800 91560660 |
C00535734
488000535734 |
WIRING LEFT long GEBL | Na dotaz | Zadat poptávku | |
| 4801 91560660 |
C00535737
488000535737 |
KABELÁŽ BOARD-ADA GEBLTourmaline BBG GEB | Na dotaz | Zadat poptávku | |
| 4802 91560660 |
C00535735
488000535735 |
WIRING right short GEBL | Na dotaz | Zadat poptávku | |
| 4804 91560660 |
C00533701
488000533701 |
KABELÁŽ CPL. SAUNA GEBL | Na dotaz | Zadat poptávku | |
| 4900 91560660 |
C00322277
480121103383 |
Cable mains SA | Na dotaz | Zadat poptávku | |
| 5210 91560660 |
C00540897
488000540897 |
KARTA SILOVÁ BABBAGE 859991563690 | Na dotaz | Zadat poptávku | |
| 5572 91560660 |
C00522554
481928248245 |
termostat 145 C | 116 Kč
€ 4.60 |
||
| 5620 91560660 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 5669 91560660 |
C00321523
480123100292 |
Gasket diffusor outlet | Na dotaz | Zadat poptávku | |
| 5710 91560660 |
C00321521
480123100289 |
Pipe water Sauna | Na dotaz | Zadat poptávku | |
| 6330 91560660 |
C00314456
480120100814 |
Mikrospínač | 236 Kč
€ 9.30 |
||
| 6520 91560660 |
C00535447
488000535447 |
Osvětlení trouby komplet | 847 Kč
€ 33.40 |
||
| 6910 91560660 |
C00316169
480121103384 |
Sensor cavity | Na dotaz | Zadat poptávku | |
| 6940 91560660 |
C00324395
481010460414 |
Jack FOOD, SAUNA | Na dotaz | Zadat poptávku | |
| 7020 91560660 |
C00325481
481067700841 |
Tube silicon | Na dotaz | Zadat poptávku | |
| 7021 91560660 |
C00321522
480123100291 |
Tube silicon | Na dotaz | Zadat poptávku | |
| 9141 91560660 |
C00537863
488000537863 |
Nut Meat Probe | Na dotaz | Zadat poptávku | |
| 9150 91560660 |
C00506965
481011101380 |
Nut Motor FC | Na dotaz | Zadat poptávku | |
| 9300 91560660 |
C00382923
481071300007 |
Clamp FZB 9.8x10.4 MATTSSONS not shown | Na dotaz | Zadat poptávku | |
| 9301 91560660 |
C00321527
480123100297 |
Spring airflow | Na dotaz | Zadat poptávku | |
| 9500 91560660 |
C00382860
481067753901 |
Bushing FC MOTOR AXEL SAUNA | Na dotaz | Zadat poptávku | |
| 9501 91560660 |
C00321526
480123100296 |
Gasket airflow | Na dotaz | Zadat poptávku | |
| 9938 91560660 |
C00321607
480120100882 |
KIT MOUNTING NOT SHOWN | Na dotaz | Zadat poptávku | |
