BAUKNECHT EMHP 4466/AL OVENS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | EMHP 4466/AL OVENS BK |
| Kód 12NC: | 857427001070 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

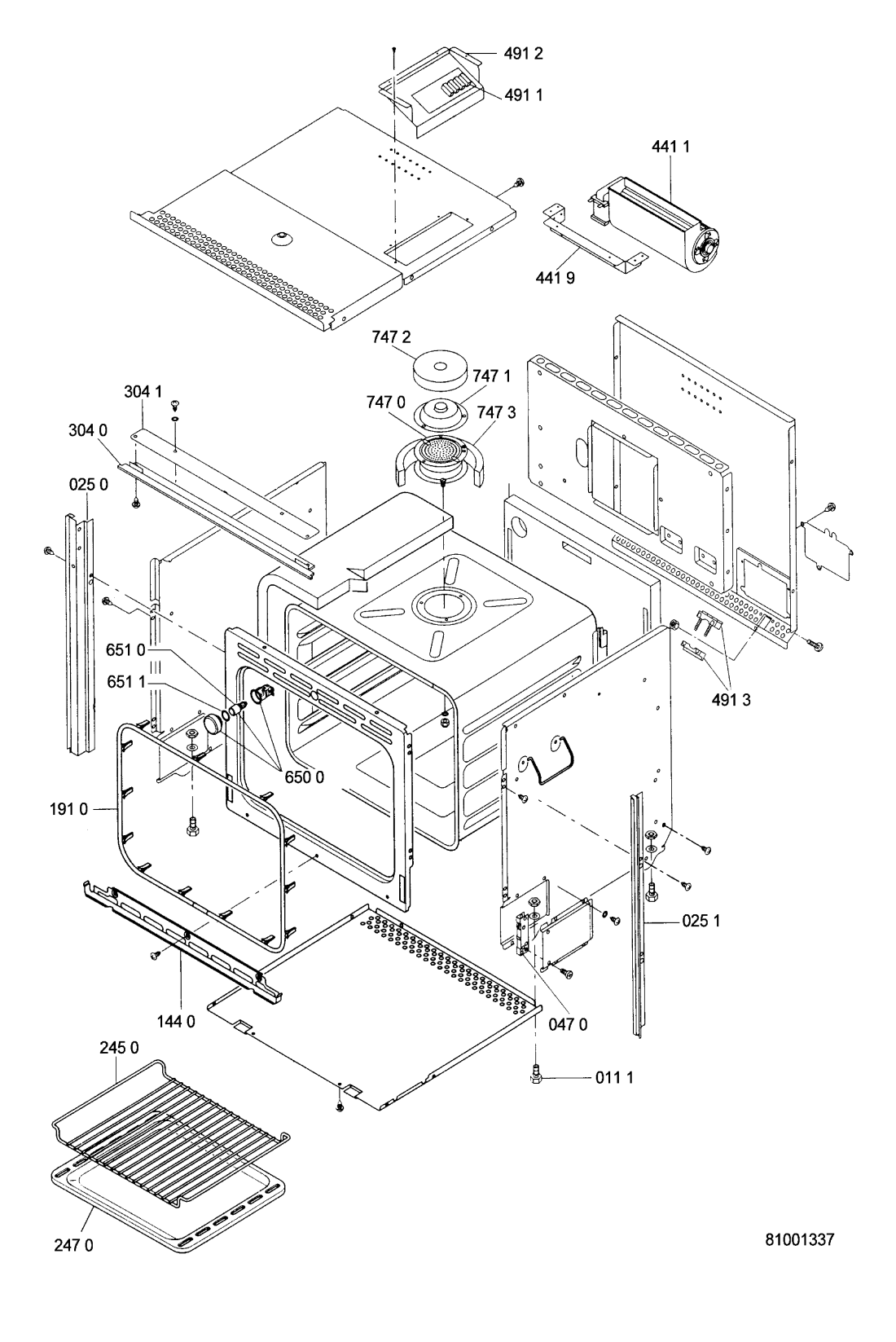

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 1 WHR83122 |
C00596794
481950218509 |
Screw ,foot. | Na dotaz | Zadat poptávku | |
| 025 0 WHR83122 |
C00335207
481946089136 |
Trim side left | Na dotaz | Zadat poptávku | |
| 025 1 WHR83122 |
C00337491
481946089137 |
Trim side right | Na dotaz | Zadat poptávku | |
| 040 0 WHR83122 |
C00500289
481941719327 |
HINGE | Na dotaz | Zadat poptávku | |
| 047 0 WHR83122 |
C00499100
481941719328 |
GUIDE | Na dotaz | Zadat poptávku | |
| 065 0 WHR83122 |
C00336916
481945928399 |
REFLECTOR | Na dotaz | Zadat poptávku | |
| 065 5 WHR83122 |
C00498916
481931039281 |
Panel insulatin | Na dotaz | Zadat poptávku | |
| 110 0 WHR83122 |
C00529820
481249858199 |
Handle (AL) | Na dotaz | Zadat poptávku | |
| 110 2 WHR83122 |
C00582867
481940479499 |
Bracket door handle. | Na dotaz | Zadat poptávku | |
| 110 5 WHR83122 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR83122 |
C00596548
481244058181 |
DOOR,INNER. | Na dotaz | Zadat poptávku | |
| 124 0 WHR83122 |
C00582972
481946689107 |
Air guide | Na dotaz | Zadat poptávku | |
| 141 0 WHR83122 |
C00528290
481245058699 |
Oven door outer (AL) | Na dotaz | Zadat poptávku | |
| 142 0 WHR83122 |
C00338934
481945069623 |
INNER GLASS | Na dotaz | Zadat poptávku | |
| 143 5 WHR83122 |
C00336220
481946699066 |
SPACER | Na dotaz | Zadat poptávku | |
| 144 0 WHR83122 |
C00337536
481946089138 |
PROFILE | Na dotaz | Zadat poptávku | |
| 191 0 WHR83122 |
C00499485
481946818193 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 0 WHR83122 |
C00499435
481946669963 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 1 WHR83122 |
C00340600
481946818348 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR83122 |
C00596547
481244058179 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 204 0 WHR83122 |
C00336917
481944238137 |
REFLECTOR | Na dotaz | Zadat poptávku | |
| 245 0 WHR83122 |
C00499273
481945819941 |
GRID | Na dotaz | Zadat poptávku | |
| 247 0 WHR83122 |
C00596540
481241838046 |
FAT PAN. | Na dotaz | Zadat poptávku | |
| 301 0 WHR83122 |
C00582722
481245248156 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 304 0 WHR83122 |
C00582950
481946089139 |
PROFILE. | Na dotaz | Zadat poptávku | |
| 304 1 WHR83122 |
C00582948
481946078376 |
TRIM. | Na dotaz | Zadat poptávku | |
| 320 0 WHR83122 |
C00529071
481245359693 |
Control panel mirror glass (AL) | Na dotaz | Zadat poptávku | |
| 331 0 WHR83122 |
C00596510
481241128855 |
Knob aluminium with index. | Na dotaz | Zadat poptávku | |
| 331 1 WHR83122 |
C00596511
481241128856 |
Knob aluminium without index. | Na dotaz | Zadat poptávku | |
| 331 9 WHR83122 |
C00596600
481249258029 |
SPRING. | Na dotaz | Zadat poptávku | |
| 332 0 WHR83122 |
C00555179
481241278682 |
Knob.. | Na dotaz | Zadat poptávku | |
| 341 0 WHR83122 |
C00596528
481241378513 |
INDICATION DISC. | Na dotaz | Zadat poptávku | |
| 341 1 WHR83122 |
C00596526
481241378511 |
INDICATION DISC. | Na dotaz | Zadat poptávku | |
| 341 2 WHR83122 |
C00596527
481241378512 |
INDICATION DISC. | Na dotaz | Zadat poptávku | |
| 352 0 WHR83122 |
C00342150
481213038707 |
Display board SMC E22E/E30S - GN | Na dotaz | Zadat poptávku | |
| 352 1 WHR83122 |
C00529579
481245988005 |
BRACKET display | Na dotaz | Zadat poptávku | |
| 400 0 WHR83122 |
C00490401
481936158282 |
Motor door latch | Na dotaz | Zadat poptávku | |
| 440 0 WHR83122 |
C00498964
481936118335 |
Fan oven | Na dotaz | Zadat poptávku | |
| 441 0 WHR83122 |
C00497528
481236118298 |
Air cooling fan oven | Na dotaz | Zadat poptávku | |
| 441 1 WHR83122 |
C00596467
481236118299 |
Air cooling fan hob. | Na dotaz | Zadat poptávku | |
| 441 9 WHR83122 |
C00596480
481240478294 |
FASTENER. | Na dotaz | Zadat poptávku | |
| 451 0 WHR83122 |
C00582597
481225998293 |
Heating element forced-air 2000 W. | Na dotaz | Zadat poptávku | |
| 452 0 WHR83122 |
C00383112
481225928706 |
Heating element upper 2400 W | Na dotaz | Zadat poptávku | |
| 452 1 WHR83122 |
C00335927
481940478647 |
Support | Na dotaz | Zadat poptávku | |
| 456 0 WHR83122 |
C00582592
481225928754 |
Heating element lower 2100 W. | Na dotaz | Zadat poptávku | |
| 491 0 WHR83122 |
C00620518
481929068174 |
svorkovnice | 307 Kč
€ 12.10 |
||
| 491 1 WHR83122 |
C00596448
481229068185 |
TERMINAL STRIP. | Na dotaz | Zadat poptávku | |
| 491 2 WHR83122 |
C00596479
481240478293 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 491 3 WHR83122 |
C00498989
481940118696 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR83122 |
C00596439
481221478408 |
Unit control Gemini 2. | Na dotaz | Zadat poptávku | |
| 521 0 WHR83122 |
C00526844
481221478402 |
CONTROL UNIT Capricorn | Na dotaz | Zadat poptávku | |
| 522 0 WHR83122 |
C00526840
481221478323 |
CONTROL UNIT hob | Na dotaz | Zadat poptávku | |
| 564 0 WHR83122 |
C00498889
481928248252 |
SAFETY THERMOS. | Na dotaz | Zadat poptávku | |
| 564 1 WHR83122 |
C00344265
481240478382 |
Bracket | Na dotaz | Zadat poptávku | |
| 630 0 WHR83122 |
C00490614
481941758155 |
LEVER | Na dotaz | Zadat poptávku | |
| 630 1 WHR83122 |
C00582866
481940479498 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 633 0 WHR83122 |
C00498845
481927138283 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 650 0 WHR83122 |
C00373418
481913488164 |
LAMP,OVEN | Na dotaz | Zadat poptávku | |
| 651 0 WHR83122 |
C00341808
481913488191 |
LAMP15W 230V | Na dotaz | Zadat poptávku | |
| 651 1 WHR83122 |
C00340601
481946818019 |
Gasket | Na dotaz | Zadat poptávku | |
| 691 0 WHR83122 |
C00582584
481221058002 |
Feeler temperature. | Na dotaz | Zadat poptávku | |
| 743 0 WHR83122 |
C00497966
481244038817 |
CONVEYOR | Na dotaz | Zadat poptávku | |
| 743 9 WHR83122 |
C00499634
481953598667 |
Pin fixing cooling channel | Na dotaz | Zadat poptávku | |
| 747 0 WHR83122 |
C00499181
481944239414 |
CATALYSATOR | Na dotaz | Zadat poptávku | |
| 747 1 WHR83122 |
C00499377
481946258191 |
COVER | Na dotaz | Zadat poptávku | |
| 747 2 WHR83122 |
C00498943
481932528028 |
INSULATION | Na dotaz | Zadat poptávku | |
| 747 3 WHR83122 |
C00498942
481932528027 |
INSULATION | Na dotaz | Zadat poptávku | |
| 900 0 WHR83122 |
C00336083
481949268871 |
Spring fixing cooling channel | Na dotaz | Zadat poptávku | |
| 900 1 WHR83122 |
C00336135
481949268772 |
SPRING | Na dotaz | Zadat poptávku | |
| 904 0 WHR83122 |
C00583018
481953598668 |
Pin locking door. | Na dotaz | Zadat poptávku | |
| 910 9 WHR83122 |
C00582999
481950218503 |
SCREW. | Na dotaz | Zadat poptávku | |
| 930 0 WHR83122 |
C00582991
481949268869 |
SPRING. | Na dotaz | Zadat poptávku | |
| 950 0 WHR83122 |
C00529698
481246258064 |
Gasket covering screw | Na dotaz | Zadat poptávku | |
| 962 0 WHR83122 |
C00499458
481946689458 |
Cover glass | Na dotaz | Zadat poptávku | |
