BAUKNECHT EMZA3483/BR
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | EMZA3483/BR |
| Kód 12NC: | 857480601040 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

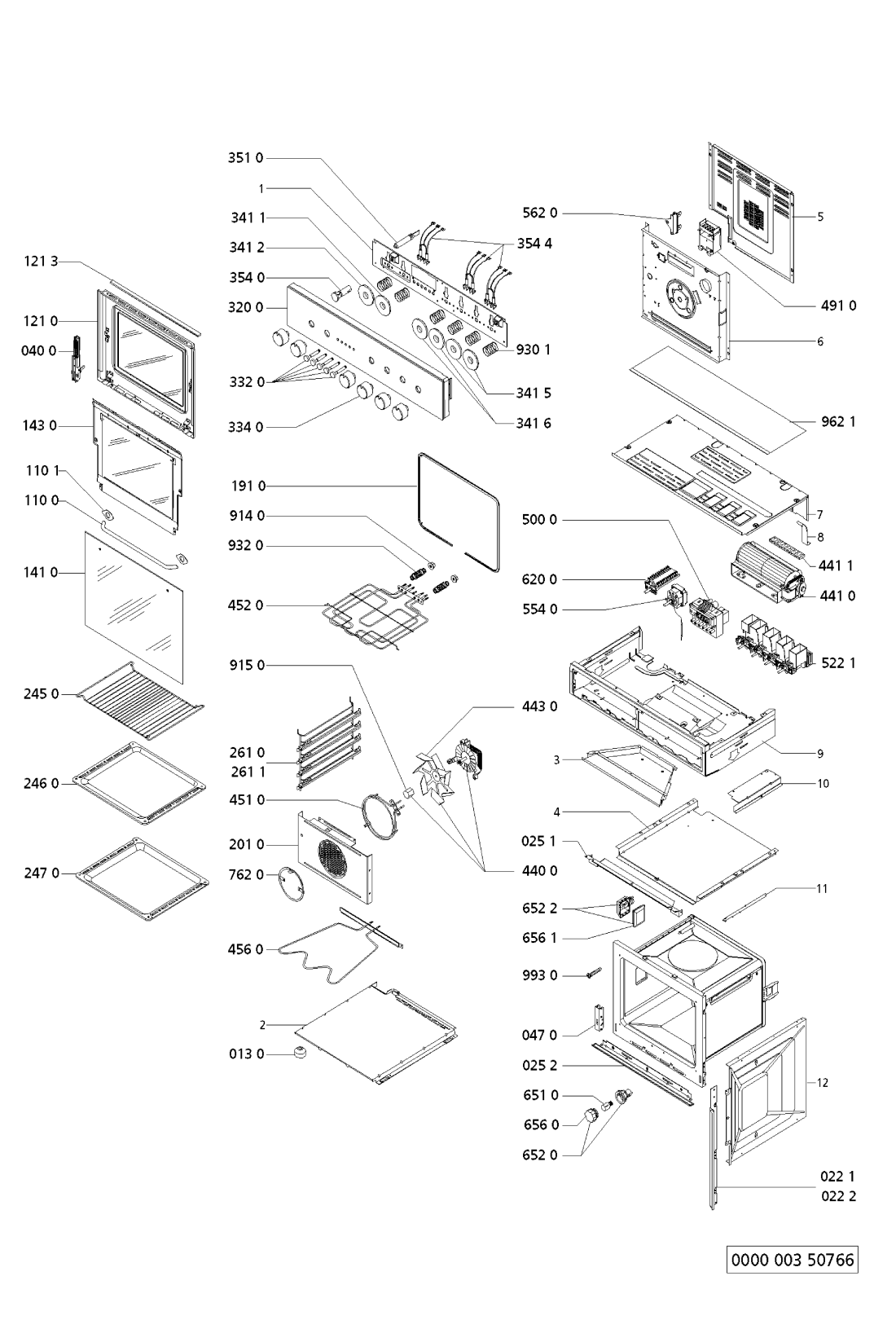

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 013 0 WHR103103 |
C00591988
481946689287 |
Spacer. | Na dotaz | Zadat poptávku | |
| 022 1 WHR103103 |
C00335198
481946078458 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR103103 |
C00337483
481946078457 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR103103 |
C00335219
481946078628 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR103103 |
C00335289
481946089443 |
lista odvodu vody | 337 Kč
€ 13.30 |
||
| 040 0 WHR103103 |
C00339881
481941719458 |
HINGE | Na dotaz | Zadat poptávku | |
| 047 0 WHR103103 |
C00313848
481946689197 |
Hinge running mechanism | Na dotaz | Zadat poptávku | |
| 110 0 WHR103103 |
C00598334
481949878212 |
HANDLE. | Na dotaz | Zadat poptávku | |
| 110 1 WHR103103 |
C00333076
481946248456 |
Rubber ringring | Na dotaz | Zadat poptávku | |
| 121 0 WHR103103 |
C00318083
481944238333 |
Oven door inner | Na dotaz | Zadat poptávku | |
| 121 3 WHR103103 |
C00315286
481946089431 |
Lišta vnitřní části dveří | 441 Kč
€ 17.40 |
||
| 141 0 WHR103103 |
C00754620
481945058162 |
Oven glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR103103 |
C00499311
481945928301 |
ram stredni + sklo | 2 947 Kč
€ 116.30 |
||
| 191 0 WHR103103 |
C00311333
481946818109 |
Těsnění dveří vestavné trouby Whirlpool AKP 681/IX, AKP 712/IX, AKP 762/IX. | 411 Kč
€ 16.20 |
||
| 201 0 WHR103103 |
C00337802
481944238093 |
Plate | Na dotaz | Zadat poptávku | |
| 245 0 WHR103103 |
C00333048
481945819991 |
Oven grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR103103 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR103103 |
C00382943
481941838367 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR103103 |
C00591967
481945858568 |
Inset grid left. | Na dotaz | Zadat poptávku | |
| 261 1 WHR103103 |
C00591968
481945858569 |
Inset grid right. | Na dotaz | Zadat poptávku | |
| 320 0 WHR103103 |
C00756663
481945358668 |
Control panel | Na dotaz | Zadat poptávku | |
| 332 0 WHR103103 |
C00373376
481941028738 |
BUTTON,PUSH | Na dotaz | Zadat poptávku | |
| 334 0 WHR103103 |
C00598206
481941129209 |
Knob. | Na dotaz | Zadat poptávku | |
| 341 1 WHR103103 |
C00490523
481941379042 |
Indication disc thermostat | Na dotaz | Zadat poptávku | |
| 341 2 WHR103103 |
C00490522
481941379041 |
Indication disc selector | Na dotaz | Zadat poptávku | |
| 341 5 WHR103103 |
C00591916
481941379039 |
Indication disc energy regulator. | Na dotaz | Zadat poptávku | |
| 341 6 WHR103103 |
C00591917
481941379043 |
Indication disc energy regulator. | Na dotaz | Zadat poptávku | |
| 351 0 WHR103103 |
C00497246
481213448021 |
ZIAROVKA SIGN?LNA AKP724 *** N | Na dotaz | Zadat poptávku | |
| 354 0 WHR103103 |
C00341774
481938118076 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 4 WHR103103 |
C00378001
481913488188 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 440 0 WHR103103 |
C00313957
481936178242 |
Motor | Na dotaz | Zadat poptávku | |
| 441 0 WHR103103 |
C00341675
481936118427 |
MOTOR COOLING FAN | Na dotaz | Zadat poptávku | |
| 441 1 WHR103103 |
C00318948
481946818099 |
tesneni ventilatoru | 401 Kč
€ 15.80 |
||
| 443 0 WHR103103 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR103103 |
C00555736
481925928822 |
NAHRADENE 481225998406 | Na dotaz | Zadat poptávku | |
| 452 0 WHR103103 |
C00481320
481925928838 |
Topné těleso trouby – horní + gril 3018W | 1 531 Kč
€ 60.40 |
||
| 456 0 WHR103103 |
C00344922
481925928948 |
Topné těleso trouby - spodní Whirlpool 1150W | 382 Kč
€ 15.10 |
||
| 491 0 WHR103103 |
C00555820
481929068364 |
NAHRADENE 481229068166 N | Na dotaz | Zadat poptávku | |
| 500 0 WHR103103 |
C00498881
481928218726 |
NO LONGER AVAILABLE | Na dotaz | Zadat poptávku | |
| 522 1 WHR103103 |
C00756667
481927328468 |
Energy Regulat. | Na dotaz | Zadat poptávku | |
| 554 0 WHR103103 |
C00591873
481928248291 |
Thermostat. | Na dotaz | Zadat poptávku | |
| 562 0 WHR103103 |
C00335569
481925228078 |
pojistka tepelna 167 | 1 063 Kč
€ 42.00 |
||
| 620 0 WHR103103 |
C00587847
481927328415 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103103 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR103103 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 652 2 WHR103103 |
C00591864
481925518227 |
DRZIAK ZIAROVKY | Na dotaz | Zadat poptávku | |
| 656 0 WHR103103 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 656 1 WHR103103 |
C00492385
481945069876 |
Pane | Na dotaz | Zadat poptávku | |
| 762 0 WHR103103 |
C00380264
481948048329 |
FILTER | Na dotaz | Zadat poptávku | |
| 914 0 WHR103103 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR103103 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 1 WHR103103 |
C00333190
481949268812 |
Spring | Na dotaz | Zadat poptávku | |
| 932 0 WHR103103 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 962 1 WHR103103 |
C00620606
481931039342 |
kryt monobloku-vyřazeno | Na dotaz | Zadat poptávku | |
| 993 0 WHR103103 |
C00344663
481931039036 |
Accessory fitting | Na dotaz | Zadat poptávku | |
