BAUKNECHT ESTM 9145 PT
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ESTM 9145 PT |
| Kód 12NC: | 858919716710 |
| I.C. kód: | 858919716711 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 858919701711, 858919701712, 858919716712 |
Potřebujete servis? Jsme tady pro Vás

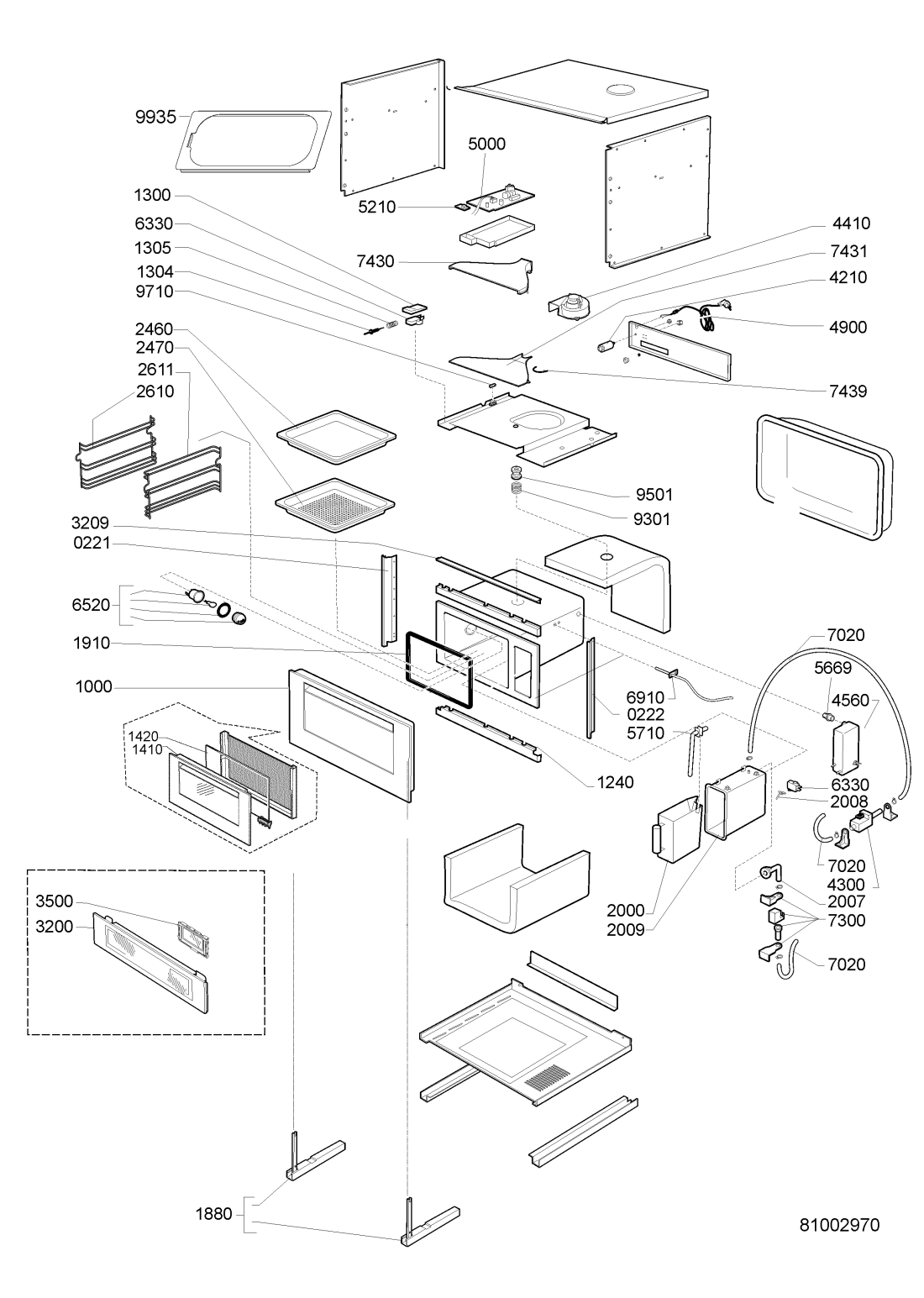

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0221 WHR35477 |
C00321529
480123100299 |
Trim lateral left | Na dotaz | Zadat poptávku | |
| 0222 WHR35477 |
C00321528
480123100298 |
Trim lateral right | Na dotaz | Zadat poptávku | |
| 1000 WHR35477 |
C00430871
480121103406 |
Door cpl. | Na dotaz | Zadat poptávku | |
| 1240 WHR35477 |
C00321530
480123100301 |
Vapour catcher (FRONT EXTENSION BOTTOM) | Na dotaz | Zadat poptávku | |
| 1300 WHR35477 |
C00321524
480123100293 |
Bracket door switch | Na dotaz | Zadat poptávku | |
| 1304 WHR35477 |
C00321525
480123100294 |
Pin door switch | Na dotaz | Zadat poptávku | |
| 1305 WHR35477 |
C00431308
480123100295 |
Spring door switch | Na dotaz | Zadat poptávku | |
| 1410 WHR35477 |
C00430872
480121103407 |
Oven glass | Na dotaz | Zadat poptávku | |
| 1419 WHR35477 |
C00329234
481240478858 |
držák skla | 264 Kč
€ 10.40 |
||
| 1420 WHR35477 |
C00431309
480123100305 |
Inner glass | Na dotaz | Zadat poptávku | |
| 1880 WHR35477 |
C00321534
480123100306 |
Hinge door | Na dotaz | Zadat poptávku | |
| 1910 WHR35477 |
C00322280
480121103392 |
Těsnění dveří trouby | 2 798 Kč
€ 110.50 |
||
| 2000 WHR35477 |
C00321517
480123100285 |
Nádoba na vodu | 2 235 Kč
€ 88.20 |
||
| 2007 WHR35477 |
C00321520
480123100288 |
Tube connection Sauna | Na dotaz | Zadat poptávku | |
| 2008 WHR35477 |
C00321518
480123100286 |
Sensor water | Na dotaz | Zadat poptávku | |
| 2009 WHR35477 |
C00321519
480123100287 |
Guide water tank | Na dotaz | Zadat poptávku | |
| 2450 WHR35477 |
C00325224
481010558232 |
Rošt trouby | 2 432 Kč
€ 96.00 |
||
| 2460 WHR35477 |
C00322211
480121102925 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2470 WHR35477 |
C00322210
480121102924 |
Tray perforated | Na dotaz | Zadat poptávku | |
| 2610 WHR35477 |
C00321516
480123100284 |
Insert grid left | Na dotaz | Zadat poptávku | |
| 2611 WHR35477 |
C00321515
480123100283 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 3200 WHR35477 |
C00430868
480121103396 |
Panel control assy | Na dotaz | Zadat poptávku | |
| 3209 WHR35477 |
C00317554
480120100539 |
Profile ventilator | Na dotaz | Zadat poptávku | |
| 3500 WHR35477 |
C00391227
480121103401 |
User board Navigator | Na dotaz | Zadat poptávku | |
| 4210 WHR35477 |
C00326792
481212208005 |
Odrušovací filtr mikrovlnné trouby Whirlpool, Bauknecht | 278 Kč
€ 11.00 |
||
| 4410 WHR35477 |
C00322284
480121103398 |
Motor cooling | Na dotaz | Zadat poptávku | |
| 4560 WHR35477 |
C00320100
480121103385 |
Boiler steamer 1400W | Na dotaz | Zadat poptávku | |
| 4900 WHR35477 |
C00429524
480120100666 |
Cable mains CH | Na dotaz | Zadat poptávku | |
| 5000 WHR35477 |
C00322285
480121103399 |
Power unit | Na dotaz | Zadat poptávku | |
| 5210 WHR35477 |
C00391225
480121103387 |
Control board water level | Na dotaz | Zadat poptávku | |
| 5669 WHR35477 |
C00321523
480123100292 |
Gasket diffusor outlet | Na dotaz | Zadat poptávku | |
| 5710 WHR35477 |
C00321521
480123100289 |
Pipe water Sauna | Na dotaz | Zadat poptávku | |
| 6330 WHR35477 |
C00315101
481227138542 |
mikrospinac | 851 Kč
€ 33.60 |
||
| 6520 WHR35477 |
C00322281
480121103393 |
Osvětlení komplet | 1 221 Kč
€ 48.20 |
||
| 6910 WHR35477 |
C00316169
480121103384 |
Sensor cavity | Na dotaz | Zadat poptávku | |
| 7020 WHR35477 |
C00321522
480123100291 |
Tube silicon | Na dotaz | Zadat poptávku | |
| 7300 WHR35477 |
C00322276
480121103382 |
Pump fill/drain 22W | Na dotaz | Zadat poptávku | |
| 7430 WHR35477 |
C00321531
480123100302 |
Air guide top | Na dotaz | Zadat poptávku | |
| 7431 WHR35477 |
C00321532
480123100303 |
Air guide lower | Na dotaz | Zadat poptávku | |
| 7439 WHR35477 |
C00321533
480123100304 |
Gasket air guide | Na dotaz | Zadat poptávku | |
| 9301 WHR35477 |
C00321527
480123100297 |
Spring airflow | Na dotaz | Zadat poptávku | |
| 9501 WHR35477 |
C00321526
480123100296 |
Gasket airflow | Na dotaz | Zadat poptávku | |
| 9710 WHR35477 |
C00311937
481925228125 |
Pojistka 10A L | 266 Kč
€ 10.50 |
||
| 9930 WHR35477 |
C00322441
480121104258 |
Sponge not shown | Na dotaz | Zadat poptávku | |
| 9931 WHR35477 |
C00429853
480120101416 |
Silicon ELASTOSIL N2189 Tube310MI | Na dotaz | Zadat poptávku | |
| 9935 WHR35477 |
C00324365
481010451397 |
Holder tray Gastronorm 1/3 | Na dotaz | Zadat poptávku | |
