| Komerční kód: | ESV 3480 WS |
| Kód 12NC: | 855628701000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

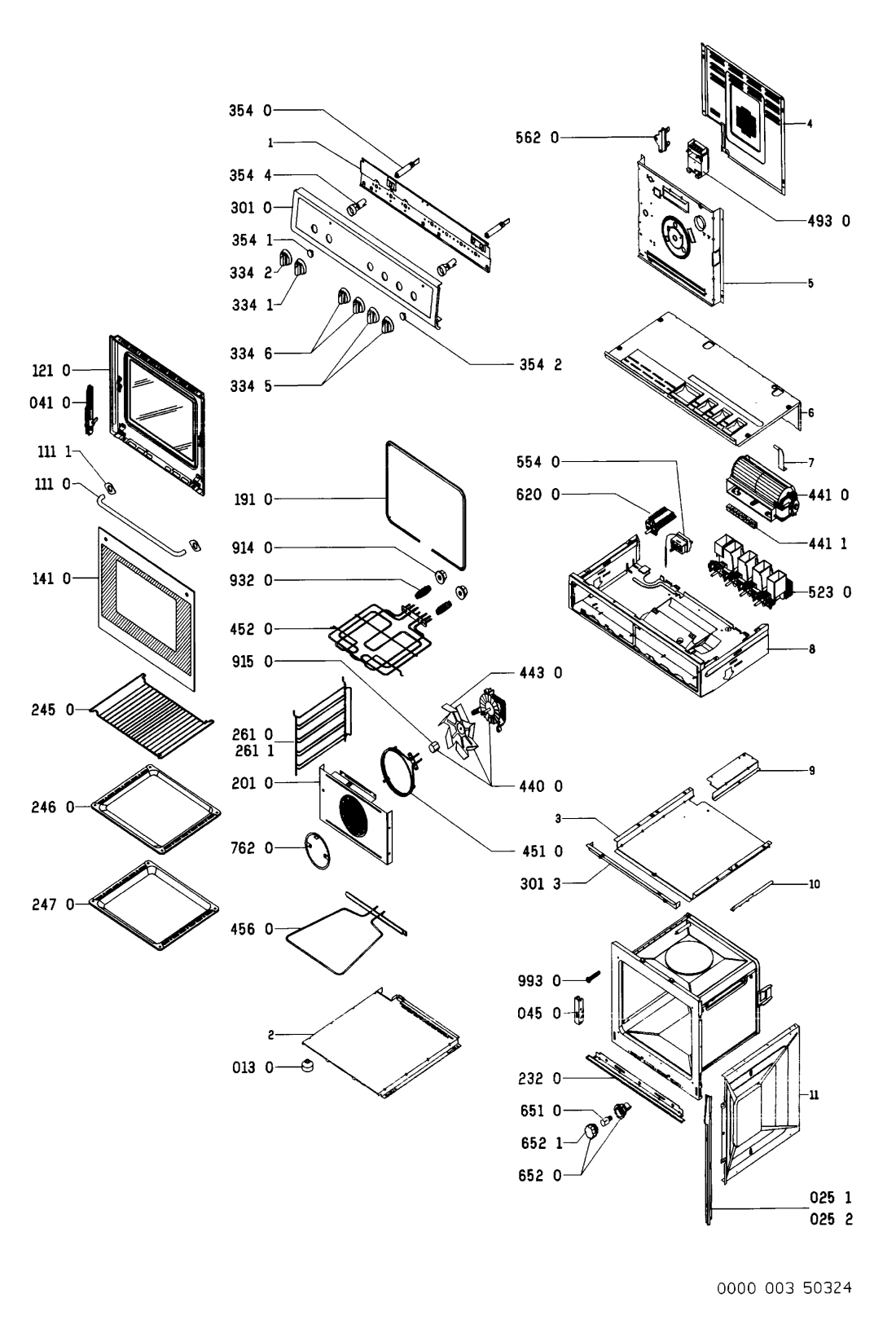

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 013 0 WHR99407 |
C00591988
481946689287 |
Spacer. | Na dotaz | Zadat poptávku | |
| 025 1 WHR99407 |
C00556158
481946089329 |
Trim, side.. | Na dotaz | Zadat poptávku | |
| 025 2 WHR99407 |
C00556159
481946089331 |
Trim, side.. | Na dotaz | Zadat poptávku | |
| 041 0 WHR99407 |
C00312950
481941719457 |
Hinge | Na dotaz | Zadat poptávku | |
| 045 0 WHR99407 |
C00313848
481946689197 |
Hinge running mechanism | Na dotaz | Zadat poptávku | |
| 111 0 WHR99407 |
C00340088
481949878066 |
rukojet dveri WH | 2 438 Kč
€ 96.20 |
||
| 111 1 WHR99407 |
C00315752
481946248443 |
podlozka | 449 Kč
€ 17.70 |
||
| 121 0 WHR99407 |
C00341324
481944238094 |
Door,inner | Na dotaz | Zadat poptávku | |
| 141 0 WHR99407 |
C00754590
481945058003 |
Oven glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR99407 |
C00311333
481946818109 |
Těsnění dveří vestavné trouby Whirlpool AKP 681/IX, AKP 712/IX, AKP 762/IX. | 411 Kč
€ 16.20 |
||
| 201 0 WHR99407 |
C00337802
481944238093 |
Plate | Na dotaz | Zadat poptávku | |
| 232 0 WHR99407 |
C00335269
481946089445 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 245 0 WHR99407 |
C00342070
481945819992 |
OVEN SHELF | Na dotaz | Zadat poptávku | |
| 246 0 WHR99407 |
C00344538
481941838366 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR99407 |
C00382943
481941838367 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR99407 |
C00338737
481945819999 |
Inset grid | Na dotaz | Zadat poptávku | |
| 261 1 WHR99407 |
C00338736
481945819998 |
Inset grid | Na dotaz | Zadat poptávku | |
| 301 0 WHR99407 |
C00621126
481945349897 |
Control panel. | Na dotaz | Zadat poptávku | |
| 301 3 WHR99407 |
C00591982
481946089318 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 334 1 WHR99407 |
C00487970
481941128855 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 334 2 WHR99407 |
C00591913
481941258442 |
Knob. | Na dotaz | Zadat poptávku | |
| 334 5 WHR99407 |
C00500539
481941249993 |
Knob,regulation WH | Na dotaz | Zadat poptávku | |
| 334 6 WHR99407 |
C00499886
481941249994 |
Knob,regulation WH | Na dotaz | Zadat poptávku | |
| 354 0 WHR99407 |
C00497246
481213448021 |
ZIAROVKA SIGN?LNA AKP724 *** N | Na dotaz | Zadat poptávku | |
| 354 1 WHR99407 |
C00314833
481946279749 |
kryt signalky cerv. | 308 Kč
€ 12.20 |
||
| 354 2 WHR99407 |
C00341772
481946279748 |
kryt signalky zluty | 287 Kč
€ 11.30 |
||
| 354 4 WHR99407 |
C00340161
481946238759 |
Guide pilot lamp | Na dotaz | Zadat poptávku | |
| 440 0 WHR99407 |
C00316149
481936178231 |
FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR99407 |
C00341667
481936118374 |
MOTOR,FAN | Na dotaz | Zadat poptávku | |
| 441 1 WHR99407 |
C00318948
481946818099 |
tesneni ventilatoru | 401 Kč
€ 15.80 |
||
| 443 0 WHR99407 |
C00341046
481951528115 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 451 0 WHR99407 |
C00555736
481925928822 |
NAHRADENE 481225998406 | Na dotaz | Zadat poptávku | |
| 452 0 WHR99407 |
C00481320
481925928838 |
Topné těleso trouby – horní + gril 3018W | 1 531 Kč
€ 60.40 |
||
| 456 0 WHR99407 |
C00378010
481925928791 |
Heat.elem. 1000W-230V 1R37957001 | Na dotaz | Zadat poptávku | |
| 493 0 WHR99407 |
C00555820
481929068364 |
NAHRADENE 481229068166 N | Na dotaz | Zadat poptávku | |
| 523 0 WHR99407 |
C00556365
481969048061 |
NAHRADENE 481927328456 N | Na dotaz | Zadat poptávku | |
| 554 0 WHR99407 |
C00316767
481928228602 |
Termostat třícestný trouby Whirlpool, Bauknecht, Ignis | 2 405 Kč
€ 94.90 |
||
| 562 0 WHR99407 |
C00335568
481925228088 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 620 0 WHR99407 |
C00555785
481927328404 |
NAHRADENE 481227328147 N | Na dotaz | Zadat poptávku | |
| 651 0 WHR99407 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR99407 |
C00498814
481925518214 |
OBJ?MKA YIAROVKY N | Na dotaz | Zadat poptávku | |
| 652 1 WHR99407 |
C00315126
481945069844 |
Lamp screen rear | Na dotaz | Zadat poptávku | |
| 762 0 WHR99407 |
C00340932
481948048133 |
Filter grease | Na dotaz | Zadat poptávku | |
| 914 0 WHR99407 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR99407 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR99407 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR99407 |
C00341627
481931039087 |
Mounting kit | Na dotaz | Zadat poptávku | |
