BAUKNECHT ESZ 4466/01 AL OVENS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ESZ 4466/01 AL OVENS BK |
| Kód 12NC: | 857494101050 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

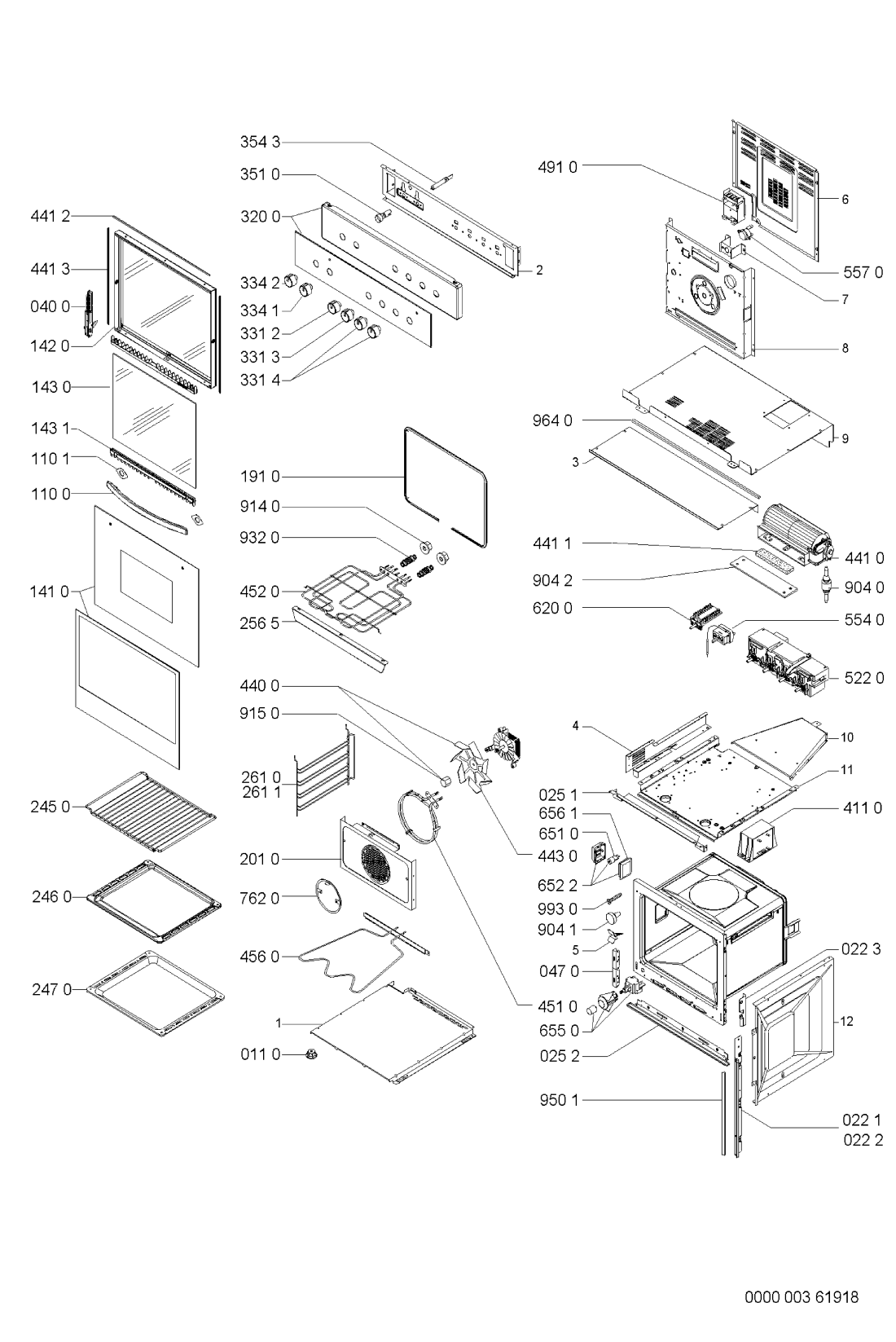

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR83318 |
C00621152
481953268908 |
Spacer. | Na dotaz | Zadat poptávku | |
| 022 1 WHR83318 |
C00529634
481246079039 |
Trim, side le. le. | Na dotaz | Zadat poptávku | |
| 022 2 WHR83318 |
C00485918
481246079038 |
Trim side ri. | Na dotaz | Zadat poptávku | |
| 022 3 WHR83318 |
C00317282
481931039642 |
konzole | 98 Kč
€ 3.90 |
||
| 025 1 WHR83318 |
C00486690
481946078845 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR83318 |
C00598163
481246078967 |
Profile. | Na dotaz | Zadat poptávku | |
| 040 0 WHR83318 |
C00553502
481241719075 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR83318 |
C00312362
481241718837 |
zaves dveri | 806 Kč
€ 31.80 |
||
| 110 0 WHR83318 |
C00598180
481249818195 |
Door handle. | Na dotaz | Zadat poptávku | |
| 110 1 WHR83318 |
C00315752
481946248443 |
podlozka | 449 Kč
€ 17.70 |
||
| 141 0 WHR83318 |
C00591703
481245058608 |
Oven glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR83318 |
C00338929
481245058597 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR83318 |
C00340385
481245058596 |
sklo dveri | 1 579 Kč
€ 62.30 |
||
| 143 1 WHR83318 |
C00335912
481240478508 |
Support | Na dotaz | Zadat poptávku | |
| 191 0 WHR83318 |
C00486162
481246688515 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR83318 |
C00341526
481244269022 |
stena trouby zadni | Na dotaz | Zadat poptávku | |
| 245 0 WHR83318 |
C00490760
481945868301 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR83318 |
C00344535
481941838416 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR83318 |
C00513871
481941838417 |
Tray,leak. | Na dotaz | Zadat poptávku | |
| 256 5 WHR83318 |
C00598331
481946689477 |
Protector. | Na dotaz | Zadat poptávku | |
| 261 0 WHR83318 |
C00338733
481945868266 |
mrizka leva NÁHRADA 481010412913 | Na dotaz | Zadat poptávku | |
| 261 1 WHR83318 |
C00338730
481945868265 |
mrizka prava | Na dotaz | Zadat poptávku | |
| 320 0 WHR83318 |
C00598073
481245248464 |
Panel control. | Na dotaz | Zadat poptávku | |
| 331 2 WHR83318 |
C00487123
481241128824 |
Knob | Na dotaz | Zadat poptávku | |
| 331 3 WHR83318 |
C00487124
481241128825 |
Knob | Na dotaz | Zadat poptávku | |
| 331 4 WHR83318 |
C00487125
481241128826 |
Knob | Na dotaz | Zadat poptávku | |
| 334 1 WHR83318 |
C00597755
481241128827 |
Knob. | Na dotaz | Zadat poptávku | |
| 334 2 WHR83318 |
C00597756
481241128828 |
Knob. | Na dotaz | Zadat poptávku | |
| 351 0 WHR83318 |
C00341479
481913448424 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 3 WHR83318 |
C00340181
481240438607 |
signalka | Na dotaz | Zadat poptávku | |
| 411 0 WHR83318 |
C00500242
481214218001 |
Transformer | Na dotaz | Zadat poptávku | |
| 440 0 WHR83318 |
C00315309
481236118314 |
ventilator trouby | 1 461 Kč
€ 57.70 |
||
| 441 0 WHR83318 |
C00379061
481936118482 |
Motor cooling fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR83318 |
C00333162
481946818387 |
tesneni-náhrada C00522524 | Na dotaz | Zadat poptávku | |
| 441 2 WHR83318 |
C00330921
481246668719 |
tesneni | 208 Kč
€ 8.20 |
||
| 441 3 WHR83318 |
C00330922
481246668723 |
tesneni postranni | 568 Kč
€ 22.40 |
||
| 443 0 WHR83318 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR83318 |
C00555736
481925928822 |
NAHRADENE 481225998406 | Na dotaz | Zadat poptávku | |
| 452 0 WHR83318 |
C00481320
481925928838 |
Topné těleso trouby – horní + gril 3018W | 1 531 Kč
€ 60.40 |
||
| 456 0 WHR83318 |
C00344922
481925928948 |
Topné těleso trouby - spodní Whirlpool 1150W | 382 Kč
€ 15.10 |
||
| 491 0 WHR83318 |
C00377554
481229068166 |
svorkovnice | 621 Kč
€ 24.50 |
||
| 522 0 WHR83318 |
C00378005
481921478702 |
jednotka kontrolni | Na dotaz | Zadat poptávku | |
| 554 0 WHR83318 |
C00312151
481228228227 |
Termostat kapilární trouby Whirlpool, Bauknecht, Ignis | 1 803 Kč
€ 71.20 |
||
| 557 0 WHR83318 |
C00598202
481928228728 |
Temper.limiter. | Na dotaz | Zadat poptávku | |
| 620 0 WHR83318 |
C00377507
481227328147 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 651 0 WHR83318 |
C00490315
481913488203 |
Oven lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR83318 |
C00492214
481925518249 |
Holder lamp ,HL cpl. | Na dotaz | Zadat poptávku | |
| 655 0 WHR83318 |
C00494335
481927618445 |
Switch door | Na dotaz | Zadat poptávku | |
| 656 1 WHR83318 |
C00490737
481945058438 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 762 0 WHR83318 |
C00380264
481948048329 |
FILTER | Na dotaz | Zadat poptávku | |
| 904 0 WHR83318 |
C00598332
481946818376 |
Rubber. | Na dotaz | Zadat poptávku | |
| 904 1 WHR83318 |
C00333334
481953268911 |
Spacer | Na dotaz | Zadat poptávku | |
| 904 2 WHR83318 |
C00598193
481253268103 |
Spacer. | Na dotaz | Zadat poptávku | |
| 914 0 WHR83318 |
C00333243
481950518323 |
Nut | Na dotaz | Zadat poptávku | |
| 915 0 WHR83318 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR83318 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 950 1 WHR83318 |
C00486195
481246818123 |
Gasket | Na dotaz | Zadat poptávku | |
| 964 0 WHR83318 |
C00333157
481946818278 |
Gasket hobhob | Na dotaz | Zadat poptávku | |
| 993 0 WHR83318 |
C00597740
481231048083 |
Set fixation. | Na dotaz | Zadat poptávku | |
