BAUKNECHT EV 1432/3 RE CH REFRIGERATORS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | EV 1432/3 RE CH REFRIGERATORS BK |
| Kód 12NC: | 855001616350 |
| I.C. kód: | 855001616351 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 855001616352, 855001616350 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

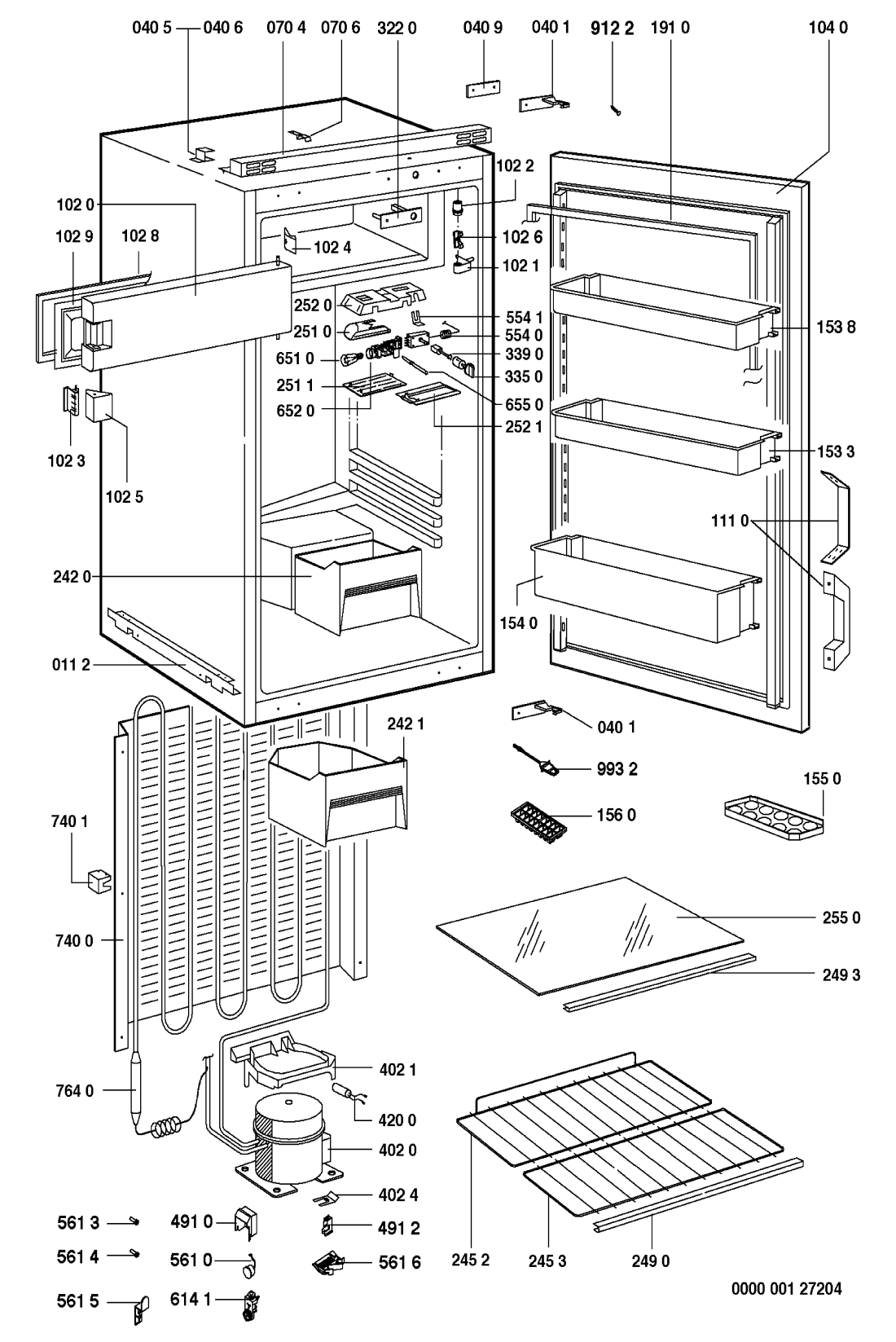

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 2 WHR69031 |
C00513859
481250018015 |
Foot. | Na dotaz | Zadat poptávku | |
| 040 1 WHR69031 |
C00490239
481253268033 |
Hinge upper/lower KIT | Na dotaz | Zadat poptávku | |
| 040 5 WHR69031 |
C00589751
481240448159 |
Hoop | Na dotaz | Zadat poptávku | |
| 040 6 WHR69031 |
C00589813
481241718185 |
Hoop. | Na dotaz | Zadat poptávku | |
| 040 9 WHR69031 |
C00589750
481240448147 |
Holder adjust. | Na dotaz | Zadat poptávku | |
| 070 4 WHR69031 |
C00589868
481245228051 |
Grid air. | Na dotaz | Zadat poptávku | |
| 070 6 WHR69031 |
C00620451
481249268144 |
Clamping spring. | Na dotaz | Zadat poptávku | |
| 102 0 WHR69031 |
C00584318
481944229529 |
NAHRADENE 481944229713 N | Na dotaz | Zadat poptávku | |
| 102 1 WHR69031 |
C00635643
481940478482 |
NAHRADENE 481240478335 N | Na dotaz | Zadat poptávku | |
| 102 2 WHR69031 |
C00318944
481946698901 |
Podložka distanční | 233 Kč
€ 9.20 |
||
| 102 3 WHR69031 |
C00621140
481949268646 |
nahradene 481249298033 | Na dotaz | Zadat poptávku | |
| 102 4 WHR69031 |
C00636261
481946698723 |
HAK PLAST N | Na dotaz | Zadat poptávku | |
| 102 5 WHR69031 |
C00340215
481949869426 |
Grip | Na dotaz | Zadat poptávku | |
| 102 6 WHR69031 |
C00327930
481242938038 |
PRUZINA ARL172 | 425 Kč
€ 16.80 |
||
| 102 8 WHR69031 |
C00376610
481946669911 |
Gasket | Na dotaz | Zadat poptávku | |
| 102 9 WHR69031 |
C00584317
481944229528 |
RAM DVIEROK PLAST N | Na dotaz | Zadat poptávku | |
| 104 0 WHR69031 |
C00555314
481244028848 |
Door.. | Na dotaz | Zadat poptávku | |
| 111 0 WHR69031 |
C00557365
481249868095 |
RUKOVAT DVIEROK S KRYTKOU PLAST. N | Na dotaz | Zadat poptávku | |
| 153 3 WHR69031 |
C00555242
481241848282 |
Door,dairy.. | Na dotaz | Zadat poptávku | |
| 153 8 WHR69031 |
C00511343
481241848495 |
Door dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR69031 |
C00555244
481241848324 |
Bottle shelf.. | Na dotaz | Zadat poptávku | |
| 155 0 WHR69031 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR69031 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 0 WHR69031 |
C00490133
481246668518 |
tesneni magneticke | 1 682 Kč
€ 66.40 |
||
| 242 0 WHR69031 |
C00555243
481241848311 |
Crisper.. | Na dotaz | Zadat poptávku | |
| 242 1 WHR69031 |
C00555245
481241848339 |
CRISPER.. | Na dotaz | Zadat poptávku | |
| 245 2 WHR69031 |
C00589984
481245818155 |
GRID. | Na dotaz | Zadat poptávku | |
| 245 3 WHR69031 |
C00589989
481245858056 |
Grid. | Na dotaz | Zadat poptávku | |
| 249 0 WHR69031 |
C00485910
481246068528 |
Trim 470 mm | Na dotaz | Zadat poptávku | |
| 249 3 WHR69031 |
C00529641
481246088161 |
Trim f.Glass sheet | Na dotaz | Zadat poptávku | |
| 251 0 WHR69031 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR69031 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 28.60 |
||
| 252 0 WHR69031 |
C00316781
481940478855 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR69031 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.50 |
||
| 255 0 WHR69031 |
C00488334
481990305726 |
Glass Shelf 489X325 | Na dotaz | Zadat poptávku | |
| 322 0 WHR69031 |
C00341930
481945298449 |
Panel f. thermostat | Na dotaz | Zadat poptávku | |
| 335 0 WHR69031 |
C00338417
481941249139 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 339 0 WHR69031 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR69031 |
C00555868
481936038705 |
KOMPRESOR N | Na dotaz | Zadat poptávku | |
| 402 1 WHR69031 |
C00327895
481241878039 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 402 4 WHR69031 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 420 0 WHR69031 |
C00589682
481212118153 |
Capacitor 3ÁF | Na dotaz | Zadat poptávku | |
| 491 0 WHR69031 |
C00486743
481946258296 |
VEKO KRABICKY N | Na dotaz | Zadat poptávku | |
| 491 2 WHR69031 |
C00499404
481946279738 |
VEKO PRIVODOVEJ SVORKOVNICE N | Na dotaz | Zadat poptávku | |
| 554 0 WHR69031 |
C00481514
481227128199 |
THERMOSTAT K59-L1233 K59-L1233 | Na dotaz | Zadat poptávku | |
| 554 1 WHR69031 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 0 WHR69031 |
C00590105
481928228596 |
Protect,motor | Na dotaz | Zadat poptávku | |
| 561 3 WHR69031 |
C00336701
481950218311 |
Screw | Na dotaz | Zadat poptávku | |
| 561 4 WHR69031 |
C00336586
481929068281 |
Screw f. connect.block | Na dotaz | Zadat poptávku | |
| 561 5 WHR69031 |
C00499442
481946688907 |
PRICHYTKA | 78 Kč
€ 3.10 |
||
| 561 6 WHR69031 |
C00337747
481929068279 |
Plate,connector | Na dotaz | Zadat poptávku | |
| 614 1 WHR69031 |
C00621544
481928238031 |
RELE PTC-1260001 | 208 Kč
€ 8.20 |
||
| 651 0 WHR69031 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR69031 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 37.30 |
||
| 655 0 WHR69031 |
C00344554
481953598273 |
spinac osvetl.tycka | 67 Kč
€ 2.60 |
||
| 740 0 WHR69031 |
C00590069
481251148016 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR69031 |
C00590116
481940449864 |
Fastener condenser. | Na dotaz | Zadat poptávku | |
| 764 0 WHR69031 |
C00529876
481252648037 |
Dryer 5,5 GRAMM XH 7 5,5 GRAMM XH 7 | Na dotaz | Zadat poptávku | |
| 912 2 WHR69031 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 993 2 WHR69031 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR69031 |
C00527223
481231038454 |
Mounting kit (n.shown) | Na dotaz | Zadat poptávku | |
| 999 WHR69031 |
C00688793 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
