| Komerční kód: | EXCEL 1200 WASHING MACHINES BK |
| Kód 12NC: | 855454403000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Pračky |
| Další podobné modely: | 855454403001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

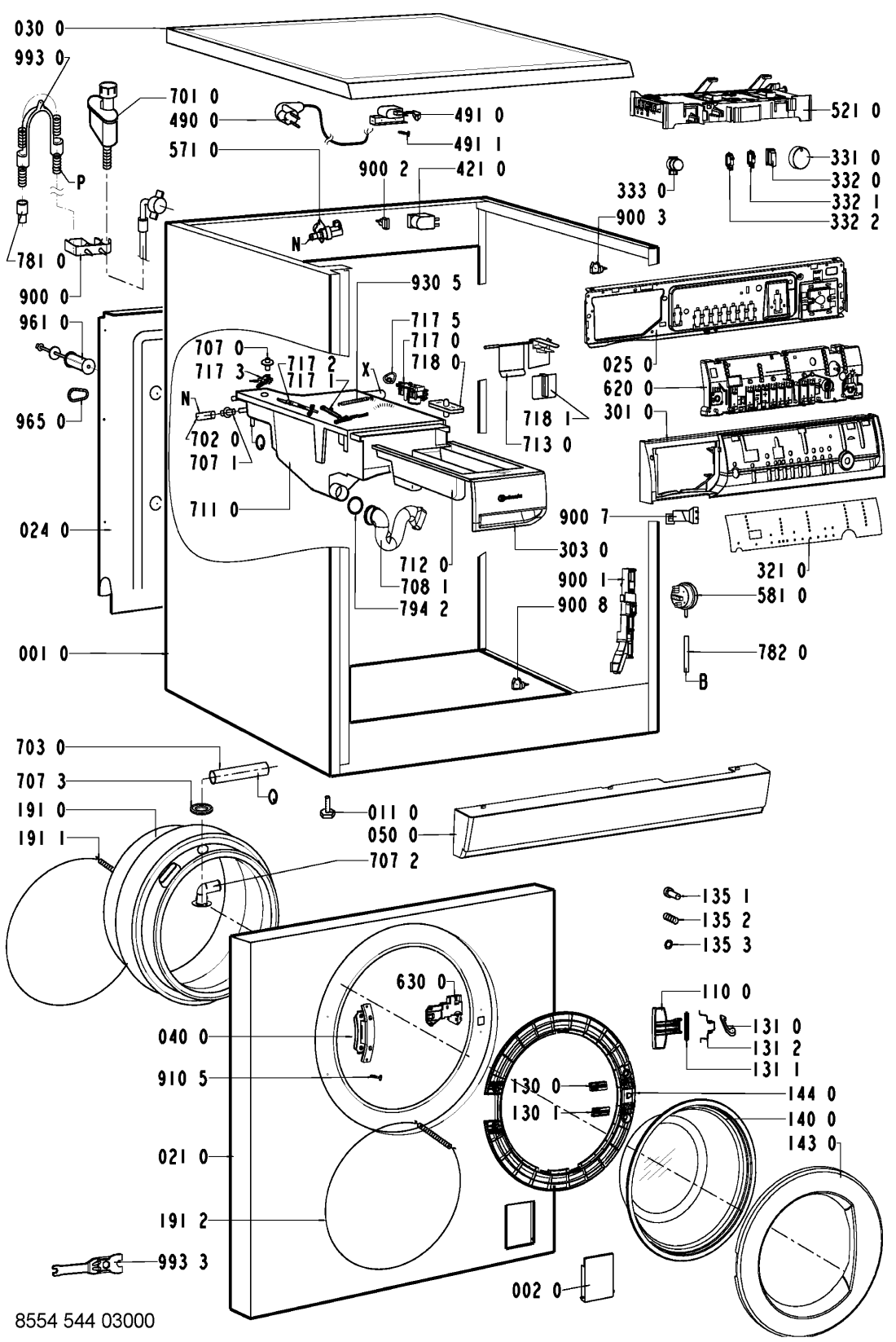

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR40154 |
C00327957
481244010784 |
Cabinet GW | Na dotaz | Zadat poptávku | |
| 002 0 WHR40154 |
C00340841
481244010812 |
Flap Filter square GW | Na dotaz | Zadat poptávku | |
| 004 0 WHR40154 |
C00497924
481244018993 |
ZBERAC AQUA DELTA | Na dotaz | Zadat poptávku | |
| 011 0 WHR40154 |
C00340814
481946248472 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR40154 |
C00340649
481244010927 |
Front square flap GW 50mm | Na dotaz | Zadat poptávku | |
| 024 0 WHR40154 |
C00328103
481244018998 |
Stěna přední AWM250 | 1 101 Kč
€ 43.50 |
||
| 025 0 WHR40154 |
C00527933
481244010467 |
Holder VBL BK | Na dotaz | Zadat poptávku | |
| 030 0 WHR40154 |
C00553557
481244010926 |
Table top BK3/D | Na dotaz | Zadat poptávku | |
| 040 0 WHR40154 |
C00312018
481241718787 |
Hinge BK | Na dotaz | Zadat poptávku | |
| 050 0 WHR40154 |
C00337676
481244010823 |
sokl pracky GW | 1 453 Kč
€ 57.40 |
||
| 061 0 WHR40154 |
C00343070
481246688458 |
zavazi horni | 1 001 Kč
€ 39.50 |
||
| 061 1 WHR40154 |
C00316001
481246688607 |
Counter weight front, bottom | Na dotaz | Zadat poptávku | |
| 061 2 WHR40154 |
C00332868
481931039227 |
sroub do zavazi sada | 1 949 Kč
€ 76.90 |
||
| 061 3 WHR40154 |
C00320457
481931039228 |
Mounting kit Weight bottom | Na dotaz | Zadat poptávku | |
| 081 0 WHR40154 |
C00312055
481252918038 |
Shock absorber until 1200 | Na dotaz | Zadat poptávku | |
| 084 0 WHR40154 |
C00330907
481246658001 |
drzak pruziny agreg. | 101 Kč
€ 4.00 |
||
| 086 0 WHR40154 |
C00316610
481240118409 |
Holder Shock Absorber Shock Absorber | Na dotaz | Zadat poptávku | |
| 086 1 WHR40154 |
C00312274
481240118413 |
Čep tlumiče | 924 Kč
€ 36.50 |
||
| 086 2 WHR40154 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 23.10 |
||
| 110 0 WHR40154 |
C00316653
481249818261 |
Rukojeť dveří GW UZ NEBUDE !!!!!!! | Na dotaz | Zadat poptávku | |
| 130 0 WHR40154 |
C00318057
481241728047 |
desticka uzaveru dv. | 62 Kč
€ 2.40 |
||
| 130 1 WHR40154 |
C00329782
481241728048 |
Plate Doorlock LowerDoorlock Lower | Na dotaz | Zadat poptávku | |
| 131 0 WHR40154 |
C00312433
481241728046 |
Lock Door | Na dotaz | Zadat poptávku | |
| 131 1 WHR40154 |
C00312243
481241728045 |
osa uzaveru dveri | 86 Kč
€ 3.40 |
||
| 131 2 WHR40154 |
C00312651
481249258022 |
Pružina uzávěru dveří | 433 Kč
€ 17.10 |
||
| 135 1 WHR40154 |
C00317048
481249818262 |
pojistka dveri | 416 Kč
€ 16.40 |
||
| 135 2 WHR40154 |
C00318221
481249258023 |
Spring Door Safety | Na dotaz | Zadat poptávku | |
| 135 3 WHR40154 |
C00313732
481229068153 |
drzak pojistky | 309 Kč
€ 12.20 |
||
| 140 0 WHR40154 |
C00339065
481245068218 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR40154 |
C00340315
481244010815 |
Glassdoor frame VBL-DELTAVBL BK GW | Na dotaz | Zadat poptávku | |
| 144 0 WHR40154 |
C00340747
481244010833 |
priruba dveri GW | 1 467 Kč
€ 57.90 |
||
| 191 0 WHR40154 |
C00373762
481246668574 |
TVO | 1 545 Kč
€ 61.00 |
||
| 191 1 WHR40154 |
C00313764
481249218017 |
spona TVO - vnitřní | 286 Kč
€ 11.30 |
||
| 191 2 WHR40154 |
C00318256
481953058059 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 1 WHR40154 |
C00538523
481241818424 |
Tub, half 48 l front | Na dotaz | Zadat poptávku | |
| 200 2 WHR40154 |
C00311099
481241818318 |
Nádrž - zadní část | 4 953 Kč
€ 195.50 |
||
| 200 4 WHR40154 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR40154 |
C00312242
481241818191 |
Drum 1200 0,5MM PP 48L | Na dotaz | Zadat poptávku | |
| 271 0 WHR40154 |
C00311078
481235818056 |
Řemen vícekl. 1250J4 | 178 Kč
€ 7.00 |
||
| 272 0 WHR40154 |
C00337067
481252858027 |
pulley DIAM.298DIAM.298 | Na dotaz | Zadat poptávku | |
| 272 2 WHR40154 |
C00337249
481253218024 |
PODLOZKA | 24 Kč
€ 0.90 |
||
| 272 3 WHR40154 |
C00313776
481250518371 |
matice remenice | Na dotaz | Zadat poptávku | |
| 292 0 WHR40154 |
C00311501
481253058101 |
těsnění bočnice | 740 Kč
€ 29.20 |
||
| 301 0 WHR40154 |
C00528765
481245212628 |
CONTROL PANEL GW | Na dotaz | Zadat poptávku | |
| 303 0 WHR40154 |
C00490182
481249818278 |
Handle, drawer VBL-BK/SILVER/DELTA* VBL | Na dotaz | Zadat poptávku | |
| 321 0 WHR40154 |
C00496668
481245213556 |
Insert panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR40154 |
C00487418
481241318287 |
Knob timer VBL BK alu dull | Na dotaz | Zadat poptávku | |
| 332 0 WHR40154 |
C00344001
481241029092 |
Button Options VBL BK GW | Na dotaz | Zadat poptávku | |
| 332 1 WHR40154 |
C00344045
481241029128 |
Button | Na dotaz | Zadat poptávku | |
| 332 2 WHR40154 |
C00344054
481241029129 |
Button | Na dotaz | Zadat poptávku | |
| 333 0 WHR40154 |
C00493364
481241028982 |
Button Start VBL BK alu dull | Na dotaz | Zadat poptávku | |
| 400 0 WHR40154 |
C00311192
481236158376 |
motor | 4 646 Kč
€ 183.40 |
||
| 400 1 WHR40154 |
C00336568
481250218401 |
sroub do zavazi | 40 Kč
€ 1.60 |
||
| 409 0 WHR40154 |
C00311127
481236248004 |
Uhlíky motoru - pár 13,6x5x32 mm | Na dotaz | Zadat poptávku | |
| 421 0 WHR40154 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR40154 |
C00311139
481231028144 |
Čerpadlo vypouštěcí DELTA | 1 120 Kč
€ 44.20 |
||
| 451 0 WHR40154 |
C00557941
481225928758 |
NAHRADENE 481225928835 N | Na dotaz | Zadat poptávku | |
| 480 0 WHR40154 |
C00311380
481232178109 |
vodice svazek motor | 981 Kč
€ 38.70 |
||
| 490 0 WHR40154 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 491 0 WHR40154 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR40154 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR40154 |
C00501253
481221478953 |
Control board OMEGA 1200 VBL BK | Na dotaz | Zadat poptávku | |
| 571 0 WHR40154 |
C00312238
481227128375 |
Napouštěcí ventil pračky - jednocestný, boční vývod | 383 Kč
€ 15.10 |
||
| 581 0 WHR40154 |
C00337540
481227128382 |
Presostat pračky | 1 007 Kč
€ 39.80 |
||
| 620 0 WHR40154 |
C00341733
481227628413 |
Module BK0 C, OMEGA | Na dotaz | Zadat poptávku | |
| 630 0 WHR40154 |
C00315131
481228058019 |
Door lock | Na dotaz | Zadat poptávku | |
| 631 0 WHR40154 |
C00317471
481227138358 |
mikrospinac plovaku | 1 114 Kč
€ 44.00 |
||
| 631 1 WHR40154 |
C00315271
481236058112 |
Plovák | 310 Kč
€ 12.20 |
||
| 691 0 WHR40154 |
C00317366
481228218702 |
senzor NTC | 1 697 Kč
€ 67.00 |
||
| 701 0 WHR40154 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 0 WHR40154 |
C00332408
481253028781 |
Přívodní hadice 3,5m: s Aqua Stopem | Na dotaz | Zadat poptávku | |
| 702 0 WHR40154 |
C00313911
481953029019 |
Hadice ventil - násypka pračky Whirlpool, Ignis, Bauknecht | 218 Kč
€ 8.60 |
||
| 703 0 WHR40154 |
C00339211
481253048466 |
Hosedoor rinsing 535 MM | Na dotaz | Zadat poptávku | |
| 707 0 WHR40154 |
C00317102
481252648031 |
Tryska násypky pračky | 224 Kč
€ 8.80 |
||
| 707 1 WHR40154 |
C00332324
481252648028 |
Tryska násypky pračky | 575 Kč
€ 22.70 |
||
| 707 2 WHR40154 |
C00498636
481253048161 |
Fitting | Na dotaz | Zadat poptávku | |
| 707 3 WHR40154 |
C00332649
481253078011 |
podlozka trysky spr. | 485 Kč
€ 19.10 |
||
| 708 1 WHR40154 |
C00538614
481253048356 |
KOLENO VBL BK | Na dotaz | Zadat poptávku | |
| 711 0 WHR40154 |
C00500825
481241868243 |
NASYPKA 3-KOMOROVA PLAST N | Na dotaz | Zadat poptávku | |
| 712 0 WHR40154 |
C00313433
481241868198 |
zasuvka nasypky | 1 592 Kč
€ 62.90 |
||
| 713 0 WHR40154 |
C00340880
481241889009 |
Flap | Na dotaz | Zadat poptávku | |
| 717 0 WHR40154 |
C00314912
481232318006 |
motorek distribuce vody násypky pračky | 893 Kč
€ 35.30 |
||
| 717 1 WHR40154 |
C00338398
481232138015 |
Lever water distr. OME | Na dotaz | Zadat poptávku | |
| 717 2 WHR40154 |
C00338404
481232138014 |
Lever OMEGA/GAMMA | Na dotaz | Zadat poptávku | |
| 717 3 WHR40154 |
C00338410
481232138016 |
Lever connection OMEGAconnection OMEG | Na dotaz | Zadat poptávku | |
| 717 5 WHR40154 |
C00342853
481231018459 |
VACKA AKTUATORA OMEG | 489 Kč
€ 19.30 |
||
| 718 0 WHR40154 |
C00332332
481252648051 |
sifon do nasypky | 723 Kč
€ 28.50 |
||
| 718 1 WHR40154 |
C00314031
481241888018 |
ovladac | 647 Kč
€ 25.50 |
||
| 753 1 WHR40154 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 37.50 |
||
| 754 0 WHR40154 |
C00312061
481253028826 |
Hadice nádrž-čerpadlo | Na dotaz | Zadat poptávku | |
| 754 1 WHR40154 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 46.30 |
||
| 754 2 WHR40154 |
C00332413
481253028829 |
Flange eco | Na dotaz | Zadat poptávku | |
| 760 0 WHR40154 |
C00314625
481248058105 |
Filtr čerpadla DELTA | 1 075 Kč
€ 42.40 |
||
| 781 0 WHR40154 |
C00318230
481953028847 |
Hose,draining | Na dotaz | Zadat poptávku | |
| 782 0 WHR40154 |
C00317136
481253028827 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 783 1 WHR40154 |
C00332412
481253028822 |
hadice násypka-přepad | Na dotaz | Zadat poptávku | |
| 787 0 WHR40154 |
C00315511
481253028813 |
hadice odparovaci | 777 Kč
€ 30.70 |
||
| 787 2 WHR40154 |
C00332932
481940118868 |
SPONA HADICE AW | 122 Kč
€ 4.80 |
||
| 794 2 WHR40154 |
C00337979
481253058005 |
O-Ring | Na dotaz | Zadat poptávku | |
| 794 5 WHR40154 |
C00340485
481253058095 |
tesneni vzdusniku | 35 Kč
€ 1.40 |
||
| 900 0 WHR40154 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 16.60 |
||
| 900 1 WHR40154 |
C00327315
481229088086 |
Bracket | Na dotaz | Zadat poptávku | |
| 900 2 WHR40154 |
C00327313
481229088077 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 3 WHR40154 |
C00328874
481240118446 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR40154 |
C00316612
481240118414 |
SPONA39,7 | 76 Kč
€ 3.00 |
||
| 900 5 WHR40154 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 7.90 |
||
| 900 6 WHR40154 |
C00317960
481240118444 |
Držák topení pračky Whirlpool, Ignis | 354 Kč
€ 14.00 |
||
| 900 7 WHR40154 |
C00327148
481225698031 |
Holder pressostat | Na dotaz | Zadat poptávku | |
| 900 8 WHR40154 |
C00332928
481940118823 |
SPONA | 393 Kč
€ 15.50 |
||
| 910 5 WHR40154 |
C00332081
481250218516 |
Screw 4,2 x 13 | Na dotaz | Zadat poptávku | |
| 930 0 WHR40154 |
C00320162
481949238139 |
pruzina | Na dotaz | Zadat poptávku | |
| 930 5 WHR40154 |
C00312356
481249238359 |
Pružina trysky násypky | 30 Kč
€ 1.20 |
||
| 941 0 WHR40154 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 941 1 WHR40154 |
C00315230
481252028066 |
Ložisko 6204 2Z C3 GJN (SKF) | 297 Kč
€ 11.70 |
||
| 953 0 WHR40154 |
C00313798
481253058099 |
Shaft seal 1200 | Na dotaz | Zadat poptávku | |
| 961 0 WHR40154 |
C00333324
481953268829 |
Vložka vymezovací | 532 Kč
€ 21.00 |
||
| 965 0 WHR40154 |
C00330912
481246668545 |
kryt odjisteni prack | 408 Kč
€ 16.10 |
||
| 993 0 WHR40154 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 3 WHR40154 |
C00328868
481239558004 |
klic montazni | 139 Kč
€ 5.50 |
||
