| Komerční kód: | G2P 70 F/01 WH OVENS WP |
| Kód 12NC: | 857795415000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

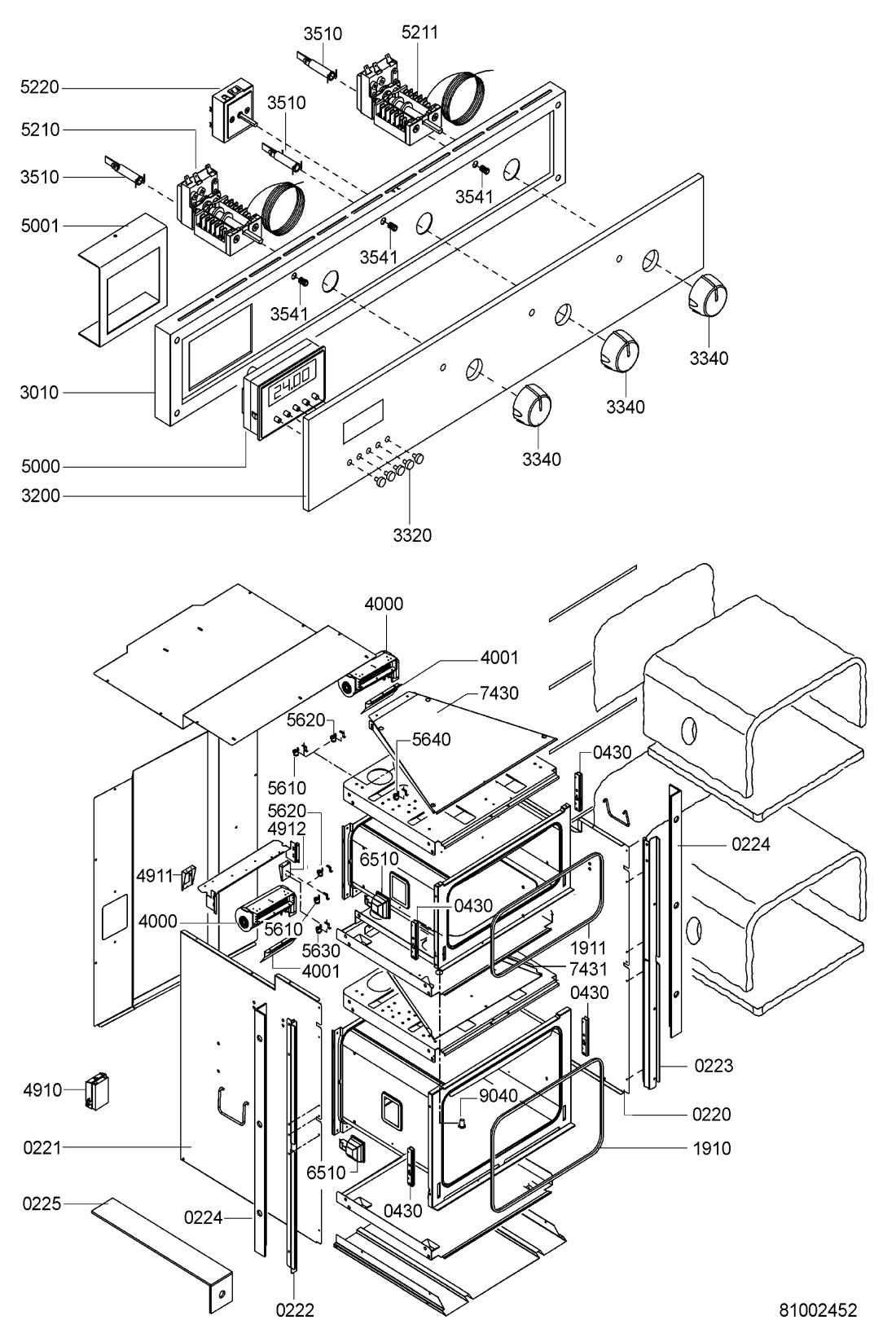

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR84063 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR84063 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR84063 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
| 022 3 WHR84063 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
| 022 4 WHR84063 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
| 022 5 WHR84063 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
| 040 0 WHR84063 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
| 040 1 WHR84063 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
| 043 0 WHR84063 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
| 100 0 WHR84063 |
C00603908
481244269516 |
Door complete 3/4. | Na dotaz | Zadat poptávku | |
| 100 1 WHR84063 |
C00603910
481244269517 |
Door complete 1/2. | Na dotaz | Zadat poptávku | |
| 110 0 WHR84063 |
C00604079
481249858215 |
Handle WH. | Na dotaz | Zadat poptávku | |
| 110 1 WHR84063 |
C00314970
481249878634 |
Support support | Na dotaz | Zadat poptávku | |
| 121 0 WHR84063 |
C00314320
481241619708 |
Door frame inner door 3/4 BL | Na dotaz | Zadat poptávku | |
| 121 1 WHR84063 |
C00320778
481241619709 |
Door frame inner door 1/2 BL | Na dotaz | Zadat poptávku | |
| 121 2 WHR84063 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 121 3 WHR84063 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 121 4 WHR84063 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
| 141 0 WHR84063 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 141 1 WHR84063 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 142 0 WHR84063 |
C00317740
481245068293 |
Oven glass door glass 3/4 | Na dotaz | Zadat poptávku | |
| 142 1 WHR84063 |
C00331174
481245068294 |
Oven glass door glass 1/2 | Na dotaz | Zadat poptávku | |
| 191 0 WHR84063 |
C00312196
481246818347 |
Gasket oven 3/4 | Na dotaz | Zadat poptávku | |
| 191 1 WHR84063 |
C00312120
481246818345 |
Gasket 1/2 oven | Na dotaz | Zadat poptávku | |
| 192 0 WHR84063 |
C00311684
481246818346 |
Gasket 3/4 oven | Na dotaz | Zadat poptávku | |
| 192 1 WHR84063 |
C00312340
481246818348 |
Gasket oven 1/2 | Na dotaz | Zadat poptávku | |
| 201 0 WHR84063 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
| 245 0 WHR84063 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 245 1 WHR84063 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR84063 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 2 WHR84063 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
| 261 0 WHR84063 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
| 261 2 WHR84063 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 8 WHR84063 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
| 301 0 WHR84063 |
C00331468
481245350018 |
Control panel support | Na dotaz | Zadat poptávku | |
| 320 0 WHR84063 |
C00603959
481245350147 |
Control panel WH. | Na dotaz | Zadat poptávku | |
| 332 0 WHR84063 |
C00335777
481227338089 |
SWITCH | Na dotaz | Zadat poptávku | |
| 334 0 WHR84063 |
C00603846
481241259137 |
Knob WH | Na dotaz | Zadat poptávku | |
| 351 0 WHR84063 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 354 1 WHR84063 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 400 0 WHR84063 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 400 1 WHR84063 |
C00326715
481202858349 |
Cover protect. cooling fan | Na dotaz | Zadat poptávku | |
| 440 0 WHR84063 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 451 0 WHR84063 |
C00312315
481225998465 |
Heating element circ. 2000W 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR84063 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | 2 399 Kč
€ 94.70 |
||
| 456 0 WHR84063 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 491 0 WHR84063 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
| 491 1 WHR84063 |
C00327596
481229068306 |
Bracket terminal block | Na dotaz | Zadat poptávku | |
| 491 2 WHR84063 |
C00327597
481229068307 |
Bracket | Na dotaz | Zadat poptávku | |
| 500 0 WHR84063 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 500 1 WHR84063 |
C00327006
481221478652 |
Support programmer EL. | Na dotaz | Zadat poptávku | |
| 521 0 WHR84063 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
| 521 1 WHR84063 |
C00497370
481228248285 |
Switch,oven + thermostat lower | Na dotaz | Zadat poptávku | |
| 522 0 WHR84063 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 1 WHR84063 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 561 0 WHR84063 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 562 0 WHR84063 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 563 0 WHR84063 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 564 0 WHR84063 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | 898 Kč
€ 35.50 |
||
| 651 0 WHR84063 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 743 0 WHR84063 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
| 743 1 WHR84063 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
| 904 0 WHR84063 |
C00330680
481246248433 |
Chimney part condenser | Na dotaz | Zadat poptávku | |
