INDESIT G 511 V (NL)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | G 511 V (NL) |
| Kód 12NC: | 869990185590 |
| I.C. kód: | 70185590000 |
| Značka: | INDESIT |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

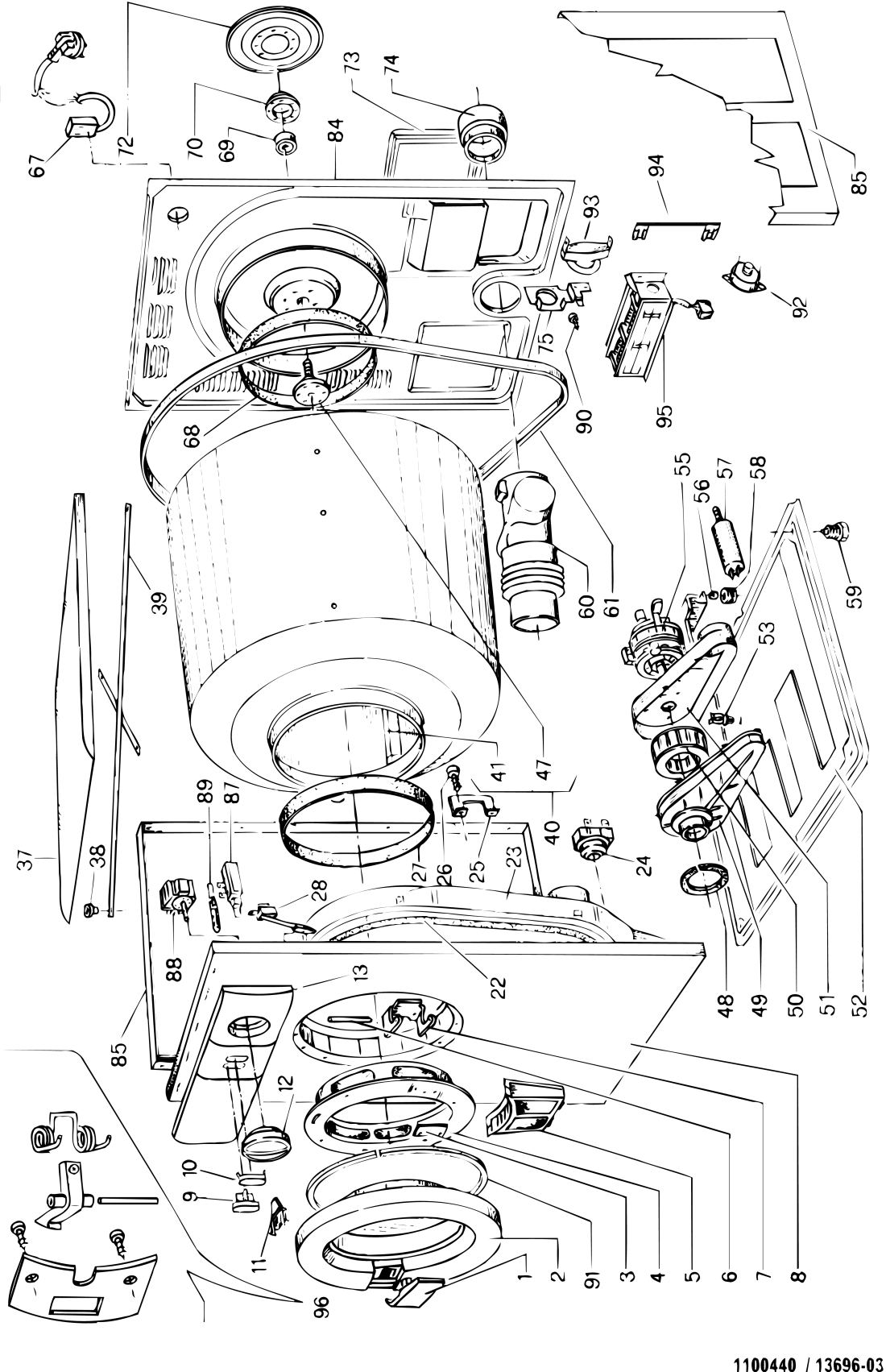

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1100440 |
C00063300
482000075235 |
DOOR HANDLE BLACK INDESIT | Na dotaz | Zadat poptávku | |
| 002 1100440 |
C00063301
482000067945 |
DOOR FRAME ASSY | Na dotaz | Zadat poptávku | |
| 003 1100440 |
C00063302
482000075236 |
HINGE PLATE DOOR | Na dotaz | Zadat poptávku | |
| 004 1100440 |
C00770260
482000090089 |
RING FRONT FILTER (WAS 810260) | Na dotaz | Zadat poptávku | |
| 005 1100440 |
C00770261
482000090090 |
FILTER (WAS 810261) | Na dotaz | Zadat poptávku | |
| 006 1100440 |
C00770262
482000090091 |
HINGE PIN (EX 810262) | Na dotaz | Zadat poptávku | |
| 007 1100440 |
C00770263
482000067722 |
HINGE PLATE OUTER CASE (EX 810263) | Na dotaz | Zadat poptávku | |
| 008 1100440 |
C00770264 | FRONT PANEL (WAS 810264) | Na dotaz | Zadat poptávku | |
| 009 1100440 |
C00063303 | PILOT LAMP LENS | Na dotaz | Zadat poptávku | |
| 010 1100440 |
C00063304 | PUSH | Na dotaz | Zadat poptávku | |
| 011 1100440 |
C00770204
482000090078 |
MICROSWITCH CATCH (EX 810204) | Na dotaz | Zadat poptávku | |
| 012 1100440 |
C00063305 | KNOB WHITE | Na dotaz | Zadat poptávku | |
| 013 1100440 |
C00063868 | CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 022 1100440 |
C00770270
482000090092 |
GASKET CONVEYOR | Na dotaz | Zadat poptávku | |
| 023 1100440 |
C00770271
482000090093 |
FRONT CONVECTOR WITH JOINT (WAS 810271) | Na dotaz | Zadat poptávku | |
| 024 1100440 |
C00770038
482000090066 |
THERMOSTAAT 47C (WAS 810038) | Na dotaz | Zadat poptávku | |
| 025 1100440 |
C00770222
482000090082 |
BEARING SUPPORT | Na dotaz | Zadat poptávku | |
| 026 1100440 |
C00770272 | BOLT 3,5X13 +AISI 430 | Na dotaz | Zadat poptávku | |
| 027 1100440 |
C00770273
482000032346 |
FRONT FELT (WAS 810273) | Na dotaz | Zadat poptávku | |
| 028 1100440 |
C00770310
482000090100 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 037 1100440 |
C00770312 | TOP | Na dotaz | Zadat poptávku | |
| 038 1100440 |
C00770003 | WORKTOP RETAINER | Na dotaz | Zadat poptávku | |
| 039 1100440 |
C00770002 | TOP BRACKET (EX 810002) | Na dotaz | Zadat poptávku | |
| 040 1100440 |
C00770152 | DRUM ( C-1 ) (WAS 810152)## | Na dotaz | Zadat poptávku | |
| 041 1100440 |
C00770145
482000091028 |
EXTRACTABLE BEATER (EX 810145) | Na dotaz | Zadat poptávku | |
| 047 1100440 |
C00087248
482000077230 |
NUT | Na dotaz | Zadat poptávku | |
| 047 1100440 |
C00770055
482000032336 |
DRUM SUPPORT (EX 810055) | Na dotaz | Zadat poptávku | |
| 048 1100440 |
C00770279
482000090094 |
JOIN LOCATION FAN (WAS 810279) | Na dotaz | Zadat poptávku | |
| 049 1100440 |
C00770035
482000090065 |
INLET FAN (WAS 810035) | Na dotaz | Zadat poptávku | |
| 050 1100440 |
C00770046 | VENTILATOR (WAS 810046) | Na dotaz | Zadat poptávku | |
| 051 1100440 |
C00770036 | FAN HOUSINMOTOR SIDE | Na dotaz | Zadat poptávku | |
| 052 1100440 |
C00770237 | BODEMPLAAT (WAS 810237) | Na dotaz | Zadat poptávku | |
| 053 1100440 |
C00770243 | TERMINALL (WAS 810243) | Na dotaz | Zadat poptávku | |
| 055 1100440 |
C00063674
482000075251 |
MOTOR## | Na dotaz | Zadat poptávku | |
| 056 1100440 |
C00770242 | SPACER MOTOR SUPPORT (EX 810242) | Na dotaz | Zadat poptávku | |
| 057 1100440 |
C00770241
482000032345 |
CONDENSATOR 10 MF (WAS 810241) | Na dotaz | Zadat poptávku | |
| 058 1100440 |
C00770048 | RUBBER SHOCK ABSORBER (EX 810048) | Na dotaz | Zadat poptávku | |
| 059 1100440 |
C00770034 | VOETJE (WAS 810034) | Na dotaz | Zadat poptávku | |
| 060 1100440 |
C00770314 | VENTILATORKANAAL ** | Na dotaz | Zadat poptávku | |
| 061 1100440 |
C00770302
482000090099 |
BELT (1920 H MAEL) (WAS 810302) | Na dotaz | Zadat poptávku | |
| 067 1100440 |
C00770284
482000067844 |
SUPLLY CABLE (EX 810284) | Na dotaz | Zadat poptávku | |
| 068 1100440 |
C00770285
482000032347 |
FELP TAPE (EX810285) | Na dotaz | Zadat poptávku | |
| 069 1100440 |
C00770101
482000032337 |
Ložisko 608 SKF 2Z (22x7x8) | 40 Kč
€ 1.60 |
||
| 070 1100440 |
C00770103
482000032338 |
BEARING LOCKING DISC (EX 810103) | Na dotaz | Zadat poptávku | |
| 072 1100440 |
C00770102 | BACK PANEL DISC (EX 810102) | Na dotaz | Zadat poptávku | |
| 073 1100440 |
C00770168 | ENGINE COMPARTMENT DOOR (EX 810168) | Na dotaz | Zadat poptávku | |
| 074 1100440 |
C00770054
482000090068 |
DEFROST WATER HOSE CONNECTION (EX 810054) | Na dotaz | Zadat poptávku | |
| 075 1100440 |
C00770286
482000090095 |
THERMOST SUPPORT (WAS 810286) | Na dotaz | Zadat poptávku | |
| 084 1100440 |
C00770292 | BACK PANEL (WAS 810292) | Na dotaz | Zadat poptávku | |
| 085 1100440 |
C00770138 | SIDE PANEL (EX 810138) | Na dotaz | Zadat poptávku | |
| 087 1100440 |
C00770356
482000067848 |
SWITCH DELICATE | Na dotaz | Zadat poptávku | |
| 088 1100440 |
C00770293
482000032348 |
TIMER (WAS 810293) | Na dotaz | Zadat poptávku | |
| 089 1100440 |
C00770017 | SIGNAL LAMP (WAS 810017) | Na dotaz | Zadat poptávku | |
| 090 1100440 |
C00770315 | VERWARMINGSELEMENTSCREW 4,2X9,5 | Na dotaz | Zadat poptávku | |
| 091 1100440 |
C00063675
482000075252 |
BELLOWS SEAL | Na dotaz | Zadat poptávku | |
| 092 1100440 |
C00063676
482000027121 |
TERMOSTAT 135[C 'IAR' | Na dotaz | Zadat poptávku | |
| 093 1100440 |
C00770360
482000090107 |
THERMOSTAAT 70øC | Na dotaz | Zadat poptávku | |
| 094 1100440 |
C00063677 | SPRING | Na dotaz | Zadat poptávku | |
| 095 1100440 |
C00770287
482000090096 |
HEATING ELEMENT (WAS 810287) | Na dotaz | Zadat poptávku | |
| 096 1100440 |
C00063678
482000075253 |
KIT.SPRING | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00063682 | INSTRUCTION BOOK | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00063680 | BUSH - UPPER WASH ARM | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00063681 | TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00770047 | WASHER | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00770056
482000090069 |
RADIO INTERFERENCE SUPPRESSOR (EX 810056) | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00770119
488000770119 |
DRAIN HOSE (EX 810119) | Na dotaz | Zadat poptávku | |
| 099 1100440 |
C00770144 | WIRING FIXING (EX 810144) | Na dotaz | Zadat poptávku | |
