BAUKNECHT GKEA 180 A++
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GKEA 180 A++ |
| Kód 12NC: | 855245916000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící mrazáky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

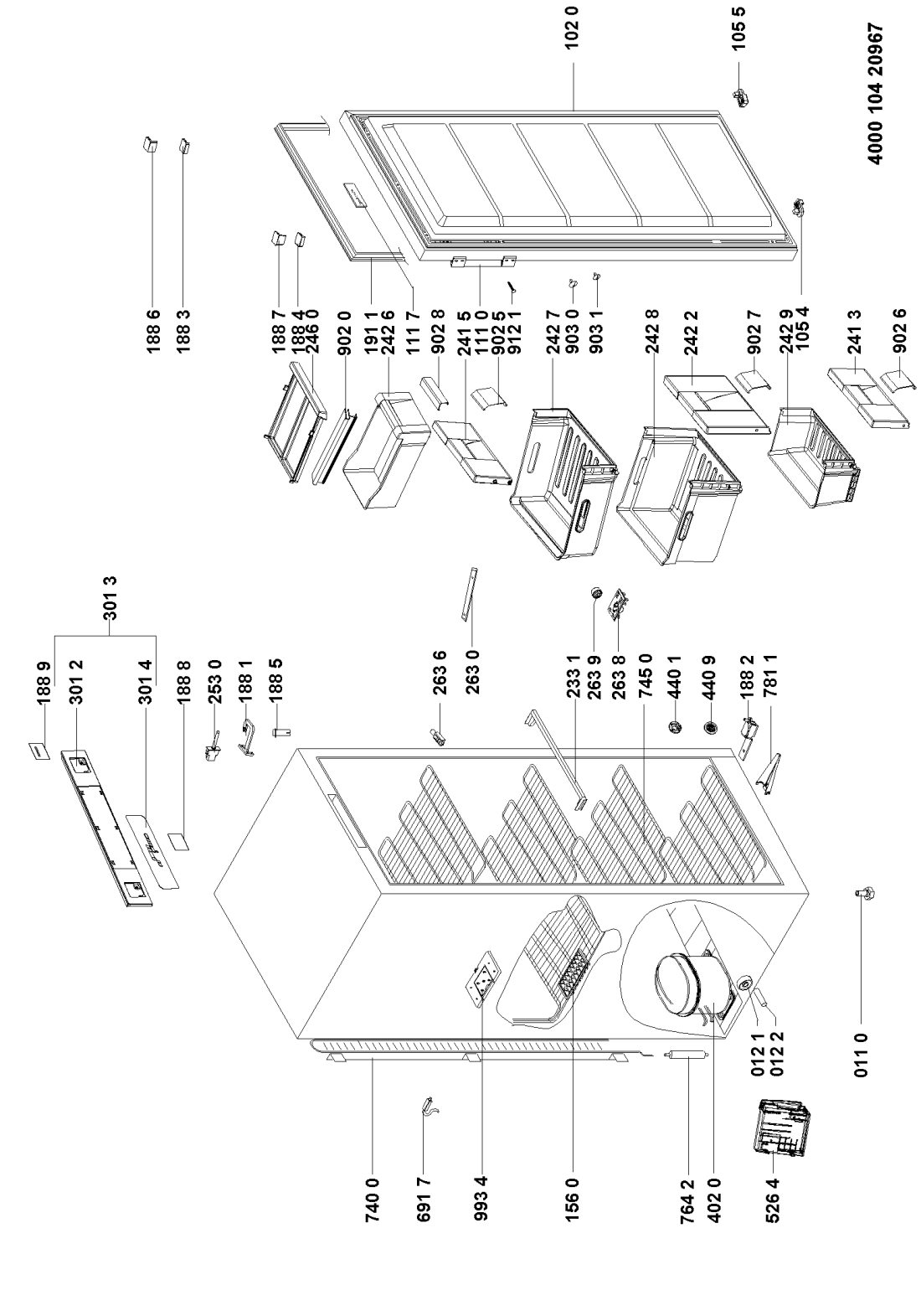

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR26776 |
C00330462
481246218296 |
Foot | Na dotaz | Zadat poptávku | |
| 0121 WHR26776 |
C00330460
481246218292 |
kolecko zadni | Na dotaz | Zadat poptávku | |
| 0122 WHR26776 |
C00333340
481953538013 |
osa kolecka lednice | 47 Kč
€ 1.90 |
||
| 1020 WHR26776 |
C00435672
481010371270 |
Door freezer GW | Na dotaz | Zadat poptávku | |
| 1054 WHR26776 |
C00326450
481050321881 |
Stop door GW right FHD | Na dotaz | Zadat poptávku | |
| 1055 WHR26776 |
C00326449
481050321871 |
pouzdro | 156 Kč
€ 6.20 |
||
| 1110 WHR26776 |
C00464169
481246268956 |
Door handle | Na dotaz | Zadat poptávku | |
| 1117 WHR26776 |
C00330204
481245918279 |
Nameplate BAUKNECHT | Na dotaz | Zadat poptávku | |
| 1560 WHR26776 |
C00458804
481241829791 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 1881 WHR26776 |
C00317518
481050321941 |
Závěs horní | 226 Kč
€ 8.90 |
||
| 1882 WHR26776 |
C00326446
481050321611 |
Hinge lower FHD | Na dotaz | Zadat poptávku | |
| 1883 WHR26776 |
C00326455
481050321961 |
Cover hinge GW right FHD | Na dotaz | Zadat poptávku | |
| 1884 WHR26776 |
C00326454
481050321951 |
Cover hinge GW left FHD | Na dotaz | Zadat poptávku | |
| 1885 WHR26776 |
C00316600
481222608025 |
cep | 413 Kč
€ 16.30 |
||
| 1886 WHR26776 |
C00326457
481050321981 |
Cover GW right FHD | Na dotaz | Zadat poptávku | |
| 1887 WHR26776 |
C00326456
481050321971 |
Cover GW left FHD | Na dotaz | Zadat poptávku | |
| 1888 WHR26776 |
C00328160
481244029575 |
kryt | 189 Kč
€ 7.50 |
||
| 1889 WHR26776 |
C00328161
481244029576 |
kryt | 347 Kč
€ 13.70 |
||
| 1911 WHR26776 |
C00331581
481246818294 |
Těsnění magnetické | 3 341 Kč
€ 131.90 |
||
| 2331 WHR26776 |
C00330403
481246079116 |
Držák výparníku | 270 Kč
€ 10.70 |
||
| 2413 WHR26776 |
C00459501
481244069347 |
Insert Drawer | Na dotaz | Zadat poptávku | |
| 2415 WHR26776 |
C00316264
481244069401 |
Flap | Na dotaz | Zadat poptávku | |
| 2422 WHR26776 |
C00403512
481244069348 |
Insert | Na dotaz | Zadat poptávku | |
| 2426 WHR26776 |
C00403048
481241848921 |
Drawer | Na dotaz | Zadat poptávku | |
| 2427 WHR26776 |
C00323229
480132100231 |
Koš mrazáku | 2 726 Kč
€ 107.60 |
||
| 2428 WHR26776 |
C00318662
481241828894 |
Zásuvka mrazáku | Na dotaz | Zadat poptávku | |
| 2429 WHR26776 |
C00327828
481241848678 |
Drawer | Na dotaz | Zadat poptávku | |
| 2460 WHR26776 |
C00433057
480132103415 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 2530 WHR26776 |
C00314174
480132100729 |
spinac svetla | 323 Kč
€ 12.80 |
||
| 2630 WHR26776 |
C00330648
481246238165 |
Lišta vodící | 657 Kč
€ 25.90 |
||
| 2636 WHR26776 |
C00311949
481240449879 |
Kolík závěsu | 61 Kč
€ 2.40 |
||
| 2638 WHR26776 |
C00340182
481246238248 |
Guide | Na dotaz | Zadat poptávku | |
| 2639 WHR26776 |
C00337179
481252888126 |
Kolečko do vedení | 217 Kč
€ 8.60 |
||
| 3012 WHR26776 |
C00448336
481050321891 |
Front panel | Na dotaz | Zadat poptávku | |
| 3013 WHR26776 |
C00435911
481010390450 |
Control panel set+electronic AKO | Na dotaz | Zadat poptávku | |
| 3014 WHR26776 |
C00435664
481010370884 |
Insert panel A++ printed,BK | Na dotaz | Zadat poptávku | |
| 4020 WHR26776 |
C00323230
480132100279 |
COMPRESSOR VEMZ7C | Na dotaz | Zadat poptávku | |
| 4401 WHR26776 |
C00328947
481240148586 |
Držák | 178 Kč
€ 7.00 |
||
| 4409 WHR26776 |
C00331592
481246818359 |
Stopper | Na dotaz | Zadat poptávku | |
| 5264 WHR26776 |
C00323281
480132100433 |
modul | 5 665 Kč
€ 223.60 |
||
| 6917 WHR26776 |
C00490932
481221058054 |
Sensor | Na dotaz | Zadat poptávku | |
| 7400 WHR26776 |
C00332253
481251148436 |
Condenser | Na dotaz | Zadat poptávku | |
| 7450 WHR26776 |
C00332261
481251148462 |
výparník | 3 982 Kč
€ 157.20 |
||
| 7642 WHR26776 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7811 WHR26776 |
C00329262
481240488069 |
Kanál odtokový | 697 Kč
€ 27.50 |
||
| 9020 WHR26776 |
C00335911
481244098327 |
Support | Na dotaz | Zadat poptávku | |
| 9025 WHR26776 |
C00458866
481241848825 |
Basket insert printed | Na dotaz | Zadat poptávku | |
| 9026 WHR26776 |
C00458867
481241848826 |
Basket insert | Na dotaz | Zadat poptávku | |
| 9027 WHR26776 |
C00459502
481244069349 |
Basket insert | Na dotaz | Zadat poptávku | |
| 9028 WHR26776 |
C00458916
481241848922 |
Basket insert | Na dotaz | Zadat poptávku | |
| 9030 WHR26776 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 11.90 |
||
| 9031 WHR26776 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 9121 WHR26776 |
C00345865
481250018106 |
Screw | Na dotaz | Zadat poptávku | |
| 9934 WHR26776 |
C00328319
481244079087 |
Ice pack | 1 052 Kč
€ 41.50 |
||
| 9939 WHR26776 |
C00435874
481010388117 |
Accessories not shown | Na dotaz | Zadat poptávku | |
| 999 WHR26776 |
C00567869 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
