| Komerční kód: | GKI 6010/B |
| Kód 12NC: | 855280201000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné mrazáky |
| Další podobné modely: | 855280201001 |
Potřebujete servis? Jsme tady pro Vás

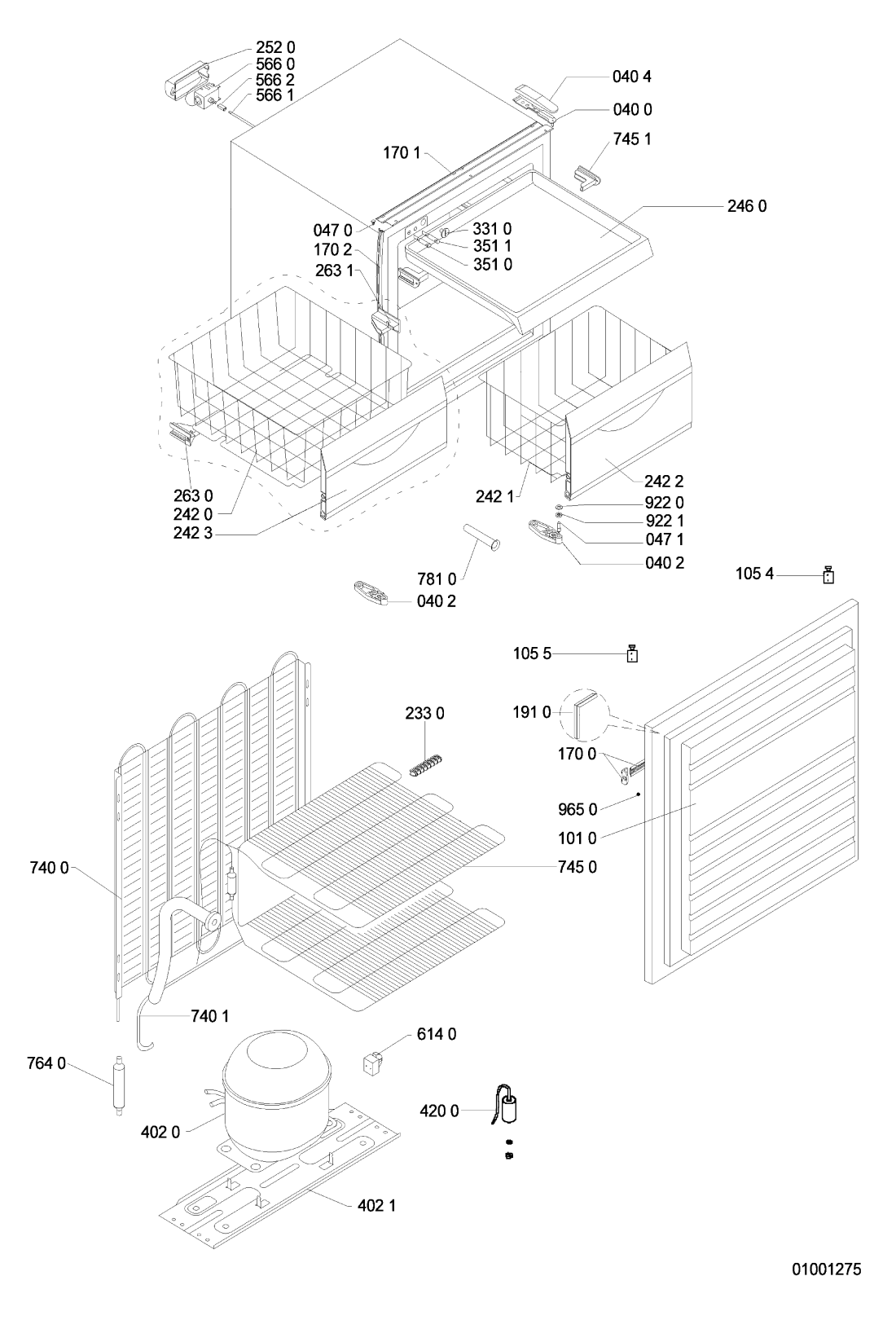

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 040 0 WHR86537 |
C00214999
481991100005 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR86537 |
C00490897
481991100016 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 4 WHR86537 |
C00486981
481991100004 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR86537 |
C00490982
481226318005 |
Pivot | Na dotaz | Zadat poptávku | |
| 047 1 WHR86537 |
C00215001
481991100006 |
Pivot | Na dotaz | Zadat poptávku | |
| 101 0 WHR86537 |
C00484799
481241618462 |
Door freezer | Na dotaz | Zadat poptávku | |
| 105 4 WHR86537 |
C00215159
481246228335 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 5 WHR86537 |
C00215160
481246228336 |
Bushing | Na dotaz | Zadat poptávku | |
| 170 0 WHR86537 |
C00493050
481231018749 |
Friction plate ,KIT | Na dotaz | Zadat poptávku | |
| 170 1 WHR86537 |
C00575071
481991100018 |
Trim. | Na dotaz | Zadat poptávku | |
| 170 2 WHR86537 |
C00485859
481246048969 |
Profile | Na dotaz | Zadat poptávku | |
| 191 0 WHR86537 |
C00490170
481246818116 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 233 0 WHR86537 |
C00544949
481240438643 |
Cover probe | Na dotaz | Zadat poptávku | |
| 242 0 WHR86537 |
C00500826
481241868258 |
Basket | Na dotaz | Zadat poptávku | |
| 242 1 WHR86537 |
C00489089
481241868259 |
Basket | Na dotaz | Zadat poptávku | |
| 242 2 WHR86537 |
C00489281
481244069141 |
Flap | Na dotaz | Zadat poptávku | |
| 242 3 WHR86537 |
C00377714
481244069139 |
Flap | Na dotaz | Zadat poptávku | |
| 246 0 WHR86537 |
C00489075
481241848553 |
Tray | Na dotaz | Zadat poptávku | |
| 252 0 WHR86537 |
C00215041
481244078994 |
COVER-THERMOSTAT | Na dotaz | Zadat poptávku | |
| 263 0 WHR86537 |
C00215005
481240448796 |
Support | Na dotaz | Zadat poptávku | |
| 263 1 WHR86537 |
C00214994
481240448797 |
Support | Na dotaz | Zadat poptávku | |
| 331 0 WHR86537 |
C00500756
481227338095 |
knob thermostat | Na dotaz | Zadat poptávku | |
| 351 0 WHR86537 |
C00488699
481238118277 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 351 1 WHR86537 |
C00488700
481238118278 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 402 0 WHR86537 |
C00555048
481236038567 |
Compressor.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR86537 |
C00215081
481991100039 |
MOUNTING PLATE | Na dotaz | Zadat poptávku | |
| 420 0 WHR86537 |
C00326771
481212118201 |
Capacitor 4#F 4#F | Na dotaz | Zadat poptávku | |
| 566 0 WHR86537 |
C00491348
481228238103 |
Thermostat | Na dotaz | Zadat poptávku | |
| 566 1 WHR86537 |
C00492122
481253548014 |
Shaft | Na dotaz | Zadat poptávku | |
| 566 2 WHR86537 |
C00492074
481252648114 |
Bushing | Na dotaz | Zadat poptávku | |
| 614 0 WHR86537 |
C00332847
481928068367 |
RELE ART284 | 1 086 Kč
€ 42.90 |
||
| 740 0 WHR86537 |
C00486279
481251148274 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR86537 |
C00500928
481253029147 |
Hose insulat. | Na dotaz | Zadat poptávku | |
| 745 0 WHR86537 |
C00545061
481251138181 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR86537 |
C00215000
481240478477 |
SUPPORT-EVAPORATOR | Na dotaz | Zadat poptávku | |
| 764 0 WHR86537 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR86537 |
C00215409
481253029144 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 922 0 WHR86537 |
C00500926
481252648113 |
Washer | Na dotaz | Zadat poptávku | |
| 922 1 WHR86537 |
C00215559
481252648115 |
Washer | Na dotaz | Zadat poptávku | |
| 965 0 WHR86537 |
C00215557
481253598093 |
Stopper | Na dotaz | Zadat poptávku | |
| 999 WHR86537 |
C00724233 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
