BAUKNECHT GSF 4055 WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSF 4055 WS |
| Kód 12NC: | 854605501510 |
| Značka: | BAUKNECHT |
| Typ produktu: | |
| Další podobné modely: | 854605501310, 854605501010 |
Potřebujete servis? Jsme tady pro Vás

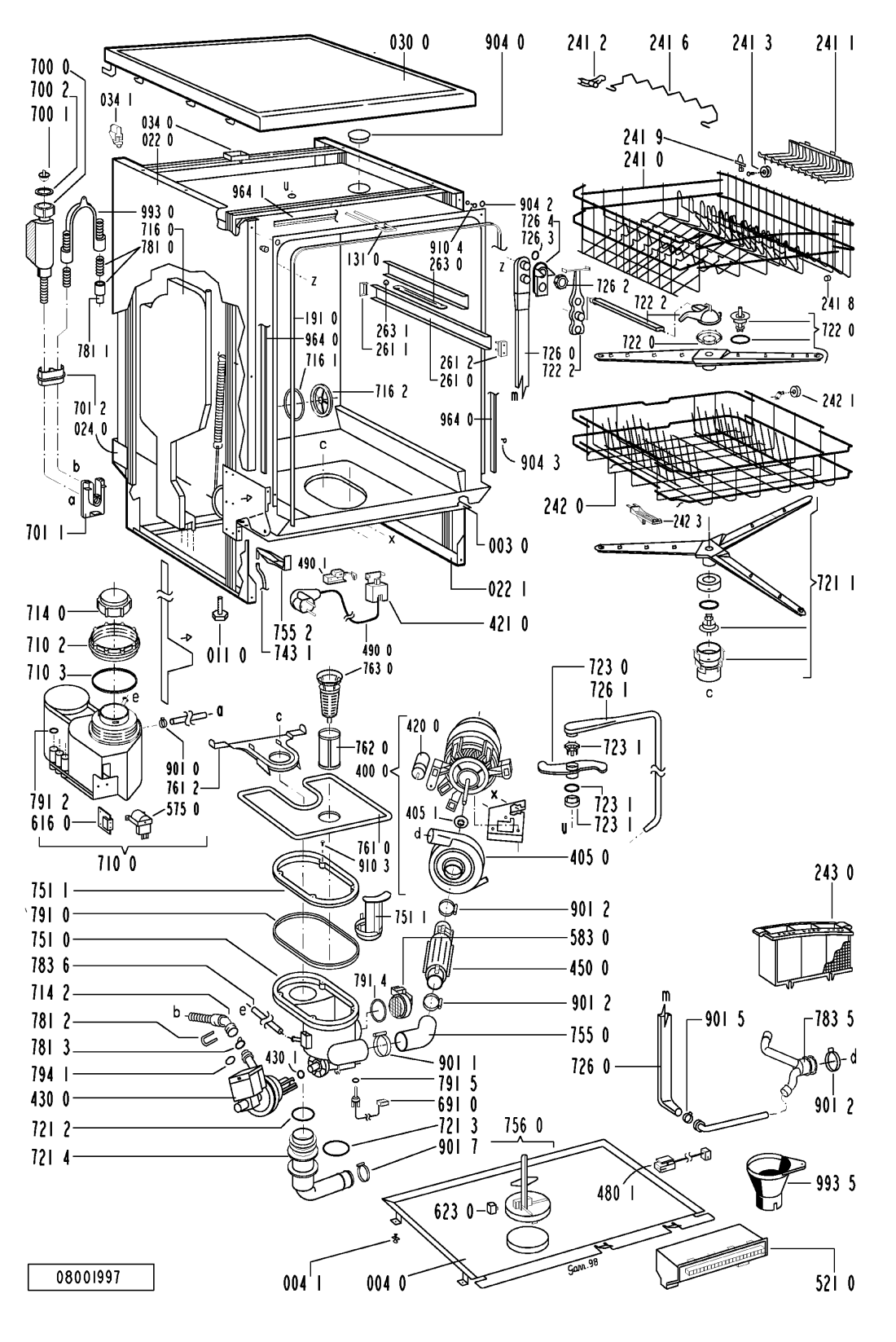

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR109373 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR109373 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR109373 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR109373 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR109373 |
C00336329
481244018951 |
PANEL | 2 048 Kč
€ 80.90 |
||
| 022 1 WHR109373 |
C00497921
481244018949 |
stena bocni prava | 2 048 Kč
€ 80.90 |
||
| 024 0 WHR109373 |
C00341518
481244019463 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR109373 |
C00527126
481231018426 |
Table top APL4000WS APL4000WS | Na dotaz | Zadat poptávku | |
| 034 0 WHR109373 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR109373 |
C00313535
481240478242 |
drzak desky horni | 671 Kč
€ 26.50 |
||
| 040 1 WHR109373 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR109373 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR109373 |
C00587777
481241718784 |
ochrana dveri | 145 Kč
€ 5.70 |
||
| 044 0 WHR109373 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 044 1 WHR109373 |
C00529797
481249238365 |
Spring f.push button f.push button | Na dotaz | Zadat poptávku | |
| 047 0 WHR109373 |
C00312008
481240448591 |
Brake f.door | Na dotaz | Zadat poptávku | |
| 047 1 WHR109373 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR109373 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR109373 |
C00337652
481244088887 |
sokl mycky | 1 409 Kč
€ 55.60 |
||
| 103 0 WHR109373 |
C00587781
481244018978 |
DVERE VONKAJ?IE ADL331 N | Na dotaz | Zadat poptávku | |
| 120 0 WHR109373 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR109373 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR109373 |
C00335456
481241758361 |
Tilt lock cpl. wh | Na dotaz | Zadat poptávku | |
| 131 0 WHR109373 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR109373 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR109373 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR109373 |
C00344447
481245818913 |
Basket upper/straight | Na dotaz | Zadat poptávku | |
| 241 1 WHR109373 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 2 WHR109373 |
C00316719
481253578036 |
Bearing wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR109373 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 6 WHR109373 |
C00498271
481245818333 |
drzak hrnicku | 453 Kč
€ 17.90 |
||
| 241 8 WHR109373 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 241 9 WHR109373 |
C00337177
481252888075 |
Wheel,basket basket up | Na dotaz | Zadat poptávku | |
| 242 0 WHR109373 |
C00344471
481245818919 |
Basket lower cpl. | Na dotaz | Zadat poptávku | |
| 242 1 WHR109373 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR109373 |
C00340899
481246648059 |
Fixation wh | Na dotaz | Zadat poptávku | |
| 243 0 WHR109373 |
C00315811
481245818272 |
Basket cutlery cutlery | Na dotaz | Zadat poptávku | |
| 261 0 WHR109373 |
C00336926
481946238271 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR109373 |
C00316779
481940448819 |
Cap rail | Na dotaz | Zadat poptávku | |
| 261 2 WHR109373 |
C00312762
481246278995 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR109373 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR109373 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 301 0 WHR109373 |
C00548553
481245379483 |
PANEL KONTROLNY | Na dotaz | Zadat poptávku | |
| 303 1 WHR109373 |
C00490026
481246038071 |
Plate handle WH | Na dotaz | Zadat poptávku | |
| 305 0 WHR109373 |
C00588599
481244018958 |
Batten WH. | Na dotaz | Zadat poptávku | |
| 322 0 WHR109373 |
C00742604
481245370958 |
Insert panel WH | Na dotaz | Zadat poptávku | |
| 332 0 WHR109373 |
C00620397
481241028524 |
Push button cap WH. | Na dotaz | Zadat poptávku | |
| 332 1 WHR109373 |
C00491587
481241028525 |
Push button cap WH | Na dotaz | Zadat poptávku | |
| 332 2 WHR109373 |
C00588547
481241028526 |
Push button cap WH. | Na dotaz | Zadat poptávku | |
| 332 3 WHR109373 |
C00527605
481241028566 |
Push button cap ON/OFF cap ON/OFF WH | Na dotaz | Zadat poptávku | |
| 350 0 WHR109373 |
C00484291
481931039837 |
MODUL KONTR. N | Na dotaz | Zadat poptávku | |
| 400 0 WHR109373 |
C00497532
481236158126 |
CERPADLO CIRKULACNE KOMPLET LOP. P | Na dotaz | Zadat poptávku | |
| 405 0 WHR109373 |
C00497495
481236018371 |
TELESO CIRK.CERPADLA PLAST P | Na dotaz | Zadat poptávku | |
| 405 1 WHR109373 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 420 0 WHR109373 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR109373 |
C00313712
481212118161 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR109373 |
C00497493
481236018357 |
V#TOKOV? CERPADLO ADG9540 lop. N | Na dotaz | Zadat poptávku | |
| 430 1 WHR109373 |
C00498457
481246668506 |
KRUZOK TESNIACI | Na dotaz | Zadat poptávku | |
| 450 0 WHR109373 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR109373 |
C00493175
481232128385 |
Cable harness set set | Na dotaz | Zadat poptávku | |
| 480 1 WHR109373 |
C00343881
481232128371 |
vodic spojovaci | 581 Kč
€ 22.90 |
||
| 480 3 WHR109373 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR109373 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR109373 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR109373 |
C00526838
481221478293 |
CONTROL BOARD (CB) (CB) | Na dotaz | Zadat poptávku | |
| 531 0 WHR109373 |
C00497327
481227318055 |
SPINAC DAVKOVANIA SOLI N | Na dotaz | Zadat poptávku | |
| 531 1 WHR109373 |
C00497328
481227318056 |
GOMBIK NASTAVOVACI PLAST. N | Na dotaz | Zadat poptávku | |
| 575 0 WHR109373 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR109373 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 616 0 WHR109373 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 620 0 WHR109373 |
C00482468
481221838049 |
User board (UB) | Na dotaz | Zadat poptávku | |
| 621 0 WHR109373 |
C00621334
481227618237 |
Power switch ON/OFF | Na dotaz | Zadat poptávku | |
| 623 0 WHR109373 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR109373 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR109373 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR109373 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR109373 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR109373 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR109373 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR109373 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 700 0 WHR109373 |
C00337227
481253028804 |
Wasserstopp-Zulaufschlauch XSSG4000 | Na dotaz | Zadat poptávku | |
| 700 0 WHR109373 |
C00339223
481253028848 |
Hose, inlet aqua stop 2m | Na dotaz | Zadat poptávku | |
| 700 1 WHR109373 |
C00345763
481248048095 |
filtr | 78 Kč
€ 3.10 |
||
| 700 2 WHR109373 |
C00330915
481246668628 |
Gasket | Na dotaz | Zadat poptávku | |
| 701 1 WHR109373 |
C00327323
481231018153 |
Držák hadic | 542 Kč
€ 21.40 |
||
| 710 0 WHR109373 |
C00341721
481241868151 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR109373 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR109373 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR109373 |
C00319565
481246278993 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 714 2 WHR109373 |
C00343888
481244018963 |
hadice | 151 Kč
€ 6.00 |
||
| 716 0 WHR109373 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR109373 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR109373 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 721 1 WHR109373 |
C00553392
481236068062 |
Spray arm lower cpl... | Na dotaz | Zadat poptávku | |
| 721 2 WHR109373 |
C00498455
481246668491 |
TESNENIE ADL331 GUM./PLOCHE | Na dotaz | Zadat poptávku | |
| 721 3 WHR109373 |
C00498459
481246668558 |
TESNENIE 76X2,5 N | Na dotaz | Zadat poptávku | |
| 721 4 WHR109373 |
C00340890
481244019455 |
Flange | Na dotaz | Zadat poptávku | |
| 722 0 WHR109373 |
C00312287
481236068044 |
Rameno mycí střední | 1 468 Kč
€ 58.00 |
||
| 722 2 WHR109373 |
C00313773
481236068056 |
Hub upper straight cpl | Na dotaz | Zadat poptávku | |
| 723 0 WHR109373 |
C00328637
481236068049 |
Spray arm ceiling | Na dotaz | Zadat poptávku | |
| 723 1 WHR109373 |
C00317981
481931039831 |
spojka hor.ramene | 217 Kč
€ 8.60 |
||
| 726 0 WHR109373 |
C00498612
481253028786 |
PRIVOD K STREDNEMU R | Na dotaz | Zadat poptávku | |
| 726 1 WHR109373 |
C00337409
481253028787 |
trubice privodova | 1 201 Kč
€ 47.40 |
||
| 726 2 WHR109373 |
C00498571
481250518358 |
MATICA TRYSKY ADL331 PLAST. N | Na dotaz | Zadat poptávku | |
| 726 3 WHR109373 |
C00340575
481246668512 |
tesneni naboje | 150 Kč
€ 5.90 |
||
| 726 4 WHR109373 |
C00319575
481246279633 |
spojka stred ramene | 283 Kč
€ 11.20 |
||
| 743 1 WHR109373 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR109373 |
C00497803
481241818205 |
zasobnik vody | Na dotaz | Zadat poptávku | |
| 751 1 WHR109373 |
C00337193
481931039826 |
Water guide service kitservice kit | Na dotaz | Zadat poptávku | |
| 755 0 WHR109373 |
C00498616
481253028849 |
koleno - hadice | 426 Kč
€ 16.80 |
||
| 755 2 WHR109373 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 756 0 WHR109373 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR109373 |
C00498506
481248058082 |
SITKO JEMNE | 847 Kč
€ 33.40 |
||
| 761 2 WHR109373 |
C00342357
481241818204 |
Cover sieve | Na dotaz | Zadat poptávku | |
| 762 0 WHR109373 |
C00338179
481248058084 |
Filtr myčky - jemný | 985 Kč
€ 38.90 |
||
| 763 0 WHR109373 |
C00336300
481248058083 |
Filtr myčky - hrubý | 196 Kč
€ 7.70 |
||
| 781 0 WHR109373 |
C00314840
481253028737 |
hadice vytok. mycky | 581 Kč
€ 22.90 |
||
| 781 1 WHR109373 |
C00336274
481953028286 |
Sleeve hose | Na dotaz | Zadat poptávku | |
| 781 2 WHR109373 |
C00343290
481949268405 |
Clip f.non-return valv - 6234.45485 | Na dotaz | Zadat poptávku | |
| 781 3 WHR109373 |
C00340834
481228128364 |
klapka zpetna | 783 Kč
€ 30.90 |
||
| 783 5 WHR109373 |
C00342135
481253078028 |
ROZDELOVAC ADP9 | 698 Kč
€ 27.60 |
||
| 783 6 WHR109373 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR109373 |
C00498664
481253268067 |
TESNENIE ADP941 GUM. PLOCH N | Na dotaz | Zadat poptávku | |
| 791 2 WHR109373 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR109373 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR109373 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 794 1 WHR109373 |
C00337981
481953058032 |
tesnici O krouzek | 605 Kč
€ 23.90 |
||
| 901 0 WHR109373 |
C00317847
482240110492 |
spona12-20/9A | 222 Kč
€ 8.80 |
||
| 901 1 WHR109373 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR109373 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR109373 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 901 7 WHR109373 |
C00497550
481240118427 |
spona031,6 | 111 Kč
€ 4.40 |
||
| 904 0 WHR109373 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 547 Kč
€ 21.60 |
||
| 904 2 WHR109373 |
C00342337
481246279635 |
krytka | 104 Kč
€ 4.10 |
||
| 904 3 WHR109373 |
C00330743
481246279636 |
krytka | 42 Kč
€ 1.70 |
||
| 910 1 WHR109373 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR109373 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR109373 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 4 WHR109373 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR109373 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR109373 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 9 WHR109373 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 964 0 WHR109373 |
C00330910
481246668536 |
Gasket housing ri/lehousing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR109373 |
C00330908
481246668469 |
tesneni skrine horni | 372 Kč
€ 14.70 |
||
| 993 0 WHR109373 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 5 WHR109373 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
