BAUKNECHT GSF 4751 W-WS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSF 4751 W-WS |
| Kód 12NC: | 854675101010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás

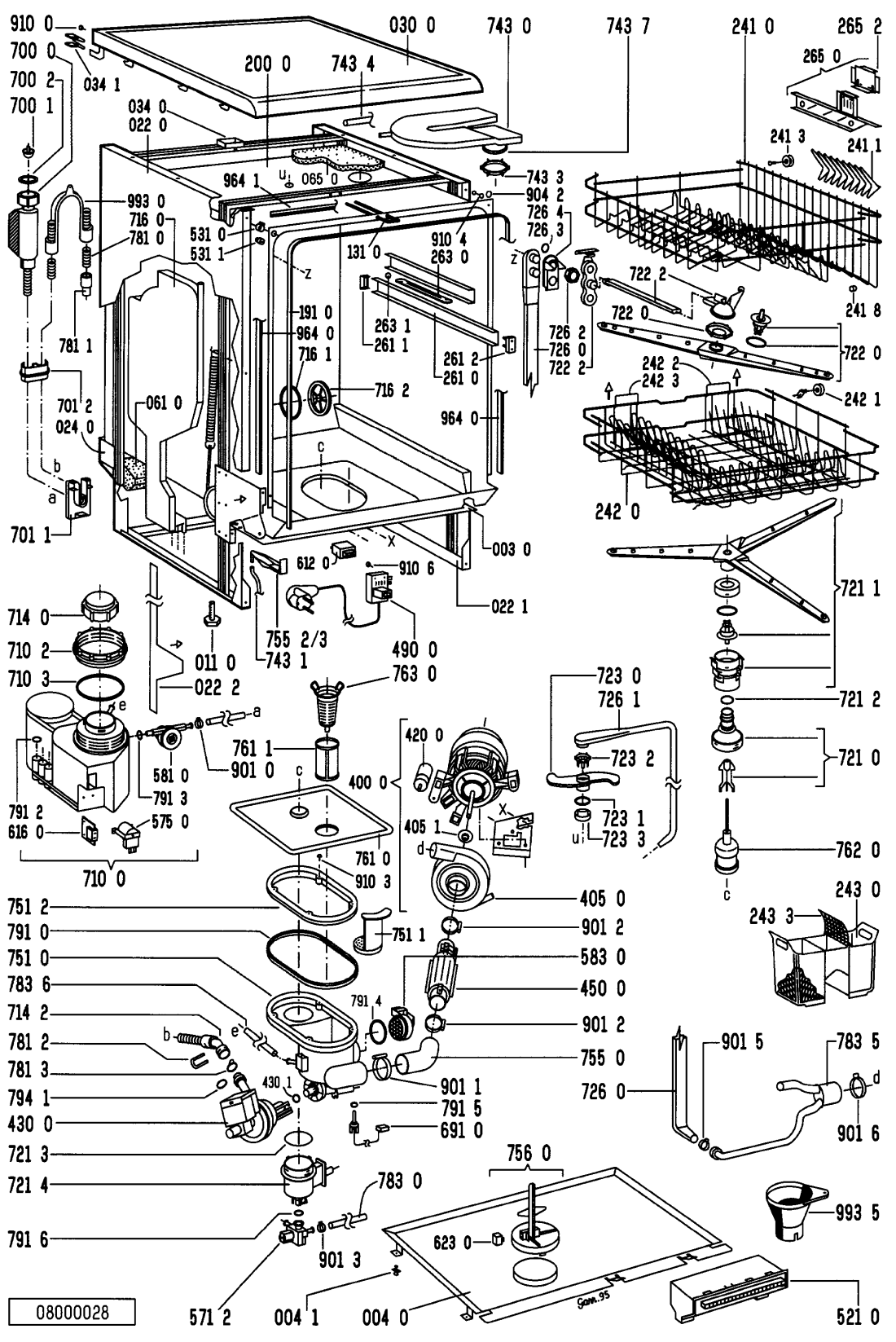

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR97206 |
C00335369
481244018947 |
TRAVERSE | Na dotaz | Zadat poptávku | |
| 004 0 WHR97206 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR97206 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR97206 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR97206 |
C00336329
481244018951 |
PANEL | 2 048 Kč
€ 80.80 |
||
| 022 1 WHR97206 |
C00497921
481244018949 |
stena bocni prava | 2 048 Kč
€ 80.80 |
||
| 022 2 WHR97206 |
C00336213
481244018953 |
Spacer | Na dotaz | Zadat poptávku | |
| 024 0 WHR97206 |
C00341520
481244018948 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR97206 |
C00554994
481231018293 |
TABLE TOP WH.. | Na dotaz | Zadat poptávku | |
| 034 0 WHR97206 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR97206 |
C00491539
481240478236 |
PRICHYTKA AWM | 122 Kč
€ 4.80 |
||
| 040 1 WHR97206 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR97206 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR97206 |
C00587777
481241718784 |
ochrana dveri | 145 Kč
€ 5.70 |
||
| 044 0 WHR97206 |
C00555577
481249238354 |
NAHRADENE 481249238358 N | Na dotaz | Zadat poptávku | |
| 044 1 WHR97206 |
C00590030
481249238355 |
Spring f.cap. | Na dotaz | Zadat poptávku | |
| 047 0 WHR97206 |
C00312008
481240448591 |
Brake f.door | Na dotaz | Zadat poptávku | |
| 047 1 WHR97206 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR97206 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 047 3 WHR97206 |
C00555593
481250028001 |
NAHRADENE 481240118397 N | Na dotaz | Zadat poptávku | |
| 053 0 WHR97206 |
C00555332
481244088098 |
NAHRADENE 481244088887 N | Na dotaz | Zadat poptávku | |
| 061 0 WHR97206 |
C00588405
481246688453 |
Counter weight. | Na dotaz | Zadat poptávku | |
| 065 0 WHR97206 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR97206 |
C00587779
481244018956 |
VONKAJSIE DVERE N | Na dotaz | Zadat poptávku | |
| 120 0 WHR97206 |
C00341323
481244018961 |
Door,inner | Na dotaz | Zadat poptávku | |
| 120 1 WHR97206 |
C00497922
481244018955 |
Batten | Na dotaz | Zadat poptávku | |
| 130 0 WHR97206 |
C00335456
481241758361 |
Tilt lock cpl. wh | Na dotaz | Zadat poptávku | |
| 131 0 WHR97206 |
C00339492
481240118403 |
HOOK LOCK | Na dotaz | Zadat poptávku | |
| 175 0 WHR97206 |
C00587772
481231018295 |
LISTA DEKORATIVNA ADP962 N | Na dotaz | Zadat poptávku | |
| 175 1 WHR97206 |
C00484675
481231018294 |
LI?TA DVERI *** N | Na dotaz | Zadat poptávku | |
| 175 2 WHR97206 |
C00484676
481231018296 |
LISTA DEKORATIVNA DOLNA ADP 962 N | Na dotaz | Zadat poptávku | |
| 191 0 WHR97206 |
C00620442
481246668494 |
TESNENIE GUM/PLOCHE | Na dotaz | Zadat poptávku | |
| 192 0 WHR97206 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 200 0 WHR97206 |
C00555221
481241818175 |
Container.. | Na dotaz | Zadat poptávku | |
| 241 0 WHR97206 |
C00498269
481245818267 |
Basket upper inclined upper inclined | Na dotaz | Zadat poptávku | |
| 241 1 WHR97206 |
C00339630
481245818283 |
Holder cups right WH | Na dotaz | Zadat poptávku | |
| 241 3 WHR97206 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 8 WHR97206 |
C00336188
481246668482 |
SPACER CAP SET | Na dotaz | Zadat poptávku | |
| 242 0 WHR97206 |
C00555431
481245818261 |
BASKET LOWER CPL... | Na dotaz | Zadat poptávku | |
| 242 1 WHR97206 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 2 WHR97206 |
C00498267
481245818262 |
drzak taliru sp.kose | Na dotaz | Zadat poptávku | |
| 242 3 WHR97206 |
C00498268
481245818263 |
Plate,support f.basket f.basket lower | Na dotaz | Zadat poptávku | |
| 243 0 WHR97206 |
C00344484
481245818278 |
Basket cutlery cpl. | Na dotaz | Zadat poptávku | |
| 243 3 WHR97206 |
C00339553
481245958005 |
Holder spoon | Na dotaz | Zadat poptávku | |
| 261 0 WHR97206 |
C00336926
481946238271 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR97206 |
C00316779
481940448819 |
Cap rail | Na dotaz | Zadat poptávku | |
| 261 2 WHR97206 |
C00312762
481246278995 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR97206 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR97206 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 265 0 WHR97206 |
C00316642
481240448599 |
drzak kose - náhrada | 683 Kč
€ 26.90 |
||
| 265 2 WHR97206 |
C00329029
481240448589 |
Grip basket adjustment | Na dotaz | Zadat poptávku | |
| 301 0 WHR97206 |
C00548553
481245379483 |
PANEL KONTROLNY | Na dotaz | Zadat poptávku | |
| 301 0 WHR97206 |
C00557105
481245379309 |
CONTROL PANEL.. | Na dotaz | Zadat poptávku | |
| 303 1 WHR97206 |
C00555215
481241758365 |
Child-prooflock cpl. W.. | Na dotaz | Zadat poptávku | |
| 305 0 WHR97206 |
C00588599
481244018958 |
Batten WH. | Na dotaz | Zadat poptávku | |
| 322 0 WHR97206 |
C00589975
481245379501 |
Insert panel WH. | Na dotaz | Zadat poptávku | |
| 322 0 WHR97206 |
C00740880
481245379407 |
Insert panel WH | Na dotaz | Zadat poptávku | |
| 331 0 WHR97206 |
C00487481
481241358871 |
Knob program cpl. WH | Na dotaz | Zadat poptávku | |
| 332 0 WHR97206 |
C00620397
481241028524 |
Push button cap WH. | Na dotaz | Zadat poptávku | |
| 332 3 WHR97206 |
C00491588
481241028529 |
Push button cap ON/OFF WH | Na dotaz | Zadat poptávku | |
| 350 0 WHR97206 |
C00554950
481227658047 |
Display board (DB).. | Na dotaz | Zadat poptávku | |
| 400 0 WHR97206 |
C00341652
481225928654 |
Motor with spray pump | Na dotaz | Zadat poptávku | |
| 405 0 WHR97206 |
C00336145
481236018358 |
Spray pump | Na dotaz | Zadat poptávku | |
| 405 1 WHR97206 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 420 0 WHR97206 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 430 0 WHR97206 |
C00497493
481236018357 |
V#TOKOV? CERPADLO ADG9540 lop. N | Na dotaz | Zadat poptávku | |
| 430 1 WHR97206 |
C00498457
481246668506 |
KRUZOK TESNIACI | Na dotaz | Zadat poptávku | |
| 450 0 WHR97206 |
C00554910
481225928653 |
NAHRADENE 481231028017 N | Na dotaz | Zadat poptávku | |
| 480 0 WHR97206 |
C00343769
481232128364 |
vodice svazek | 3 472 Kč
€ 136.90 |
||
| 490 0 WHR97206 |
C00342888
481232118019 |
Cable,mains 5m (withou | Na dotaz | Zadat poptávku | |
| 490 0 WHR97206 |
C00342889
481232118026 |
Cable,mains 3m | Na dotaz | Zadat poptávku | |
| 490 0 WHR97206 |
C00555135
481240118394 |
NAHRADENE 481231018403 *** N | Na dotaz | Zadat poptávku | |
| 521 0 WHR97206 |
C00554860
481221478141 |
Control board.. | Na dotaz | Zadat poptávku | |
| 531 0 WHR97206 |
C00335713
481227318051 |
Switch waterhardness | Na dotaz | Zadat poptávku | |
| 531 1 WHR97206 |
C00337181
481227318052 |
Wheel,fingertip | Na dotaz | Zadat poptávku | |
| 571 2 WHR97206 |
C00497345
481228128362 |
SITKO plast N | Na dotaz | Zadat poptávku | |
| 575 0 WHR97206 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 581 0 WHR97206 |
C00343107
481234928003 |
prutokomer mycky | 1 606 Kč
€ 63.30 |
||
| 583 0 WHR97206 |
C00317341
481227128355 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 612 0 WHR97206 |
C00336875
481228058018 |
Relay heating | Na dotaz | Zadat poptávku | |
| 616 0 WHR97206 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 616 1 WHR97206 |
C00327262
481227158161 |
Contact reed rinsing agent | Na dotaz | Zadat poptávku | |
| 620 0 WHR97206 |
C00482457
481221838007 |
MODUL N | Na dotaz | Zadat poptávku | |
| 621 0 WHR97206 |
C00621334
481227618237 |
Power switch ON/OFF | Na dotaz | Zadat poptávku | |
| 623 0 WHR97206 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR97206 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR97206 |
C00343601
481241868129 |
COMBIDOSAGE | Na dotaz | Zadat poptávku | |
| 680 1 WHR97206 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 680 2 WHR97206 |
C00636430
481228168004 |
CIEVKA - ZRU?ENE N | Na dotaz | Zadat poptávku | |
| 681 1 WHR97206 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR97206 |
C00497923
481244018976 |
Flap | Na dotaz | Zadat poptávku | |
| 682 0 WHR97206 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR97206 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 700 0 WHR97206 |
C00337227
481253028804 |
Wasserstopp-Zulaufschlauch XSSG4000 | Na dotaz | Zadat poptávku | |
| 700 0 WHR97206 |
C00339220
481253028788 |
Hose, inlet aqua stop | Na dotaz | Zadat poptávku | |
| 700 1 WHR97206 |
C00336304
481248048019 |
Sieve | Na dotaz | Zadat poptávku | |
| 700 2 WHR97206 |
C00340431
481252058002 |
Gasket set | Na dotaz | Zadat poptávku | |
| 701 1 WHR97206 |
C00327323
481231018153 |
Držák hadic | 542 Kč
€ 21.40 |
||
| 701 2 WHR97206 |
C00339690
481940118423 |
Holder | Na dotaz | Zadat poptávku | |
| 710 0 WHR97206 |
C00319374
481241868128 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR97206 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR97206 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR97206 |
C00319565
481246278993 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 714 2 WHR97206 |
C00343888
481244018963 |
hadice | 151 Kč
€ 6.00 |
||
| 716 0 WHR97206 |
C00555250
481241868131 |
REG.DOSAGE.. | Na dotaz | Zadat poptávku | |
| 716 1 WHR97206 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR97206 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 721 0 WHR97206 |
C00339176
481236068043 |
naboj ramene | 187 Kč
€ 7.40 |
||
| 721 1 WHR97206 |
C00557961
481236068042 |
RAMENO ADL N | Na dotaz | Zadat poptávku | |
| 721 2 WHR97206 |
C00498455
481246668491 |
TESNENIE ADL331 GUM./PLOCHE | Na dotaz | Zadat poptávku | |
| 721 3 WHR97206 |
C00340487
481246668489 |
Gasket 76x2,5 | Na dotaz | Zadat poptávku | |
| 721 4 WHR97206 |
C00497800
481241818176 |
N?DOBA SPOJOVACIA ADP962 PLAST. N | Na dotaz | Zadat poptávku | |
| 722 0 WHR97206 |
C00312287
481236068044 |
Rameno mycí střední | 1 468 Kč
€ 57.90 |
||
| 722 2 WHR97206 |
C00555124
481236068045 |
NABOJ RAMENA ADG955 N | Na dotaz | Zadat poptávku | |
| 723 0 WHR97206 |
C00328637
481236068049 |
Spray arm ceiling | Na dotaz | Zadat poptávku | |
| 723 1 WHR97206 |
C00340578
481246668483 |
GASKET | Na dotaz | Zadat poptávku | |
| 723 2 WHR97206 |
C00343265
481240448597 |
Clip,fix spray arm | Na dotaz | Zadat poptávku | |
| 723 3 WHR97206 |
C00336549
481250518362 |
Screwed joint | Na dotaz | Zadat poptávku | |
| 726 0 WHR97206 |
C00498612
481253028786 |
PRIVOD K STREDNEMU R | Na dotaz | Zadat poptávku | |
| 726 1 WHR97206 |
C00337409
481253028787 |
trubice privodova | 1 201 Kč
€ 47.40 |
||
| 726 2 WHR97206 |
C00498571
481250518358 |
MATICA TRYSKY ADL331 PLAST. N | Na dotaz | Zadat poptávku | |
| 726 3 WHR97206 |
C00340575
481246668512 |
tesneni naboje | 150 Kč
€ 5.90 |
||
| 726 4 WHR97206 |
C00319575
481246279633 |
spojka stred ramene | 283 Kč
€ 11.20 |
||
| 743 0 WHR97206 |
C00318471
481251148171 |
jednotka kondenzacni | 727 Kč
€ 28.70 |
||
| 743 1 WHR97206 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 743 3 WHR97206 |
C00318435
481250518364 |
matice | 63 Kč
€ 2.50 |
||
| 743 4 WHR97206 |
C00332410
481253028807 |
hadice | Na dotaz | Zadat poptávku | |
| 743 7 WHR97206 |
C00319749
481246668514 |
tesneni | 680 Kč
€ 26.80 |
||
| 751 0 WHR97206 |
C00337209
481241818169 |
Water collector | Na dotaz | Zadat poptávku | |
| 751 1 WHR97206 |
C00337195
481241818171 |
WATER GUIDE | Na dotaz | Zadat poptávku | |
| 751 2 WHR97206 |
C00340994
481244018954 |
Fastener frame | Na dotaz | Zadat poptávku | |
| 755 0 WHR97206 |
C00498611
481253028785 |
Bend | Na dotaz | Zadat poptávku | |
| 755 2 WHR97206 |
C00335313
481253048136 |
Tray,leak left | Na dotaz | Zadat poptávku | |
| 755 3 WHR97206 |
C00498635
481253048137 |
Tray leak right | Na dotaz | Zadat poptávku | |
| 756 0 WHR97206 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR97206 |
C00336296
481248058061 |
SITKO | 1 472 Kč
€ 58.10 |
||
| 761 1 WHR97206 |
C00336290
481248058072 |
Sieve insert | Na dotaz | Zadat poptávku | |
| 762 0 WHR97206 |
C00338156
481248058065 |
Microfilter | Na dotaz | Zadat poptávku | |
| 763 0 WHR97206 |
C00336301
481248058057 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR97206 |
C00314840
481253028737 |
hadice vytok. mycky | 581 Kč
€ 22.90 |
||
| 781 1 WHR97206 |
C00336274
481953028286 |
Sleeve hose | Na dotaz | Zadat poptávku | |
| 781 2 WHR97206 |
C00343290
481949268405 |
Clip f.non-return valv - 6234.45485 | Na dotaz | Zadat poptávku | |
| 781 3 WHR97206 |
C00340834
481228128364 |
klapka zpetna | 783 Kč
€ 30.90 |
||
| 783 0 WHR97206 |
C00339398
481253028792 |
Hose 11,5x3x200 | Na dotaz | Zadat poptávku | |
| 783 5 WHR97206 |
C00342137
481253028797 |
hadice od cirk.teles | 677 Kč
€ 26.70 |
||
| 783 6 WHR97206 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR97206 |
C00340499
481253268063 |
Gasket | Na dotaz | Zadat poptávku | |
| 791 2 WHR97206 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 3 WHR97206 |
C00340490
481246668502 |
Těsnění zásobníku soli | 183 Kč
€ 7.20 |
||
| 791 4 WHR97206 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.20 |
||
| 791 5 WHR97206 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 791 6 WHR97206 |
C00498456
481246668505 |
tesneni ventilu | 178 Kč
€ 7.00 |
||
| 794 1 WHR97206 |
C00337981
481953058032 |
tesnici O krouzek | 605 Kč
€ 23.90 |
||
| 901 0 WHR97206 |
C00335972
481240118191 |
Strap 017,8 | Na dotaz | Zadat poptávku | |
| 901 1 WHR97206 |
C00335981
481240118396 |
Strap | Na dotaz | Zadat poptávku | |
| 901 2 WHR97206 |
C00335973
481240118401 |
Strap | Na dotaz | Zadat poptávku | |
| 901 3 WHR97206 |
C00335971
481240118404 |
Strap 019,8-708Z | Na dotaz | Zadat poptávku | |
| 901 5 WHR97206 |
C00335970
481240118406 |
spona | 44 Kč
€ 1.70 |
||
| 901 6 WHR97206 |
C00335968
481240118408 |
Strap 038,1-708Z | Na dotaz | Zadat poptávku | |
| 902 0 WHR97206 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 904 2 WHR97206 |
C00342337
481246279635 |
krytka | 104 Kč
€ 4.10 |
||
| 904 3 WHR97206 |
C00330743
481246279636 |
krytka | 42 Kč
€ 1.70 |
||
| 910 0 WHR97206 |
C00555594
481250218362 |
SCREW 4X35-TORX.. | Na dotaz | Zadat poptávku | |
| 910 1 WHR97206 |
C00336679
481250218019 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR97206 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR97206 |
C00336628
481250218364 |
Screw 5x20-TORX | Na dotaz | Zadat poptávku | |
| 910 4 WHR97206 |
C00498555
481250218365 |
Screw 3,5x5,5-TORX | Na dotaz | Zadat poptávku | |
| 910 5 WHR97206 |
C00336639
481250218367 |
Screw 3,5x8-TORX T15 | Na dotaz | Zadat poptávku | |
| 910 6 WHR97206 |
C00336600
481250218369 |
Screw A2F M4x6 | Na dotaz | Zadat poptávku | |
| 910 7 WHR97206 |
C00336590
481250238132 |
Screw DIN 965 | Na dotaz | Zadat poptávku | |
| 911 0 WHR97206 |
C00555601
481250238134 |
Screw decor ST3,5x9,5-.. | Na dotaz | Zadat poptávku | |
| 964 0 WHR97206 |
C00486138
481246668468 |
TESNENIE GUM/PLOCHE | Na dotaz | Zadat poptávku | |
| 964 1 WHR97206 |
C00330908
481246668469 |
tesneni skrine horni | 372 Kč
€ 14.70 |
||
| 993 0 WHR97206 |
C00344288
481953028279 |
Bow | Na dotaz | Zadat poptávku | |
| 993 5 WHR97206 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
