BAUKNECHT GSFS 5420WS DISHWASHERS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSFS 5420WS DISHWASHERS BK |
| Kód 12NC: | 854844501820 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
| Další podobné modely: | 854844501829 |
Potřebujete servis? Jsme tady pro Vás

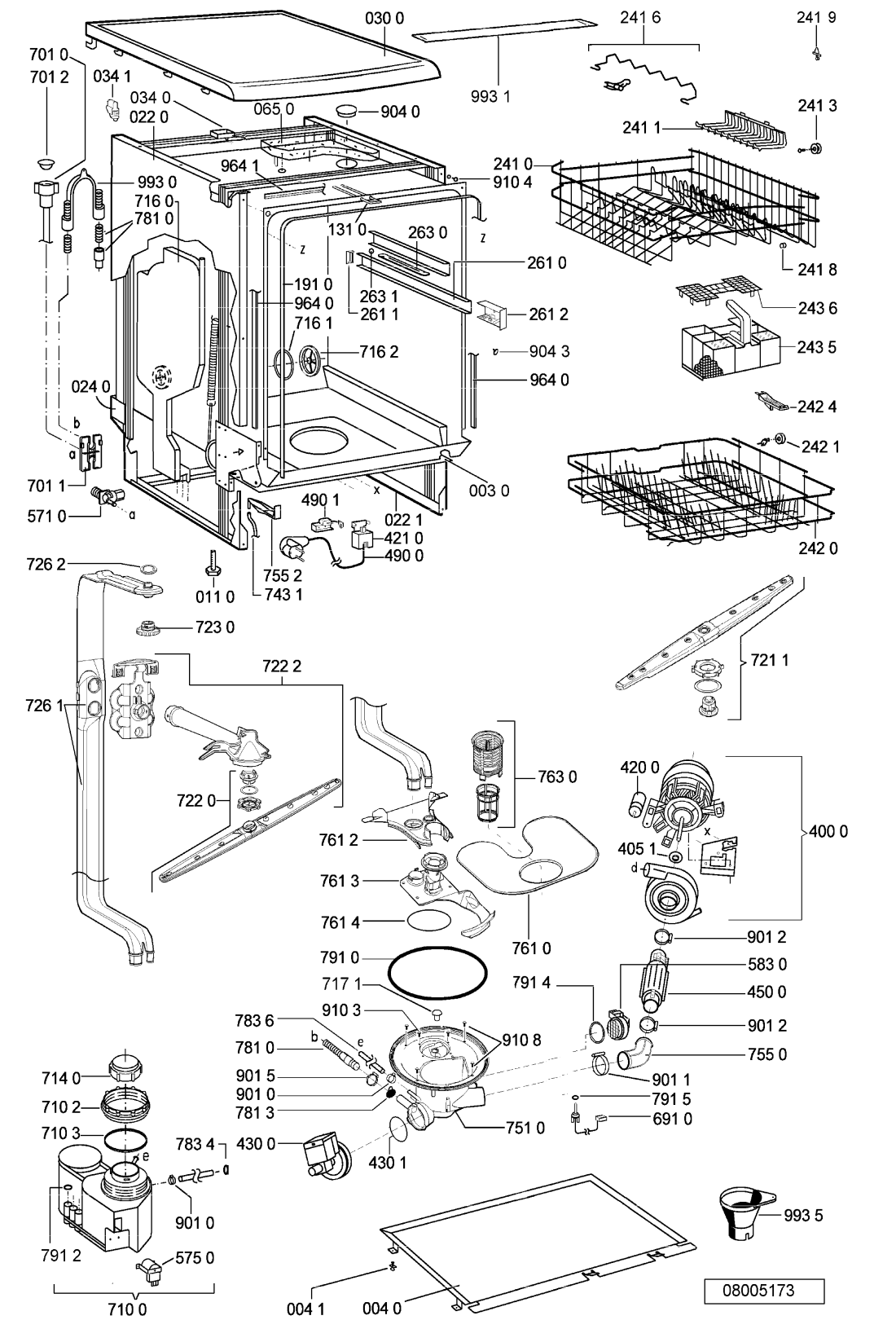

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR56865 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR56865 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR56865 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR56865 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR56865 |
C00327954
481244010755 |
stena bocni leva | 2 628 Kč
€ 103.80 |
||
| 022 1 WHR56865 |
C00327953
481244010754 |
stena bocni prava | 2 628 Kč
€ 103.80 |
||
| 024 0 WHR56865 |
C00497878
481244010417 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR56865 |
C00313615
481231018916 |
deska horni mycky | 3 137 Kč
€ 123.80 |
||
| 034 0 WHR56865 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR56865 |
C00313535
481240478242 |
drzak desky horni | 671 Kč
€ 26.50 |
||
| 040 1 WHR56865 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR56865 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR56865 |
C00317957
481241719172 |
Protector f.door white SKIT | Na dotaz | Zadat poptávku | |
| 044 0 WHR56865 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR56865 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR56865 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR56865 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR56865 |
C00328390
481244089031 |
sokl mycky - plech | 847 Kč
€ 33.40 |
||
| 065 0 WHR56865 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR56865 |
C00327955
481244010758 |
dvere mycky vnejsi | 3 804 Kč
€ 150.20 |
||
| 120 0 WHR56865 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR56865 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR56865 |
C00329789
481241758373 |
Tilt lock cpl. bk | Na dotaz | Zadat poptávku | |
| 131 0 WHR56865 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR56865 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 191 3 WHR56865 |
C00340530
481246668533 |
Gasket | Na dotaz | Zadat poptávku | |
| 192 0 WHR56865 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR56865 |
C00498279
481245819027 |
KOS NA RIAD HORNY KOV N | Na dotaz | Zadat poptávku | |
| 241 1 WHR56865 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR56865 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 6 WHR56865 |
C00319342
481231018757 |
Držák skleniček WGH1000 | 1 293 Kč
€ 51.00 |
||
| 241 8 WHR56865 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 241 9 WHR56865 |
C00317116
481252888101 |
drzak kolecka kompl. náhrada 481252888117 | Na dotaz | Zadat poptávku | |
| 242 0 WHR56865 |
C00313639
481231028134 |
Basket lower KIT wh | Na dotaz | Zadat poptávku | |
| 242 1 WHR56865 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR56865 |
C00330894
481246648091 |
Fixation grgr | Na dotaz | Zadat poptávku | |
| 243 5 WHR56865 |
C00457159
481231068034 |
Basket | Na dotaz | Zadat poptávku | |
| 243 6 WHR56865 |
C00498277
481245818996 |
mrizka WH | 935 Kč
€ 36.90 |
||
| 261 0 WHR56865 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR56865 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR56865 |
C00315195
481231018972 |
Cap rail front | Na dotaz | Zadat poptávku | |
| 263 0 WHR56865 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR56865 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 301 0 WHR56865 |
C00463305
481245372972 |
Control panel GSFS 5420 WS | Na dotaz | Zadat poptávku | |
| 303 1 WHR56865 |
C00490043
481246038156 |
Plate handle WH | Na dotaz | Zadat poptávku | |
| 331 0 WHR56865 |
C00488822
481241359171 |
Knob WH | Na dotaz | Zadat poptávku | |
| 332 0 WHR56865 |
C00379251
481241029237 |
Button WH | Na dotaz | Zadat poptávku | |
| 332 3 WHR56865 |
C00329284
481241029166 |
Button ON/OFF WH | Na dotaz | Zadat poptávku | |
| 350 2 WHR56865 |
C00484755
481238128071 |
Light guide | Na dotaz | Zadat poptávku | |
| 400 0 WHR56865 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 405 1 WHR56865 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 420 0 WHR56865 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR56865 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR56865 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR56865 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR56865 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR56865 |
C00312437
481232128424 |
vodice svazek | 2 884 Kč
€ 113.90 |
||
| 480 3 WHR56865 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR56865 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR56865 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR56865 |
C00312956
481221838224 |
Basic- control board (UCB)EBL/SAM | Na dotaz | Zadat poptávku | |
| 521 0 WHR56865 |
C00315005
481221838301 |
Control board | Na dotaz | Zadat poptávku | |
| 521 8 WHR56865 |
C00314532
481253078066 |
Osa knoflíku | 680 Kč
€ 26.80 |
||
| 571 0 WHR56865 |
C00312837
481228128379 |
Valve inlet inlet | Na dotaz | Zadat poptávku | |
| 575 0 WHR56865 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR56865 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 621 0 WHR56865 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 633 0 WHR56865 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR56865 |
C00588586
481241868325 |
Combidosage. | Na dotaz | Zadat poptávku | |
| 680 1 WHR56865 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR56865 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR56865 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR56865 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR56865 |
C00313437
481228268035 |
Feeler NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR56865 |
C00498607
481253028081 |
HADICA | Na dotaz | Zadat poptávku | |
| 701 1 WHR56865 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR56865 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR56865 |
C00320182
481241868149 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR56865 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR56865 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR56865 |
C00312631
481246279906 |
uzaver zasob. soli | 988 Kč
€ 39.00 |
||
| 716 0 WHR56865 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR56865 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR56865 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 1 WHR56865 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 721 1 WHR56865 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 722 0 WHR56865 |
C00311968
481236068687 |
Spray arm upper sa | Na dotaz | Zadat poptávku | |
| 722 2 WHR56865 |
C00311304
481236068693 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR56865 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR56865 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR56865 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR56865 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR56865 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR56865 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR56865 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 761 0 WHR56865 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR56865 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR56865 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR56865 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR56865 |
C00313492
481248058363 |
Sieve | Na dotaz | Zadat poptávku | |
| 781 0 WHR56865 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR56865 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR56865 |
C00314292
481253028888 |
Hadice myčky Whirlpool, Ignis | 120 Kč
€ 4.70 |
||
| 783 6 WHR56865 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR56865 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR56865 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR56865 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR56865 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 901 0 WHR56865 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR56865 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR56865 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR56865 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 904 0 WHR56865 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 547 Kč
€ 21.60 |
||
| 904 3 WHR56865 |
C00330743
481246279636 |
krytka | 42 Kč
€ 1.70 |
||
| 910 1 WHR56865 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR56865 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR56865 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR56865 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR56865 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR56865 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR56865 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 9 WHR56865 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 964 0 WHR56865 |
C00330910
481246668536 |
Gasket housing ri/lehousing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR56865 |
C00330908
481246668469 |
tesneni skrine horni | 372 Kč
€ 14.70 |
||
| 993 0 WHR56865 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 1 WHR56865 |
C00319875
481246678388 |
Ochranná fólie, parní zábrana nad vestavnou myčku Whirlpool ADG 2020 FD, ADG 6240 IX, ADG | 207 Kč
€ 8.20 |
||
| 993 5 WHR56865 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
