BAUKNECHT GSUS 4421 IN
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSUS 4421 IN |
| Kód 12NC: | 854644201730 |
| Značka: | BAUKNECHT |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

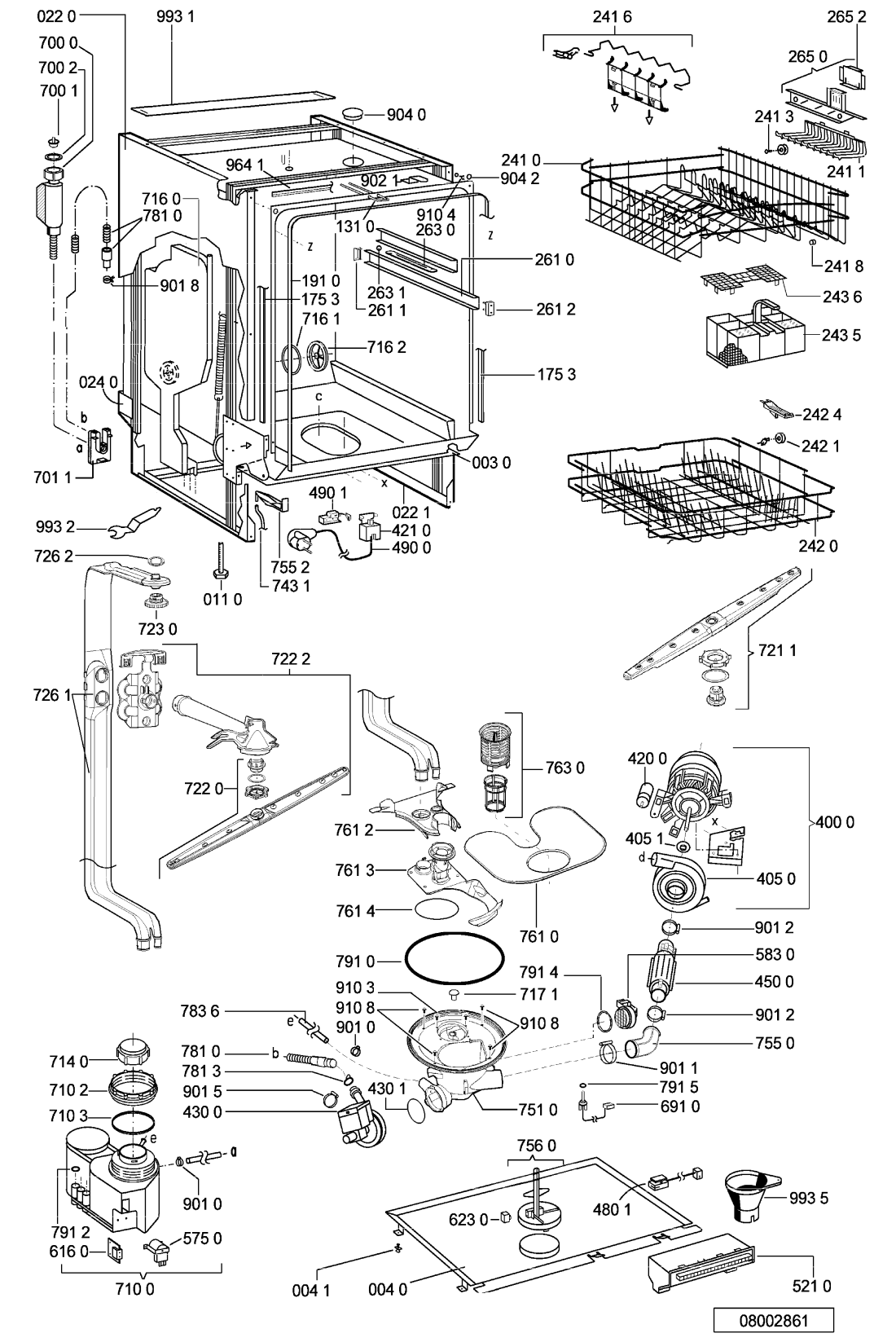

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR96870 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR96870 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR96870 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR96870 |
C00318437
481250518369 |
Foot long | Na dotaz | Zadat poptávku | |
| 022 0 WHR96870 |
C00587564
481244019413 |
Side panel left WH. | Na dotaz | Zadat poptávku | |
| 022 1 WHR96870 |
C00587565
481244019414 |
Side panel right WH. | Na dotaz | Zadat poptávku | |
| 024 0 WHR96870 |
C00497878
481244010417 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 040 1 WHR96870 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR96870 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 044 0 WHR96870 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR96870 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR96870 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR96870 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR96870 |
C00316344
481244088884 |
Plinth | Na dotaz | Zadat poptávku | |
| 103 0 WHR96870 |
C00587779
481244018956 |
VONKAJSIE DVERE N | Na dotaz | Zadat poptávku | |
| 120 0 WHR96870 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR96870 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR96870 |
C00329789
481241758373 |
Tilt lock cpl. bk | Na dotaz | Zadat poptávku | |
| 131 0 WHR96870 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 175 0 WHR96870 |
C00588045
481231018833 |
Trim ornamental left SIL. | Na dotaz | Zadat poptávku | |
| 175 1 WHR96870 |
C00484683
481231018834 |
Trim ornamental right SIL | Na dotaz | Zadat poptávku | |
| 175 2 WHR96870 |
C00588046
481231018835 |
Trim ornamental lower SIL. | Na dotaz | Zadat poptávku | |
| 175 3 WHR96870 |
C00344416
481246668532 |
Batten whwh | Na dotaz | Zadat poptávku | |
| 176 0 WHR96870 |
C00488575
481231018736 |
Decorplate door | Na dotaz | Zadat poptávku | |
| 191 0 WHR96870 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR96870 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR96870 |
C00498279
481245819027 |
KOS NA RIAD HORNY KOV N | Na dotaz | Zadat poptávku | |
| 241 1 WHR96870 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR96870 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 6 WHR96870 |
C00319342
481231018757 |
Držák skleniček WGH1000 | 1 293 Kč
€ 51.00 |
||
| 241 8 WHR96870 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 242 0 WHR96870 |
C00313639
481231028134 |
Basket lower KIT wh | Na dotaz | Zadat poptávku | |
| 242 1 WHR96870 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR96870 |
C00340899
481246648059 |
Fixation wh | Na dotaz | Zadat poptávku | |
| 243 5 WHR96870 |
C00312440
481931039859 |
Cutlery basket KIT KIT | Na dotaz | Zadat poptávku | |
| 243 6 WHR96870 |
C00498277
481245818996 |
mrizka WH | 935 Kč
€ 36.90 |
||
| 261 0 WHR96870 |
C00336926
481946238271 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR96870 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR96870 |
C00312762
481246278995 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR96870 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR96870 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 265 0 WHR96870 |
C00312469
481240448637 |
Basket adjustm. cpl. cpl. | Na dotaz | Zadat poptávku | |
| 265 2 WHR96870 |
C00340206
481240448749 |
Gripbasket adjustment | Na dotaz | Zadat poptávku | |
| 301 0 WHR96870 |
C00740666
481245371678 |
Control panel INOX | Na dotaz | Zadat poptávku | |
| 303 1 WHR96870 |
C00529585
481246038117 |
plate, handle | Na dotaz | Zadat poptávku | |
| 305 1 WHR96870 |
C00333202
481950218241 |
Screw synthetic | Na dotaz | Zadat poptávku | |
| 305 2 WHR96870 |
C00333238
481950518191 |
matice | 364 Kč
€ 14.40 |
||
| 305 6 WHR96870 |
C00489139
481244010628 |
Batten adjustable | Na dotaz | Zadat poptávku | |
| 331 0 WHR96870 |
C00487520
481241359102 |
knoflik | 248 Kč
€ 9.80 |
||
| 332 0 WHR96870 |
C00491627
481241028884 |
Button SIL | Na dotaz | Zadat poptávku | |
| 332 3 WHR96870 |
C00491628
481241028886 |
Button ON/OFF SIL | Na dotaz | Zadat poptávku | |
| 400 0 WHR96870 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 405 0 WHR96870 |
C00336141
481236018511 |
Spray pump wo.Mot.per. | Na dotaz | Zadat poptávku | |
| 405 1 WHR96870 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 420 0 WHR96870 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR96870 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR96870 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR96870 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR96870 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR96870 |
C00499776
481232128406 |
Cable harness set | Na dotaz | Zadat poptávku | |
| 480 1 WHR96870 |
C00343881
481232128371 |
vodic spojovaci | 581 Kč
€ 22.90 |
||
| 480 3 WHR96870 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR96870 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR96870 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR96870 |
C00553304
481221478749 |
Control board | Na dotaz | Zadat poptávku | |
| 531 0 WHR96870 |
C00497327
481227318055 |
SPINAC DAVKOVANIA SOLI N | Na dotaz | Zadat poptávku | |
| 531 1 WHR96870 |
C00497328
481227318056 |
GOMBIK NASTAVOVACI PLAST. N | Na dotaz | Zadat poptávku | |
| 575 0 WHR96870 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR96870 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 616 0 WHR96870 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 620 0 WHR96870 |
C00482486
481221838116 |
OVLADACI PANEL | Na dotaz | Zadat poptávku | |
| 621 0 WHR96870 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 623 0 WHR96870 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR96870 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR96870 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR96870 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR96870 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR96870 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR96870 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR96870 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 700 0 WHR96870 |
C00337227
481253028804 |
Wasserstopp-Zulaufschlauch XSSG4000 | Na dotaz | Zadat poptávku | |
| 700 0 WHR96870 |
C00339223
481253028848 |
Hose, inlet aqua stop 2m | Na dotaz | Zadat poptávku | |
| 700 1 WHR96870 |
C00345763
481248048095 |
filtr | 78 Kč
€ 3.10 |
||
| 700 2 WHR96870 |
C00330915
481246668628 |
Gasket | Na dotaz | Zadat poptávku | |
| 701 1 WHR96870 |
C00327323
481231018153 |
Držák hadic | 542 Kč
€ 21.40 |
||
| 710 0 WHR96870 |
C00319374
481241868128 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR96870 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR96870 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR96870 |
C00319565
481246278993 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 716 0 WHR96870 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR96870 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR96870 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 1 WHR96870 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 721 1 WHR96870 |
C00311729
481236068347 |
Spray arm lower. cpl. | Na dotaz | Zadat poptávku | |
| 722 0 WHR96870 |
C00497514
481236068348 |
RAMENO STRIEKIACIE PLAST N | Na dotaz | Zadat poptávku | |
| 722 2 WHR96870 |
C00312995
481236068349 |
Spray arm 2nd level cp sub 481010555121 | Na dotaz | Zadat poptávku | |
| 723 0 WHR96870 |
C00318248
481236068351 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR96870 |
C00314298
481253029118 |
Tube assembly cpl. SUB 481253029331 | Na dotaz | Zadat poptávku | |
| 726 2 WHR96870 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR96870 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR96870 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR96870 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR96870 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 756 0 WHR96870 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR96870 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR96870 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR96870 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR96870 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR96870 |
C00345765
481248058123 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR96870 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR96870 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 6 WHR96870 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR96870 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR96870 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR96870 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR96870 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 901 0 WHR96870 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR96870 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR96870 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR96870 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 901 8 WHR96870 |
C00328871
481240118075 |
spona20-32/9 | 135 Kč
€ 5.30 |
||
| 902 1 WHR96870 |
C00330973
481246678015 |
uhelnik upevnovaci | 427 Kč
€ 16.90 |
||
| 902 1 WHR96870 |
C00491959
481246678361 |
uhelnik upevnovaci | 394 Kč
€ 15.60 |
||
| 902 2 WHR96870 |
C00329172
481240478241 |
Držák | 563 Kč
€ 22.20 |
||
| 904 0 WHR96870 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 547 Kč
€ 21.60 |
||
| 904 2 WHR96870 |
C00342337
481246279635 |
krytka | 104 Kč
€ 4.10 |
||
| 910 1 WHR96870 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 910 2 WHR96870 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR96870 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 4 WHR96870 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR96870 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR96870 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR96870 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 9 WHR96870 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 911 0 WHR96870 |
C00620454
481250238148 |
SKRUTKA 3,5X9,5 N | Na dotaz | Zadat poptávku | |
| 964 1 WHR96870 |
C00498458
481246668511 |
Gasket housing upper housing upper | Na dotaz | Zadat poptávku | |
| 993 1 WHR96870 |
C00319875
481246678388 |
Ochranná fólie, parní zábrana nad vestavnou myčku Whirlpool ADG 2020 FD, ADG 6240 IX, ADG | 207 Kč
€ 8.20 |
||
| 993 2 WHR96870 |
C00329037
481240448753 |
Kliž pro nastavení nohy myčky | 555 Kč
€ 21.90 |
||
| 993 5 WHR96870 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
