BAUKNECHT GSX 4966 G/1 DISHWASHER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSX 4966 G/1 DISHWASHER BK |
| Kód 12NC: | 857200816250 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 0 WHR105802 |
C00490271
481290508427 |
Plinth Not Shown | Na dotaz | Zadat poptávku | |
| 000 0 WHR105802 |
C00595446
481290508435 |
Protector Not Shown. | Na dotaz | Zadat poptávku | |
| A00 1 WHR105802 |
C00499842
481246628123 |
Gasket inlet hose | Na dotaz | Zadat poptávku | |
| A00 1 WHR105802 |
C00499844
481246628129 |
Gasket | Na dotaz | Zadat poptávku | |
| A00 1 WHR105802 |
C00499848
481248058329 |
Filter | Na dotaz | Zadat poptávku | |
| A00 1 WHR105802 |
C00595408
481248058116 |
Hose inlet. | Na dotaz | Zadat poptávku | |
| A00 2 WHR105802 |
C00595435
481254828007 |
Hose draining. | Na dotaz | Zadat poptávku | |
| A00 3 WHR105802 |
C00493159
481232118225 |
Cable mains | Na dotaz | Zadat poptávku | |
| A00 4 WHR105802 |
C00482697
481232118132 |
Base Back | Na dotaz | Zadat poptávku | |
| A00 6 WHR105802 |
C00595405
481246668778 |
Plinth. | Na dotaz | Zadat poptávku | |
| A00 7 WHR105802 |
C00482916
481244010383 |
Base Component | Na dotaz | Zadat poptávku | |
| A01 1 WHR105802 |
C00488912
481241618294 |
Hinge Left | Na dotaz | Zadat poptávku | |
| A01 2 WHR105802 |
C00488913
481241618296 |
Hinge Right | Na dotaz | Zadat poptávku | |
| A01 3 WHR105802 |
C00491478
481240118488 |
Fixation | Na dotaz | Zadat poptávku | |
| A01 3 WHR105802 |
C00621473
481250218654 |
Screw. | Na dotaz | Zadat poptávku | |

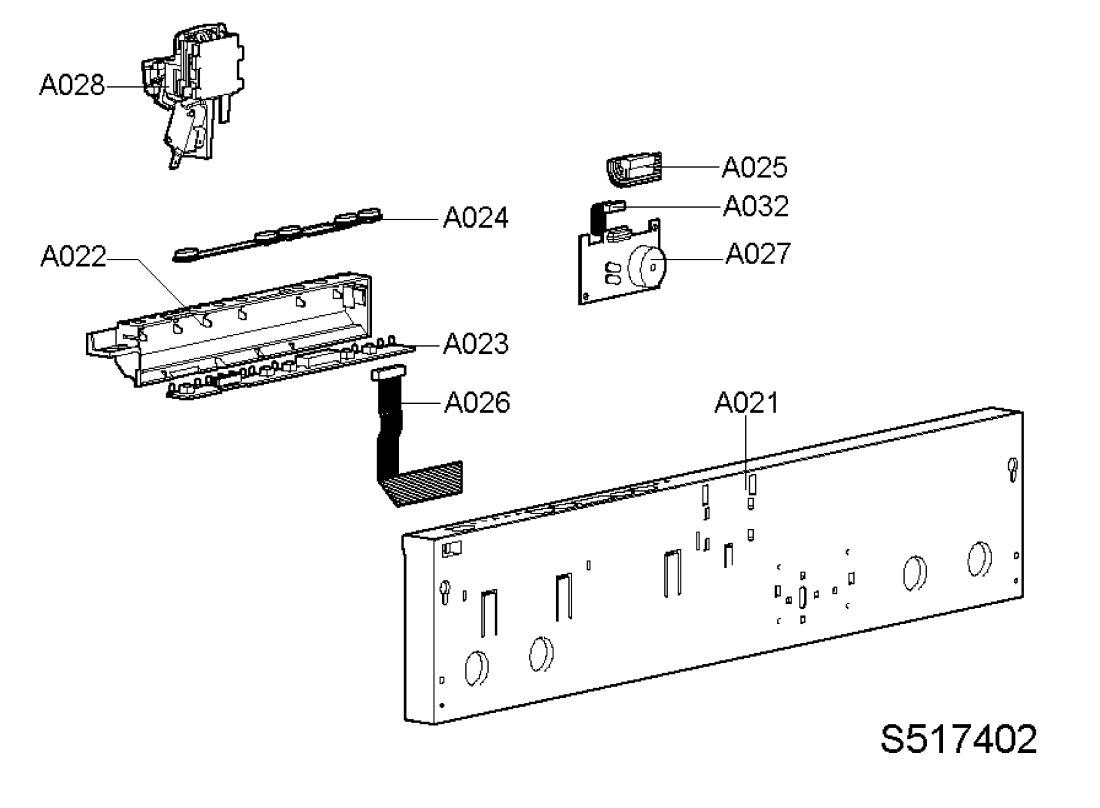

| A02 1 WHR105802 |
C00482923
481244011077 |
Control panel | Na dotaz | Zadat poptávku | |
| A02 2 WHR105802 |
C00595111
481210028083 |
Casing. | Na dotaz | Zadat poptávku | |
| A02 3 WHR105802 |
C00482488
481221838124 |
User board | Na dotaz | Zadat poptávku | |
| A02 4 WHR105802 |
C00595235
481241359159 |
Button | Na dotaz | Zadat poptávku | |
| A02 5 WHR105802 |
C00621301
481211518039 |
Cable | Na dotaz | Zadat poptávku | |
| A02 6 WHR105802 |
C00492888
481221478554 |
Cable harness 16 Pol | Na dotaz | Zadat poptávku | |
| A02 7 WHR105802 |
C00499811
481245210712 |
Insert panel | Na dotaz | Zadat poptávku | |
| A02 8 WHR105802 |
C00493529
481241618297 |
Door lock | Na dotaz | Zadat poptávku | |
| A03 2 WHR105802 |
C00511564
481232118236 |
Cable | Na dotaz | Zadat poptávku | |
| B00 1 WHR105802 |
C00485036
481244010376 |
Door inner | Na dotaz | Zadat poptávku | |
| B00 2 WHR105802 |
C00492068
481252318028 |
Nut snap | Na dotaz | Zadat poptávku | |
| B00 2 WHR105802 |
C00484796
481241618293 |
Door | Na dotaz | Zadat poptávku | |
| B00 3 WHR105802 |
C00486145
481246668679 |
Gasket door | Na dotaz | Zadat poptávku | |
| B00 4 WHR105802 |
C00485005
481241868223 |
Combidosage | Na dotaz | Zadat poptávku | |
| B00 4 WHR105802 |
C00485008
481241868228 |
Lid & Gasket | Na dotaz | Zadat poptávku | |
| B00 4 WHR105802 |
C00621411
481241868229 |
Lock & O-Ring | Na dotaz | Zadat poptávku | |
| B00 5 WHR105802 |
C00379798
481246668787 |
Fixation Combidosage | Na dotaz | Zadat poptávku | |
| B00 5 WHR105802 |
C00594508
481250218565 |
Screw 4,0 x 12. | Na dotaz | Zadat poptávku | |
| B00 9 WHR105802 |
C00489953
481245372471 |
Program indic. | Na dotaz | Zadat poptávku | |
| C00 2 WHR105802 |
C00493725
481253029098 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| C00 3 WHR105802 |
C00493575
481245819056 |
Shunt left | Na dotaz | Zadat poptávku | |
| C00 4 WHR105802 |
C00493576
481245819057 |
Shunt right | Na dotaz | Zadat poptávku | |
| C00 5 WHR105802 |
C00485037
481244010379 |
Protector Strip | Na dotaz | Zadat poptávku | |
| C00 6 WHR105802 |
C00486146
481246668683 |
gasket door | Na dotaz | Zadat poptávku | |
| C00 7 WHR105802 |
C00595250
481244010396 |
Batten f.tube. | Na dotaz | Zadat poptávku | |
| C00 8 WHR105802 |
C00488710
481240118539 |
Hook Door lock | Na dotaz | Zadat poptávku | |
| C00 9 WHR105802 |
C00492017
481250118002 |
Bolt screw thread | Na dotaz | Zadat poptávku | |
| C01 1 WHR105802 |
C00486022
481246238102 |
Rail | Na dotaz | Zadat poptávku | |
| C01 2 WHR105802 |
C00491932
481246258047 |
Cap Rail | Na dotaz | Zadat poptávku | |
| C01 3 WHR105802 |
C00484040
481246248084 |
Pojezd-dvojkolečko | 1 088 Kč
€ 43.00 |
||
| C02 0 WHR105802 |
C00485006
481241868224 |
Reg.dosage | Na dotaz | Zadat poptávku | |
| C02 0 WHR105802 |
C00621405
481241818295 |
Valve | Na dotaz | Zadat poptávku | |
| C02 2 WHR105802 |
C00485007
481241868225 |
Gasket KIT | Na dotaz | Zadat poptávku | |
| C02 3 WHR105802 |
C00490138
481246668638 |
Lock Reg.-Dos. | Na dotaz | Zadat poptávku | |
| C02 4 WHR105802 |
C00492090
481253018023 |
Fixation Spray Arm | 540 Kč
€ 21.30 |
||
| C02 5 WHR105802 |
C00595253
481244011078 |
Tube,upper. | Na dotaz | Zadat poptávku | |
| C02 6 WHR105802 |
C00491387
481231018682 |
Ring,pressure RfSt 1.4301 4,4/13x1 | Na dotaz | Zadat poptávku | |
| C02 7 WHR105802 |
C00492048
481250218655 |
Screw Torx Pl A2 | Na dotaz | Zadat poptávku | |
| C03 0 WHR105802 |
C00486221
481248058096 |
Microfilter | Na dotaz | Zadat poptávku | |
| C03 1 WHR105802 |
C00491977
481248058115 |
Sieve | Na dotaz | Zadat poptávku | |
| C03 2 WHR105802 |
C00595449
481293008015 |
Screw KS 18/10 KA40. | Na dotaz | Zadat poptávku | |
| C03 3 WHR105802 |
C00595407
481248058114 |
Sieve. | Na dotaz | Zadat poptávku | |
| C03 4 WHR105802 |
C00488639
481236068641 |
Spray arm | Na dotaz | Zadat poptávku | |
| C03 5 WHR105802 |
C00493604
481246279782 |
Hopper Salt | Na dotaz | Zadat poptávku | |
| C03 6 WHR105802 |
C00486111
481246628119 |
Gasket | Na dotaz | Zadat poptávku | |
| C03 7 WHR105802 |
C00490090
481246228136 |
Lock | Na dotaz | Zadat poptávku | |
| C03 8 WHR105802 |
C00486110
481246628118 |
Gasket | Na dotaz | Zadat poptávku | |
| D00 2 WHR105802 |
C00499774
481232118133 |
Cable Earth | Na dotaz | Zadat poptávku | |
| D00 3 WHR105802 |
C00621353
481232118134 |
Clamp | Na dotaz | Zadat poptávku | |
| D00 3 WHR105802 |
C00621474
481250218656 |
Washer | Na dotaz | Zadat poptávku | |
| D00 3 WHR105802 |
C00594505
481250218556 |
Screw M 5x12. | Na dotaz | Zadat poptávku | |
| D00 4 WHR105802 |
C00490911
481210028072 |
Sensor leakage | Na dotaz | Zadat poptávku | |
| D00 6 WHR105802 |
C00499798
481241818328 |
Water collector | Na dotaz | Zadat poptávku | |
| D00 7 WHR105802 |
C00486338
481253268091 |
Gasket | Na dotaz | Zadat poptávku | |
| D00 8 WHR105802 |
C00493217
481236018506 |
Diaphragm Pump | Na dotaz | Zadat poptávku | |
| D01 0 WHR105802 |
C00490125
481246628128 |
Heating element 2040W 230V | Na dotaz | Zadat poptávku | |
| D01 1 WHR105802 |
C00486109
481246628117 |
Gasket | Na dotaz | Zadat poptávku | |
| D01 2 WHR105802 |
C00492842
481990800522 |
Cap,feedtrough | Na dotaz | Zadat poptávku | |
| D01 3 WHR105802 |
C00491373
481228268025 |
Feeler NTC | Na dotaz | Zadat poptávku | |
| D01 4 WHR105802 |
C00490954
481223708007 |
Feeler | Na dotaz | Zadat poptávku | |
| D01 5 WHR105802 |
C00548188
481236018505 |
Pump. | Na dotaz | Zadat poptávku | |
| D01 5 WHR105802 |
C00621321
481222008016 |
O-Ring | Na dotaz | Zadat poptávku | |
| D01 6 WHR105802 |
C00495786
481254828023 |
Hose | Na dotaz | Zadat poptávku | |
| D02 0 WHR105802 |
C00500263
481241868226 |
Monoblock | Na dotaz | Zadat poptávku | |
| D02 1 WHR105802 |
C00499860
481254828018 |
Hose | Na dotaz | Zadat poptávku | |
| D02 2 WHR105802 |
C00484941
481241818294 |
Contact Reed Salt Cont | Na dotaz | Zadat poptávku | |
| D02 3 WHR105802 |
C00492088
481252918047 |
O-Ring | Na dotaz | Zadat poptávku | |
| D02 4 WHR105802 |
C00493622
481250218657 |
Washer | Na dotaz | Zadat poptávku | |
| D02 5 WHR105802 |
C00488413
481202298003 |
Insulation Base | Na dotaz | Zadat poptávku | |
| D02 6 WHR105802 |
C00493534
481241818329 |
Valve magnet | Na dotaz | Zadat poptávku | |
| D02 7 WHR105802 |
C00595438
481254828019 |
Hose inlet. | Na dotaz | Zadat poptávku | |
| D02 8 WHR105802 |
C00405953
481253058179 |
O-Ring Spray pumppe | Na dotaz | Zadat poptávku | |
| D02 8 WHR105802 |
C00401637
481236078146 |
Pump body Spray pump | Na dotaz | Zadat poptávku | |
| D02 8 WHR105802 |
C00490910
481210028069 |
Spray pump | Na dotaz | Zadat poptávku | |
| D02 9 WHR105802 |
C00493829
481254828022 |
Hose | Na dotaz | Zadat poptávku | |
| D03 0 WHR105802 |
C00595108
481210028071 |
Holder Spray Pump. | Na dotaz | Zadat poptávku | |
| D03 1 WHR105802 |
C00499853
481250218658 |
Pin Fixation | Na dotaz | Zadat poptávku | |
| D03 2 WHR105802 |
C00595099
481210028032 |
Holder ,SPRAY PUMP | Na dotaz | Zadat poptávku | |
| D03 3 WHR105802 |
C00491758
481244029337 |
Sensor Dirt Casing | Na dotaz | Zadat poptávku | |
| D03 4 WHR105802 |
C00621459
481248058331 |
Sensor Dirt Hose. | Na dotaz | Zadat poptávku | |
| D03 5 WHR105802 |
C00492089
481252918048 |
O-Ring | Na dotaz | Zadat poptávku | |
| D04 0 WHR105802 |
C00494213
481290508484 |
Timer | Na dotaz | Zadat poptávku | |
| E00 1 WHR105802 |
C00595388
481245819219 |
Basket. | Na dotaz | Zadat poptávku | |
| E00 2 WHR105802 |
C00489991
481245819061 |
Hinge Left | Na dotaz | Zadat poptávku | |
| E00 3 WHR105802 |
C00489990
481245819059 |
Hinge Right | Na dotaz | Zadat poptávku | |
| E00 4 WHR105802 |
C00490002
481245819192 |
Wheel basket | Na dotaz | Zadat poptávku | |
| E00 5 WHR105802 |
C00491882
481245819203 |
Holder Glass | Na dotaz | Zadat poptávku | |
| E00 6 WHR105802 |
C00489992
481245819062 |
Basket insert | Na dotaz | Zadat poptávku | |
| E00 8 WHR105802 |
C00490005
481245819204 |
Basket insert | Na dotaz | Zadat poptávku | |
| E00 9 WHR105802 |
C00500868
481245819205 |
Basket insert | Na dotaz | Zadat poptávku | |
| E01 1 WHR105802 |
C00486309
481253018024 |
Water guide upper basket | Na dotaz | Zadat poptávku | |
| E01 2 WHR105802 |
C00531169
481290508424 |
Spray arm Cpl Cpl | Na dotaz | Zadat poptávku | |
| E01 3 WHR105802 |
C00500927
481253018025 |
Lock Spray arm | Na dotaz | Zadat poptávku | |
| E01 4 WHR105802 |
C00489994
481245819068 |
Cutlery basket | Na dotaz | Zadat poptávku | |
| E03 0 WHR105802 |
C00595389
481245819221 |
Basket. | Na dotaz | Zadat poptávku | |
| E03 1 WHR105802 |
C00529533
481245819065 |
Roller Bottom | Na dotaz | Zadat poptávku | |
| E03 2 WHR105802 |
C00480662
481245819193 |
Cutlery basket | Na dotaz | Zadat poptávku | |
| E03 3 WHR105802 |
C00490003
481245819194 |
Cutlery basket Insert | Na dotaz | Zadat poptávku | |
| E03 4 WHR105802 |
C00490007
481245819222 |
Basket Insert | Na dotaz | Zadat poptávku | |
| E03 5 WHR105802 |
C00480663
481245819223 |
Basket Insert | Na dotaz | Zadat poptávku | |
| E03 6 WHR105802 |
C00499828
481245819224 |
Basket Insert | Na dotaz | Zadat poptávku | |
| E03 7 WHR105802 |
C00490008
481245819225 |
Basket Insert | Na dotaz | Zadat poptávku | |
| E03 8 WHR105802 |
C00490009
481245819226 |
Basket Clip | Na dotaz | Zadat poptávku | |
| F01 5 WHR105802 |
C00485148
481244089072 |
Protector | Na dotaz | Zadat poptávku | |
| F01 5 WHR105802 |
C00493550
481244089073 |
Foil steam | Na dotaz | Zadat poptávku | |
| F03 0 WHR105802 |
C00595252
481244011055 |
Mounting frame. | Na dotaz | Zadat poptávku | |
| F03 1 WHR105802 |
C00482915
481244010382 |
Base Component | Na dotaz | Zadat poptávku | |
| F03 2 WHR105802 |
C00499863
481290508422 |
Foot (x2) | Na dotaz | Zadat poptávku | |
| F03 3 WHR105802 |
C00595193
481236068643 |
Sprayer Fixation | Na dotaz | Zadat poptávku | |
| F03 4 WHR105802 |
C00497184
481245819213 |
Insert piece Set | Na dotaz | Zadat poptávku | |
| F03 5 WHR105802 |
C00495960
481245819195 |
Basket | Na dotaz | Zadat poptávku | |
| F03 6 WHR105802 |
C00499827
481245819198 |
Clip Insert | Na dotaz | Zadat poptávku | |
| F03 7 WHR105802 |
C00490004
481245819202 |
Basket Grip | Na dotaz | Zadat poptávku | |
| F03 8 WHR105802 |
C00490006
481245819206 |
Basket insert | Na dotaz | Zadat poptávku | |
| F03 9 WHR105802 |
C00595113
481210028089 |
Cup holder | Na dotaz | Zadat poptávku | |
