BAUKNECHT GSX 6521 DISHWASHER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | GSX 6521 DISHWASHER BK |
| Kód 12NC: | 857201316050 |
| Značka: | BAUKNECHT |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

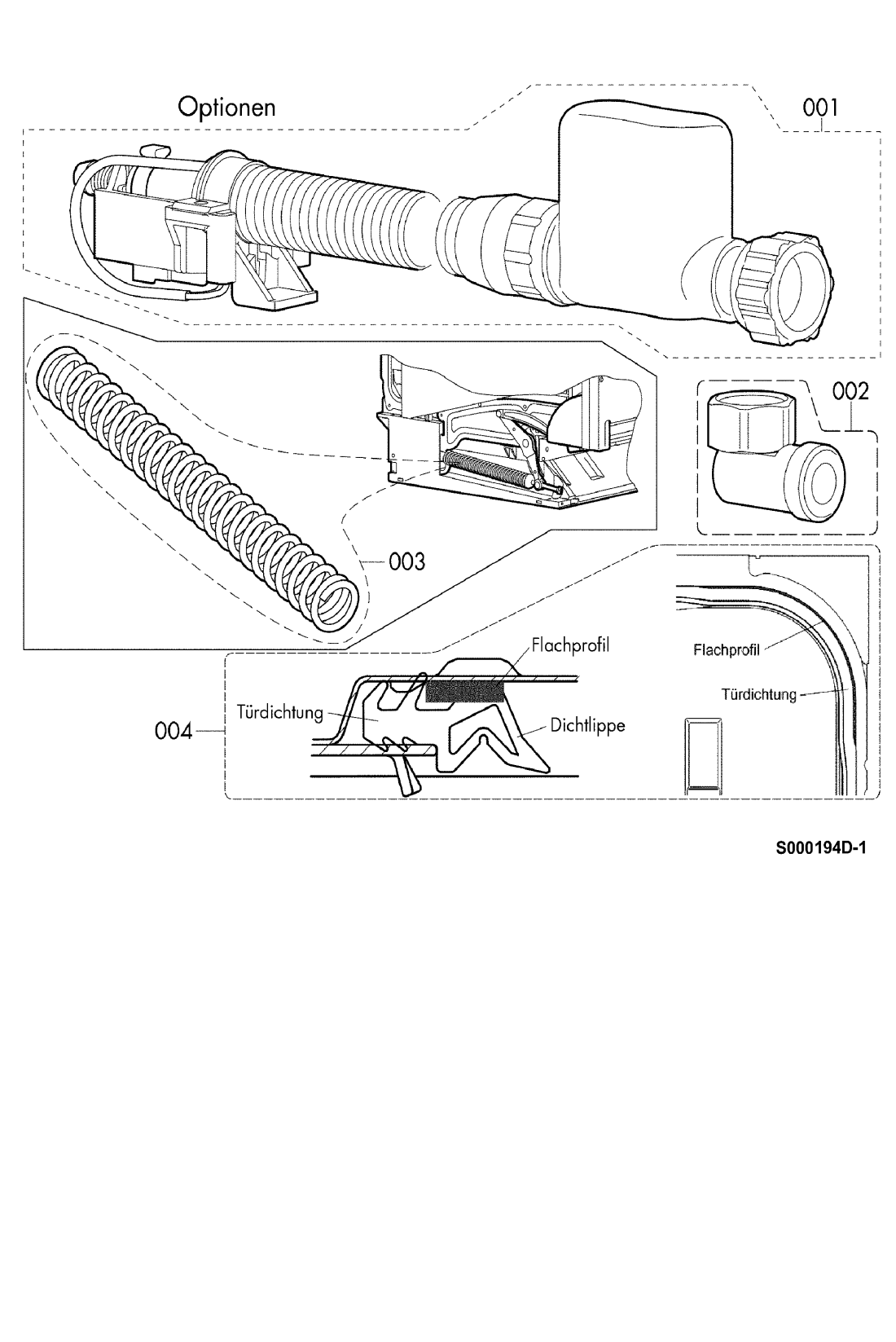

| A001 WHR47583 |
C00405598
481253029379 |
Hose inlet | Na dotaz | Zadat poptávku | |
| A002 WHR47583 |
C00405692
481253049049 |
Angle iron | Na dotaz | Zadat poptávku | |
| A003 WHR47583 |
C00405315
481249238401 |
Spring,compres. 3,3x25,3x218 | Na dotaz | Zadat poptávku | |
| A004 WHR47583 |
C00405076
481246668888 |
Gasket door | Na dotaz | Zadat poptávku | |
| B001 WHR47583 |
C00488585
481231018969 |
Insulator | Na dotaz | Zadat poptávku | |
| B001 WHR47583 |
C00403128
481244011372 |
Tub kpl. insulated FeO | Na dotaz | Zadat poptávku | |
| B002 WHR47583 |
C00405693
481253049051 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| B003 WHR47583 |
C00493575
481245819056 |
Shunt left | Na dotaz | Zadat poptávku | |
| B004 WHR47583 |
C00493576
481245819057 |
Shunt right | Na dotaz | Zadat poptávku | |
| B005 WHR47583 |
C00485037
481244010379 |
Protector Strip | Na dotaz | Zadat poptávku | |
| B006 WHR47583 |
C00486142
481246668634 |
Gasket door 1.5 mm | Na dotaz | Zadat poptávku | |
| B007 WHR47583 |
C00481552
481240118538 |
Batten | Na dotaz | Zadat poptávku | |
| B007 WHR47583 |
C00621370
481240118543 |
Batten f. tube | Na dotaz | Zadat poptávku | |
| B008 WHR47583 |
C00488710
481240118539 |
Hook Door lock | Na dotaz | Zadat poptávku | |
| B009 WHR47583 |
C00492017
481250118002 |
Bolt screw thread | Na dotaz | Zadat poptávku | |
| B010 WHR47583 |
C00486022
481246238102 |
Rail | Na dotaz | Zadat poptávku | |
| B011 WHR47583 |
C00491932
481246258047 |
Cap Rail | Na dotaz | Zadat poptávku | |
| B012 WHR47583 |
C00484040
481246248084 |
Pojezd-dvojkolečko | 1 088 Kč
€ 42.90 |
||
| B020 WHR47583 |
C00394595
480140100907 |
Contact reed | Na dotaz | Zadat poptávku | |
| B020 WHR47583 |
C00485006
481241868224 |
Reg.dosage | Na dotaz | Zadat poptávku | |
| B022 WHR47583 |
C00485007
481241868225 |
Gasket KIT | Na dotaz | Zadat poptávku | |
| B023 WHR47583 |
C00490138
481246668638 |
Lock Reg.-Dos. | Na dotaz | Zadat poptávku | |
| B024 WHR47583 |
C00492090
481253018023 |
Fixation Spray Arm | 540 Kč
€ 21.30 |
||
| B025 WHR47583 |
C00401567
481236068809 |
Spray arm 3.Ebene KD-Set vorm. | Na dotaz | Zadat poptávku | |
| B030 WHR47583 |
C00486221
481248058096 |
Microfilter | Na dotaz | Zadat poptávku | |
| B031 WHR47583 |
C00491977
481248058115 |
Sieve | Na dotaz | Zadat poptávku | |
| B033 WHR47583 |
C00405240
481248058367 |
filtr hruby | 566 Kč
€ 22.30 |
||
| B034 WHR47583 |
C00488639
481236068641 |
Spray arm | Na dotaz | Zadat poptávku | |
| B035 WHR47583 |
C00493604
481246279782 |
Hopper Salt | Na dotaz | Zadat poptávku | |
| B036 WHR47583 |
C00486111
481246628119 |
Gasket | Na dotaz | Zadat poptávku | |
| B037 WHR47583 |
C00490090
481246228136 |
Lock | Na dotaz | Zadat poptávku | |
| B038 WHR47583 |
C00486110
481246628118 |
Gasket | Na dotaz | Zadat poptávku | |
| B061 WHR47583 |
C00405406
481250218717 |
Screw PT-L-Schr I6rd St EZN | Na dotaz | Zadat poptávku | |
| B062 WHR47583 |
C00405404
481250218714 |
Screw 16rd St EZN 4.0x16 | Na dotaz | Zadat poptávku | |
| B063 WHR47583 |
C00492048
481250218655 |
Screw Torx Pl A2 | Na dotaz | Zadat poptávku | |
| B064 WHR47583 |
C00405407
481250218718 |
Screw PT-S-Schr I6rd 18/10 | Na dotaz | Zadat poptávku | |
| B065 WHR47583 |
C00491387
481231018682 |
Ring,pressure RfSt 1.4301 4,4/13x1 | Na dotaz | Zadat poptávku | |
| B066 WHR47583 |
C00405442
481250518416 |
Nut 6-Kt-Mu/Spannsch. St EZN | Na dotaz | Zadat poptávku | |
| C001 WHR47583 |
C00403129
481244011373 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| C002 WHR47583 |
C00401303
481232118276 |
Fitting Erde | Na dotaz | Zadat poptávku | |
| C003 WHR47583 |
C00621353
481232118134 |
Clamp | Na dotaz | Zadat poptávku | |
| C004 WHR47583 |
C00401304
481232118277 |
Spring,contact !-Schutz | Na dotaz | Zadat poptávku | |
| C006 WHR47583 |
C00402806
481241818561 |
Water collector | Na dotaz | Zadat poptávku | |
| C007 WHR47583 |
C00486338
481253268091 |
Gasket | Na dotaz | Zadat poptávku | |
| C008 WHR47583 |
C00401364
481236018556 |
Diaphragm zu Ablaufpumpe | Na dotaz | Zadat poptávku | |
| C010 WHR47583 |
C00490125
481246628128 |
Heating element 2040W 230V | Na dotaz | Zadat poptávku | |
| C011 WHR47583 |
C00486109
481246628117 |
Gasket | Na dotaz | Zadat poptávku | |
| C012 WHR47583 |
C00492842
481990800522 |
Cap,feedtrough | Na dotaz | Zadat poptávku | |
| C013 WHR47583 |
C00491373
481228268025 |
Feeler NTC | Na dotaz | Zadat poptávku | |
| C014 WHR47583 |
C00490954
481223708007 |
Feeler | Na dotaz | Zadat poptávku | |
| C015 WHR47583 |
C00401365
481236018557 |
Pump, draining | Na dotaz | Zadat poptávku | |
| C016 WHR47583 |
C00401305
481232118278 |
Clamp Ohr 31,4-34,6 | Na dotaz | Zadat poptávku | |
| C016 WHR47583 |
C00495786
481254828023 |
Hose | Na dotaz | Zadat poptávku | |
| C030 WHR47583 |
C00491692
481241868222 |
Monoblock | Na dotaz | Zadat poptávku | |
| C031 WHR47583 |
C00484941
481241818294 |
Contact Reed Salt Cont | Na dotaz | Zadat poptávku | |
| C032 WHR47583 |
C00405599
481253029381 |
Bend Schlauch SHB/Sumpf | Na dotaz | Zadat poptávku | |
| C033 WHR47583 |
C00492088
481252918047 |
O-Ring | Na dotaz | Zadat poptávku | |
| C034 WHR47583 |
C00405953
481253058179 |
O-Ring Spray pumppe | Na dotaz | Zadat poptávku | |
| C034 WHR47583 |
C00401735
481236158424 |
Čerpadlo oběhové | 12 137 Kč
€ 478.70 |
||
| C035 WHR47583 |
C00320287
481254828045 |
Hose | Na dotaz | Zadat poptávku | |
| C035 WHR47583 |
C00401827
481240148587 |
Strap BLST 02Z 275NA | Na dotaz | Zadat poptávku | |
| C036 WHR47583 |
C00402112
481240478777 |
Support Motor | Na dotaz | Zadat poptávku | |
| C037 WHR47583 |
C00402113
481240478778 |
Support Pumpe | Na dotaz | Zadat poptávku | |
| C038 WHR47583 |
C00491758
481244029337 |
Sensor Dirt Casing | Na dotaz | Zadat poptávku | |
| C040 WHR47583 |
C00405986
481254828046 |
OUTLET ELBOW | Na dotaz | Zadat poptávku | |
| C040 WHR47583 |
C00490908
481210028048 |
Clamp BLST 02Z 275NA | Na dotaz | Zadat poptávku | |
| C041 WHR47583 |
C00492089
481252918048 |
O-Ring | Na dotaz | Zadat poptávku | |
| C042 WHR47583 |
C00405600
481253029382 |
Hose inlet 1.7m Eltek | Na dotaz | Zadat poptávku | |
| C042 WHR47583 |
C00394732
480140102558 |
Seal A.Stop Eltek | Na dotaz | Zadat poptávku | |
| C042 WHR47583 |
C00394733
480140102559 |
Filter A.Stop Eltek | Na dotaz | Zadat poptávku | |
| C042 WHR47583 |
C00394734
480140102561 |
Regulator KD-Set 2.5-3l/min | Na dotaz | Zadat poptávku | |
| C043 WHR47583 |
C00405601
481253029383 |
Hose Aquastop/RDG | Na dotaz | Zadat poptávku | |
| C043 WHR47583 |
C00490907
481210028041 |
O-Ring | Na dotaz | Zadat poptávku | |
| C044 WHR47583 |
C00401795
481240118712 |
Clamp Kabel SHB | Na dotaz | Zadat poptávku | |
| C050 WHR47583 |
C00400637
481221838321 |
User board Rechner Ni+Nvi KD-Version | Na dotaz | Zadat poptávku | |
| C050 WHR47583 |
C00401319
481232128448 |
Cable harness Aktoren N, S (ngz) | Na dotaz | Zadat poptávku | |
| C050 WHR47583 |
C00401320
481232128449 |
Cable harness Kleinspannung S (ngz) | Na dotaz | Zadat poptávku | |
| C050 WHR47583 |
C00484622
481221478555 |
Fuse | Na dotaz | Zadat poptávku | |
| C051 WHR47583 |
C00459539
481244079206 |
Support Leistungsteil | Na dotaz | Zadat poptávku | |
| C052 WHR47583 |
C00459540
481244079207 |
Cap for hole Leistungsteil | Na dotaz | Zadat poptávku | |
| C053 WHR47583 |
C00401317
481232128446 |
Clamp Netzkabel | Na dotaz | Zadat poptávku | |
| C054 WHR47583 |
C00403130
481244011374 |
Crossbar Sockel | Na dotaz | Zadat poptávku | |
| C061 WHR47583 |
C00317066
481250218719 |
Screw L-Schr.I6rdFurch M5x12 | Na dotaz | Zadat poptávku | |
| C061 WHR47583 |
C00621474
481250218656 |
Washer | Na dotaz | Zadat poptávku | |
| C063 WHR47583 |
C00405408
481250218721 |
Screw PT-L-Schr.TorxStEZN4.0x30 | Na dotaz | Zadat poptávku | |
| C064 WHR47583 |
C00493622
481250218657 |
Washer | Na dotaz | Zadat poptávku | |
| D001 WHR47583 |
C00404355
481245819307 |
Basket o N/S kpl. | Na dotaz | Zadat poptávku | |
| D002 WHR47583 |
C00489991
481245819061 |
Hinge Left | Na dotaz | Zadat poptávku | |
| D003 WHR47583 |
C00489990
481245819059 |
Hinge Right | Na dotaz | Zadat poptávku | |
| D004 WHR47583 |
C00490002
481245819192 |
Wheel basket | Na dotaz | Zadat poptávku | |
| D005 WHR47583 |
C00491882
481245819203 |
Holder Glass | Na dotaz | Zadat poptávku | |
| D006 WHR47583 |
C00489992
481245819062 |
Basket insert | Na dotaz | Zadat poptávku | |
| D007 WHR47583 |
C00500868
481245819205 |
Basket insert | Na dotaz | Zadat poptávku | |
| D008 WHR47583 |
C00490005
481245819204 |
Basket insert | Na dotaz | Zadat poptávku | |
| D011 WHR47583 |
C00486309
481253018024 |
Water guide upper basket | Na dotaz | Zadat poptávku | |
| D012 WHR47583 |
C00488640
481236068642 |
Spray arm | Na dotaz | Zadat poptávku | |
| D013 WHR47583 |
C00500927
481253018025 |
Lock Spray arm | Na dotaz | Zadat poptávku | |
| D030 WHR47583 |
C00404365
481245819318 |
Basket u N vorm | Na dotaz | Zadat poptávku | |
| D031 WHR47583 |
C00493577
481245819066 |
Roller Bottom | Na dotaz | Zadat poptávku | |
| D032 WHR47583 |
C00404357
481245819309 |
Cutlery basket hydrophil | Na dotaz | Zadat poptávku | |
| D033 WHR47583 |
C00490003
481245819194 |
Cutlery basket Insert | Na dotaz | Zadat poptávku | |
| D034 WHR47583 |
C00404358
481245819311 |
Holder Einsatzseite 8 ST | Na dotaz | Zadat poptávku | |
| D035 WHR47583 |
C00404359
481245819312 |
Holder Einsatzseite 10 DT | Na dotaz | Zadat poptávku | |
| D036 WHR47583 |
C00404360
481245819313 |
Needle Easy | Na dotaz | Zadat poptávku | |
| E001 WHR47583 |
C00399680
481202298008 |
Insulation not shown | Na dotaz | Zadat poptávku | |
| E001 WHR47583 |
C00403135
481244011379 |
Door inner kpl N/SVi/SLVi | Na dotaz | Zadat poptávku | |
| E002 WHR47583 |
C00484795
481241618292 |
Door D 3,5 Art | Na dotaz | Zadat poptávku | |
| E002 WHR47583 |
C00492068
481252318028 |
Nut snap | Na dotaz | Zadat poptávku | |
| E003 WHR47583 |
C00486145
481246668679 |
Gasket door | Na dotaz | Zadat poptávku | |
| E004 WHR47583 |
C00621705
481241868304 |
Combidosage | Na dotaz | Zadat poptávku | |
| E004 WHR47583 |
C00485008
481241868228 |
Lid & Gasket | Na dotaz | Zadat poptávku | |
| E004 WHR47583 |
C00621411
481241868229 |
Lock & O-Ring | Na dotaz | Zadat poptávku | |
| E005 WHR47583 |
C00379798
481246668787 |
Fixation Combidosage | Na dotaz | Zadat poptávku | |
| E006 WHR47583 |
C00488414
481202298004 |
Insulation Door | Na dotaz | Zadat poptávku | |
| E009 WHR47583 |
C00404206
481245373042 |
Insert Programmkurzanleitung | Na dotaz | Zadat poptávku | |
| E009 WHR47583 |
C00404209
481245373045 |
Insert Programmkurzanleitung | Na dotaz | Zadat poptávku | |
| E021 WHR47583 |
C00405409
481250218722 |
Screw PT-L-Schr. Torx St EZN | Na dotaz | Zadat poptávku | |
| F001 WHR47583 |
C00403153
481244011401 |
Bottom Umbauset Gleitblech | Na dotaz | Zadat poptávku | |
| F002 WHR47583 |
C00482916
481244010383 |
Base Component | Na dotaz | Zadat poptávku | |
| F003 WHR47583 |
C00403144
481244011391 |
Mounting frame Installationsset GS55 | Na dotaz | Zadat poptávku | |
| F004 WHR47583 |
C00595193
481236068643 |
Sprayer Fixation | Na dotaz | Zadat poptávku | |
| F005 WHR47583 |
C00595113
481210028089 |
Cup holder | Na dotaz | Zadat poptávku | |
| F010 WHR47583 |
C00499829
481245819319 |
Cutlery -auflage Set | Na dotaz | Zadat poptávku | |
| F011 WHR47583 |
C00490004
481245819202 |
Basket Grip | Na dotaz | Zadat poptávku | |
| F012 WHR47583 |
C00499827
481245819198 |
Clip Insert | Na dotaz | Zadat poptávku | |
| F013 WHR47583 |
C00404364
481245819317 |
Holder contain. | Na dotaz | Zadat poptávku | |
| F014 WHR47583 |
C00404363
481245819316 |
Cutlery Aufnahme | Na dotaz | Zadat poptávku | |
| F020 WHR47583 |
C00485148
481244089072 |
Protector | Na dotaz | Zadat poptávku | |
| F020 WHR47583 |
C00493550
481244089073 |
Foil steam | Na dotaz | Zadat poptávku | |
| F021 WHR47583 |
C00403155
481244011403 |
Mounting kit Vi 2-teilig | Na dotaz | Zadat poptávku | |
| F022 WHR47583 |
C00405415
481250218728 |
Set screw Befestig. Set Frontplatte | Na dotaz | Zadat poptávku | |
| F023 WHR47583 |
C00403149
481244011396 |
Cover Set Nischenabdeckung | Na dotaz | Zadat poptávku | |
| F024 WHR47583 |
C00403148
481244011395 |
Profile Set Dekorplatte 2-teilig | Na dotaz | Zadat poptávku | |
| G002 WHR47583 |
C00405602
481253029384 |
Hose draining | Na dotaz | Zadat poptávku | |
| G003 WHR47583 |
C00493159
481232118225 |
Cable mains | Na dotaz | Zadat poptávku | |
| G004 WHR47583 |
C00403132
481244011376 |
Pedestal cover hinten | Na dotaz | Zadat poptávku | |
| G005 WHR47583 |
C00401791
481240118701 |
Clamp RDG | Na dotaz | Zadat poptávku | |
| G006 WHR47583 |
C00403133
481244011377 |
Pedestal cover vorn | Na dotaz | Zadat poptávku | |
| G009 WHR47583 |
C00394591
480140100903 |
Slide Installationsset GS55 Gle | Na dotaz | Zadat poptávku | |
| G009 WHR47583 |
C00482698
481232118216 |
Slide | Na dotaz | Zadat poptávku | |
| G011 WHR47583 |
C00488912
481241618294 |
Hinge Left | Na dotaz | Zadat poptávku | |
| G012 WHR47583 |
C00405410
481250218723 |
Screw LS-Schr I6rd 18/10 | Na dotaz | Zadat poptávku | |
| G012 WHR47583 |
C00488913
481241618296 |
Hinge Right | Na dotaz | Zadat poptávku | |
| G013 WHR47583 |
C00394589
480140100896 |
Screw PT-S In-6rnd 18/10 4X10 | Na dotaz | Zadat poptávku | |
| G013 WHR47583 |
C00491478
481240118488 |
Fixation | Na dotaz | Zadat poptávku | |
| G014 WHR47583 |
C00491425
481232118217 |
Fixation Base | Na dotaz | Zadat poptávku | |
| G015 WHR47583 |
C00499801
481244010381 |
Fixation | Na dotaz | Zadat poptávku | |
| G021 WHR47583 |
C00403145
481244011392 |
Panel 55 N vi kpl. | Na dotaz | Zadat poptávku | |
| G022 WHR47583 |
C00484579
481211518036 |
Control cover | Na dotaz | Zadat poptávku | |
| G023 WHR47583 |
C00400635
481221838318 |
User board Bedienteil Nvi | Na dotaz | Zadat poptávku | |
| G024 WHR47583 |
C00490913
481210028081 |
Button | Na dotaz | Zadat poptávku | |
| G027 WHR47583 |
C00499811
481245210712 |
Insert panel | Na dotaz | Zadat poptávku | |
| G028 WHR47583 |
C00493529
481241618297 |
Door lock | Na dotaz | Zadat poptávku | |
| G032 WHR47583 |
C00492888
481221478554 |
Cable harness 16 Pol | Na dotaz | Zadat poptávku | |
| G033 WHR47583 |
C00494209
481290508428 |
Cable harness | Na dotaz | Zadat poptávku | |
